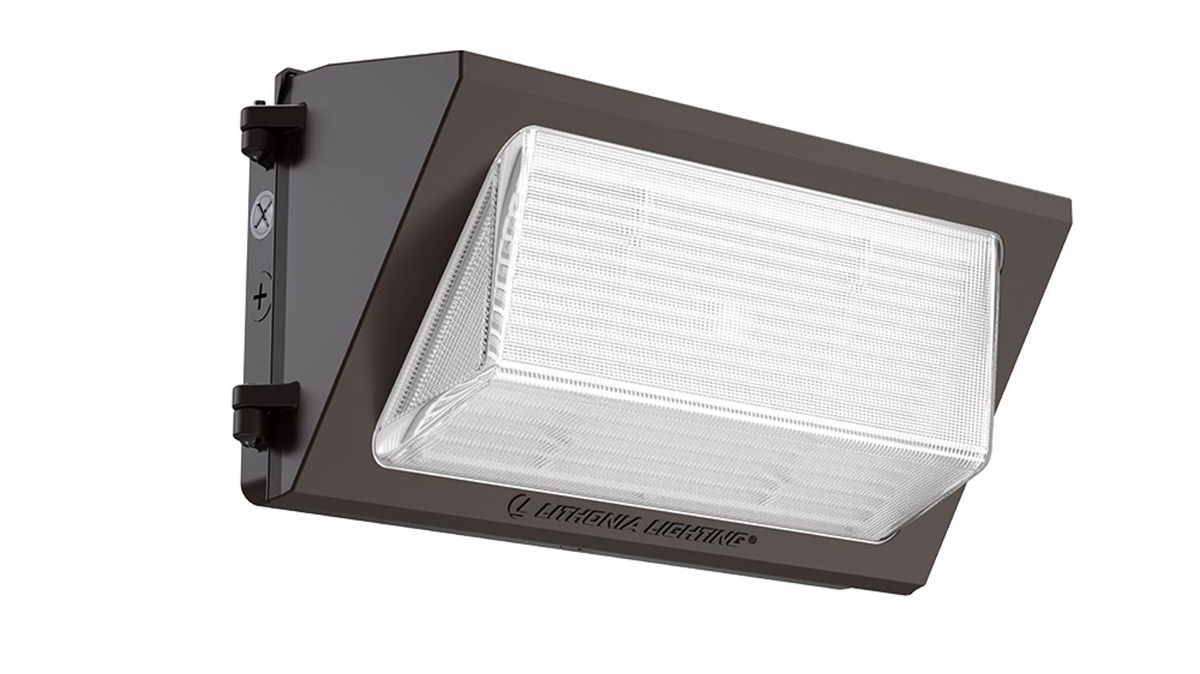

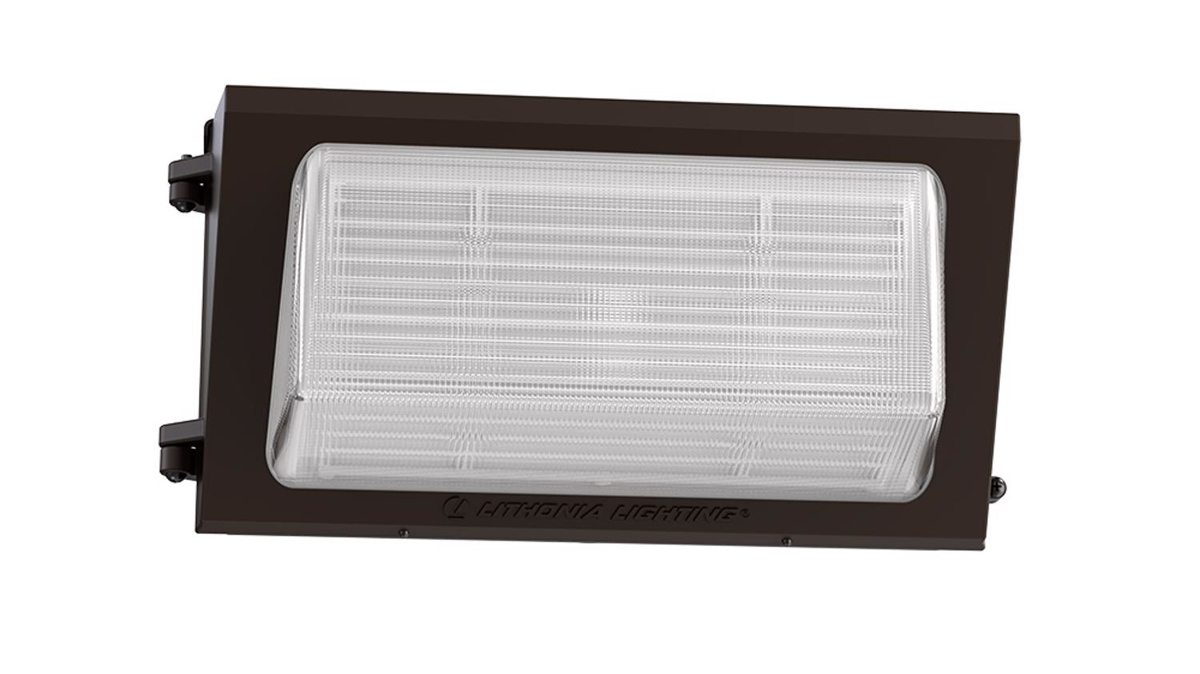

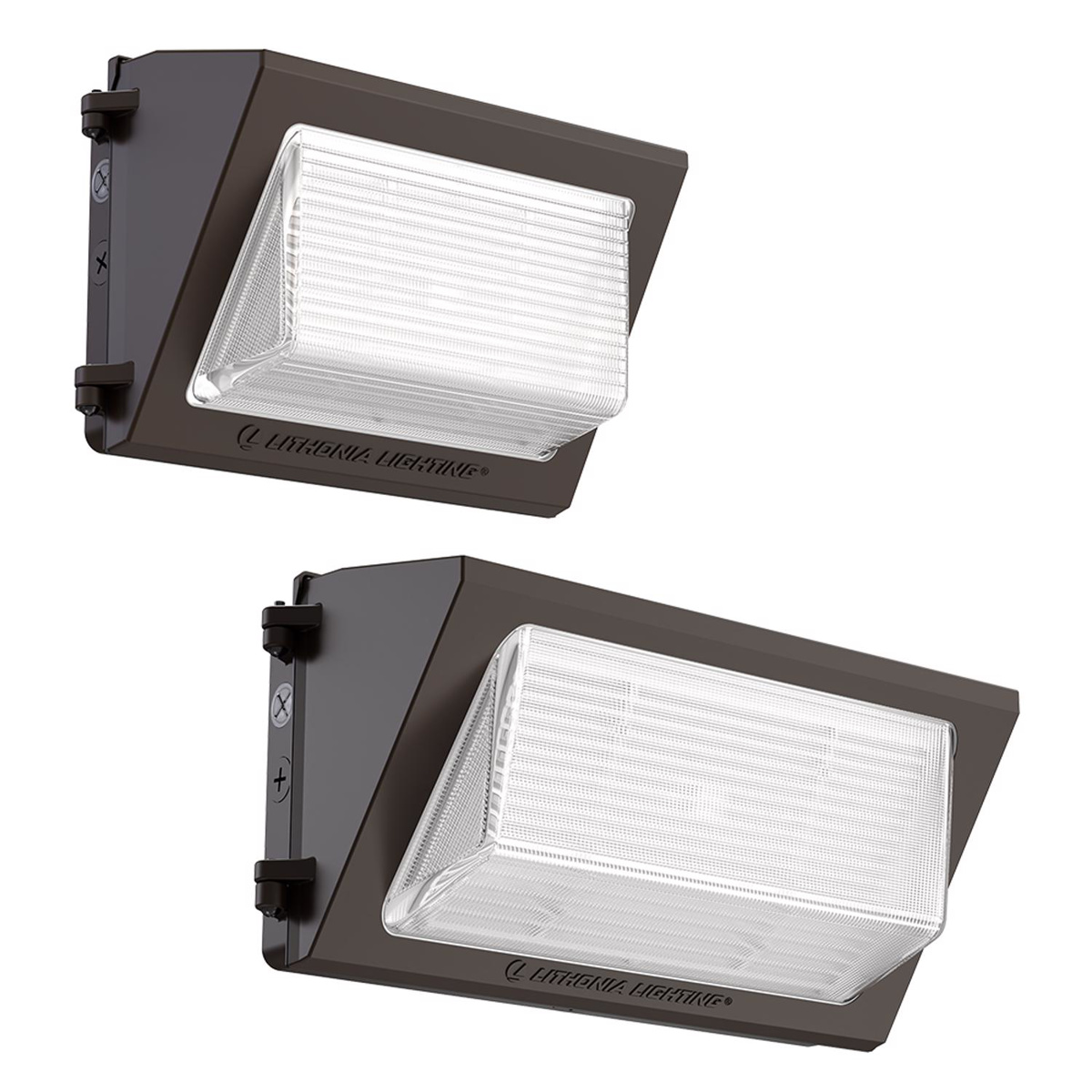

Lithonia TWR ALO Wallpacks LED 120 - 347 V 55/82/112 W 8200/12100/16100 lm 3000/4000/5000 K Bronze

PrimaryProductImage
PrimaryProductImage
Logo
Mfg #: TWR2LEDALOSWW2UVOLTPEDDBTXD
BOR #: 3583465
Looking for prices?
Sign In
Create an Account

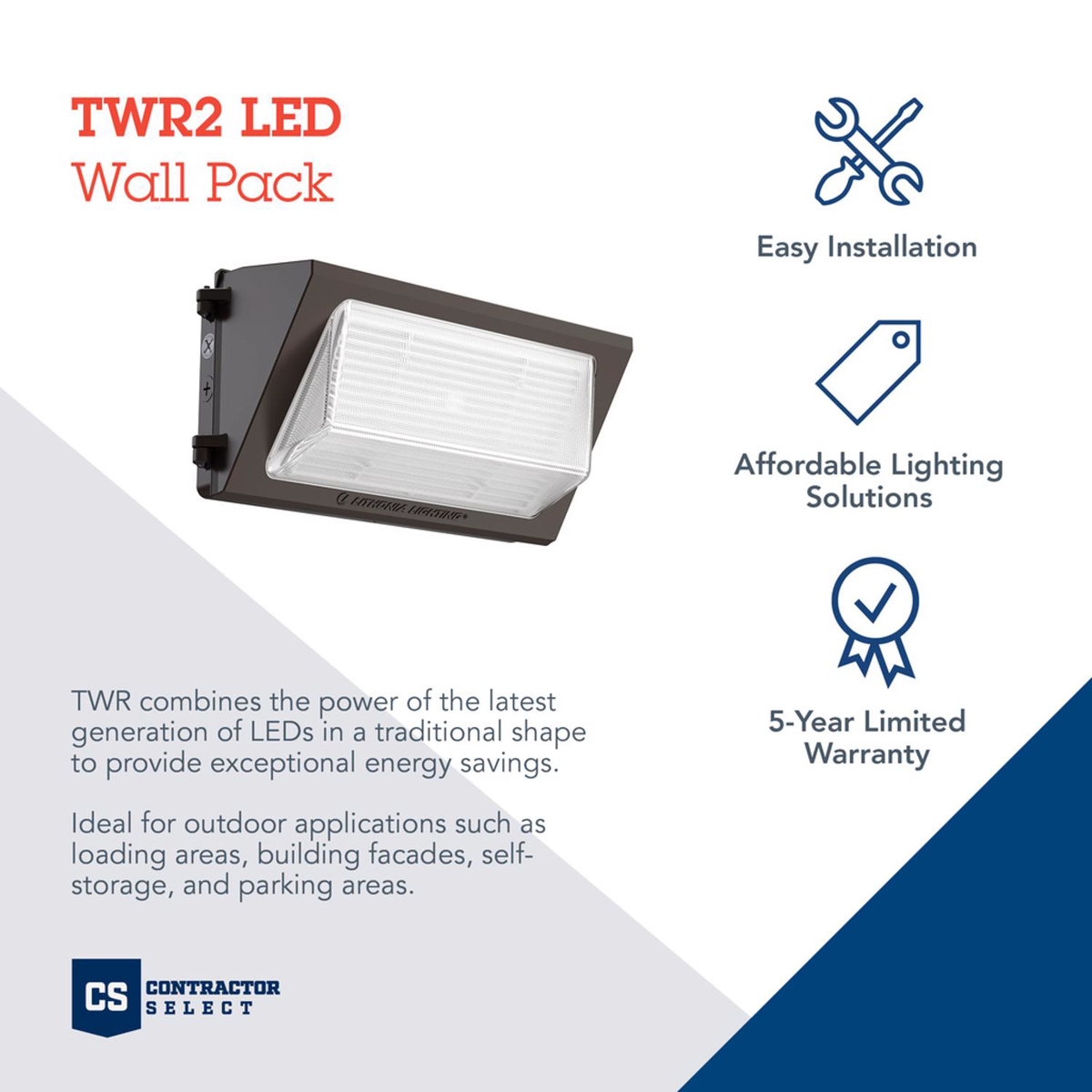

Contractor Select™ TWR LED LED Wallpack Adjustable+Switchable+Photocell: The Lithonia Lighting® TWR wallpacks combine the power of the latest generation of LEDs in a popular and classic day-form to provide exceptional energy savings. These wallpacks give

  • Energy savings of up to 86% when replacing HID wall packs with less than two year paybacks

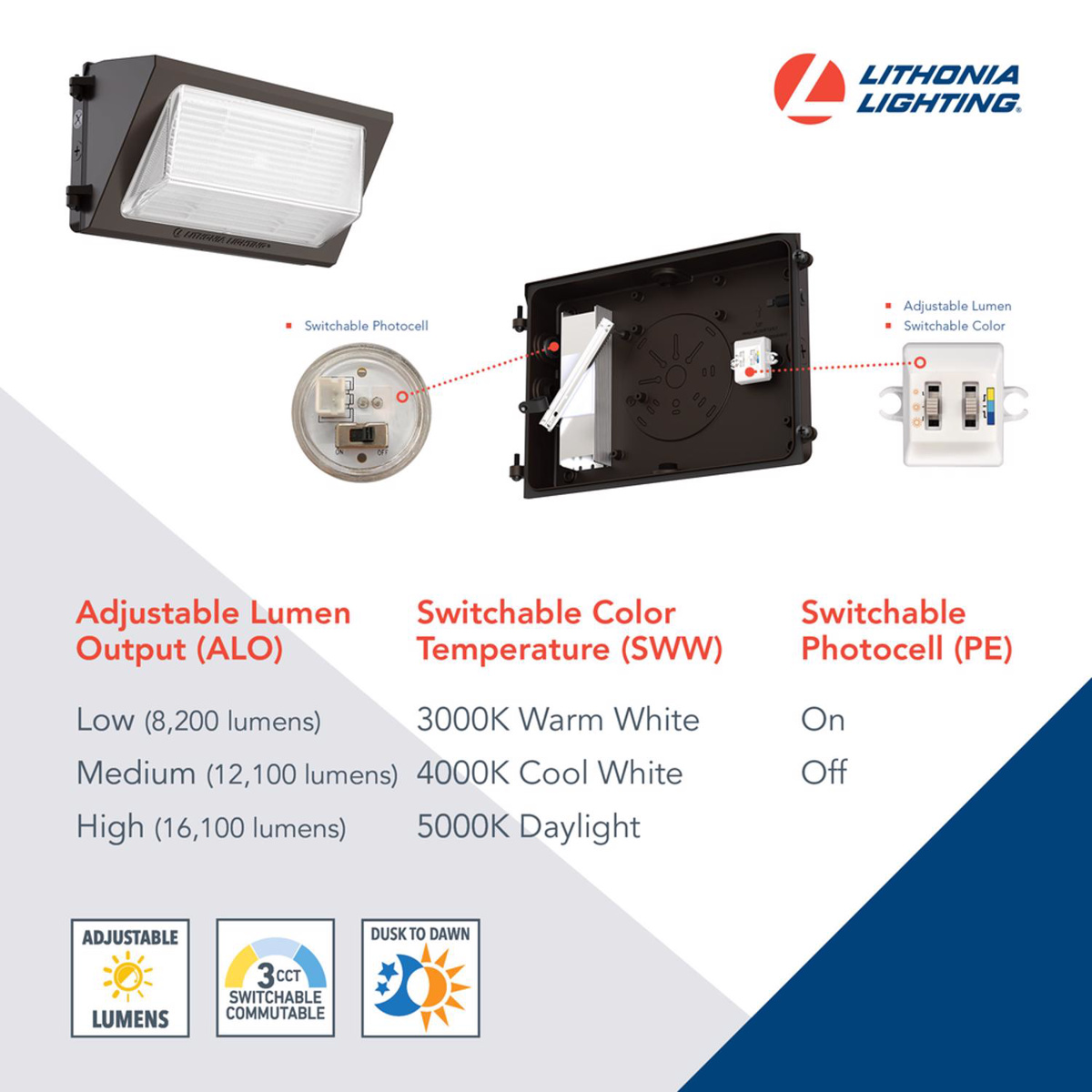

  • Three power levels of adjustable lumen output. Switchable CCT(3000K/4000K/5000K) offers warm, cool and daylight in a single fixture
  • Rugged cast-aluminum housing with bronze polyester powder paint for lasting durability.

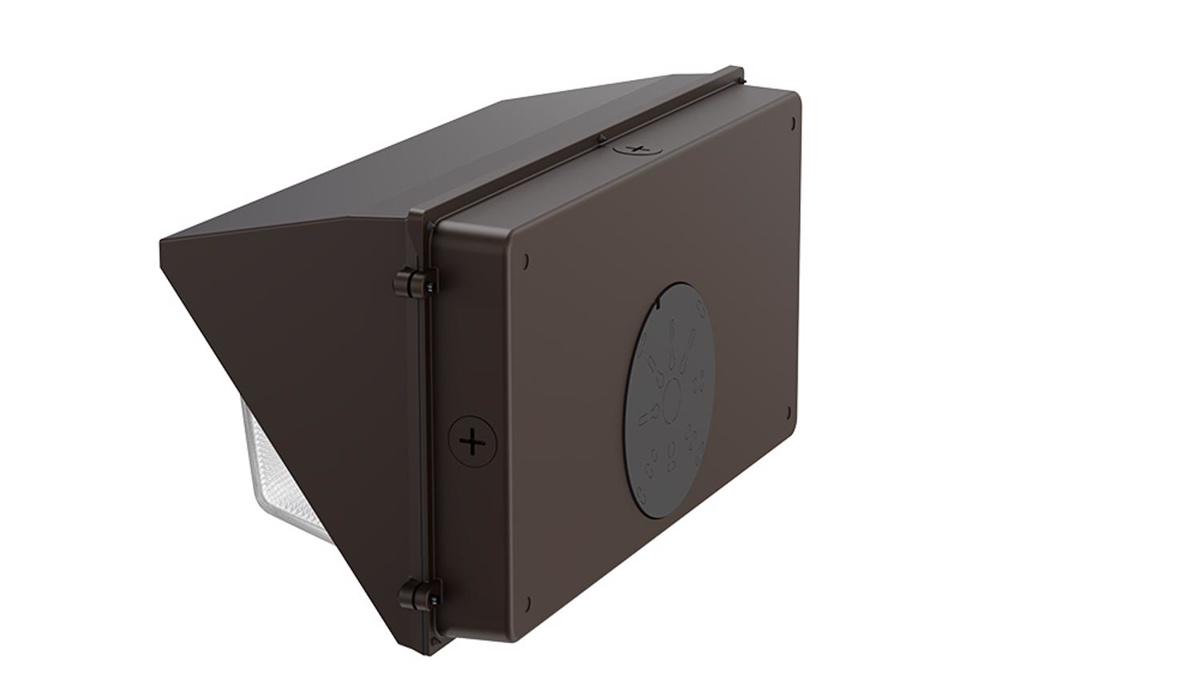

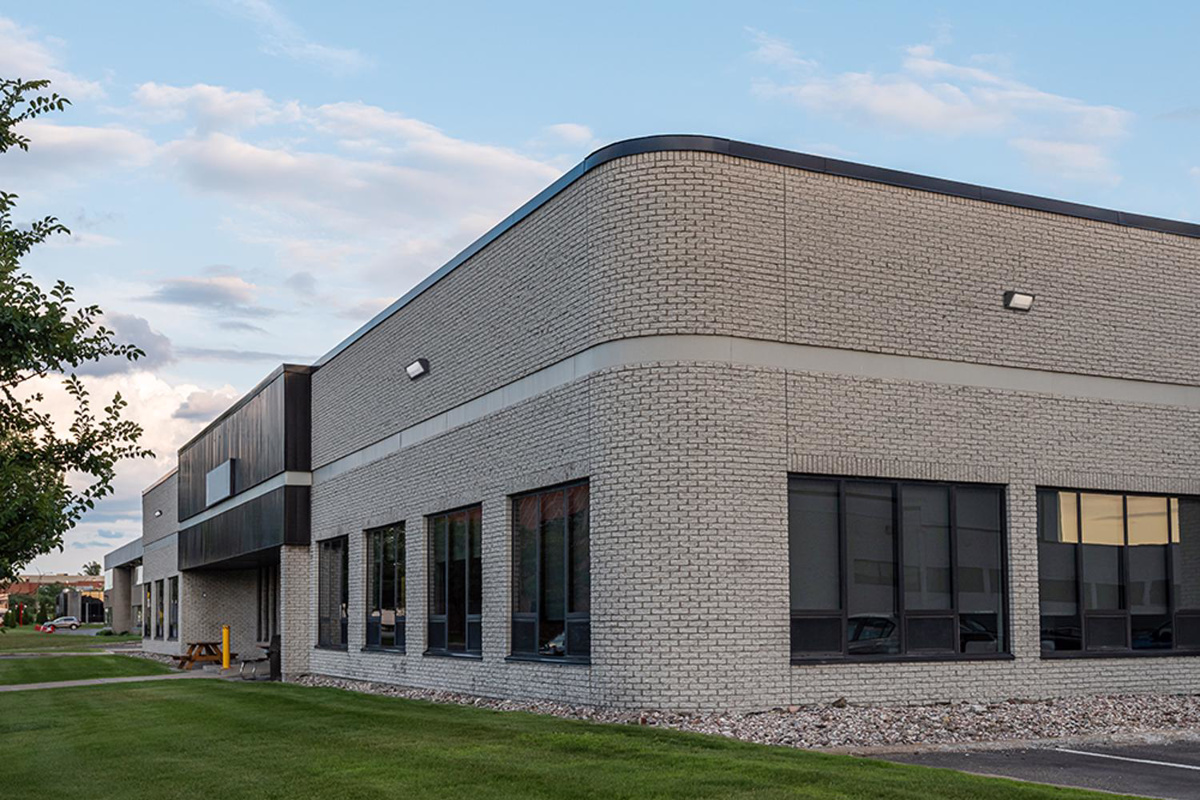

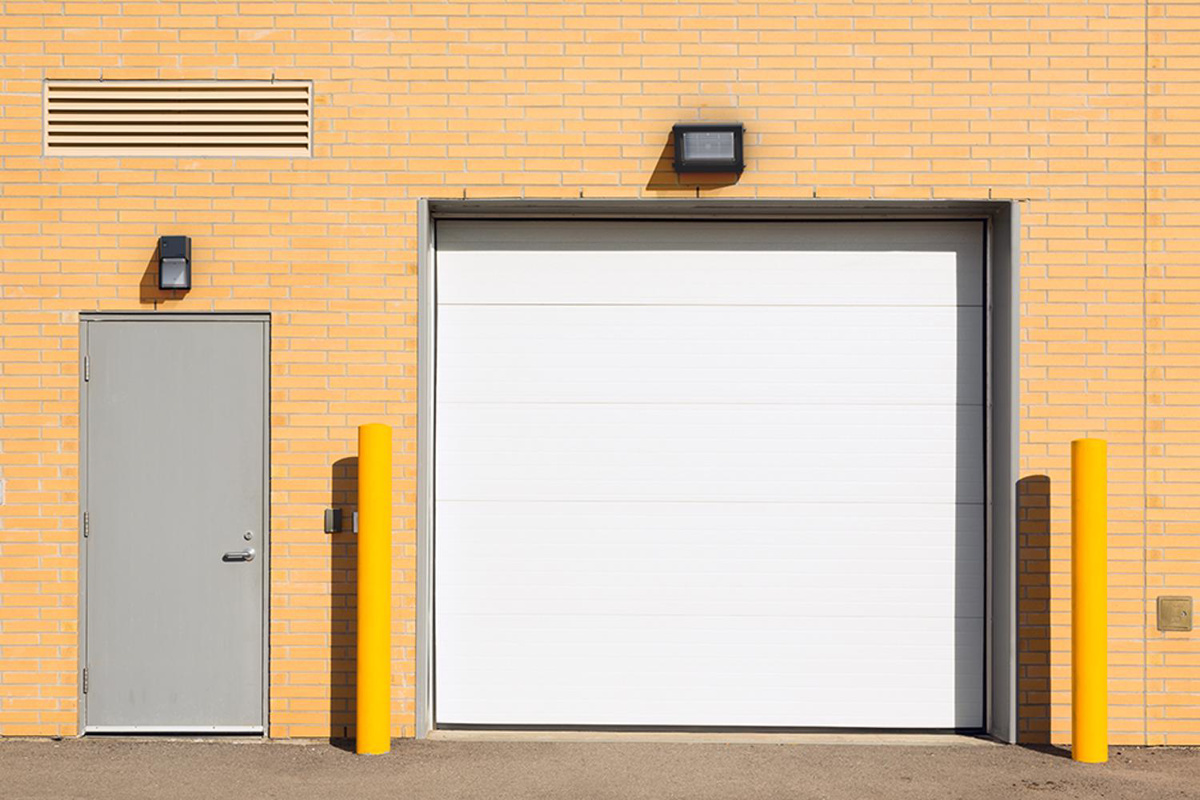

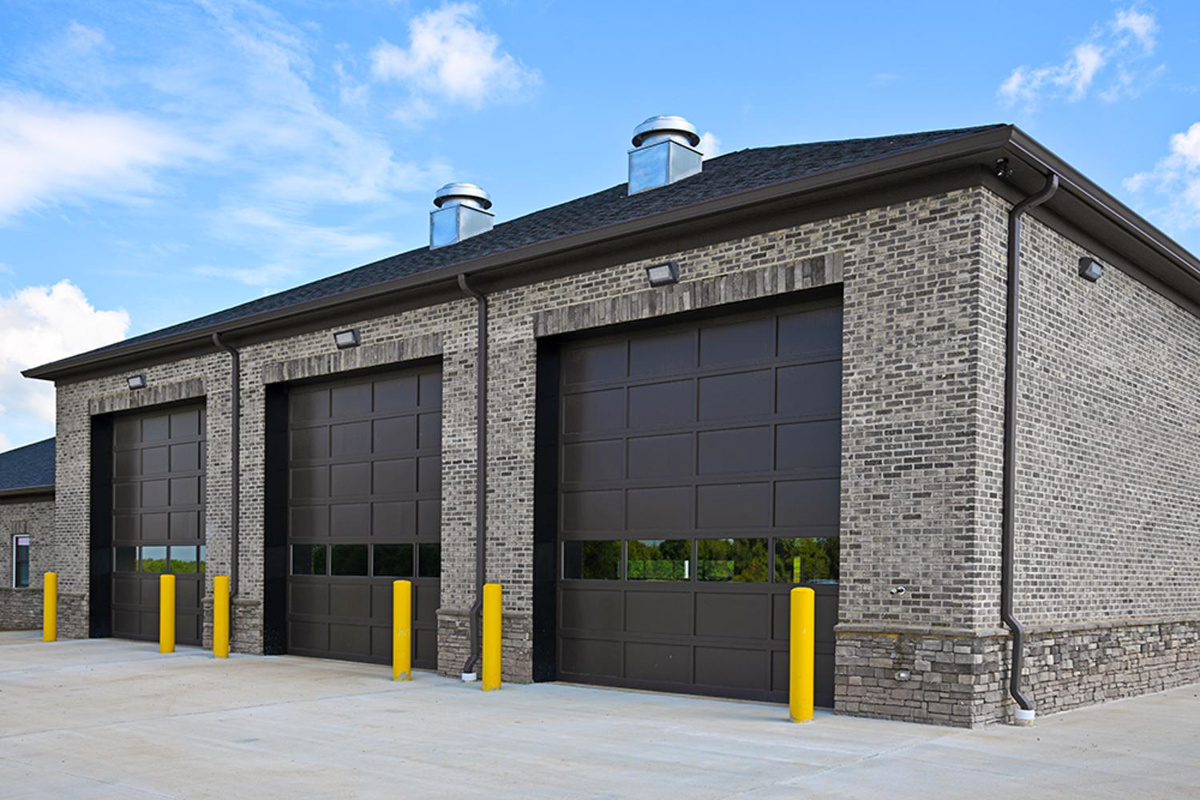

  • Designed for wall mounting above four feet from ground. Housing is configured for mounting directly over a standard 4” outlet box (by others) or for surface wiring via any of four convenient 1/2” threaded conduit entry hubs.

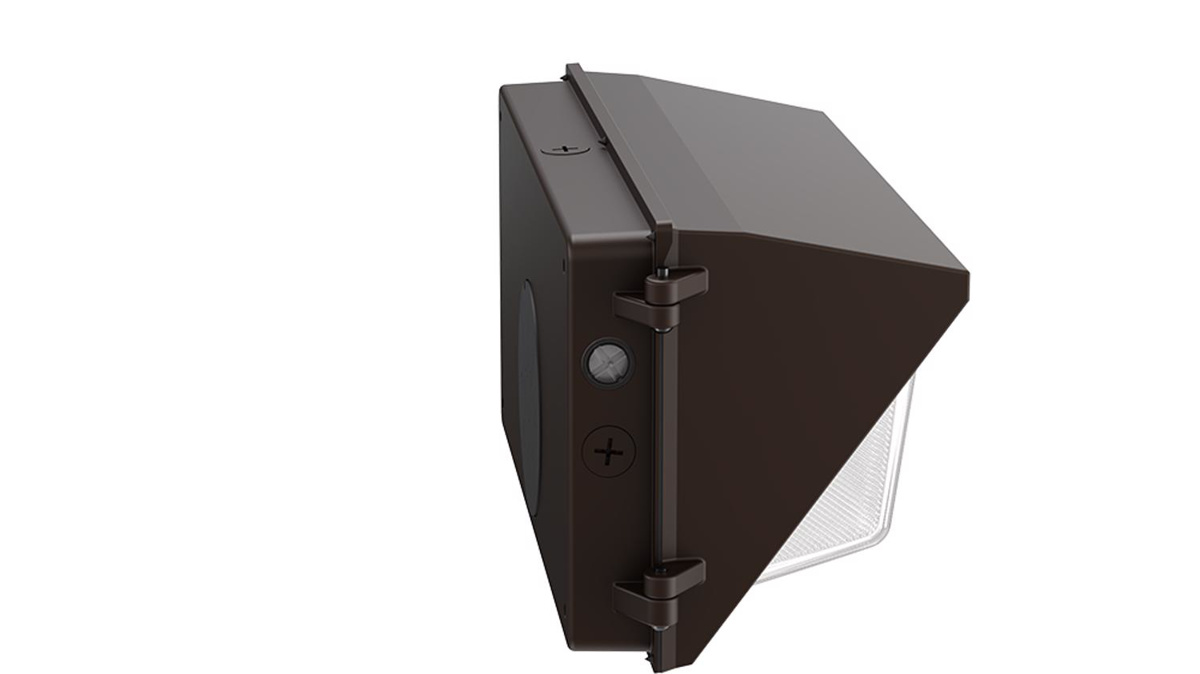

  • Door is hinged on the side and can be detached for easy installation and service.
  • Castings are sealed with a one-piece gasket to inhibit the entrance of external contaminants.
  • Up to 155 LPW
  • Rated for outdoor installations, -40ºC minimum ambient.
  • Standard photocell can be turned on or off
  • Borosilicate glass lens
  • Wet Location Rated
  • IP65
See More
Product can be ordered only in multiples of
Specifications
Device Control Type Photocell
Brand Lithonia
Fixture Type Wallpack
Series TWR Contractor Select™

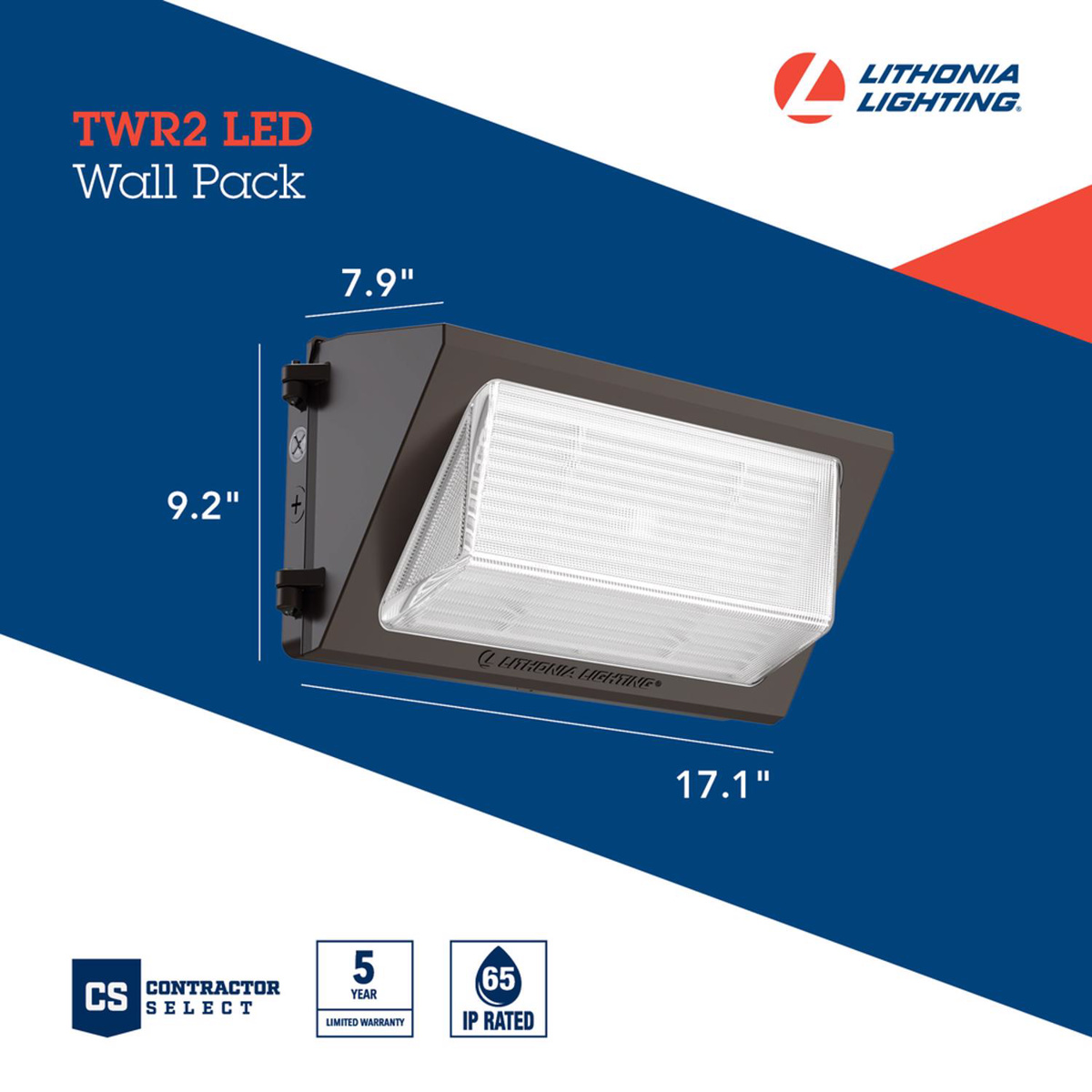

Width 17.1 in
Depth 7.9 in
Height 9.2 in
Color Bronze
Lens Borosilicate
CCT (K) 3000/4000/5000 K
CRI 80 CRI
Wattage 55/82/112 W
Lumens 8200/12100/16100 lm
Voltage 120 - 347 V
Lighting Mounting Type Wall
Environmental Condition Wet Location
Dimmable Dimmable
Lamp Type LED
Material Aluminum Die Cast
Average Rated Life (hrs) 50,000 hrs
