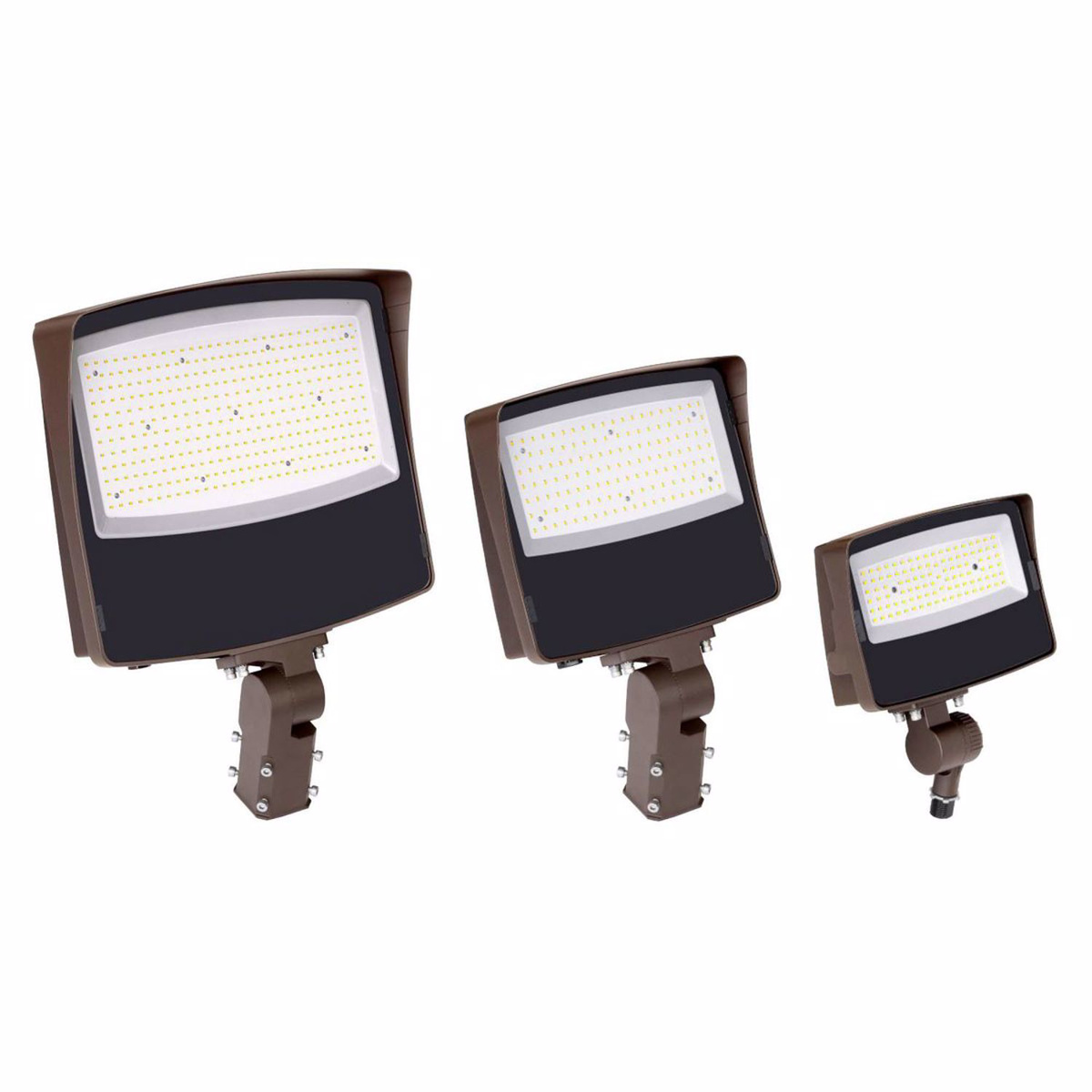

Current Lighting SGF Floodlights LED 120 - 347 V 130/160/200 W Dark Bronze 17811 - 30953 lm 3000/4000/5000 K
Mfg #:
SGF3200LSCSUNVC
BOR #:
3638602
EXO SGF Sling Flood LED flood luminaire, featuring field switchable wattage and color temperature (3000K, 4000K, 5000K), for use in outdoor applications

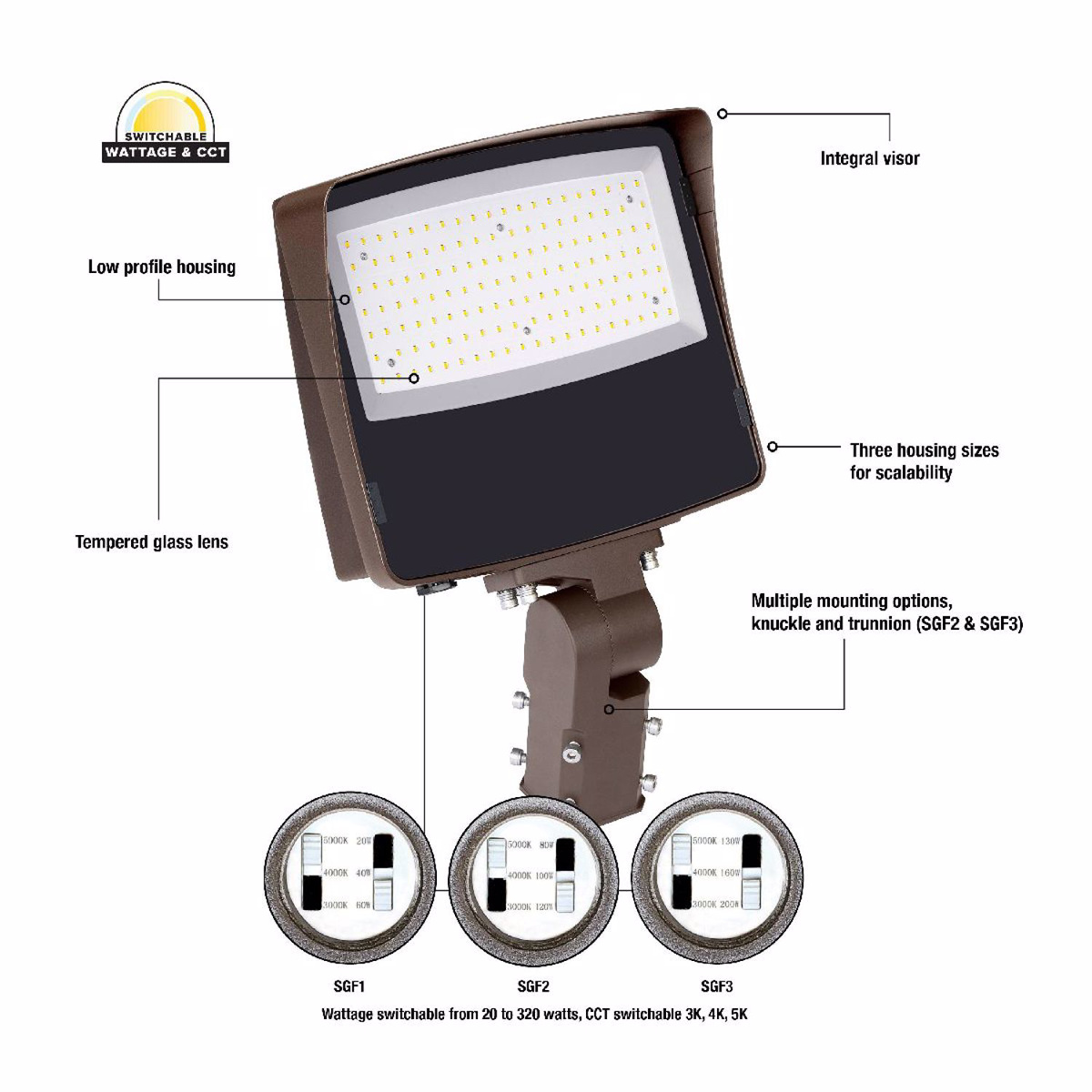

- Low profile housing with knuckle installed and trunnion also included for optional field installment (SGF2 and SGF3 only)
- Field switchable wattage and color temperature (3000K, 4000K, 5000K)
- Available in twelve wattages ranging from 20W to 320W
- Three housing sizes for scalability in the field
- 7x7 wide flood distribution
- Commercial grade LED flood luminare for use in outdoor application, commercial buildings, retail, government and educational facilities.
- Die-cast aluminum die-cast housing
- Built in visor on all fixture sizes
- Tempered glass lens secured with sealant. Individual components are not field replaceable.
- All units have dark bronze matte textured powder coat finish (matches Current DBT finish)
- Operating Temp -40C to 40C
- Powder paint finish provides durability in outdoor environments. Tested to meet 1000 hour salt spray rating.
- Beam Angle: 115°x108°
- Field Angle: 155°x156°
- Lumen Switchable (3K, 4K, 5K) at 70 CRI
| Surge Protection | 6 kV |
| Brand | Current Lighting |
| Ballast Type | LED Driver |
| Average Rated Life (hrs) | 100,000 hrs |
| Environmental Condition | Wet Location |
| Voltage | 120 - 347 V |
| Series | SGF LSCS Sling Switchable |
| Distribution | 7 x 7 |
| Height | 14.56 in |
| Depth | 5.66 in |
| Material | Aluminum Die Cast |
| Width | 19.29 in |
| Lighting Mounting Type | Slipfitter |
| Color | Dark Bronze |
| CRI | 70 CRI |
| Lumens | 17811 - 30953 lm |
| CCT (K) | 3000/4000/5000 K |
| Lamp Type | LED |
| Wattage | 130/160/200 W |
| Lens | Glass (Tempered) |
| Fixture Type | Floodlight |
| IP Rating | IP66 |
| Dimmable | Dimmable |
| Current Lighting Brochure | Brochure |
|
| Current Lighting Specification Sheet | Specification Sheet |
|
