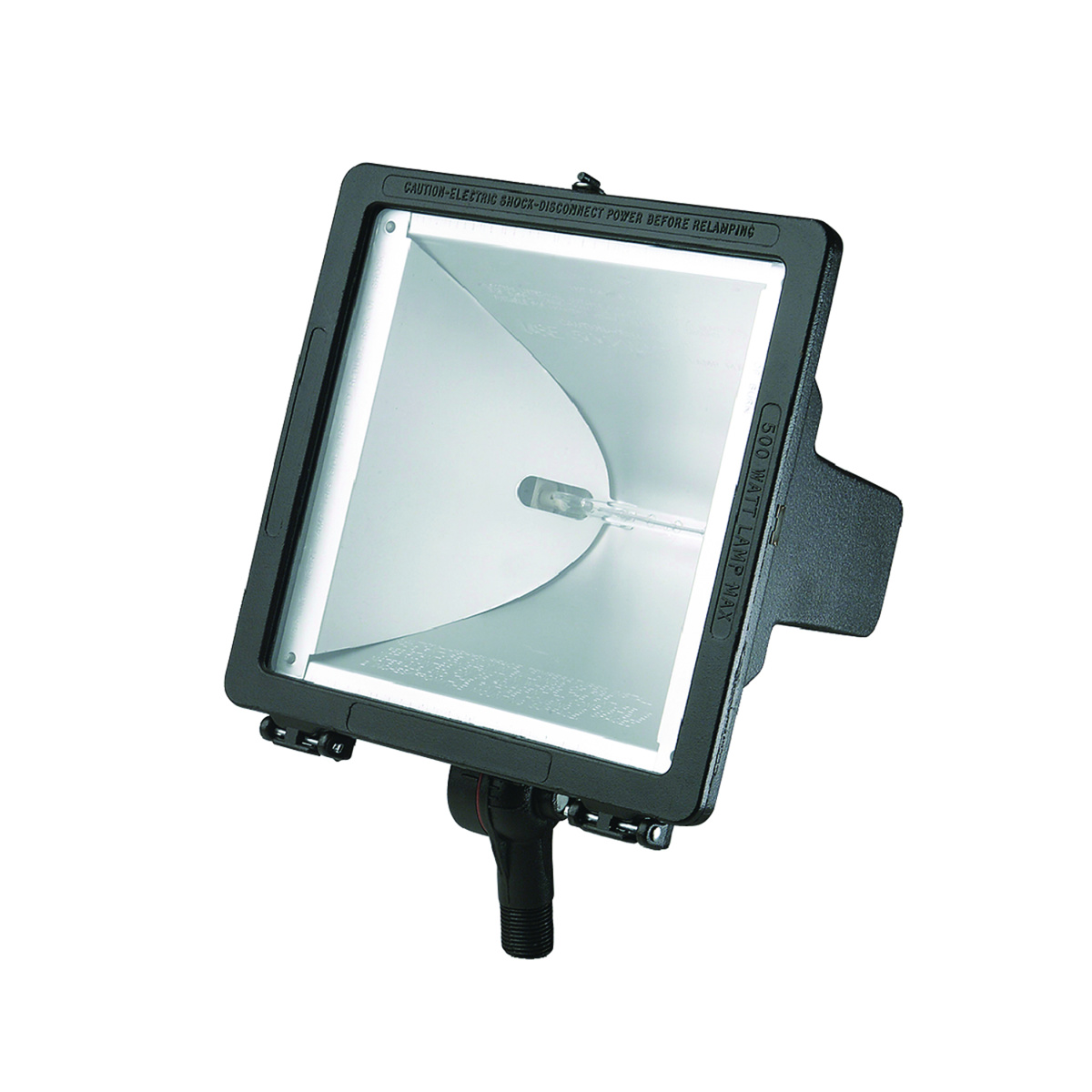

Current Lighting QL Floodlights Quartz 120 V 500 W Gray
This product has been discontinued.
Mfg #:
QL505
BOR #:
159456
Utilizing T-3 tungsten halogen lamps, the Quartzliter luminaire provides low cost illumination for use in sports lighting, automobile outdoor sales areas, sign lighting, security, construction and other aplications
- Die-cast aluminum housing and door, deep fin system maintains rated lamp life
- High temperature lens, silicone gasket, tool-free stainless latch entry
- Hinged door fram
- Housing Finish: Gray
- Lamps are ordered separately
- Large 1/2 in swivel knuckle provides versatile aiming
- Dimension A: 4 5/16 in. (110 mm), Dimension B: 8 5/8 in. (219 mm), Dimension C: 8 1/2 in. (216 mm), Dimension D: 5 1/4 in. (133 mm), Dimension E: 7 in. (178 mm), Dimension F: 2 1/2 in. (64 mm)
- Dimension A: 7 in. (178 mm), Dimension B: 14 in. (356 mm), Dimension C: 8 1/2 in. (216 mm), Dimension D: 5 1/4 in. (133 mm), Dimension E: 7 in. (178 mm), Dimension F: 2 1/2 in. (64 mm)
- CSA certified for wet locations in North America
| Brand | Current Lighting |
| Voltage | 120 V |
| Distribution | NEMA 6 x 5 |
| Height | 8-7/8 in |
| Depth | 5-1/4 in |
| Material | Aluminum Die Cast |
| Width | 8-5/8 in |
| Lighting Mounting Type | Knuckle |
| Color | Gray |
| Lamp Type | Quartz |
| Wattage | 500 W |
| Lens | Tempered Glass |
| Fixture Type | Floodlight |
| Dimmable | Non-dimmable |
| Installation Manual 1 | Installation and Instruction Manuals |
|
| Current Lighting Specification Sheet | Specification Sheet |
|
