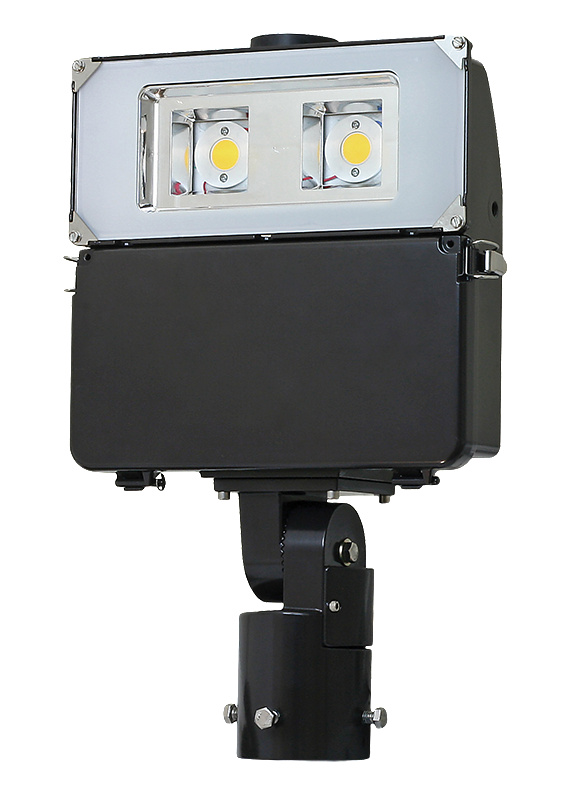

American Electric Lighting 75LED UltraFlood™ Floodlights LED 120 - 277 V 176 W Bronze 25000 lm 4000 K

Mfg #: 75LEDP60MVOLT66KOBZNLP70543TLRFD339568

BOR #: 3595701

Looking for prices?

Create an Account

UltraFlood™ Series 75LED Floodlights

Low copper content die cast aluminum housings has integral heat sink fins to optimize thermal management through conductive and convective cooling.
Luminaire is vibration rated to 3G
IP66
LED light engine is rated minimum 100,000 hours at 25C, L70. Electronic driver has an expected life of 100,000 hours at a 25C ambient.
PCB mounted LED technology comprised of multi-cluster LEDs on single metal core board.
Segmented Miro internal reflectors are designed for superior field to beam ratios, uniformity, and spacing.
Optical enclosure is flat glass lens.
0-10V continuous dimming is standard
Suitable for ambient temperatures from -40C to 40C.

Product can be ordered only in multiples of

Brand	American Electric Lighting
Average Rated Life (hrs)	100,000 hrs
Voltage	120 - 277 V
Series	75LED UltraFlood™
Distribution	NEMA 6 x 6
Height	21.1 in
Depth	5.2 in
Material	Aluminum Die Cast
Width	13.6 in
Lighting Mounting Type	Tenon Slipfitter Knuckle
Color	Bronze
CRI	70 CRI
Lumens	25000 lm
CCT (K)	4000 K
Lamp Type	LED
Wattage	176 W
Lens	Flat Glass
Fixture Type	Floodlight
IP Rating	IP66
Dimmable	0 - 10 V Dimming
Includes	5 ft Cord (14 AWG, 3 Conductor), NEMA Label
