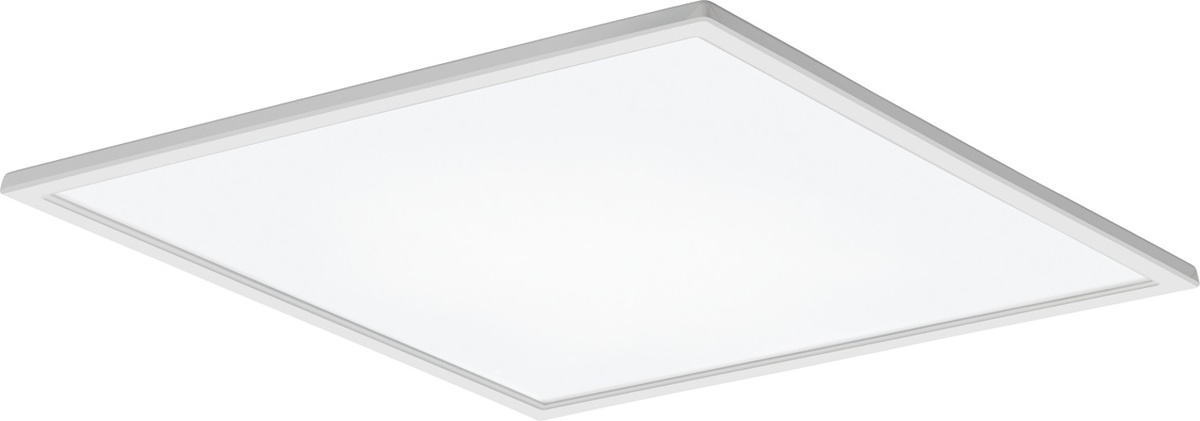

Lithonia EPANL Series Edge-lit LED Panels 2 x 4 ft 4000 K 37 W 0 - 10 V Dimming 3898 lm
This product has been discontinued.
For replacement, please view:Lithonia EPANL Series Edge-lit LED Panels 2 x 4 ft 4000 K 38 W 0 - 10 V Dimming 4000 lm
Mfg #:
EPANL 24 40L 40K M2
BOR #:
3352539
The EPANL Series LED Edge-Lit Flat Panel provides a fully luminous appearance across the face of the lens, providing a soft, glare-free solution that is visually comfortable. Suitable for many lighting applications including schools, offices, commercial s
- 0-10V dimming driver, dims to 10%.
- 70% LED lumen maintenance at 60,000 hours
- Aluminum frame for strength and durability
- Damp location listed. IC rated. IP5X rated.
- Fixture may be mounted and wired in continuous rows.
- Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
- Low-profile design provides increased installation flexibility especially in restricted plenum spaces.
- Satin white lens provides shielding and fully luminous appearance.
- Seamless frame prevents light leak in the corners.
- The back plate includes integral T-bar clips for installation into grid ceilings.
Related Items
Select Options
| Material | Aluminum |
| Brand | Lithonia |
| Ballast Type | LED Driver |
| Door | Flush Aluminum |
| Fixture Type | Flat Panel |
| Size | 2 x 4 ft |
| Lens | Acrylic |
| Series | EPANL |
| Lamp Type | LED |
| NAED | 247U52 |
| Average Rated Life (hrs) | 60,000 hrs |
| Lighting Mounting Type | Recessed |
| CCT (K) | 4000 K |
| CRI | 80 CRI |
| Voltage | 120 - 277 V |
| Lumens | 3898 lm |
| Width | 2 ft |
| Wattage | 37 W |
| Dimmable | 0 - 10 V Dimming |
| Length | 4 ft |
| Color | White |
| Lithonia Specification Sheet | Specification Sheet |
|
