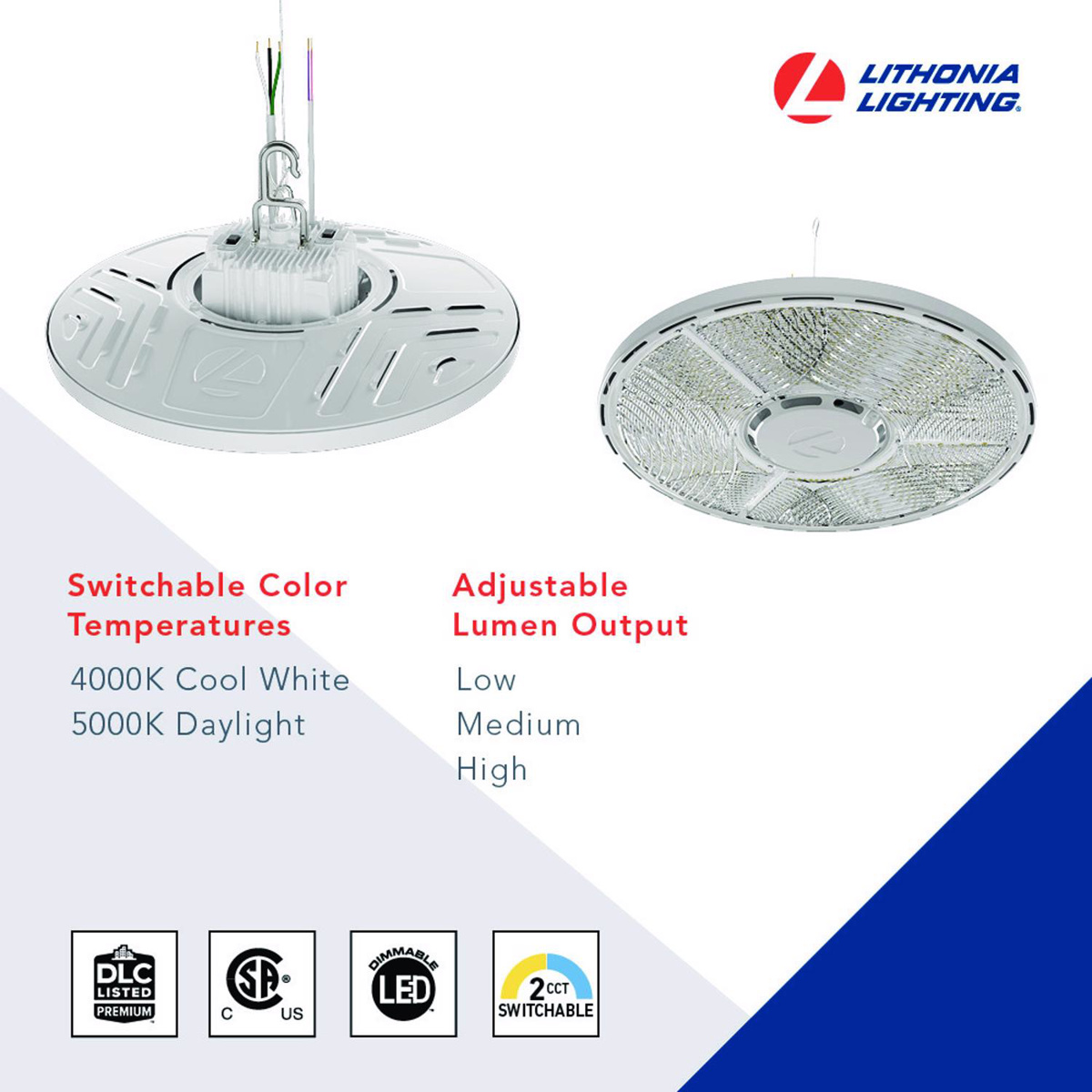

Lithonia CPRB Contractor Series LED Round Highbays 120 - 347 V 148/175/195 W 21000/24000/27000 lm 4000/5000 K 0 - 10 V Dimming LED Driver

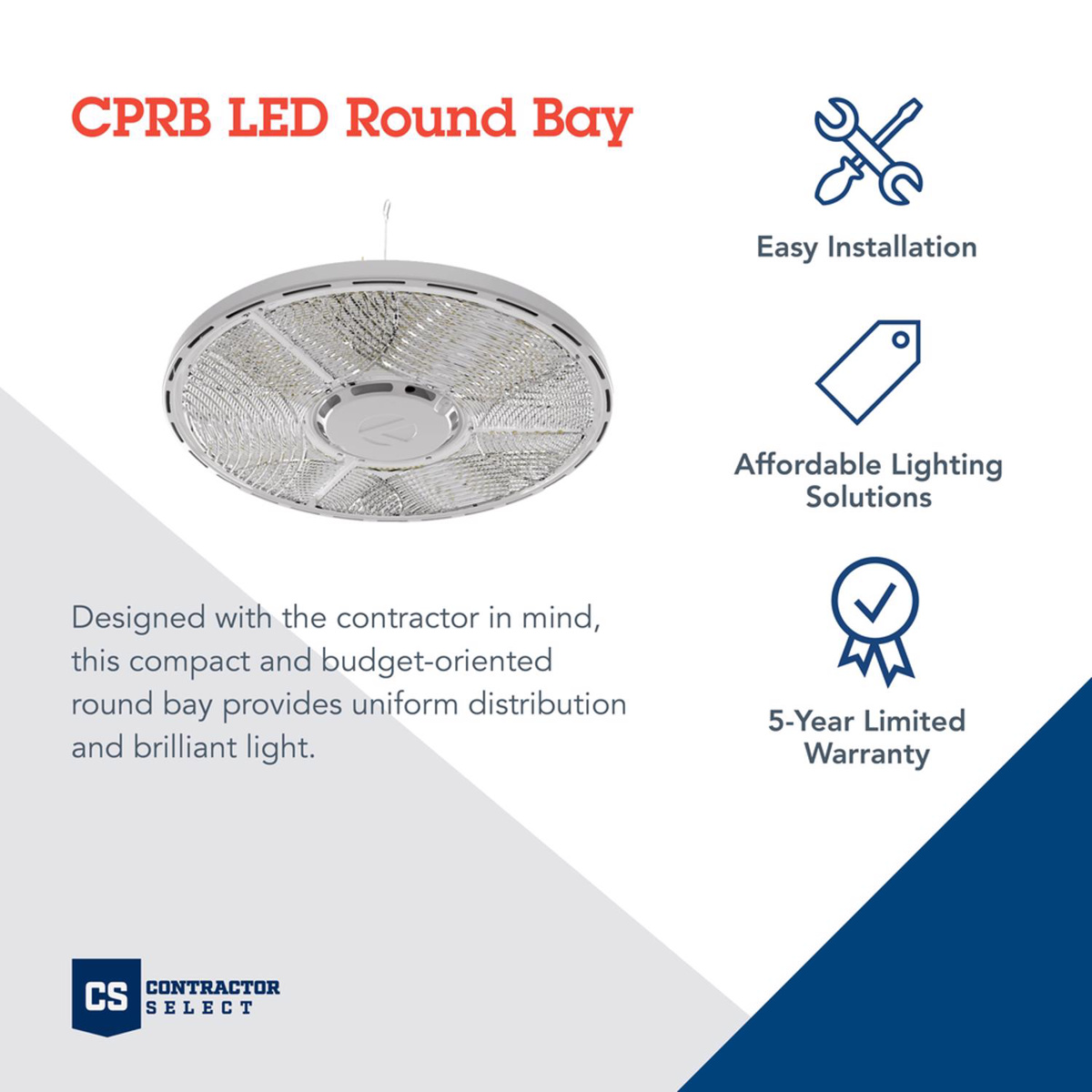

The Compact Pro™ Round LED High Bay is designed for contractors from the ground up.
- The CPRB features two patent-pending elements, the tri-radial glare-control lens creates an even, brilliant light ideal for most lighting needs and the integrated folding hook provides simple and secure installation.
- Compact design saves time and money during installation.

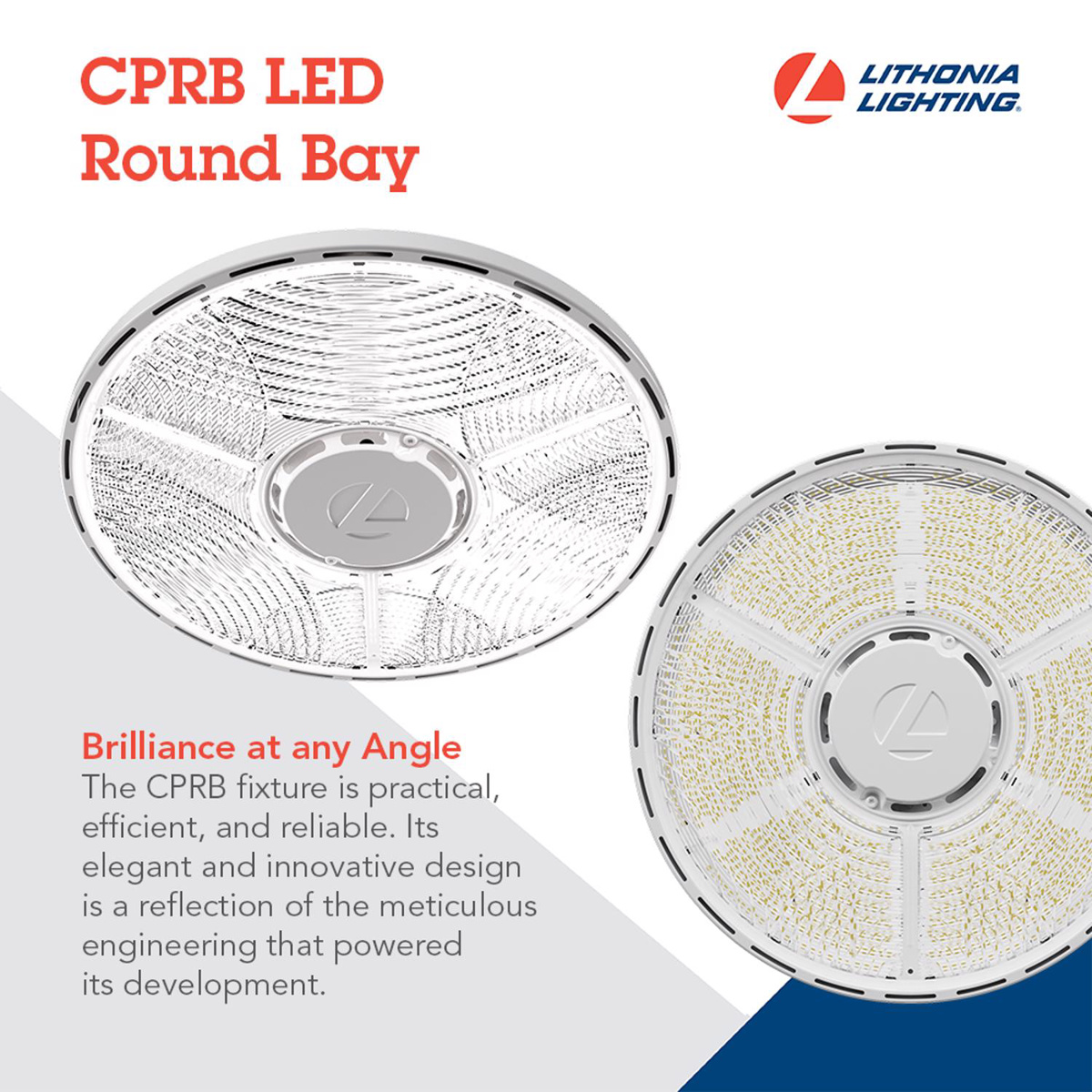

- Patent pending polycarbonate lens diffuses light source and reduces glare while protecting LEDs and providing medium distribution.
- Robust 6kV surge protection per ANSI standards for Industrial environments.
- Operates up to 55°C ambient.

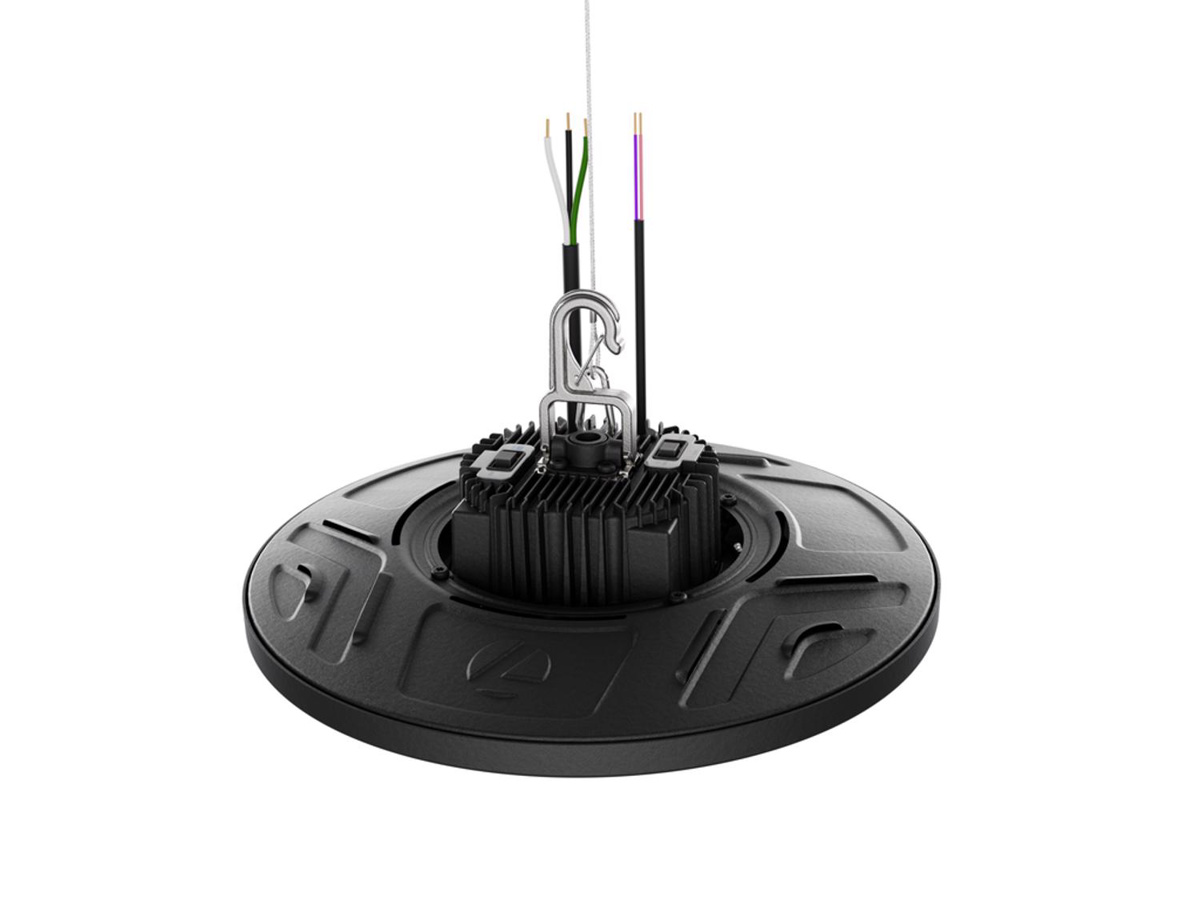

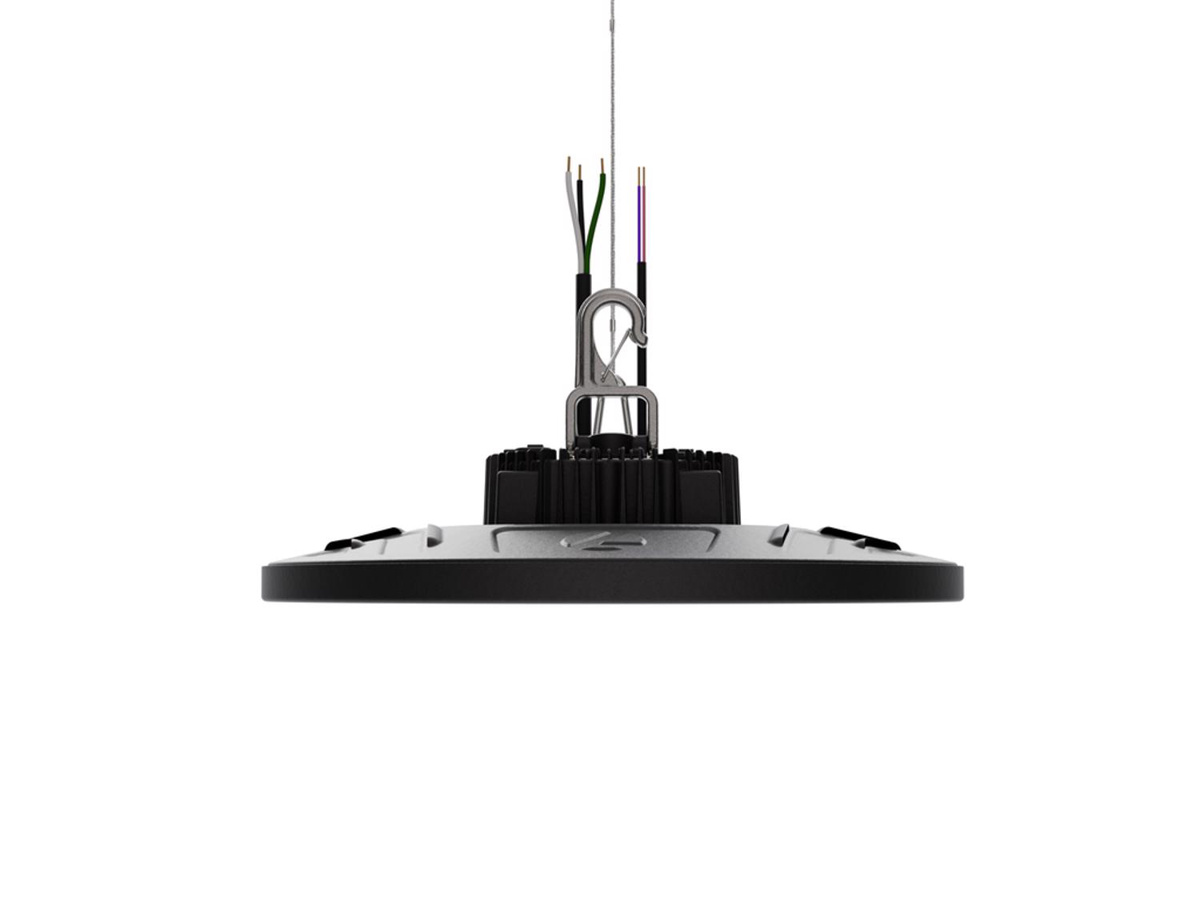

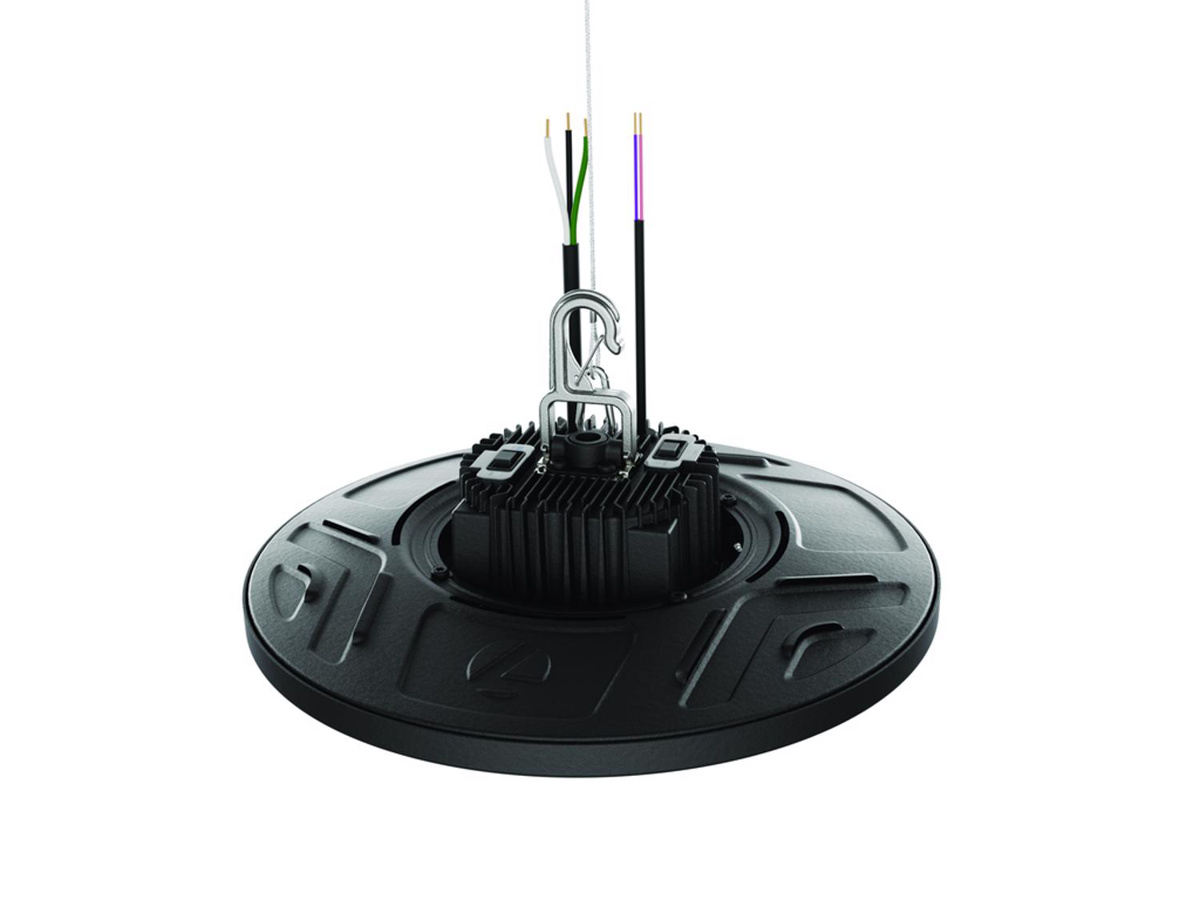

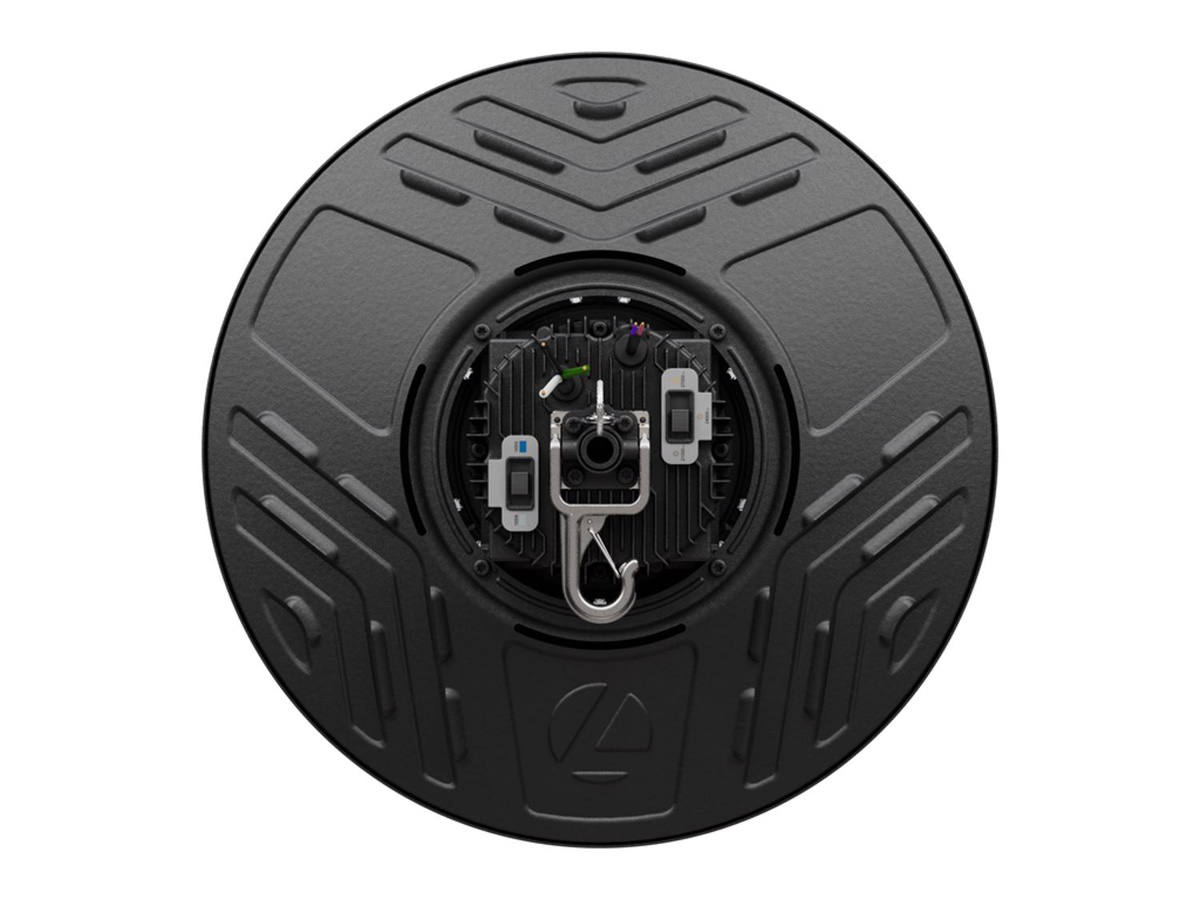

- Standard with permanently attached die-cast aluminum hook with safety latch. Patent pending.
- Also includes 7' safety chain.
- 0-10V dimming driver standard for 10% to 100% dimming capabilities.
- Ideal one-for-one replacement of conventional lighting systems such as HID and fluorescent.
- Fixture comes standard with 6' power cord and 6' low voltage dimming cord.
- Damp location listed. IP54 rated.
| Brand | Lithonia |
| Height | 6.12 in |
| Environmental Condition | Damp Location |
| Lens Material | Polycarbonate |
| Voltage | 120 - 347 V |
| Average Rated Life (hrs) | 100,000 hrs |
| Dimmable | 0 - 10 V Dimming |
| Lamp Type | LED |
| Fixture Type | Round Highbay |
| Series | CPRB |
| CCT (K) | 4000/5000 K |
| CRI | 80 CRI |
| Wattage | 148/175/195 W |
| Lumens | 21000/24000/27000 lm |

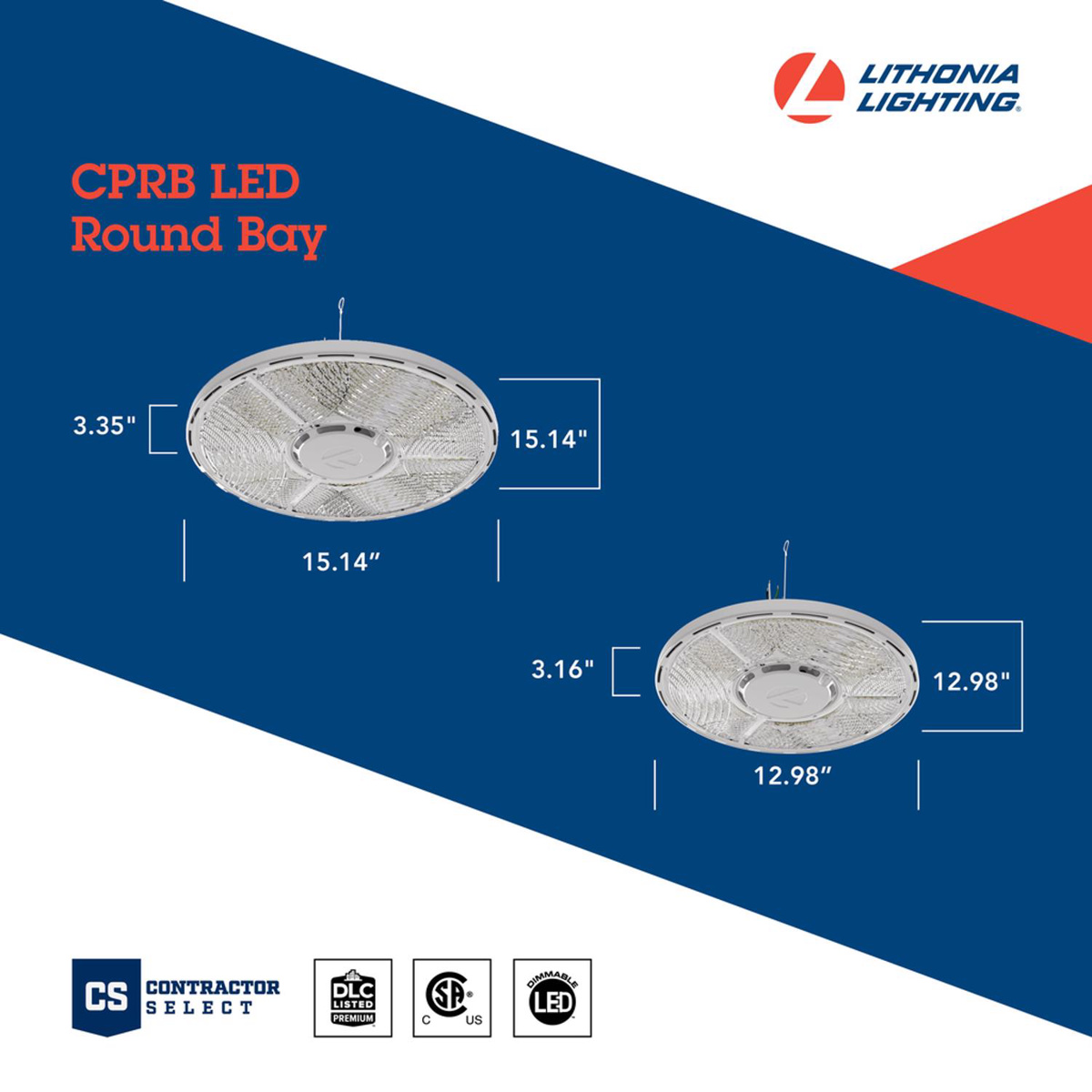

| Diameter | 15.14 in |
| Ballast Type | LED Driver |
| Color | White |
| Product Brochure | Brochure |
|
| Product Brochure 2 | Brochure |
|
Compact Pro™ Round High Bay Installation Video
The CPRB by Lithonia Lighting® features a paten-pending integrated folding hook and a 7 foot safety...
Compact Pro™ Round High Bay Product Feature Video
The Compact Pro™ Round High Bay by Lithonia Lighting® is the newest innovation in the Compact Pro™...
