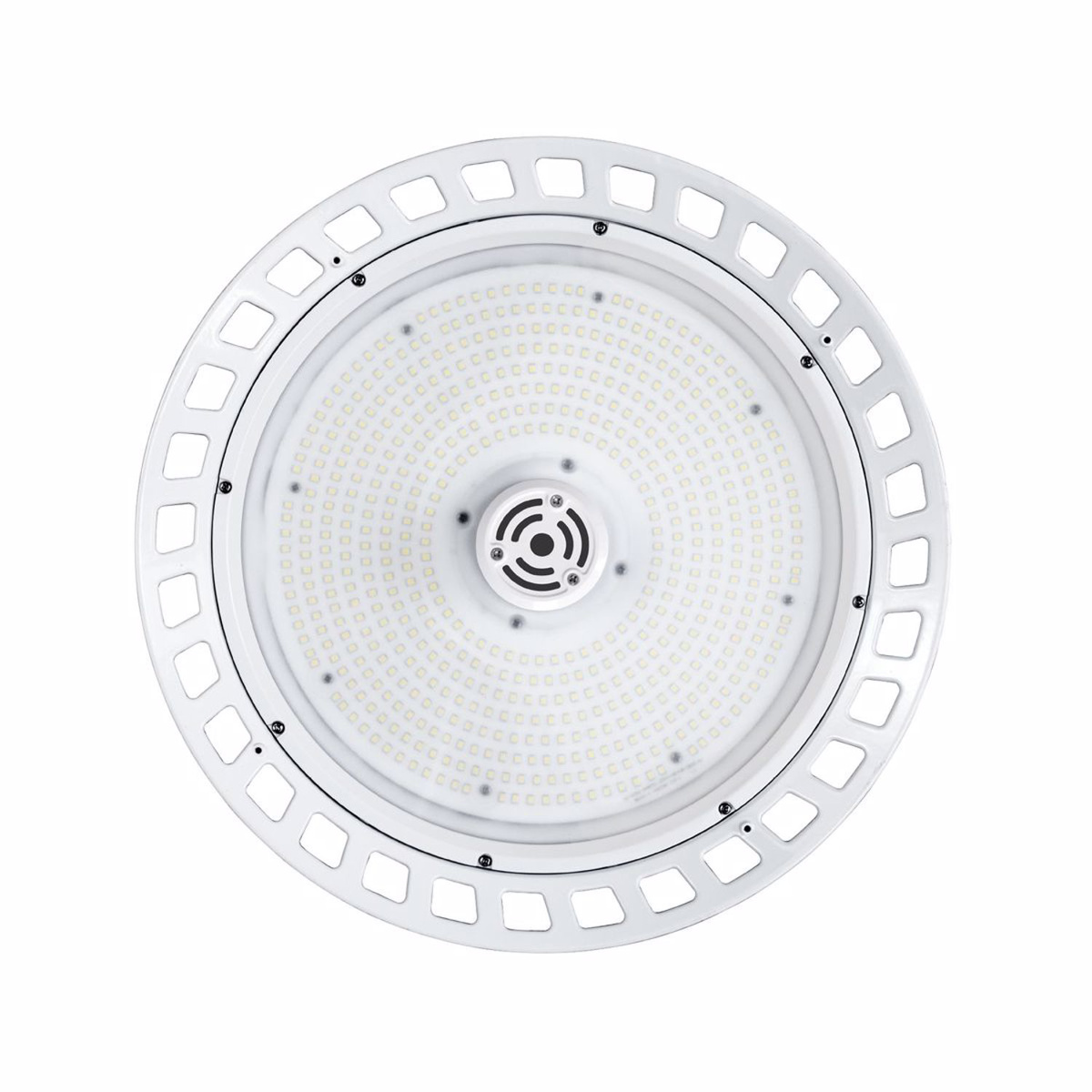

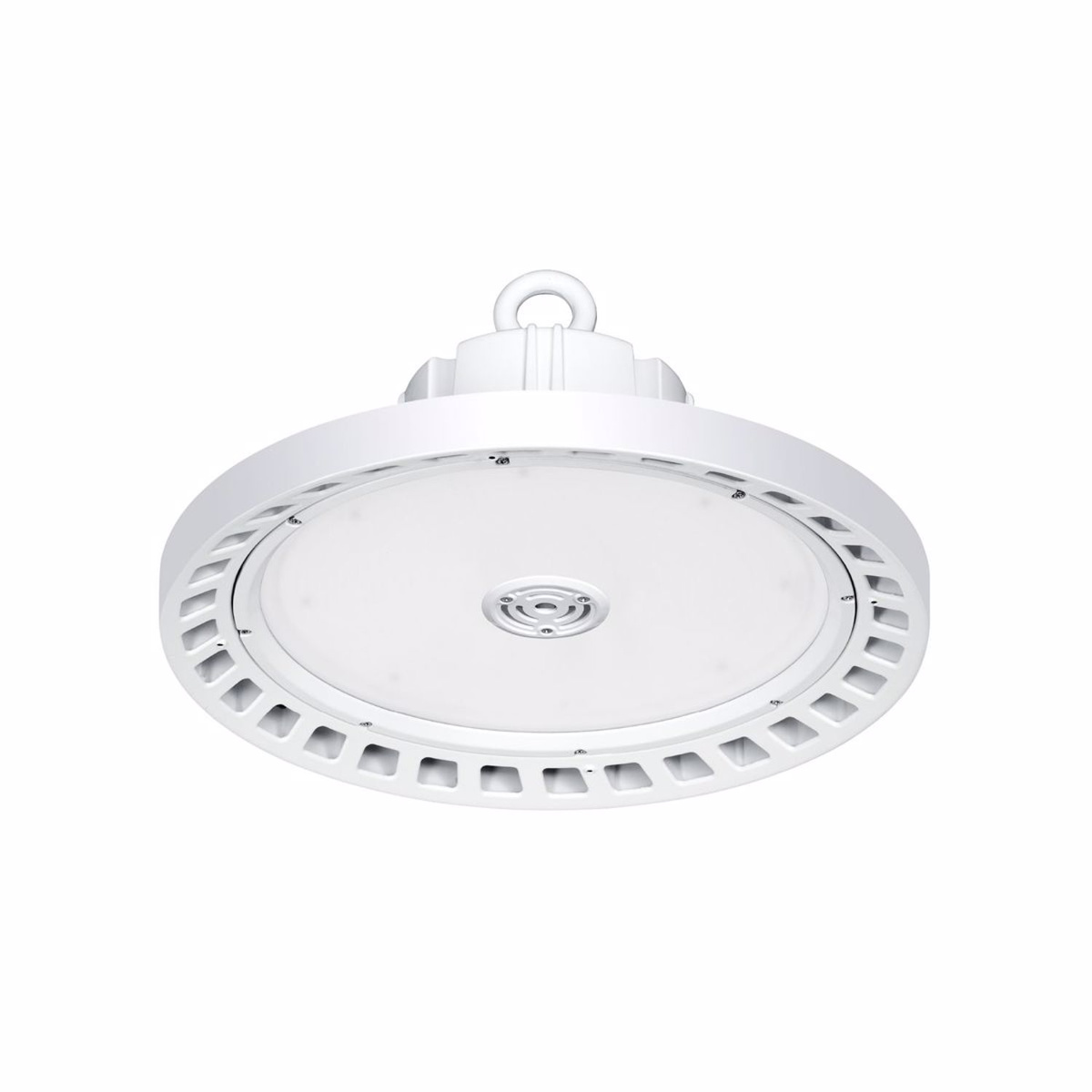

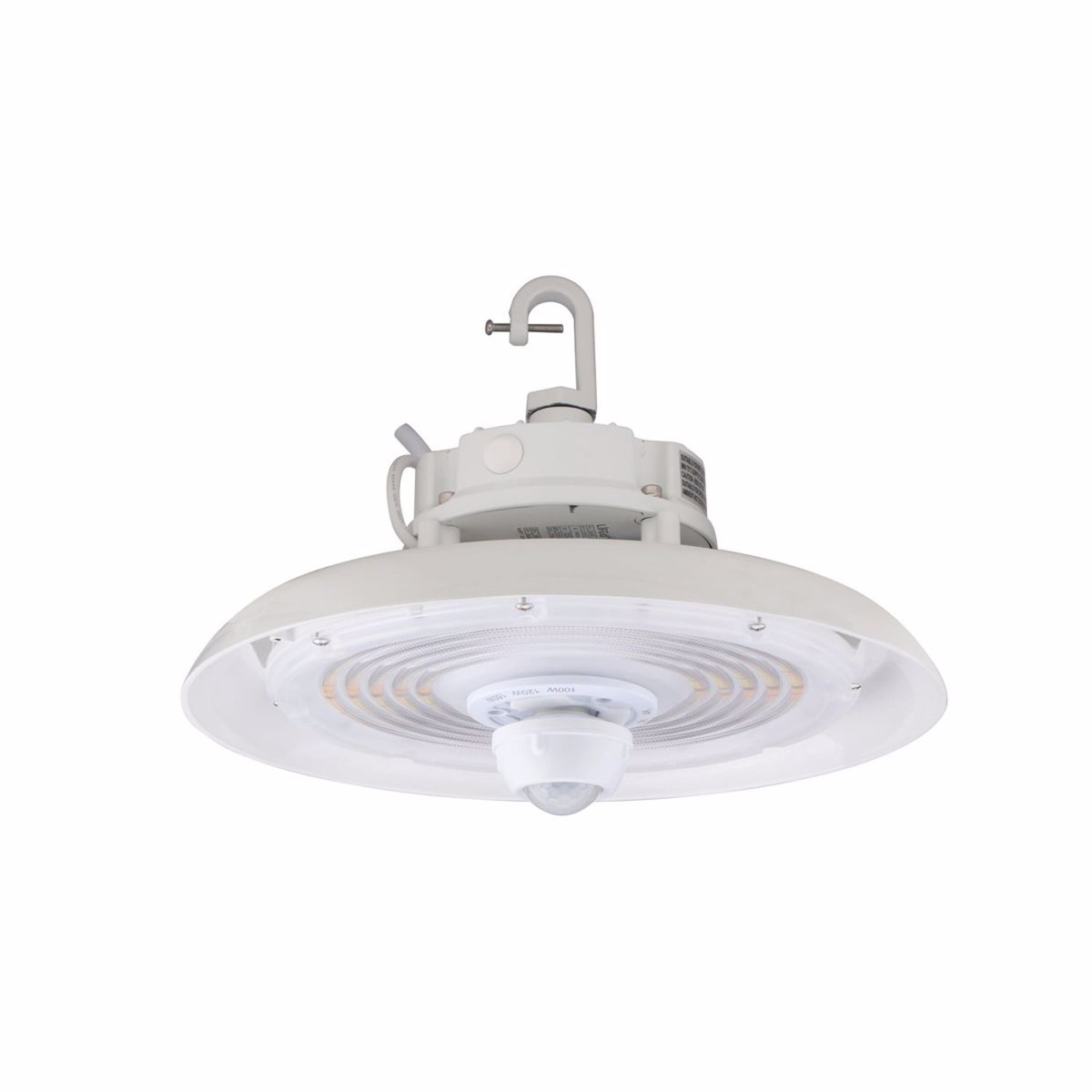

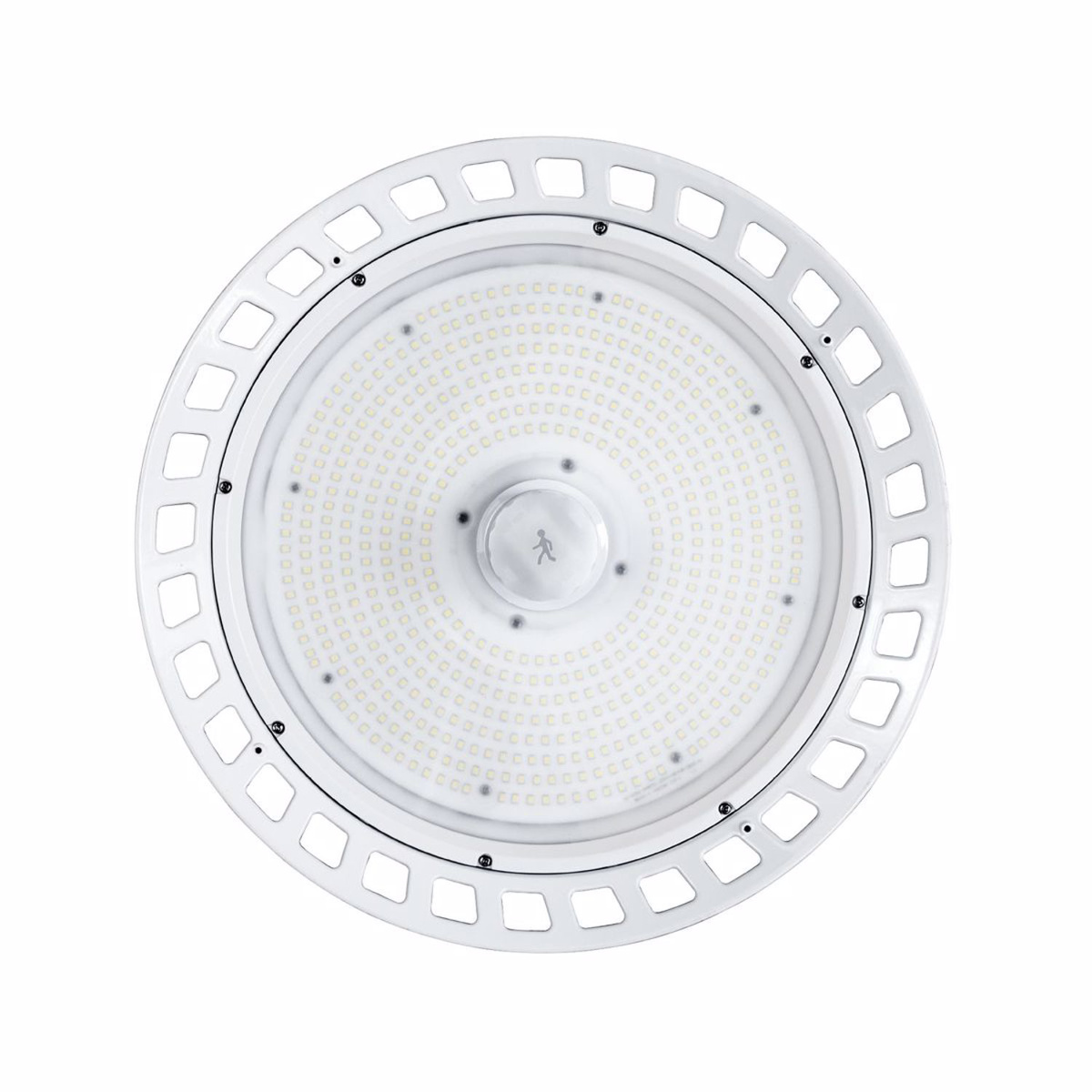

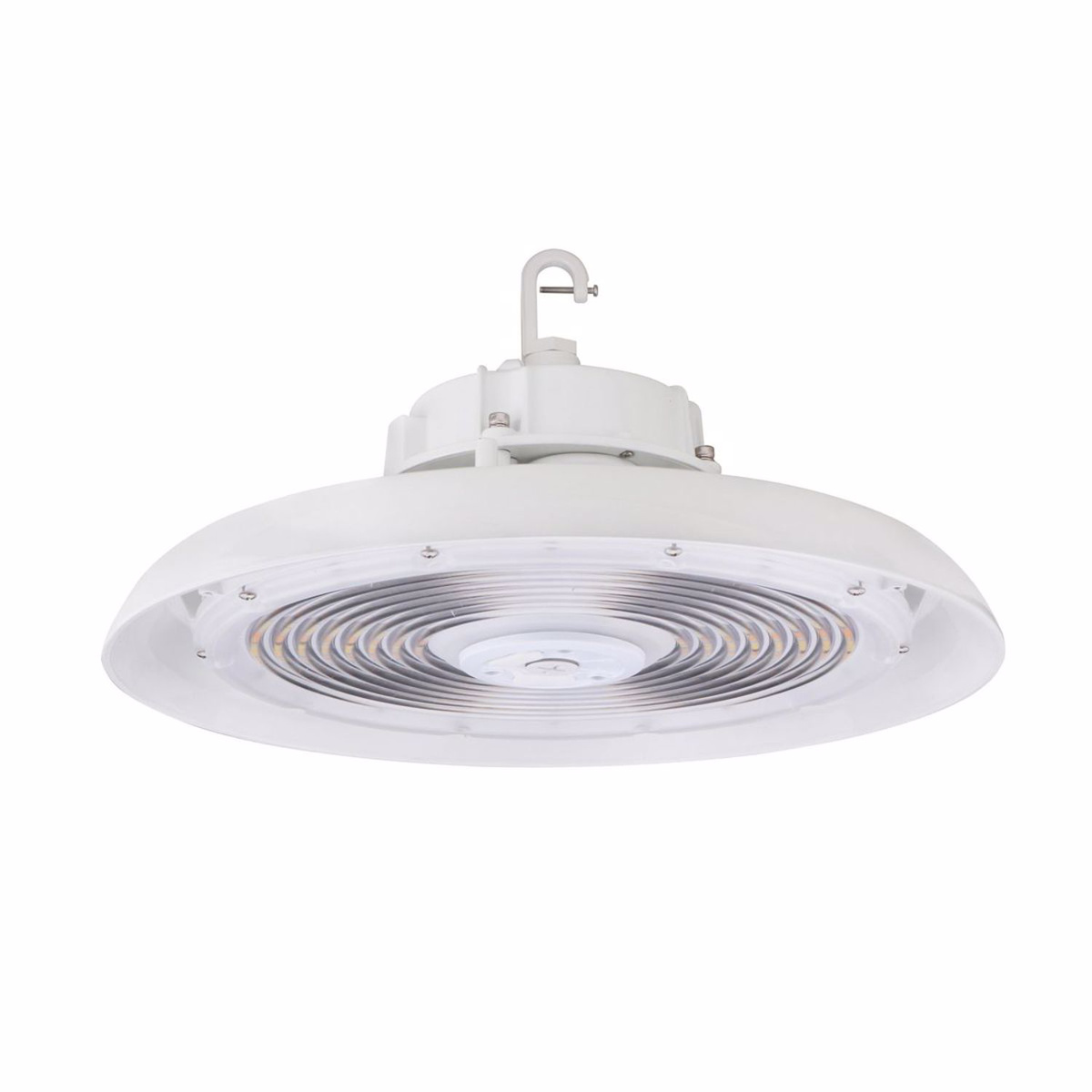

Current Lighting CRN2-LSCS LED Round Highbays 120 - 347 V 150/200/240 W 24300 - 34320 lm 4000/5000 K 0 - 10 V Dimming LED Driver

Mfg #: CRN22LSCSEDMV
BOR #: 3605506
Looking for prices?

The CRN series is a Wet Location Round High Bay fixture making it an ideal choice for general and demanding applications.

  • Switchable lumen and CCT technologies maximize inventory versatility and flexibility
  • Polycarbonate lens with reflector options provide glare reduction and aesthetic customization
  • Efficacy up to 162 LPW assures you energy savings over traditional high bay luminaires
  • Offers lumen packages from 14,000 to 38,000 lumens for proper illumination on a variety of high bay applications

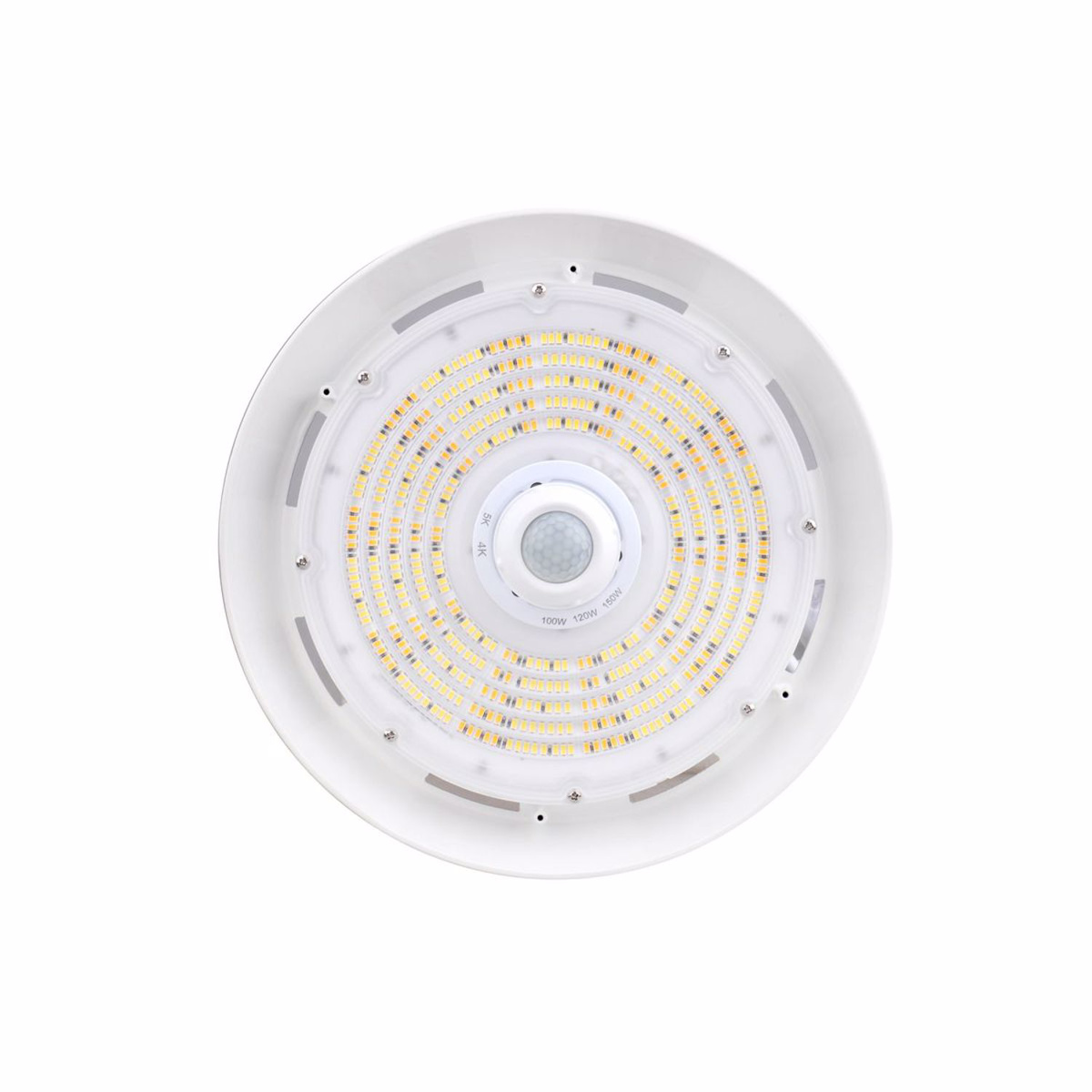

  • Optional ‘plug and play’ occupancy sensor is easily installed into the center of the fixture
  • 120-347V driver (standard)
  • DLC® (DesignLights Consortium) Premium Qualified. Please refer to the DLC website for specific product qualifications at http://www.designlights.org

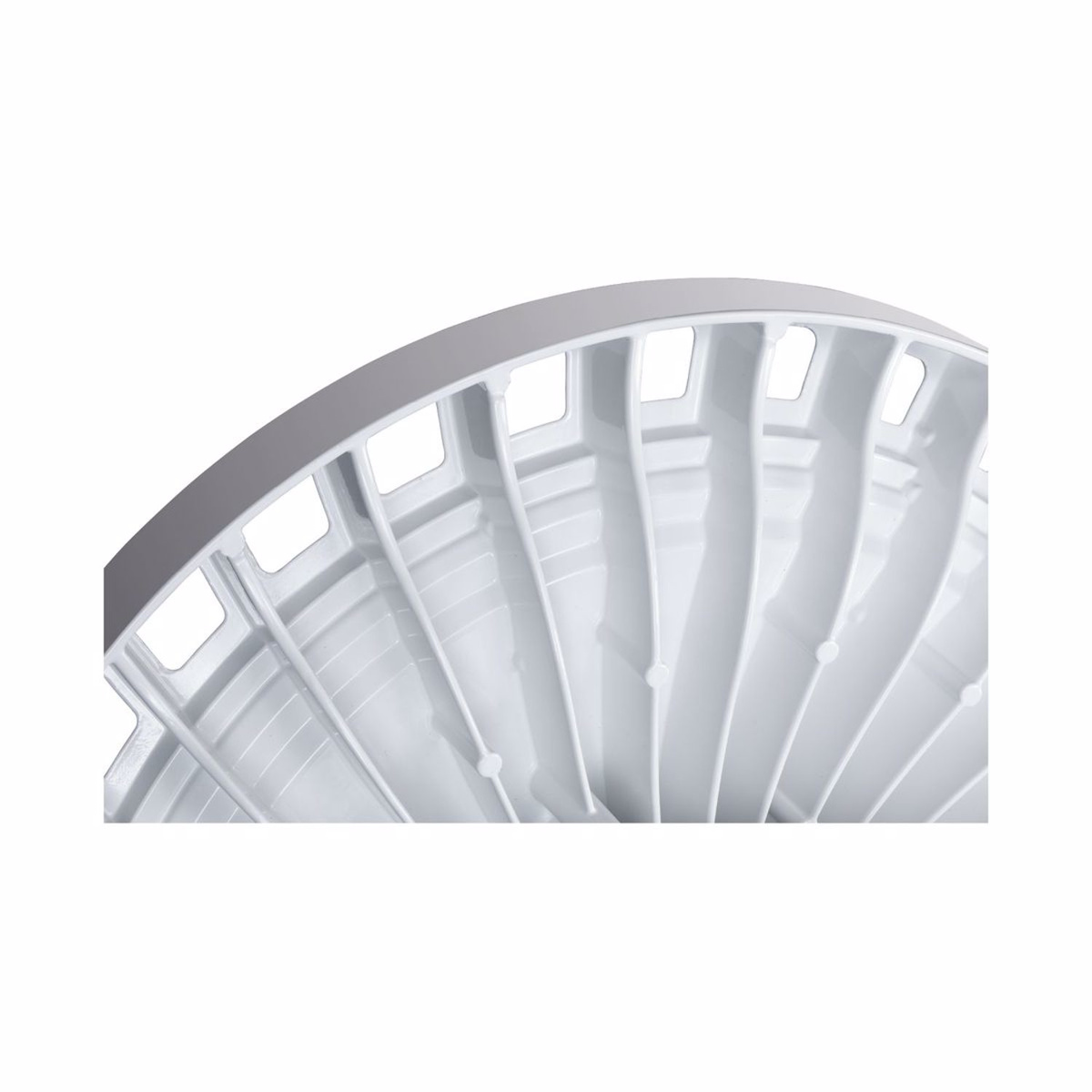

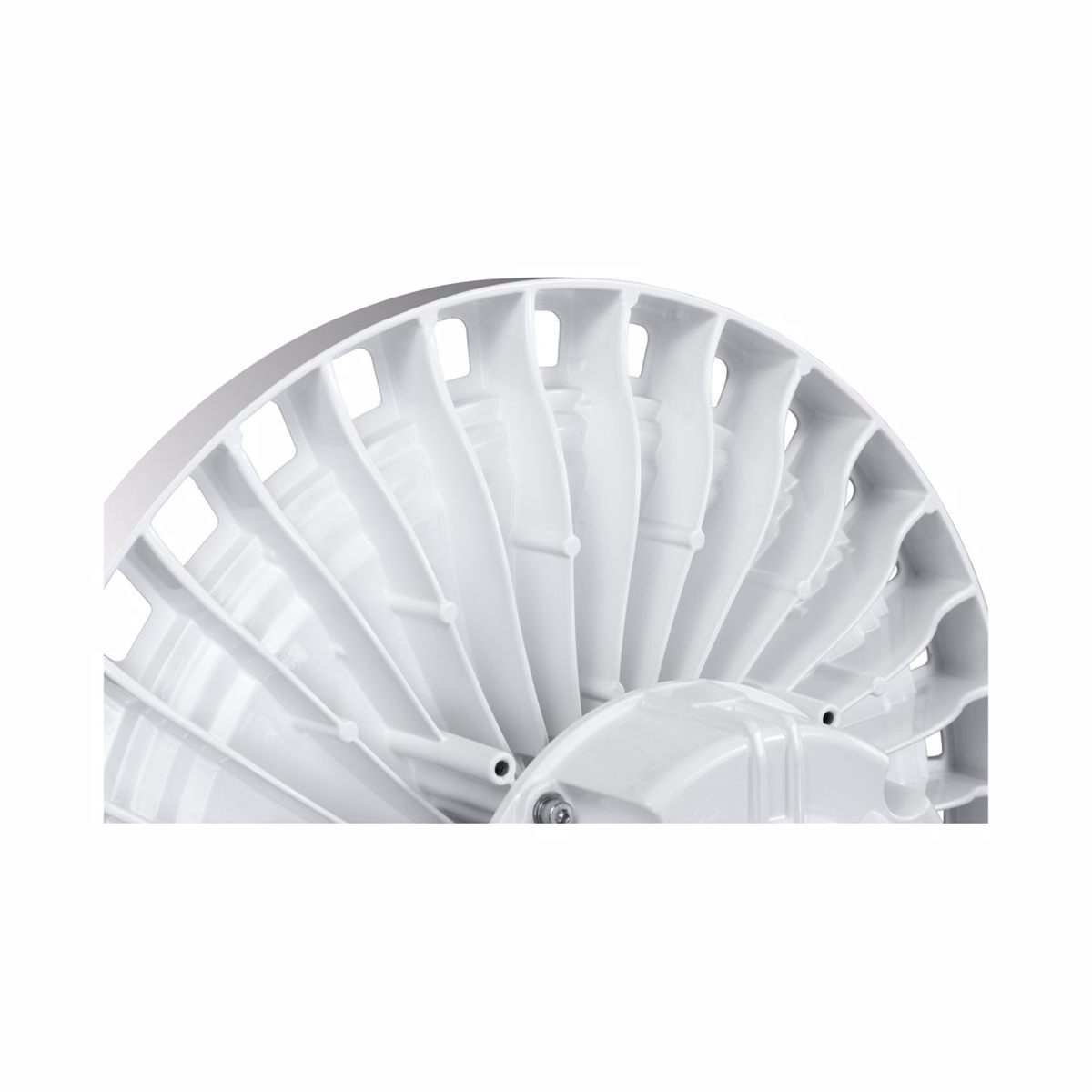

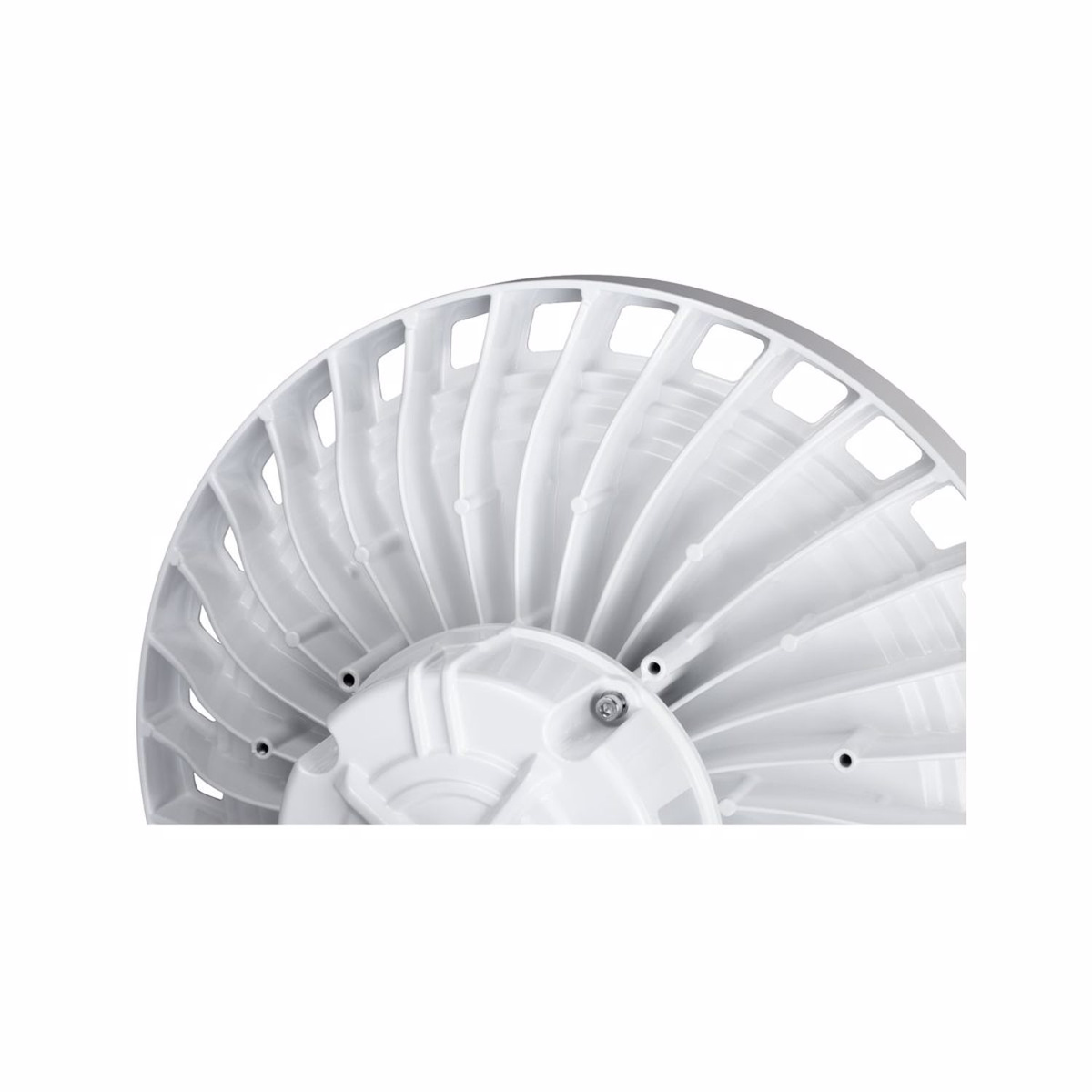

  • Die cast aluminum housing with polycarbonate lens provides durability for rugged environments

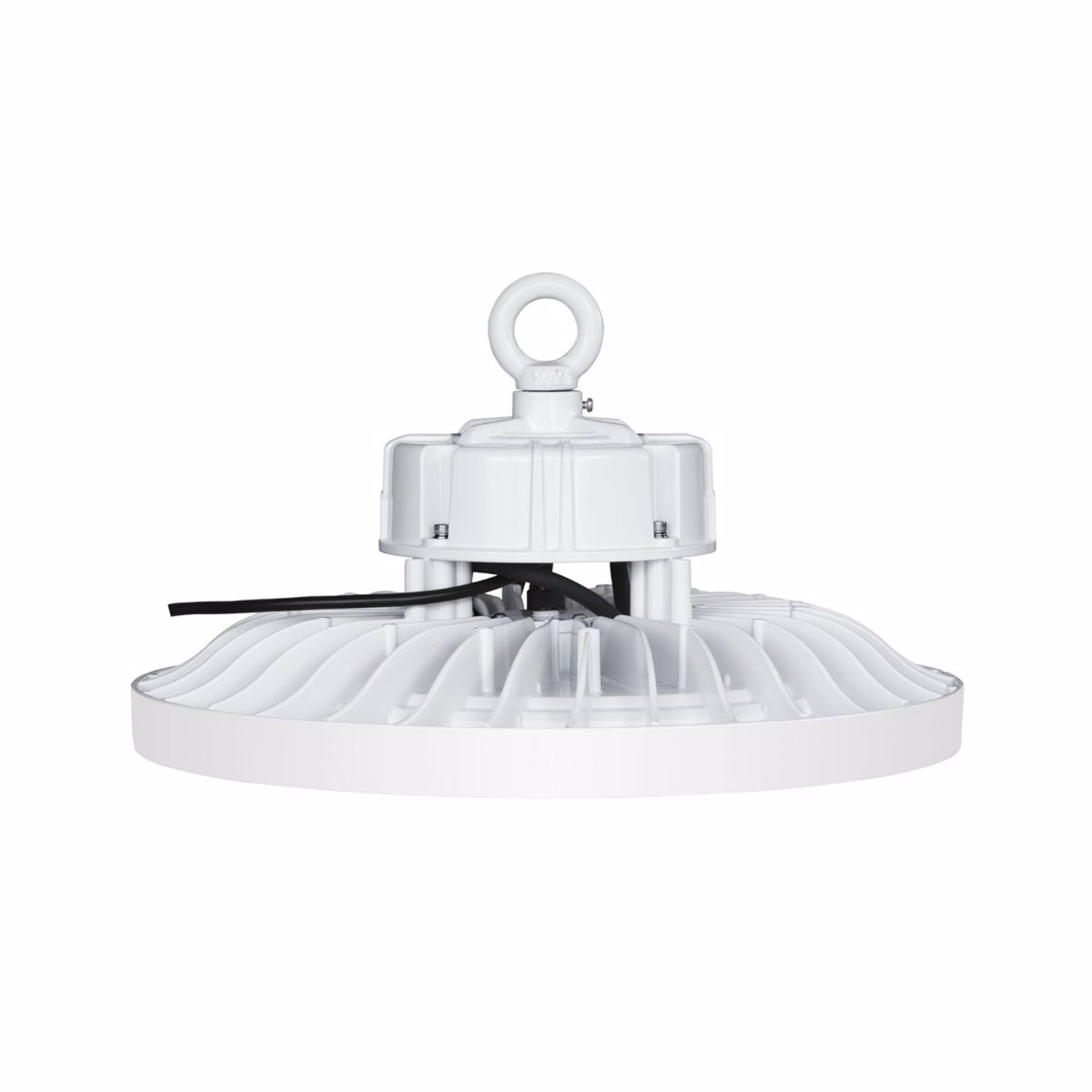

  • Pre-installed 6' wet location power and dimming cords for simplified installation
  • Pendant mount from ½” NPT hook is standard
  • Long-life +50,000hr LEDs at L70
  • Standard 6kV surge protection for demanding environments
  • Standard 0-10V, 10% dimming
  • All luminaires are built to UL 1598 standards, and bear appropriate cULus labels for wet locations
  • IP65 rated, NEMA 250 Type 4X rated
See More
Product can be ordered only in multiples of
Surge Protection 6 kV
Brand Current Lighting
Environmental Condition Wet Location
Lens Material Polycarbonate
Voltage 120 - 347 V
Average Rated Life (hrs) 50,000 hrs
Dimmable 0 - 10 V Dimming
Lamp Type LED
Fixture Type Round Highbay
Series CRN2-LSCS Columbia Lighting
CCT (K) 4000/5000 K
CRI 80 CRI
Wattage 150/200/240 W
Lumens 24300 - 34320 lm
Ballast Type LED Driver
Color White
Current Lighting Specification Sheet Specification Sheet
