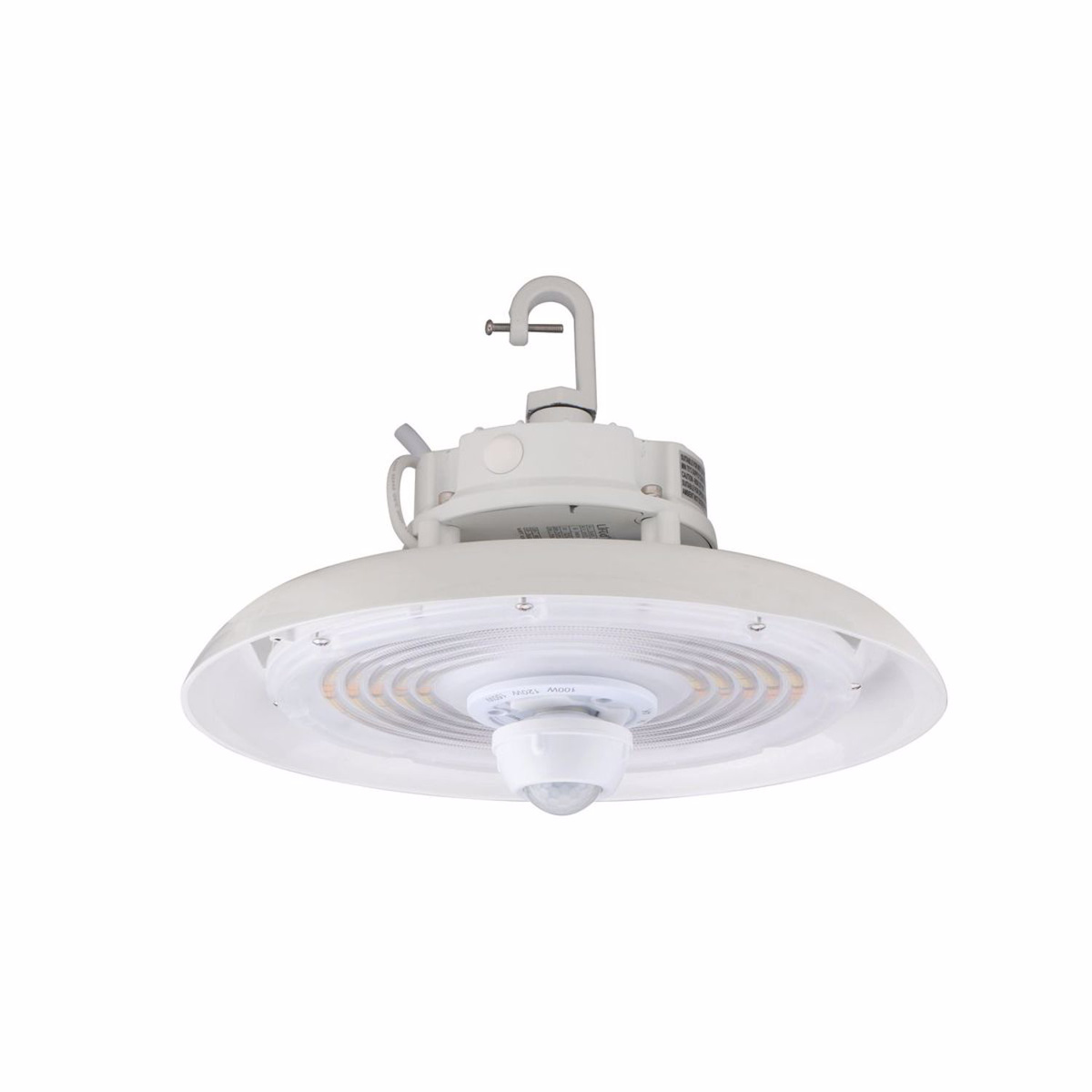

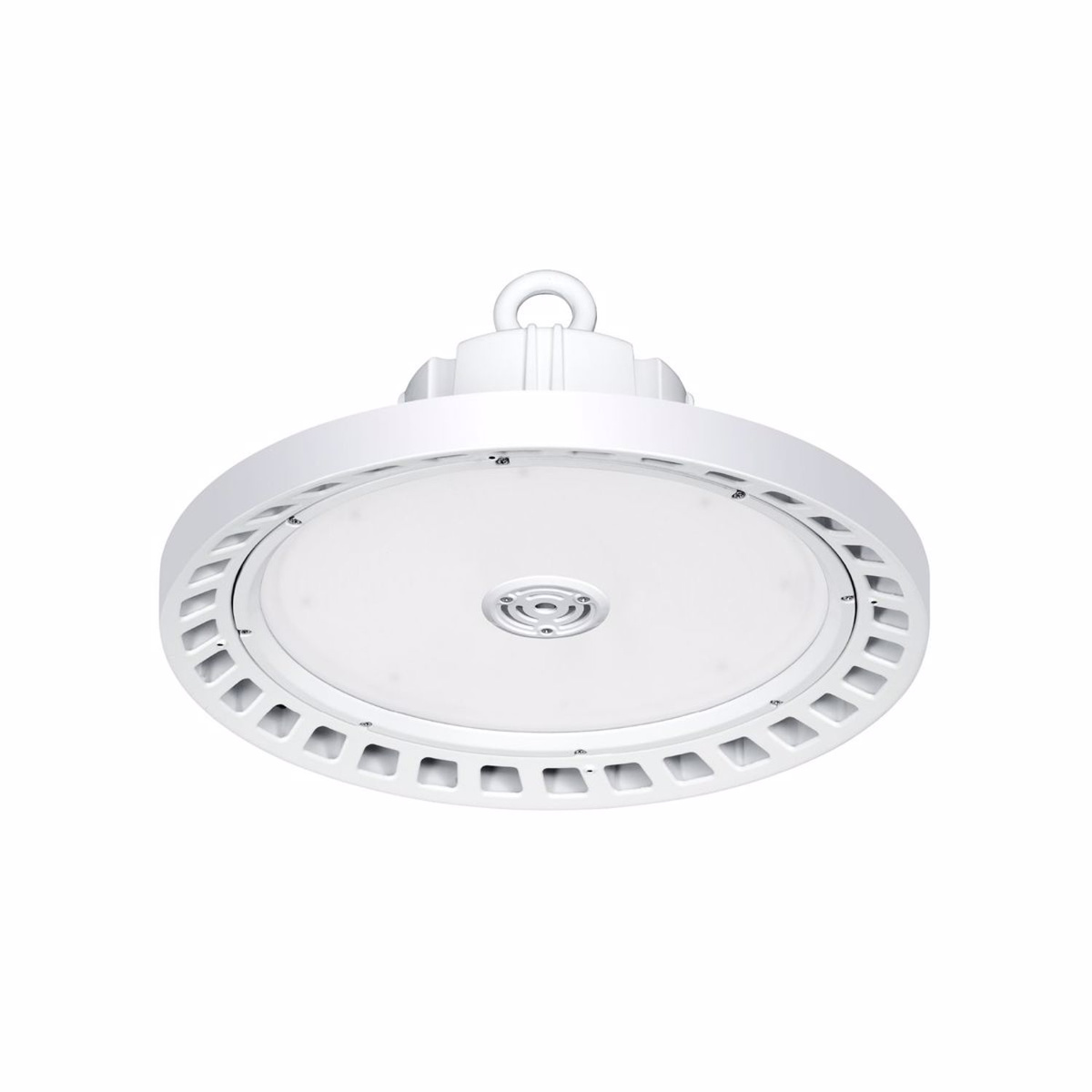

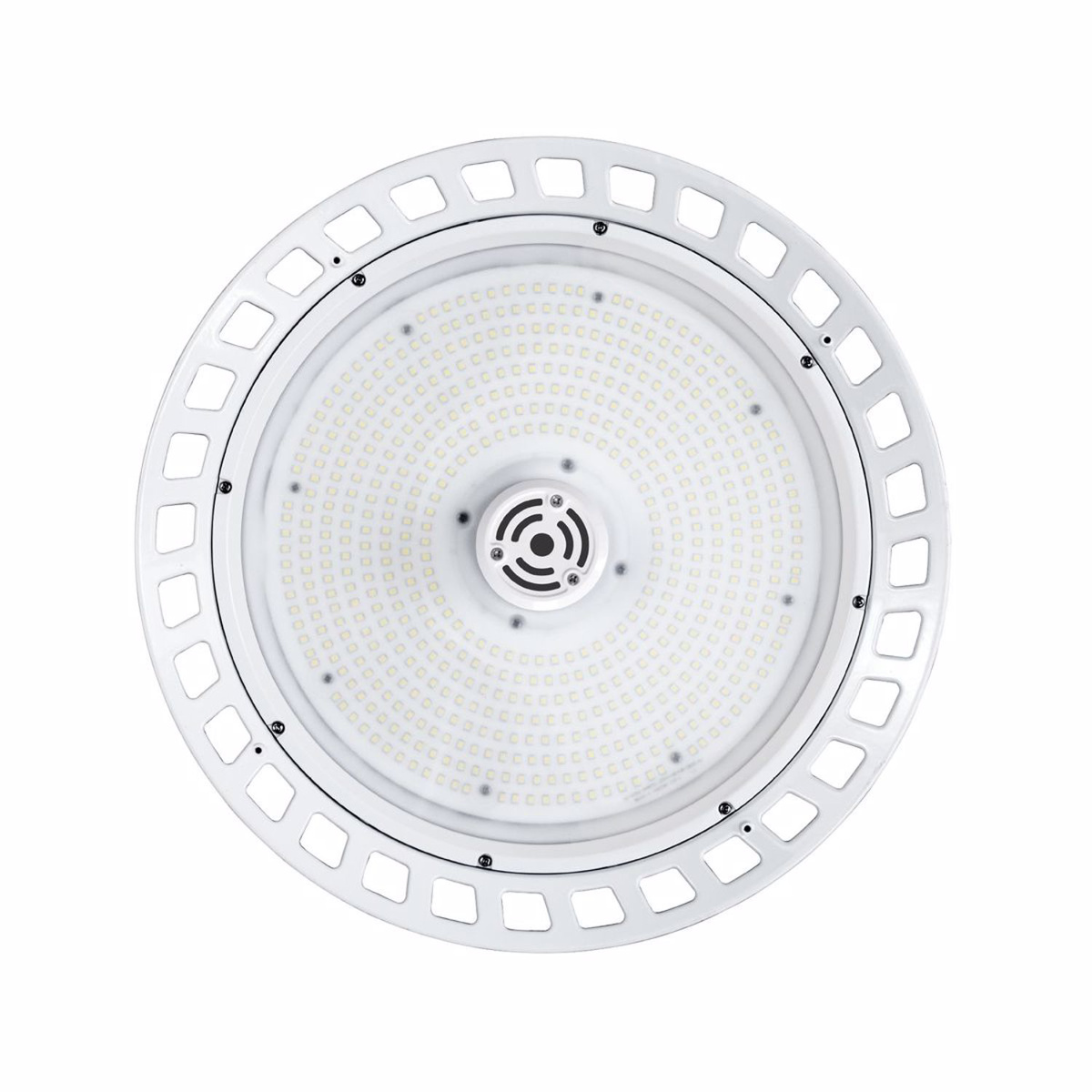

Current Lighting CRN2-LSCS LED Round Highbays 120 - 277 V 100/120/150 W 15500 - 21300 lm 4000/5000 K 0 - 10 V Dimming LED Driver
Mfg #:
CRN21LSCSEDU
BOR #:
3583645
The CRN series is a Wet Location Round High Bay fixture making it an ideal choice for general and demanding applications.
- Switchable lumen and CCT technologies maximize inventory versatility and flexibility
- Polycarbonate lens with reflector options provide glare reduction and aesthetic customization
- Efficacy up to 162 LPW assures you energy savings over traditional high bay luminaires
- Offers lumen packages from 14,000 to 38,000 lumens for proper illumination on a variety of high bay applications

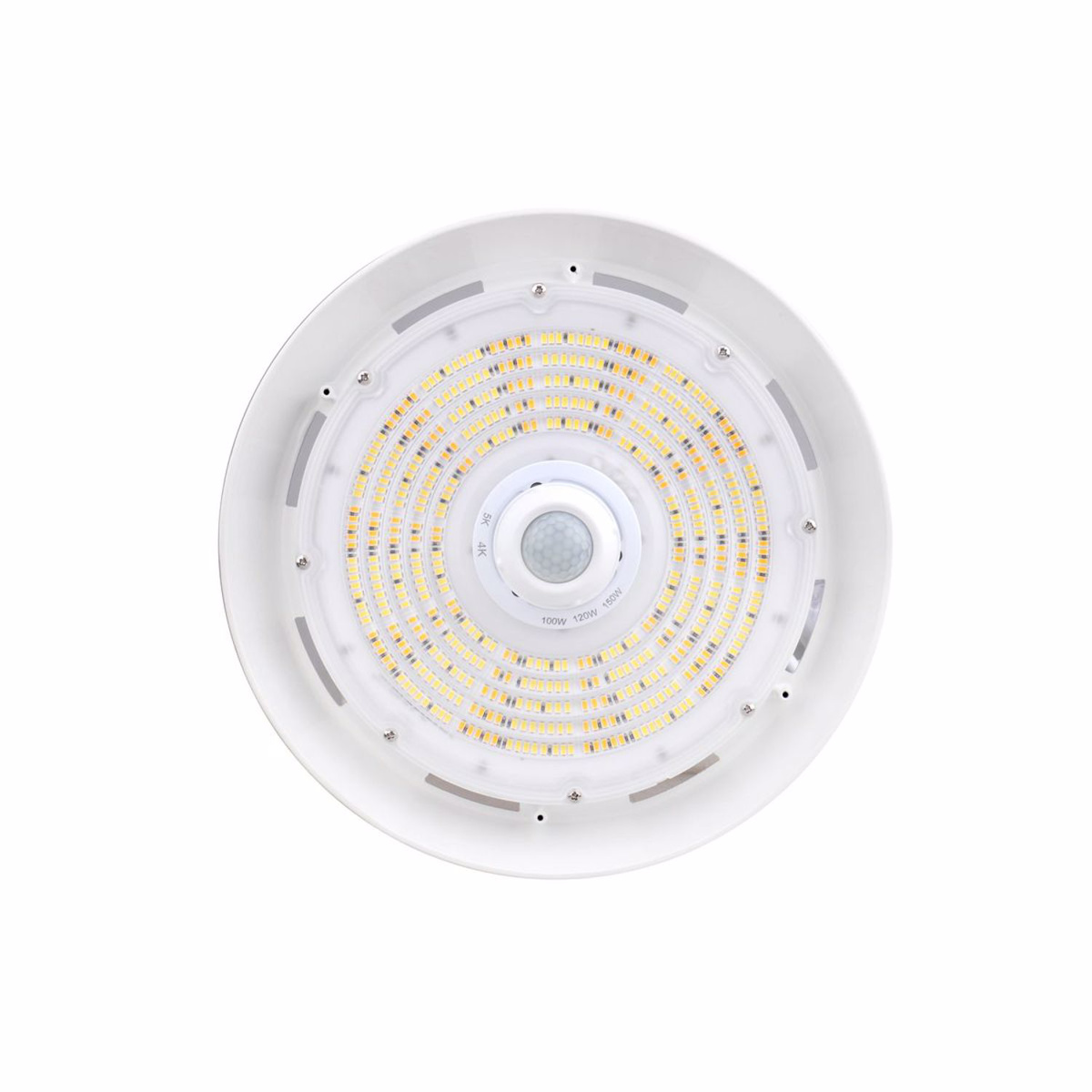

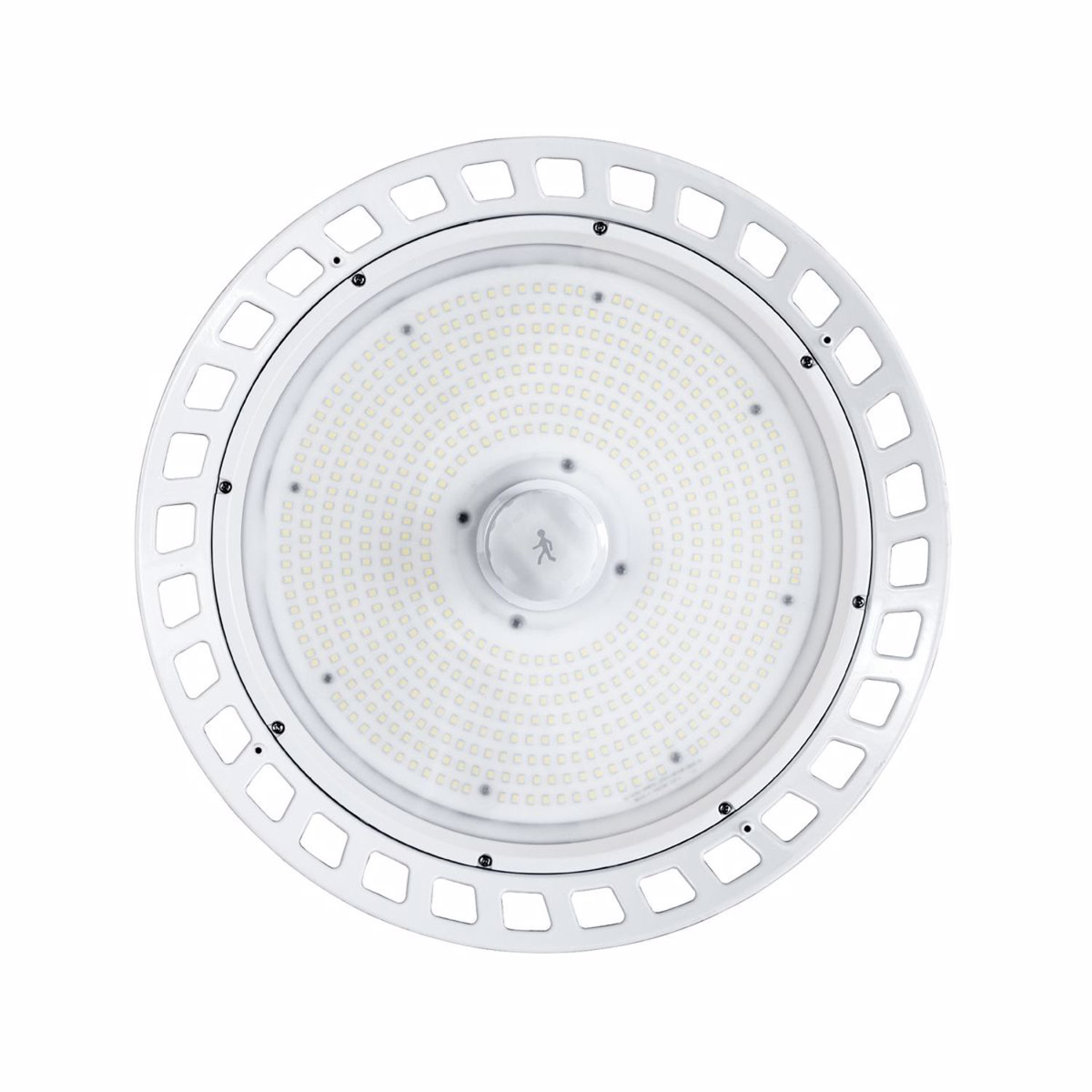

- Optional ‘plug and play’ occupancy sensor is easily installed into the center of the fixture
- 120-347V driver (standard)
- DLC® (DesignLights Consortium) Premium Qualified. Please refer to the DLC website for specific product qualifications at http://www.designlights.org

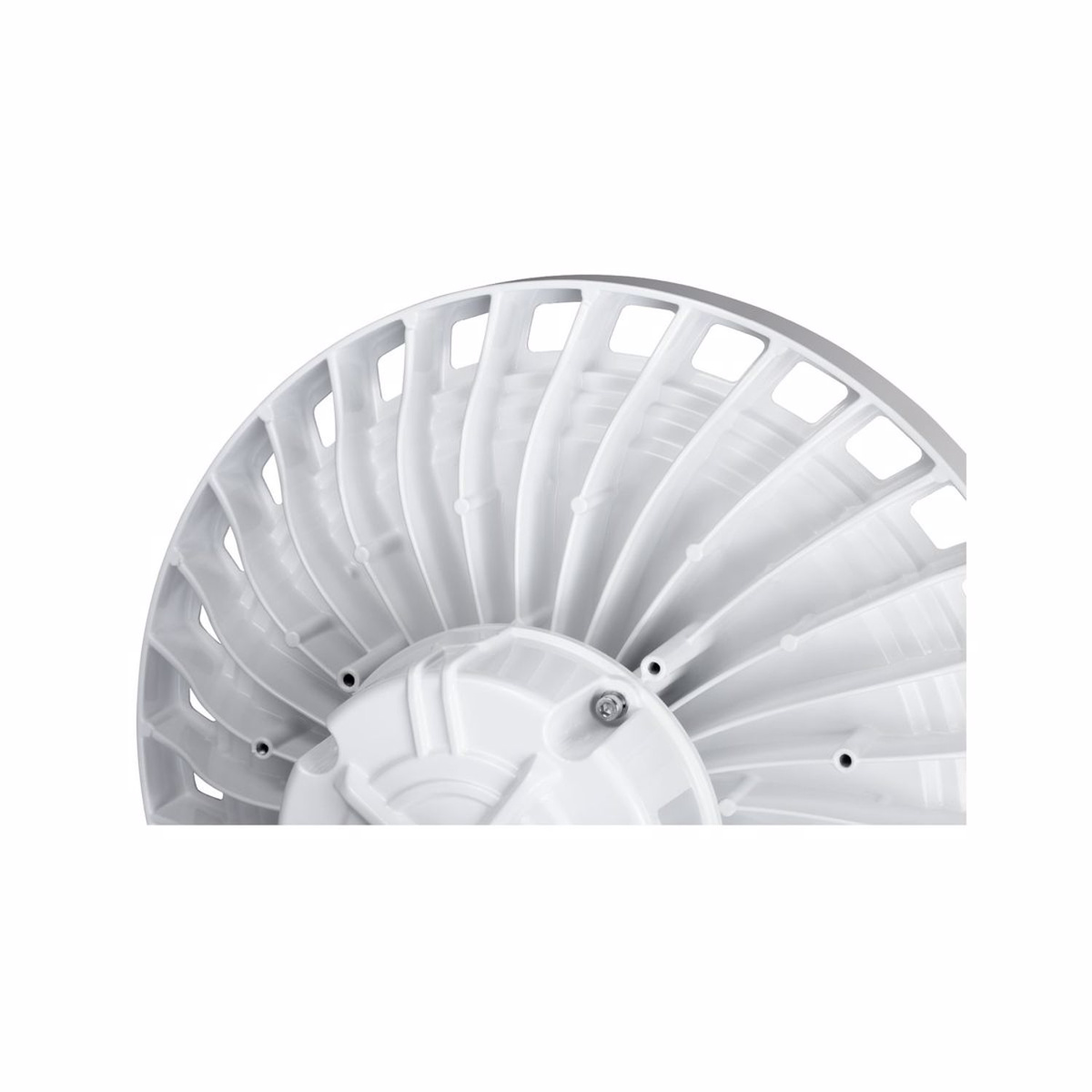

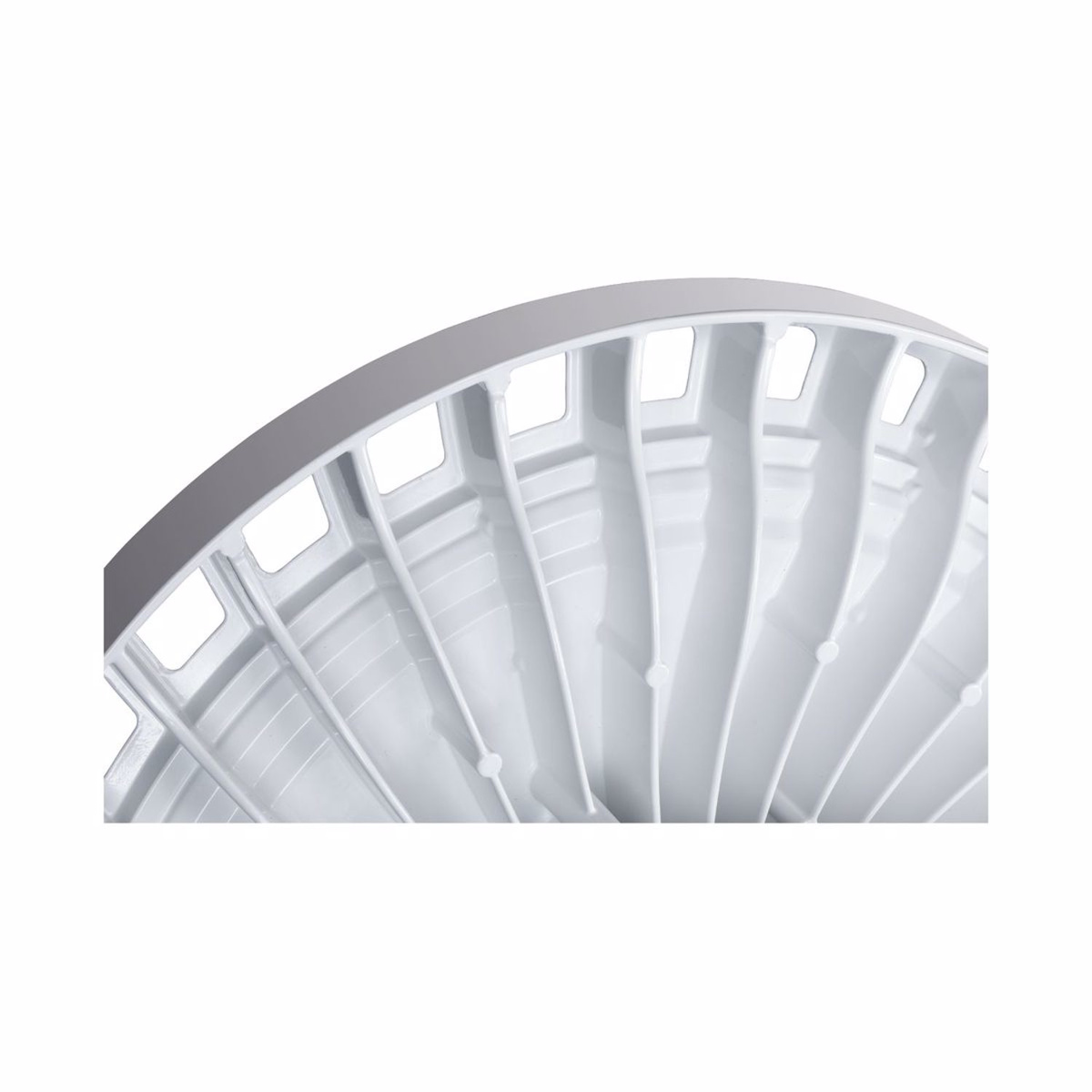

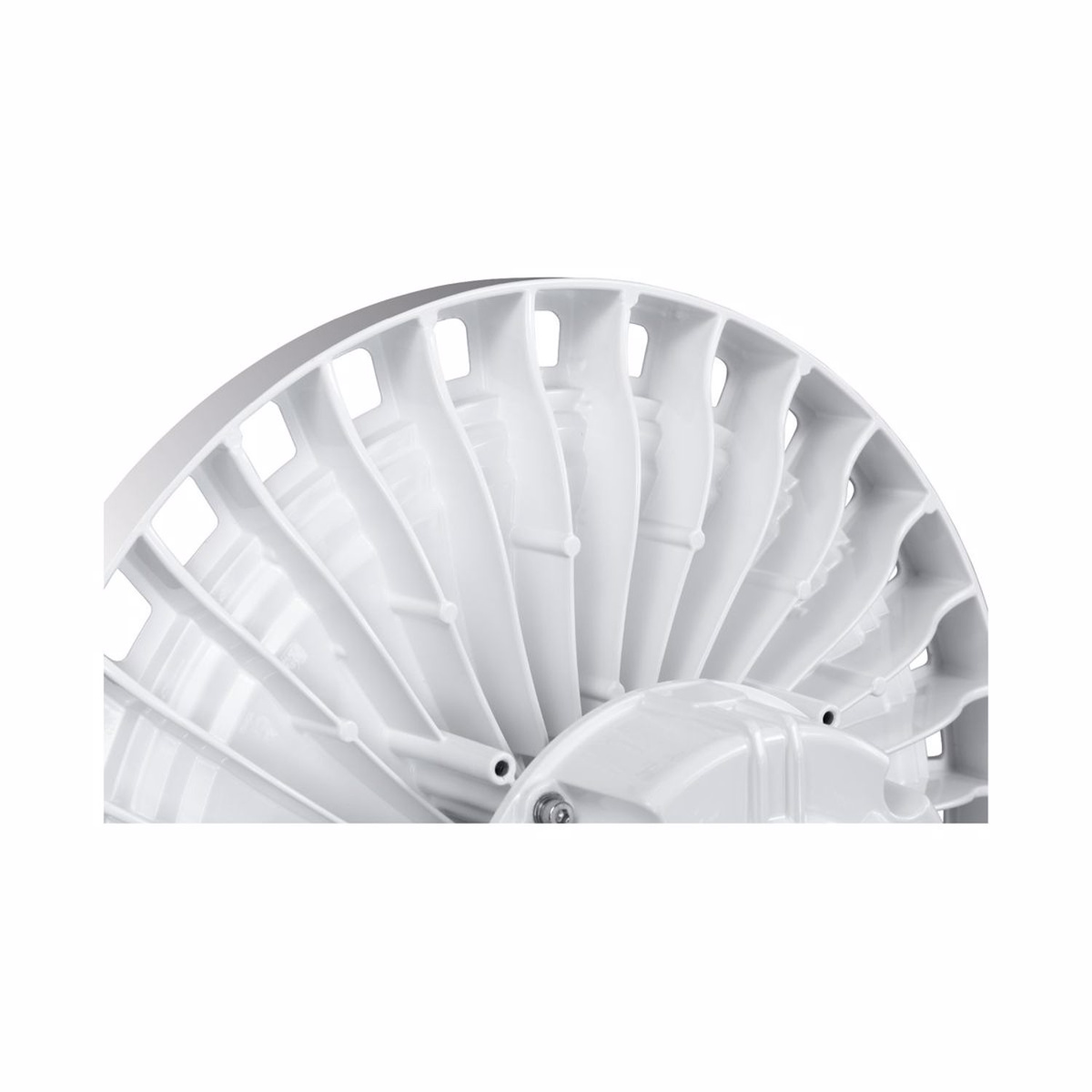

- Die cast aluminum housing with polycarbonate lens provides durability for rugged environments

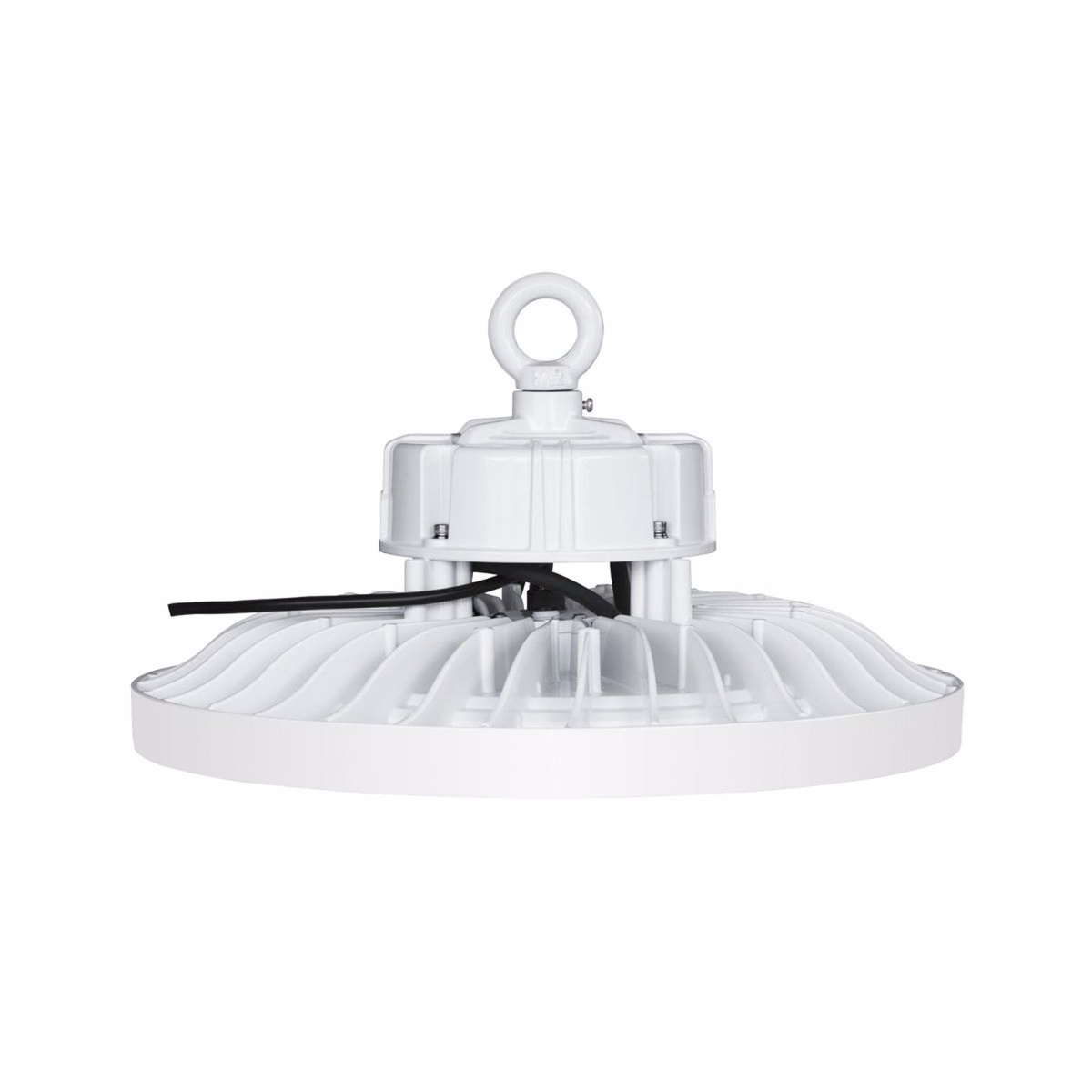

- Pre-installed 6' wet location power and dimming cords for simplified installation

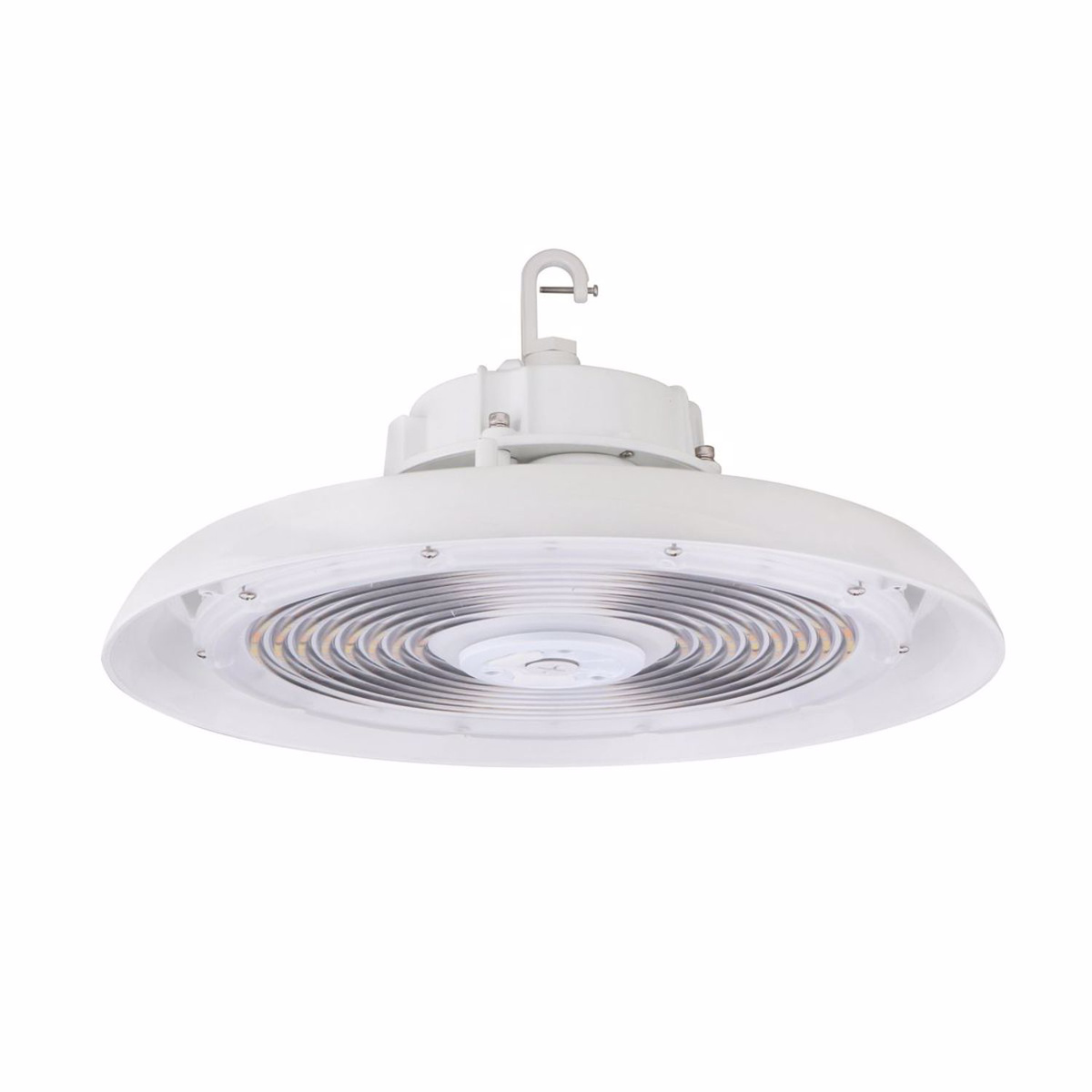

- Pendant mount from ½” NPT hook is standard
- Long-life +50,000hr LEDs at L70
- Standard 6kV surge protection for demanding environments
- Standard 0-10V, 10% dimming
- All luminaires are built to UL 1598 standards, and bear appropriate cULus labels for wet locations
- IP65 rated, NEMA 250 Type 4X rated
| Surge Protection | 6 kV |
| Brand | Current Lighting |
| Height | 7.2 in |
| Environmental Condition | Wet Location |
| Lens Material | Polycarbonate |
| Voltage | 120 - 277 V |
| Average Rated Life (hrs) | 50,000 hrs |
| Dimmable | 0 - 10 V Dimming |
| Lamp Type | LED |
| Fixture Type | Round Highbay |
| Series | CRN2-LSCS Columbia Lighting |
| CCT (K) | 4000/5000 K |
| CRI | 80 CRI |
| Wattage | 100/120/150 W |
| Lumens | 15500 - 21300 lm |
| Diameter | 11.8 in |
| Ballast Type | LED Driver |
| Color | White |
| Current Lighting Specification Sheet | Specification Sheet |
|
| Current Lighting Brochure | Brochure |
|
