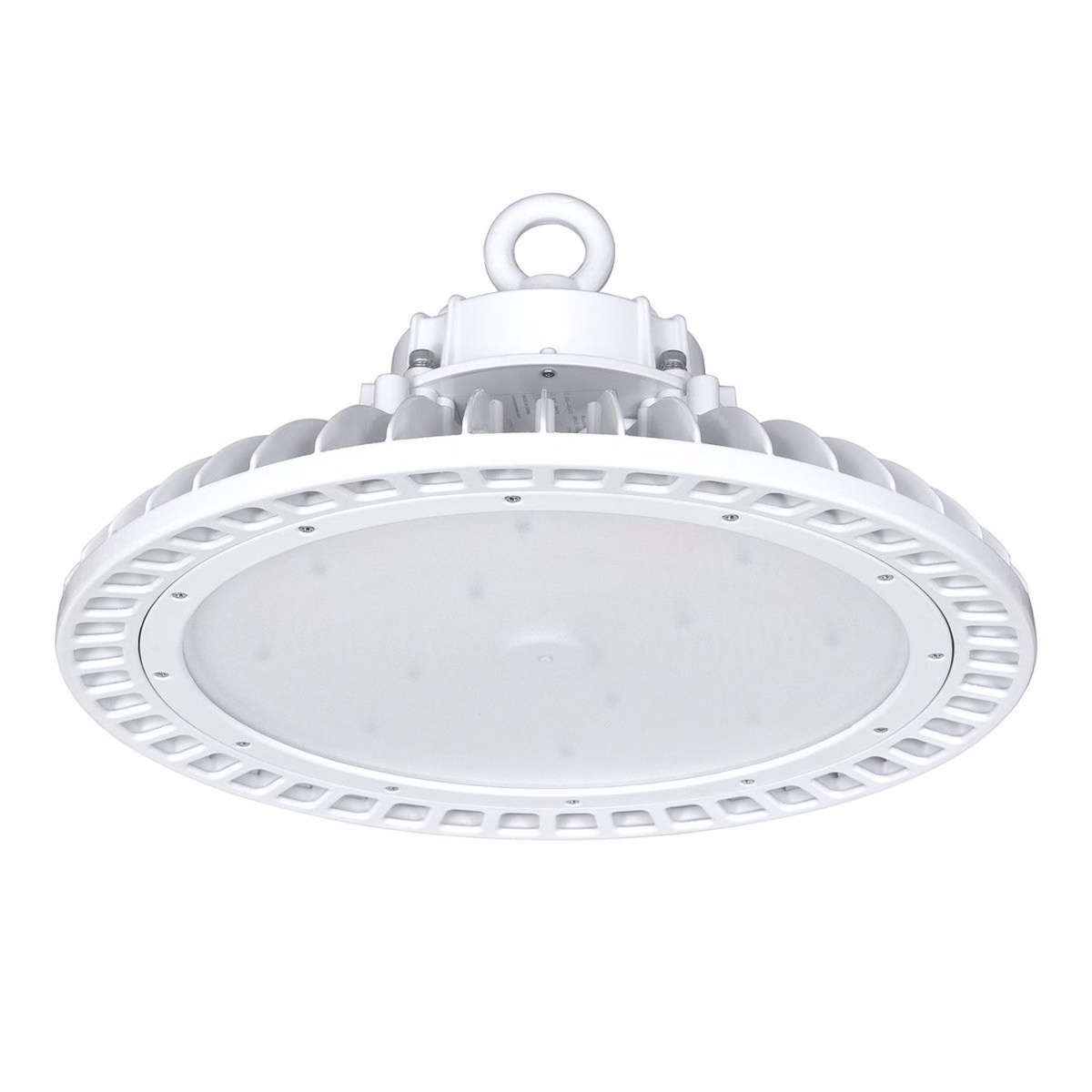

Current Lighting CRB LED Round Highbays 120 - 277 V 243 W 34603 lm 4000 K 0 - 10 V Dimming LED Driver

Logo
Mfg #: CRB40MXEDU
BOR #: 3546318
View all 8 in product family
Looking for prices?
Sign In
Create an Account

CRB Series Wet Location Compact High Bays

  • IP66 Rated
  • Efficacy up to 143 lumens per watt
  • Durable die-cast aluminum housing and polycarbonate lens
  • -30°C to 50°C ambient operating temperature range
  • 0–10V 10% dimming standard
  • 6kV surge protection
  • Long-life +54,000hr LEDs at L70
  • Pendant mount from fixture eye bolt
  • IK07 impact rated
  • Die-cast aluminum housing
  • Polycarbonate lens
  • 6' wet location power and 0–10V dimming cords standard (no plugs)
See More
Product can be ordered only in multiples of
Specifications
Material Aluminum Die Cast
Brand Current Lighting
Height 7.63 in
Environmental Condition Wet Location
Lens Material Polycarbonate
Voltage 120 - 277 V
Average Rated Life (hrs) 54,000 hrs
Dimmable 0 - 10 V Dimming
Lamp Type LED
Fixture Type Round Highbay
Series CRB
CCT (K) 4000 K
CRI 80 CRI
Wattage 243 W
Lumens 34603 lm
Diameter 14.13 in
Ballast Type LED Driver
Color White
