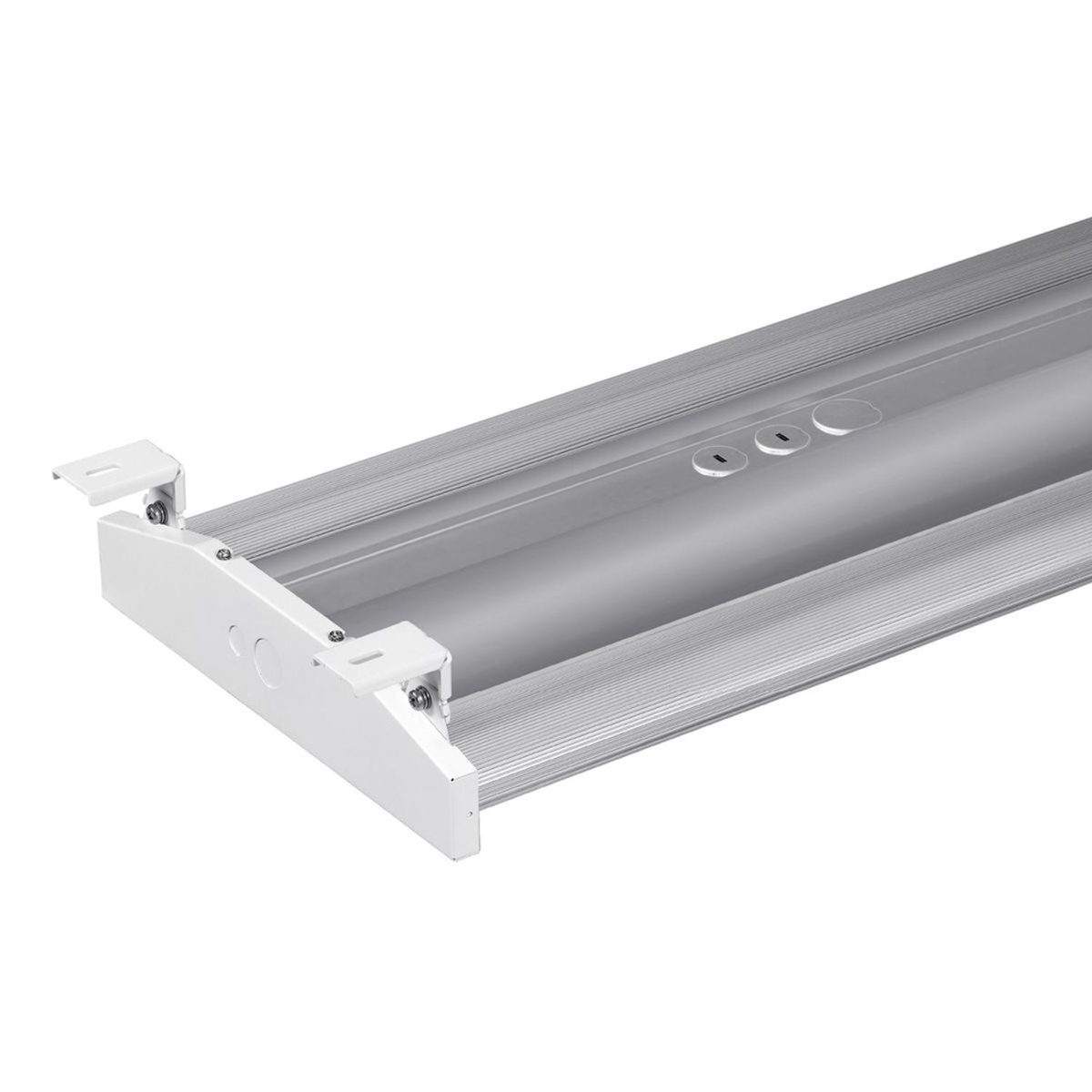

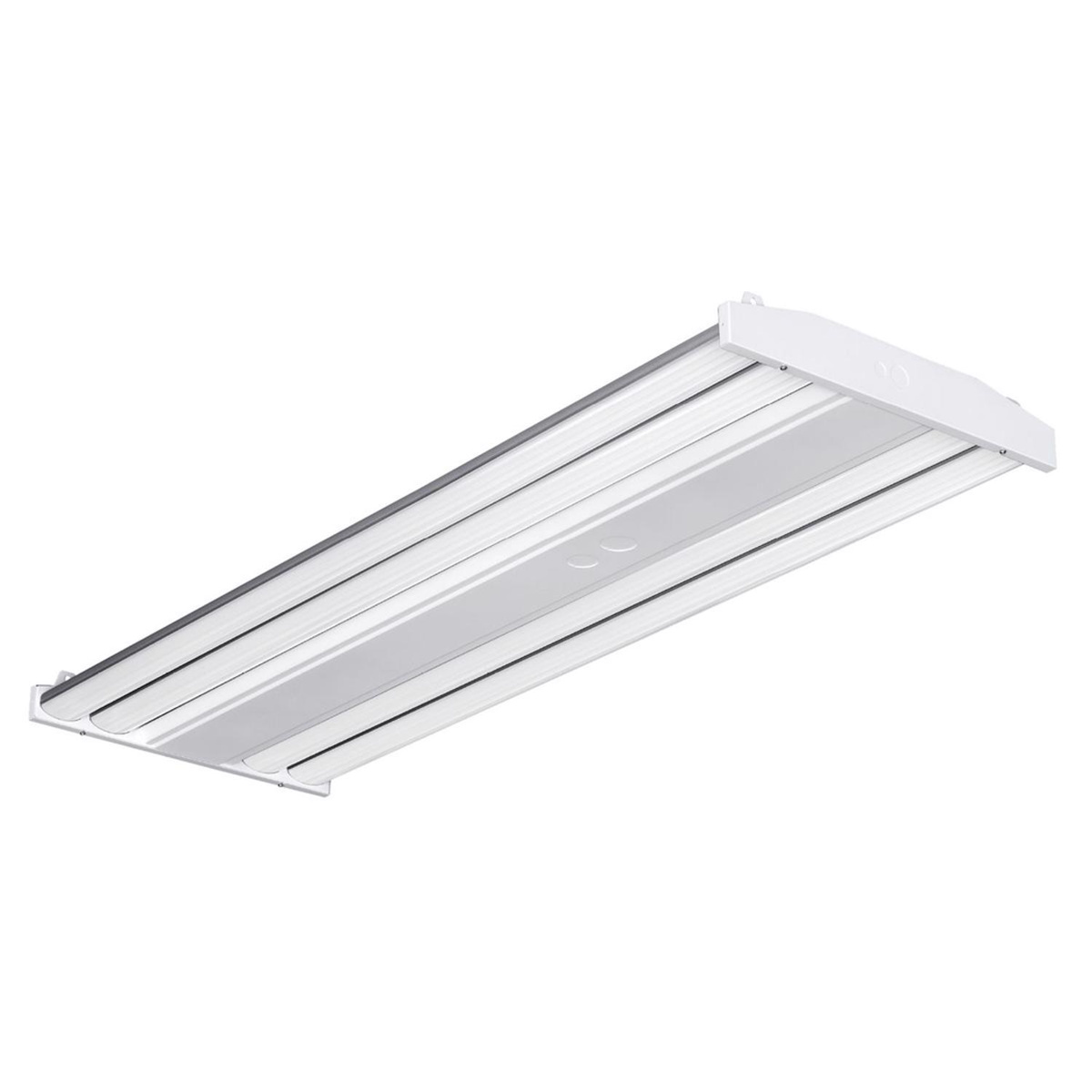

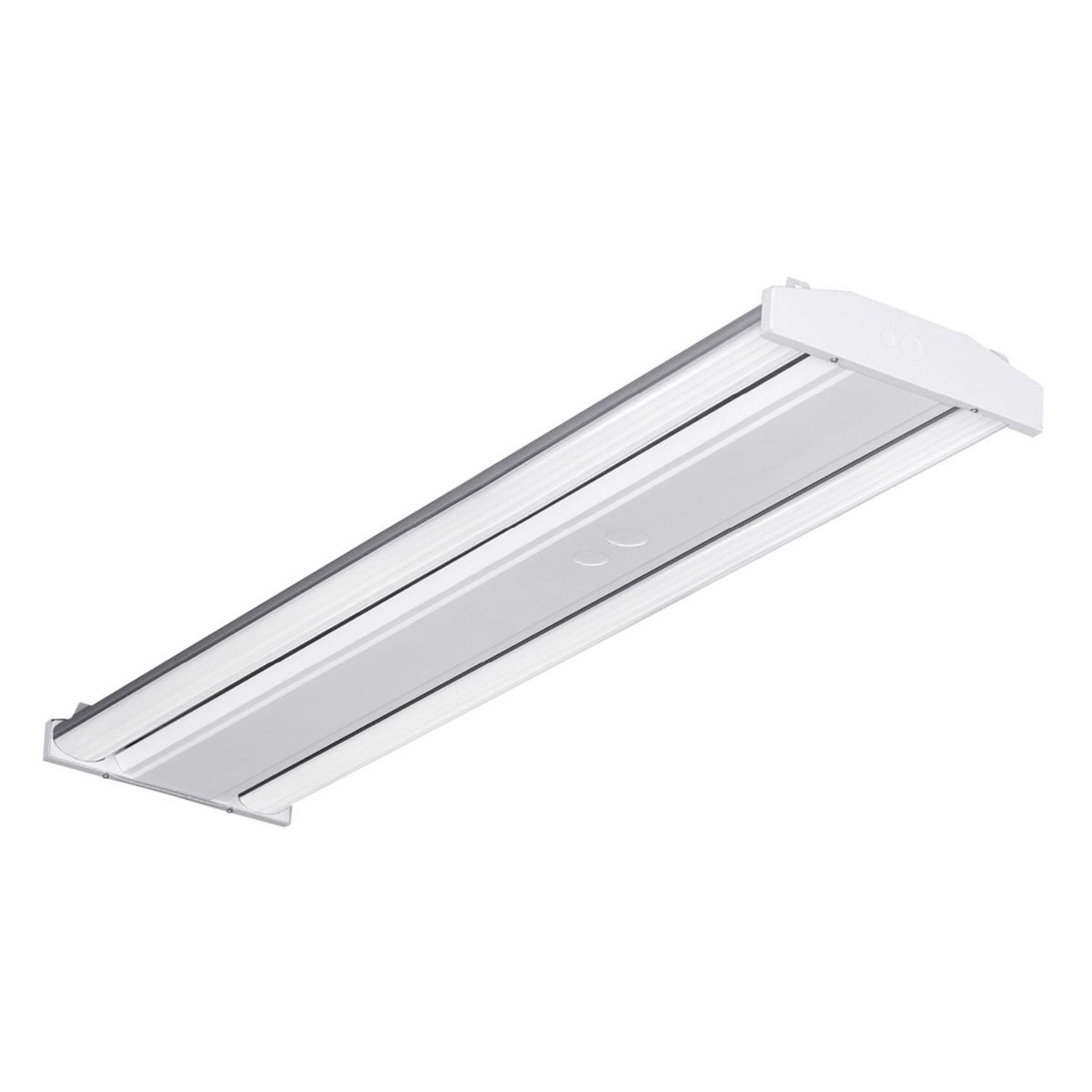

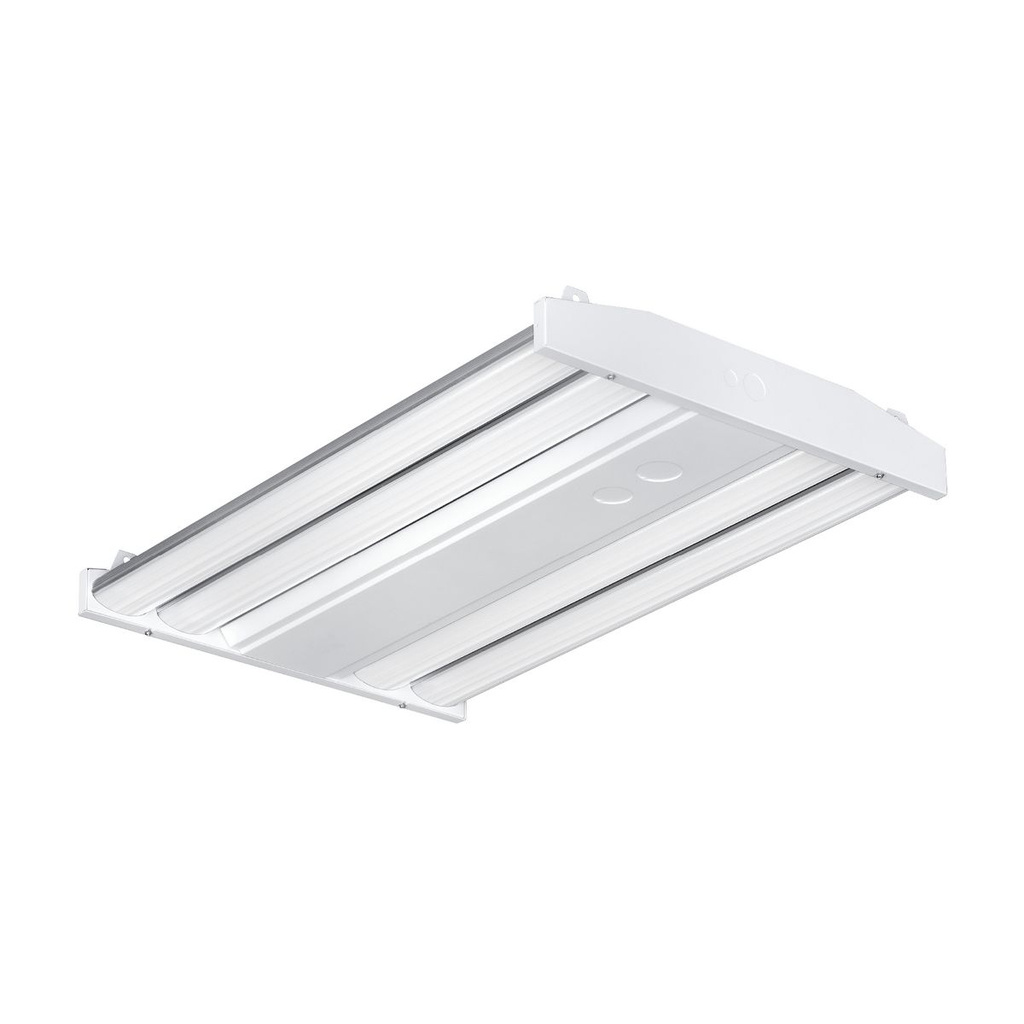

Current Lighting CLB LED Linear Highbays 120 - 277 V 75.9 W 10000 lm 4000 K 0 - 10 V Dimming Wide LED Driver

PrimaryProductImage
alternate_image
alternate_image
alternate_image
alternate_image
PrimaryProductImage alternate_image alternate_image alternate_image alternate_image
Logo
Mfg #: CLB240LXWEDU
BOR #: 3546298
View all 15 in product family
Looking for prices?
Sign In
Create an Account

The CLB Linear High Bay provides lumen outputs ranging from 10000-57000, making it suitable for a variety of bay lighting applications.

  • Lumen packages range from 10,000 to 57,000 lumens
  • Narrow and Wide lens distribution options
  • -40°C to 50°C ambient operating temperatures
  • 4000K and 5000K options with 80 CRI
  • IP4X rated
  • IK10 impact rated
  • 6kV standard surge protection
See More
Product can be ordered only in multiples of
Specifications
Material Aluminum
Brand Current Lighting
Height 2.3 in
Environmental Condition Damp Location
Lens Material Acrylic
Voltage 120 - 277 V
Average Rated Life (hrs) 54,000 hrs
Dimmable 0 - 10 V Dimming
Lamp Type LED
Fixture Type Linear Highbay
Distribution Wide
Series CLB
Width 10 in
Reflector Type Diffused Polycarbonate
Lens Frosted
CCT (K) 4000 K
CRI 80 CRI
Wattage 75.9 W
Lumens 10000 lm
Length 22.7 in
Ballast Type LED Driver
Color White
Related Documents
Installation Manual Installation and Instruction Manuals
