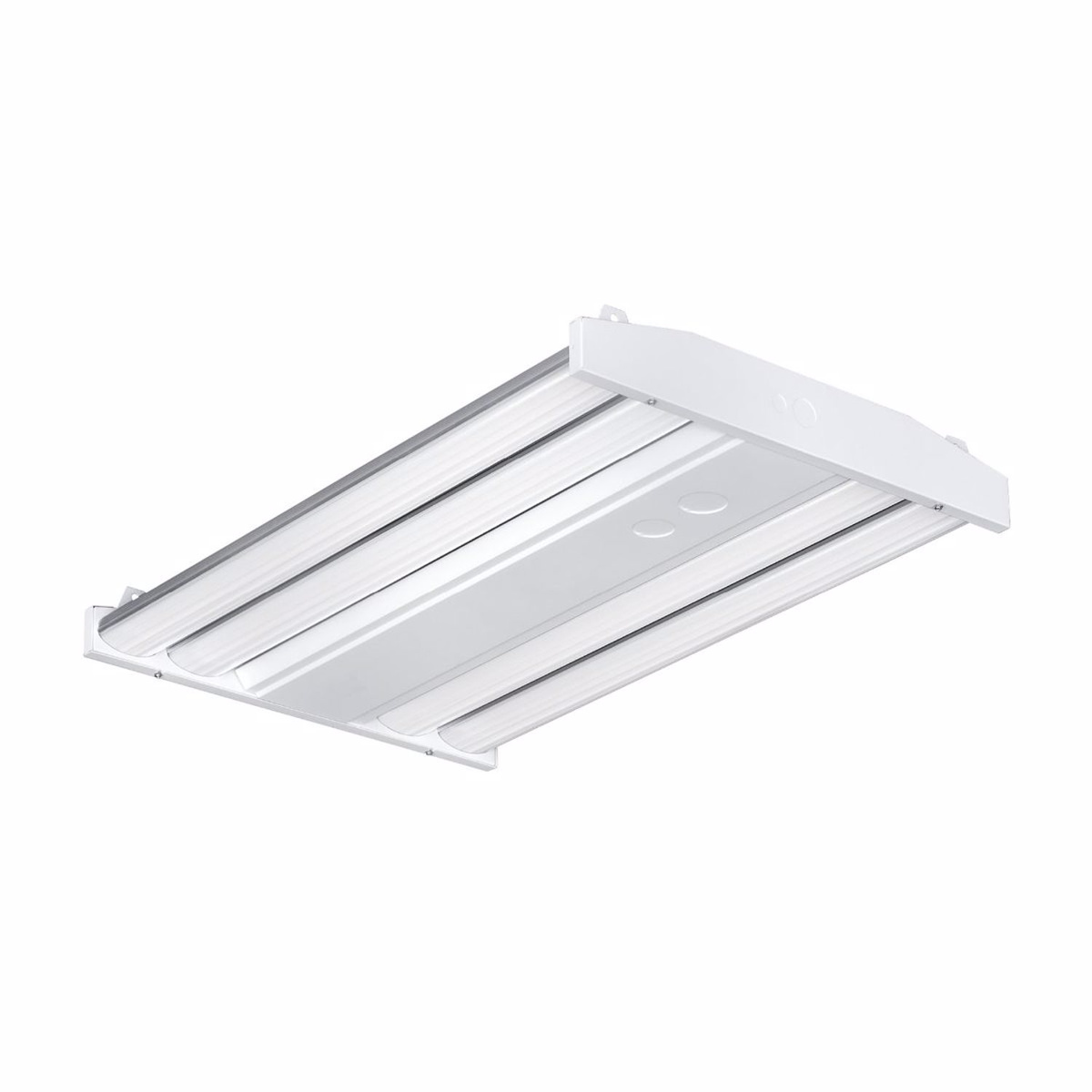

Current Lighting CLB LED Linear Highbays 120 - 277 V 393.7 W 57000 lm 5000 K 0 - 10 V Dimming Wide LED Driver

Logo
Mfg #: CLB450HHWEDU
BOR #: 3546311
View all 15 in product family
Looking for prices?
Sign In
Create an Account

The CLB Linear High Bay provides lumen outputs ranging from 10000-57000, making it suitable for a variety of bay lighting applications.

  • Lumen packages range from 10,000 to 57,000 lumens
  • Narrow and Wide lens distribution options
  • -40°C to 50°C ambient operating temperatures
  • 4000K and 5000K options with 80 CRI
  • IP4X rated
  • IK10 impact rated
  • 6kV standard surge protection
See More
Product can be ordered only in multiples of
Specifications
Material Aluminum
Brand Current Lighting
Height 2.3 in
Environmental Condition Damp Location
Lens Material Polycarbonate
Voltage 120 - 277 V
Average Rated Life (hrs) 54,000 hrs
Dimmable 0 - 10 V Dimming
Lamp Type LED
Fixture Type Linear Highbay
Distribution Wide
Series CLB
Width 14.7 in
Reflector Type Diffused Polycarbonate
CCT (K) 5000 K
CRI 80 CRI
Wattage 393.7 W
Lumens 57000 lm
Length 43.1 in
Ballast Type LED Driver
Color White
