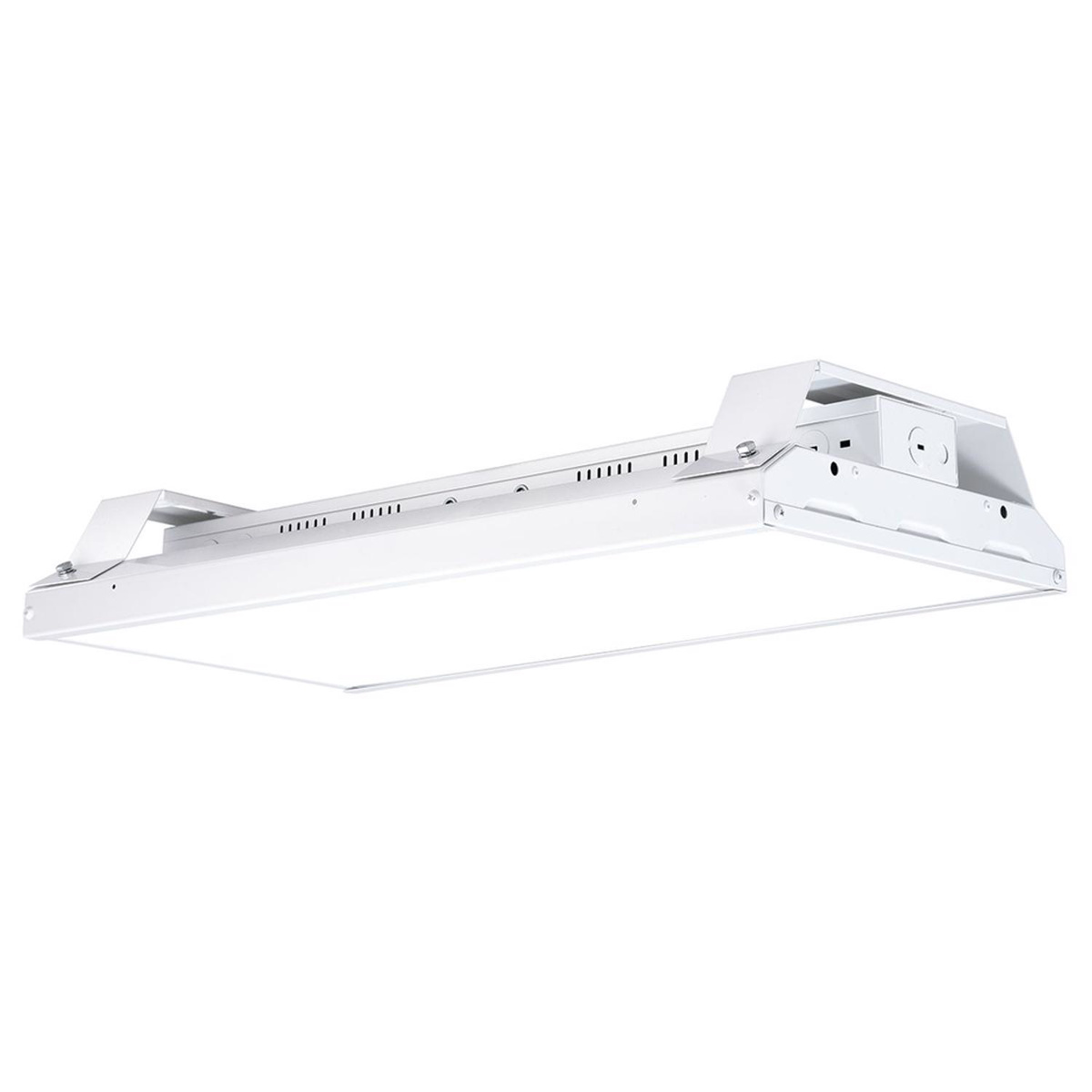

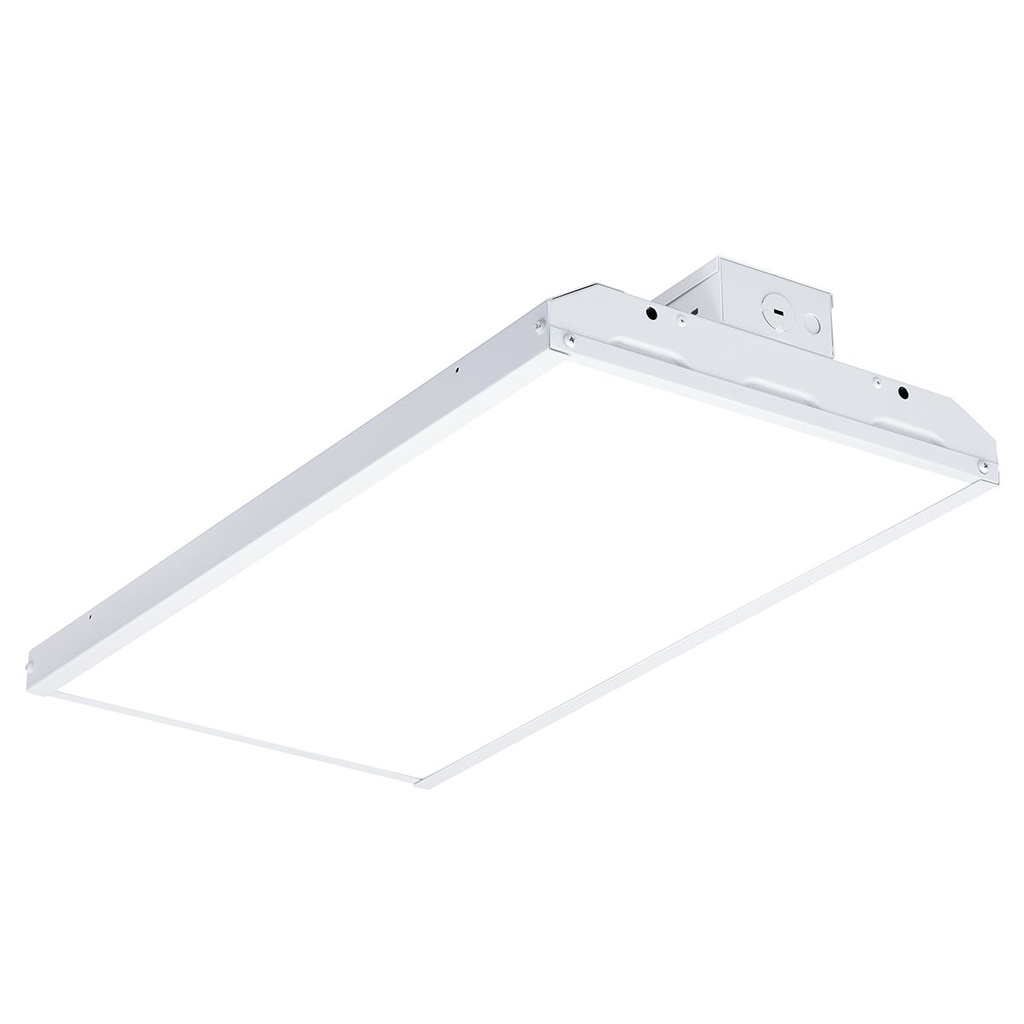

Current Lighting CHB LED Linear Highbays 120 - 277 V 132 W 17000 lm 5000 K 0 - 10 V Dimming LED Driver

PrimaryProductImage
alternate_image
alternate_image
PrimaryProductImage alternate_image alternate_image
This product has been discontinued.
For replacement, please view:Current Lighting CLB LED Linear Highbays 120 - 277 V 98.9 W 14000 lm 5000 K 0 - 10 V Dimming Wide LED Driver
Logo
Mfg #: CHB250MLFAEDU
BOR #: 3442229
View all 11 in product family
Looking for prices?
Sign In
Create an Account

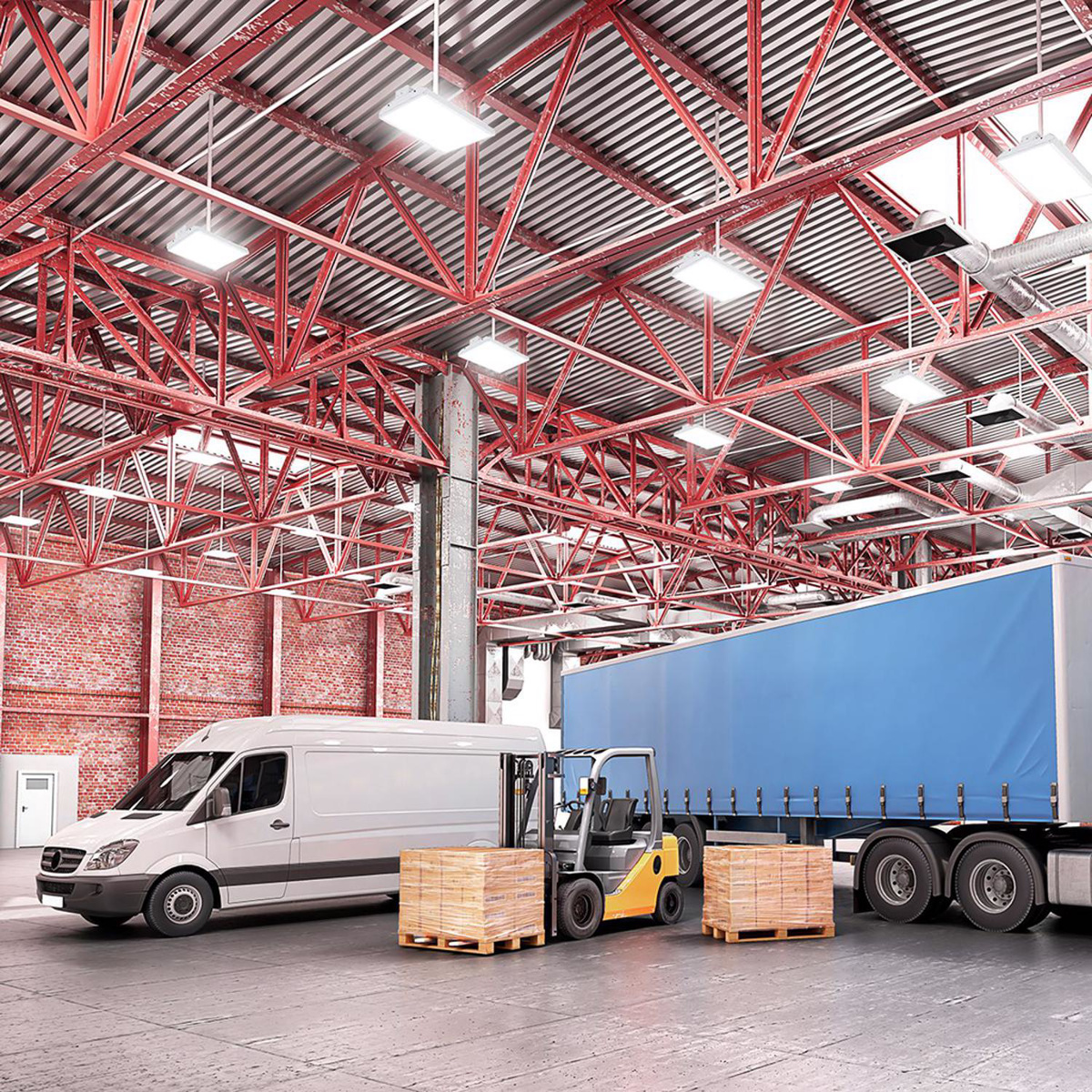

The CHB is an efficient linear high bay suitable for a variety of areas including warehouses, gyms and mezzanines.

  • Frosted acrylic lens
  • LED light engine provides nominal efficacies of 130 lm/w
  • 0-10V dimming to 10%
  • 80+ CRI
  • 6kV surge protection
  • Long life LEDs with projected life over 122,000 hours at L70
See More
Product can be ordered only in multiples of
Specifications
Material Steel
Brand Current Lighting
Height 3-3/4 in
Environmental Condition Damp Location
Lens Material Acrylic
Voltage 120 - 277 V
Average Rated Life (hrs) 60,000 hrs
Dimmable 0 - 10 V Dimming
Lamp Type LED
Fixture Type Linear Highbay
Series CHB
Width 12.57 in
Reflector Type PMMA
Lens Frosted
CCT (K) 5000 K
CRI 80 CRI
Wattage 132 W
Lumens 17000 lm
Length 23.81 in
Ballast Type LED Driver
Color White
Related Documents
Installation Manual 1 Installation and Instruction Manuals
