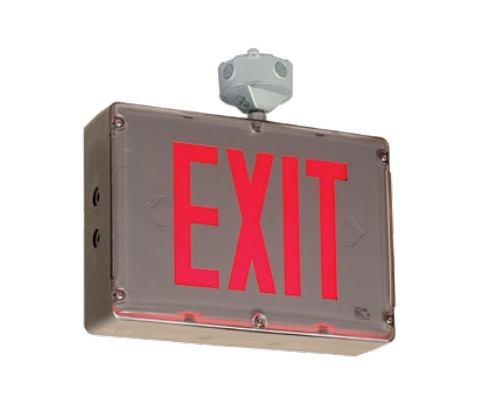

ABB Survive-All™ SVX-HZ Illuminated Emergency Exit Signs Self-diagnostics Single Face

Mfg #: GGSVXHZ1RD
BOR #: 3585352
Looking for prices?

Survive-All™ SVX-HZ Series Class I Division 2, Groups A, B, C and D, hazardous location exit signs

  • Fully gasketed housing frame
  • Faceplate: heavy-duty, vandal-resistant polycarbonate
  • Backplate: heavy-duty aluminum
  • Stainless steel tamper-proof screws
  • 6 inch EXIT lettering legend, available in red or green
  • Field-selectable chevrons
  • Surface mount
  • Junction box included for wall, end or ceiling mount applications
  • 1/2 inch conduit knock-out entry on top and sides.
  • Magnetic test switch
  • Standard Advanced Diagnostics (non-audible)
  • 120 to 277 60Hz
  • Compatible with Emergi-lite min inverters
See More
Product can be ordered only in multiples of
Brand ABB
Emergency Light Fixtures Style Self-diagnostics
Battery Type No Batteries, AC/DC Only
Lighting Mounting Type Wall or Ceiling
Color Gray
Voltage 120 - 277 V
Legend EXIT
Series Survive-All™ SVX-HZ
Legend Color Red
Includes AC/DC Only, Diagnostic (self-powered only & non-audible)
Face Single Face
Fixture Type Emergency/Exit
