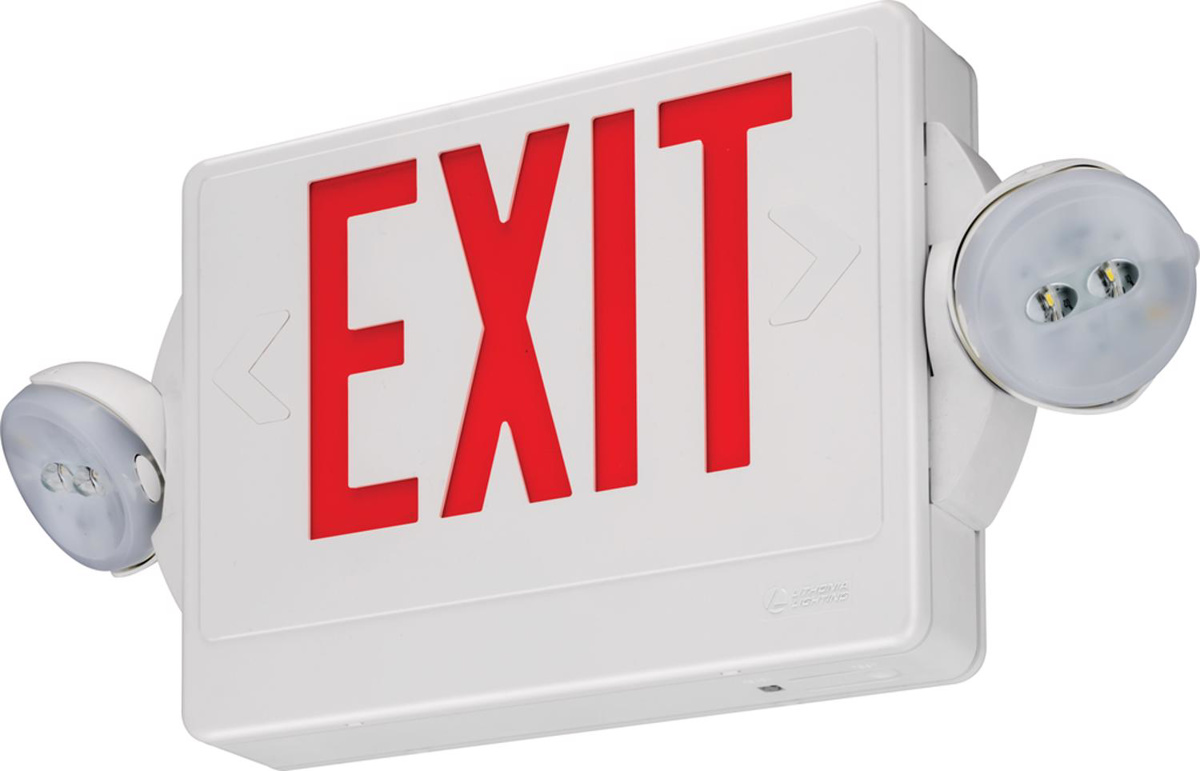

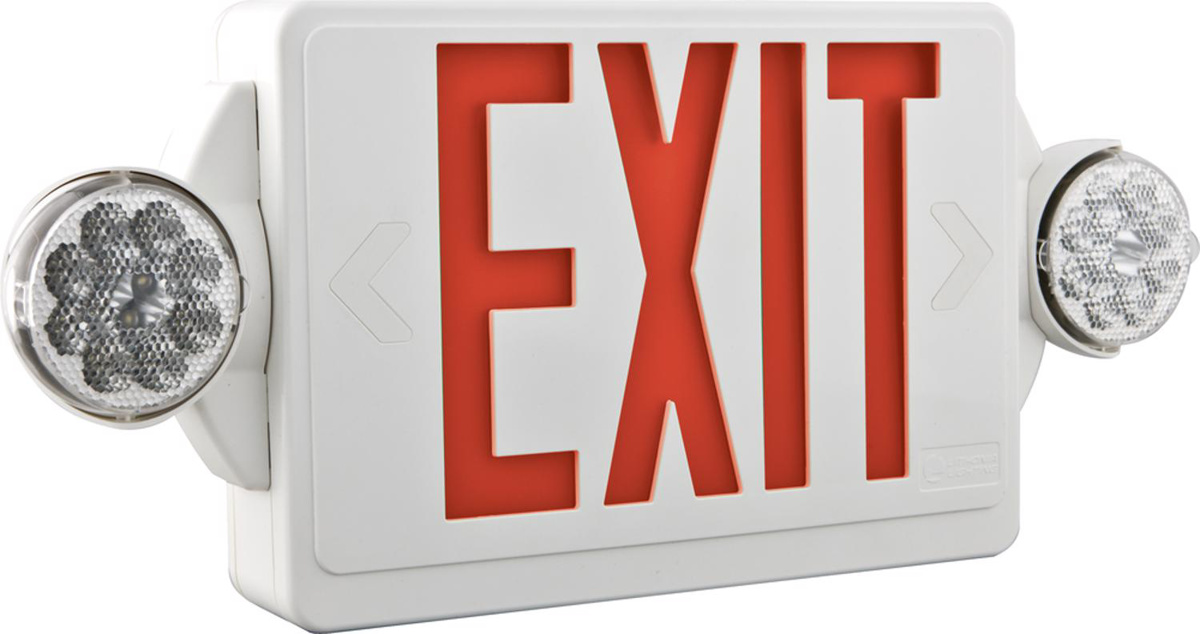

Lithonia Combination Emergency / Exit Lights Remote Capacity LED Universal

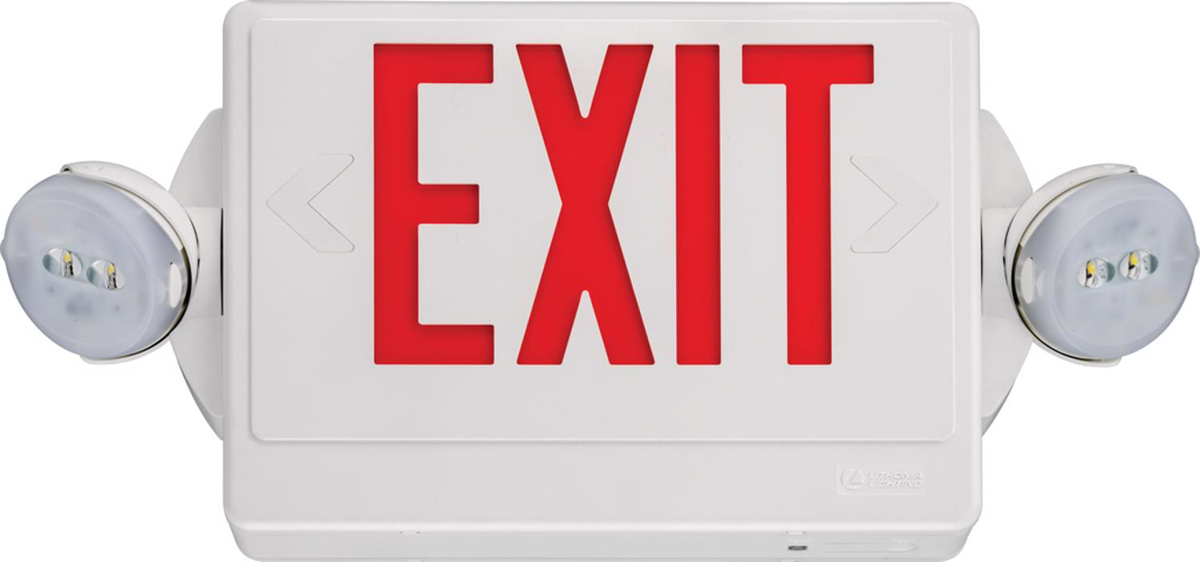

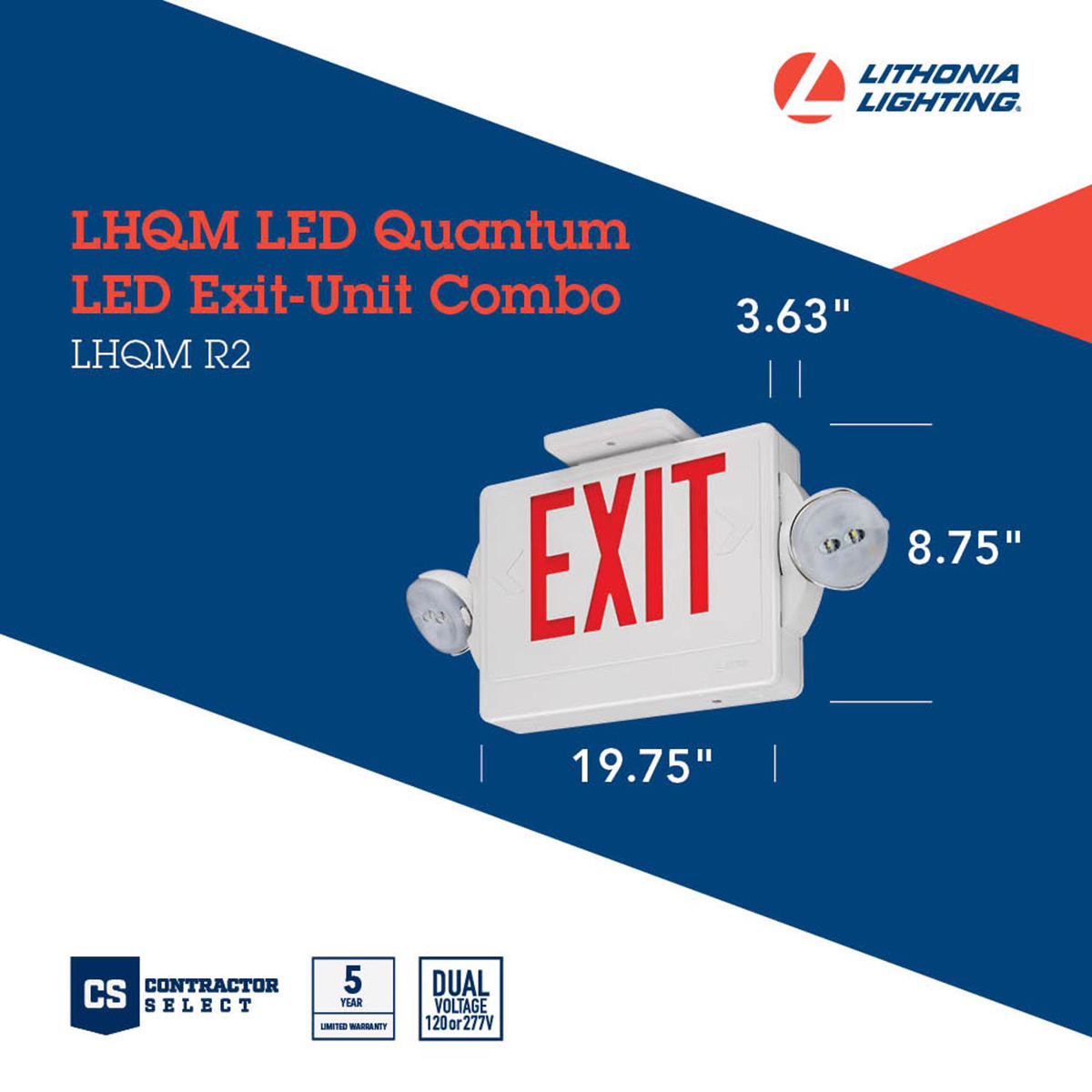

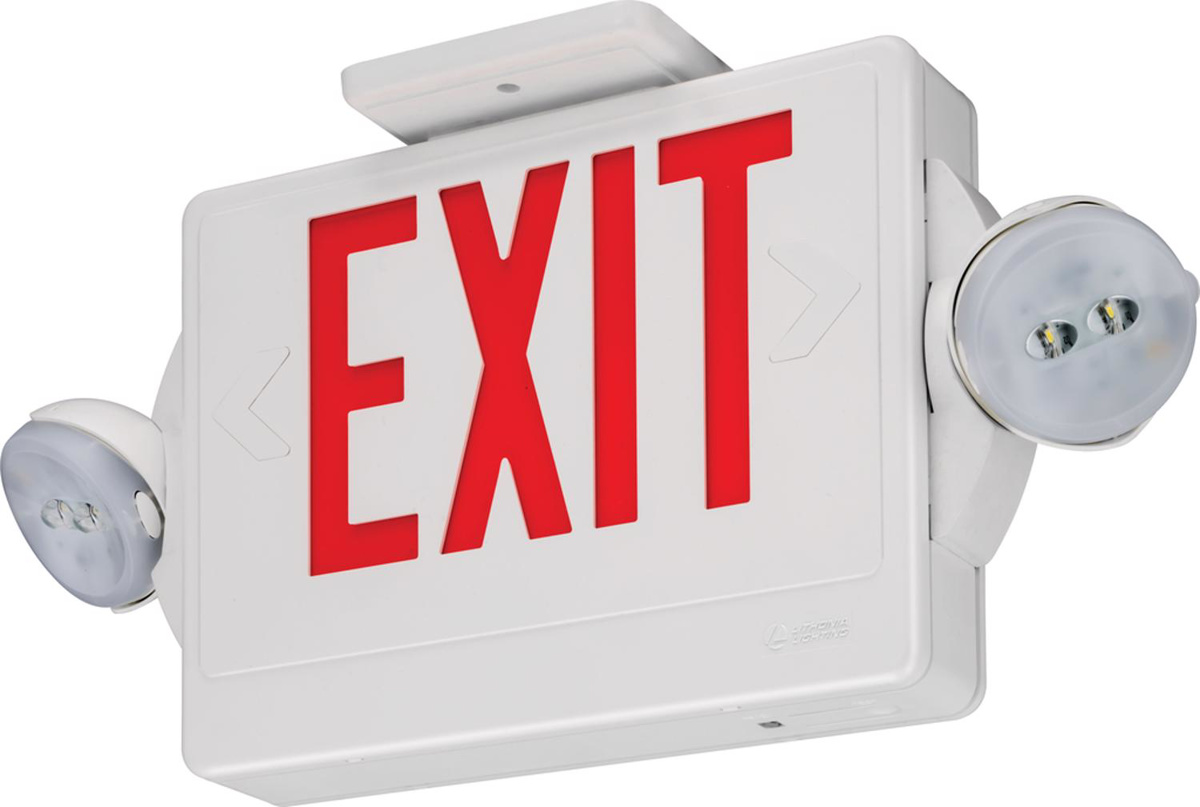

Quantum® Exit/Unit Combo, LHQM Series Stencil Face LED Exit-Unit Combo, 7 - 9 Year Expected Life, Battery Runtime: 90 MIN

• Battery 3 years shelf life, 7-9 years typical life, 50 to 104 deg F optimum temperature
• Current-limiting charger maximizes battery life and minimizes energy consumption, provides low operating costs
• Dual-voltage input capability (120/277 VAC), edge connector on printed circuit board ensures long-term durability
• Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof, Stencil face, single face plate with extra face plate
• Filtered charger input minimizes charge voltage ripple and extends battery life
• LEDs mounted on primary circuit boards for sign illumination, low-energy LED lamp in sign operates in normal (AC input) and emergency (DC input) modes
• Letters are 6 in high with 3/4 in stroke, with 100 ft

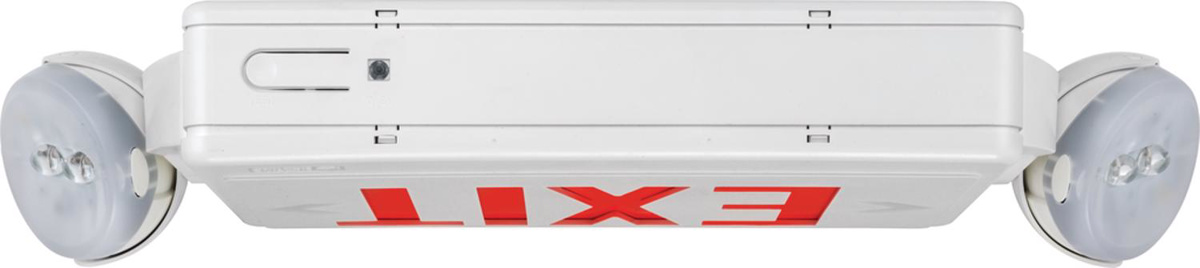

• Low profile, integrated test switch/pilot light, easily viewed bright red status indicator
• Optional high output version with remote lamps are ideal for emergency egress lighting
• Positive snap-fit tabs hold faceplate securely, yet are easily removable for lamp compartment access
• Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages, prevents over/undercharging that shortens battery life and reduces capacity

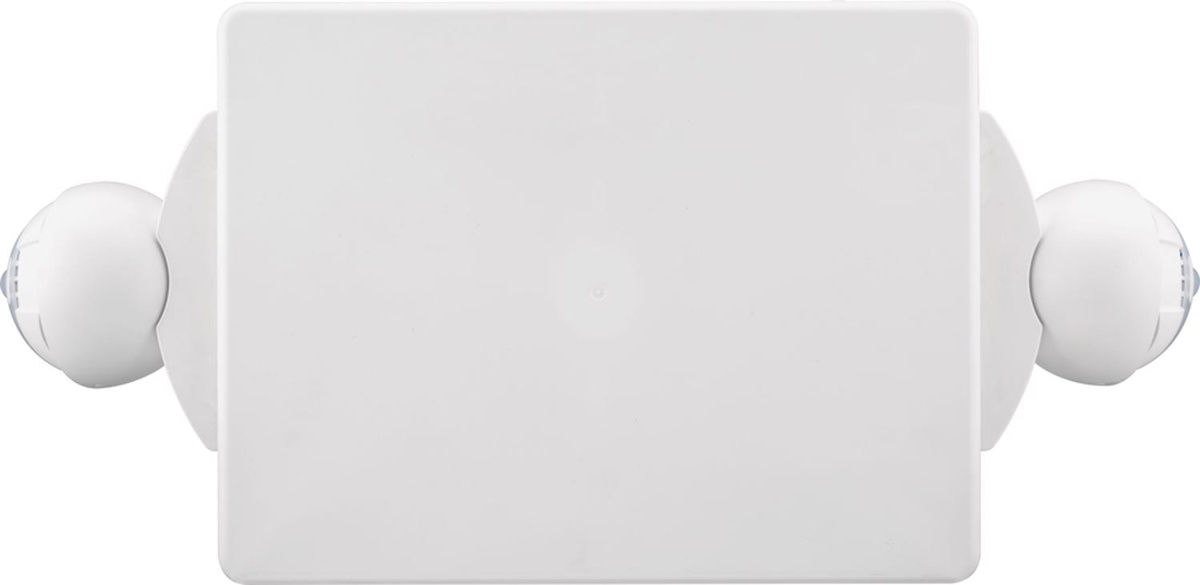

• Rugged unibody housing snaps together with no additional fasteners, faceplate and back cover are interchangeable on housing
• Short-circuit protection current-limiting charger circuitry protects printed circuit board from shorts, thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature
• Twin LED lamp heads operate in emergency (DC input) mode with 12 series-parallel white LEDs in each head, provides redundant light sources to ensure emergency lighting performance, typical life of the exit LED lamp is 10 years
• UL94V-O flame rating, UV-stable resin resists discoloration from natural and man-made light sources
• Uniform graphics illumination without shadows or hot spots
