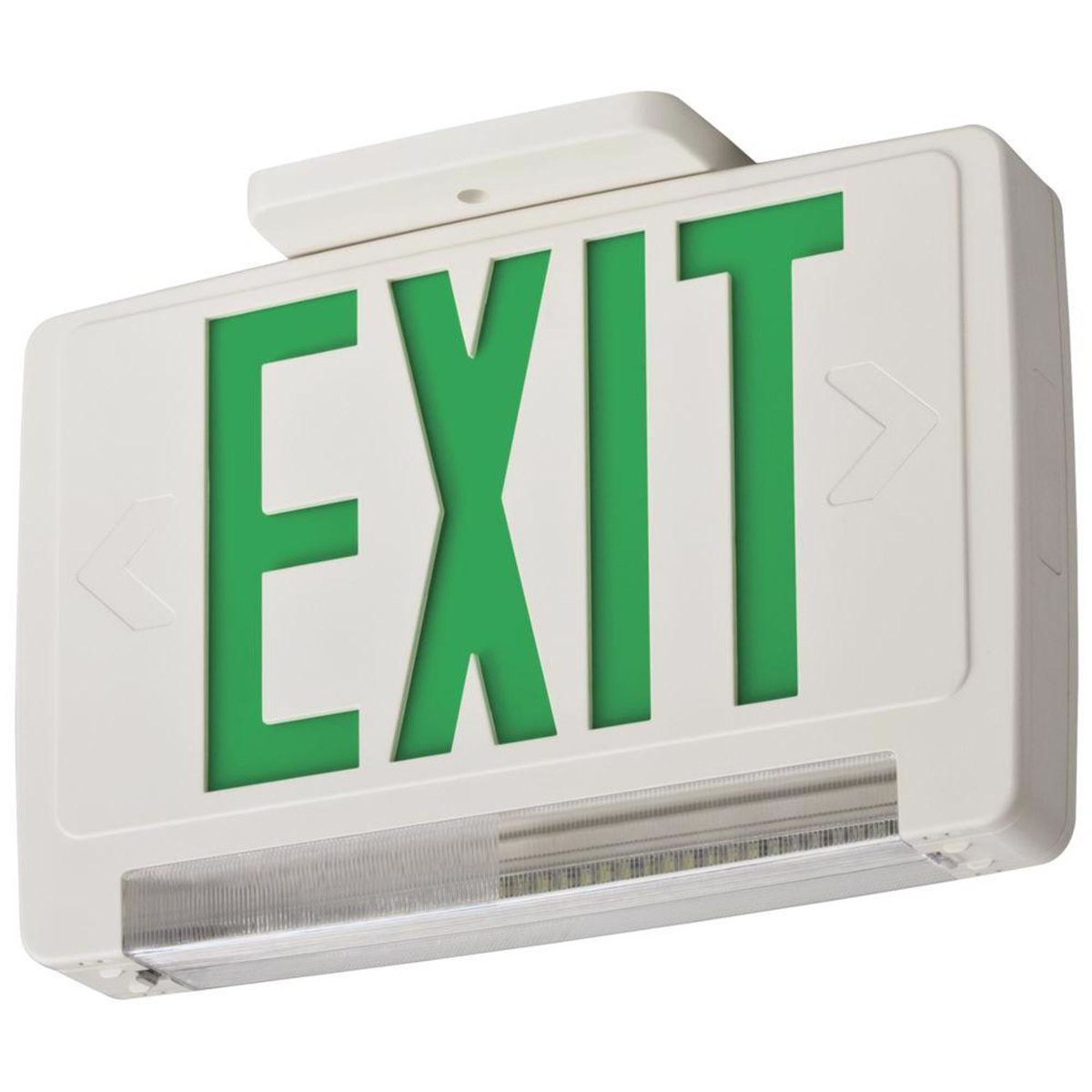

Lithonia Combination Emergency / Exit Lights LED Universal
Mfg #:
ECBGLEDM6
BOR #:
2788776
Quantum® Exit/Unit Combo, LHQM Series Stencil Face LED Exit-Unit Combo, 7 - 9 Year Expected Life, Battery Runtime: 90 MIN
- Battery 3 years shelf life, 7-9 years typical life, 50 to 104 deg F optimum temperature
- Current-limiting charger maximizes battery life and minimizes energy consumption, provides low operating costs
- Dual-voltage input capability (120/277 VAC), edge connector on printed circuit board ensures long-term durability
- Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof, Stencil face, single face plate with extra face plate
- Filtered charger input minimizes charge voltage ripple and extends battery life
- LEDs mounted on primary circuit boards for sign illumination, low-energy LED lamp in sign operates in normal (AC input) and emergency (DC input) modes
- Letters are 6 in high with 3/4 in stroke, with 100 ft
- Low profile, integrated test switch/pilot light, easily viewed bright red status indicator
- Optional high output version with remote lamps are ideal for emergency egress lighting
- Positive snap-fit tabs hold faceplate securely, yet are easily removable for lamp compartment access
- Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages, prevents over/undercharging that shortens battery life and reduces capacity
- Rugged unibody housing snaps together with no additional fasteners, faceplate and back cover are interchangeable on housing
- Short-circuit protection current-limiting charger circuitry protects printed circuit board from shorts, thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature
- Twin LED lamp heads operate in emergency (DC input) mode with 12 series-parallel white LEDs in each head, provides redundant light sources to ensure emergency lighting performance, typical life of the exit LED lamp is 10 years
- UL94V-O flame rating, UV-stable resin resists discoloration from natural and man-made light sources
- Uniform graphics illumination without shadows or hot spots
| Brand | Lithonia |
| Face | Universal |
| Wattage | 3 W |
| Material | Thermoplastic |
| Legend Color | Green |
| Includes | Canopy |
| Battery Type | NiCd (Nickel Cadmium) Battery |
| Lighting Mounting Type | Top, End, or Back |
| Environmental Condition | Damp Location |
| Color | White |
| Voltage | 120 - 277 V |
| Legend | Exit |
| Fixture Type | Emergency/Exit |
| Lamp Type | LED |
| Series | Contractor Select ECB |
| Lithonia Specification Sheet | Specification Sheet |
|
