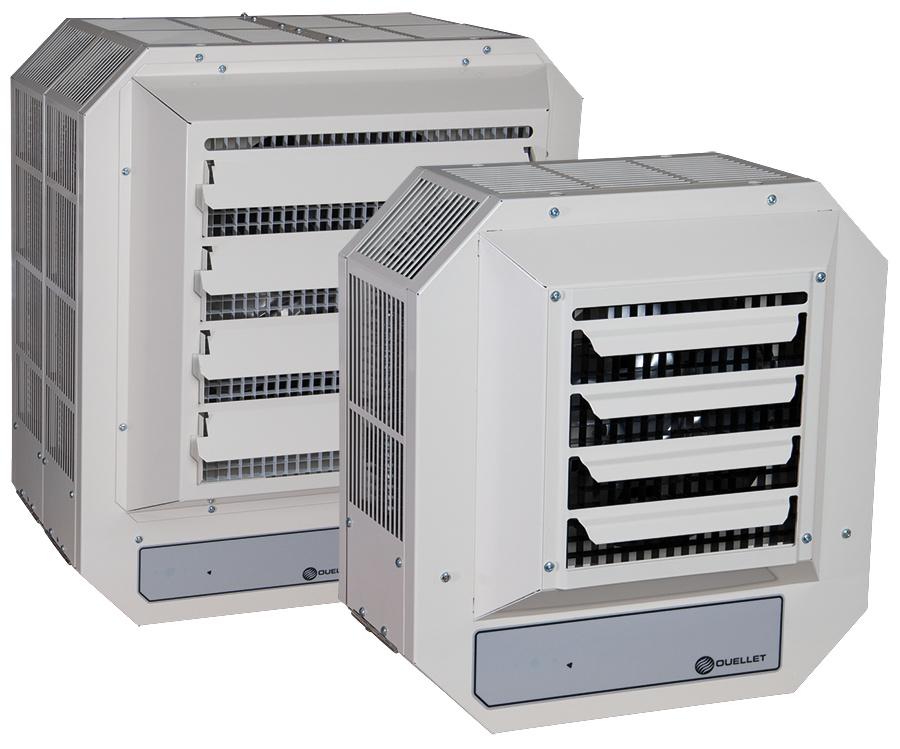

Ouellet OHV Series Commercial Unit Heaters 240/208 V 10/7.5 kW 1 Phase, 3 Phase

Developed to target the larger commercial and institutional markets, the OHV unit heater offers a number of special features such as a draw-through design, egg-crate discharge air diffuser, individual adjustable louvers, and an attractive contemporary des

• Its matched CFM to Delta T and dynamic air throw provide the right temperature rise and make it the best heater for fast recovery in spot heating applications and where people are in the air stream.
• The OHV unit can be mounted horizontally (wall or ceiling) using the supplied brackets or vertically using 4 threaded rods (not included).
• Includes wall and ceiling mounting brackets (for horizontal discharge air flow).
• 24 V Control Voltage
• Draw-through design for more evenly heated air - Horizontal or vertical discharge air flow.
• Specially designed outlet diffuser provides maximum air velocity
• Individually adjustable louvers to direct discharge air flow
• High-limit temperature control with automatic reset
• 18 and 20 gauge steel.
• Motor - totally enclosed - thermally protected
• Motor mounted in ambient air stream, shielded from heating elements
• Fan delay purges heater of residual heat for longer life
• Minimum mounting height of 6 ft
• All models have factory installed contactor
