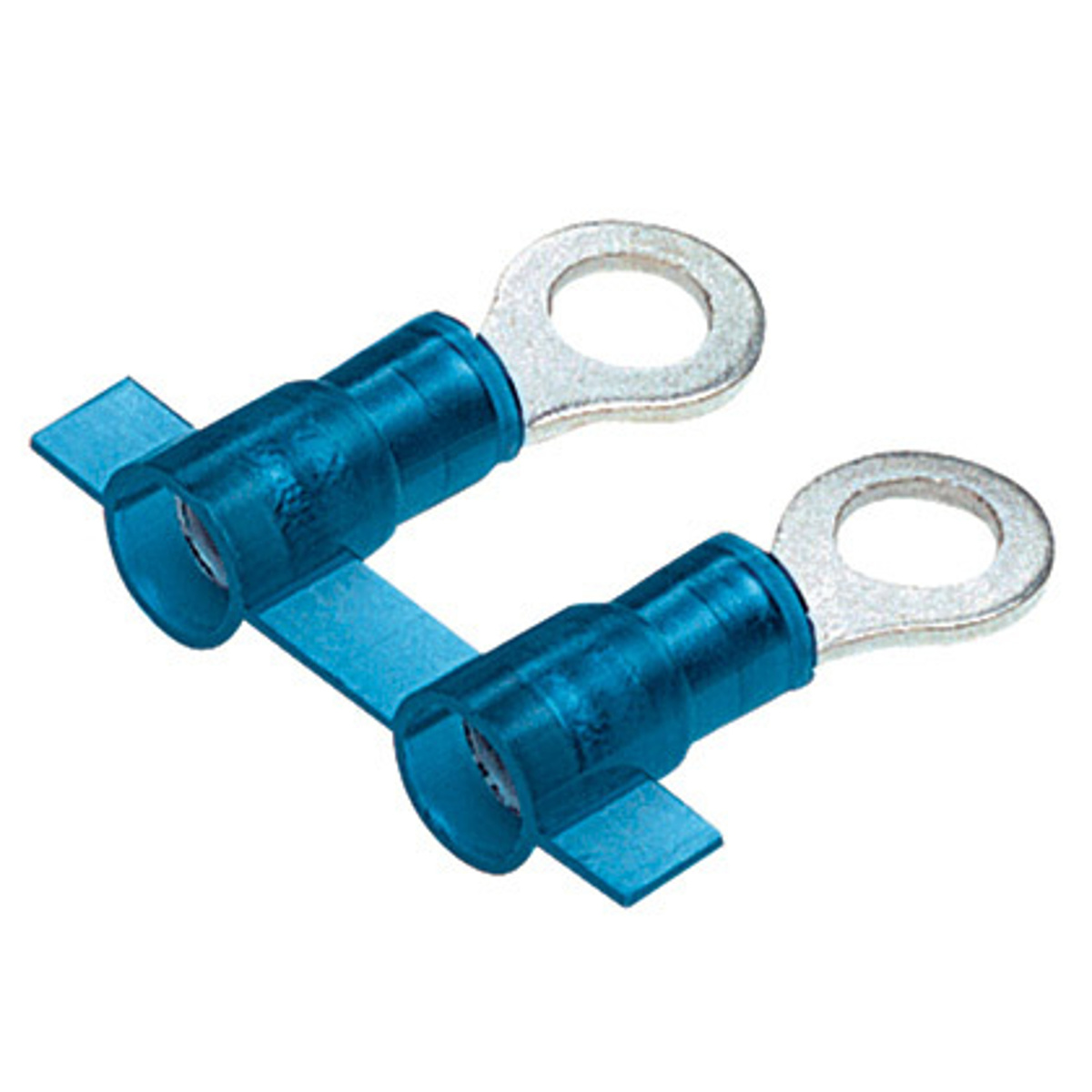

Panduit PNF Series Insulated Ring Terminals 16 - 14 AWG #8 Blue
Mfg #:
PNF148R3K
BOR #:
572442
| Brand | Panduit |
| Finish | Tin-plated |
| Voltage | 600 VAC |
| Overall Length | 0.87 in |
| Series | PNF |
| Maximum Compatible Conductor Size | 14 AWG |
| Minimum Compatible Conductor Size | 16 AWG |
| Pad Width | 0.31 in |
| Connector Material | Copper |
| Insulation Material | Nylon |
| Stud Hole Size | #8 |
| Insulation Color | Blue |
| Connector Type | Ring |
| Insulation | Insulated |
| Conductor Size | 16 - 14 AWG |
| Temperature Range | 221 deg F |
| Panduit Specification Sheet | Specification Sheet |
|
