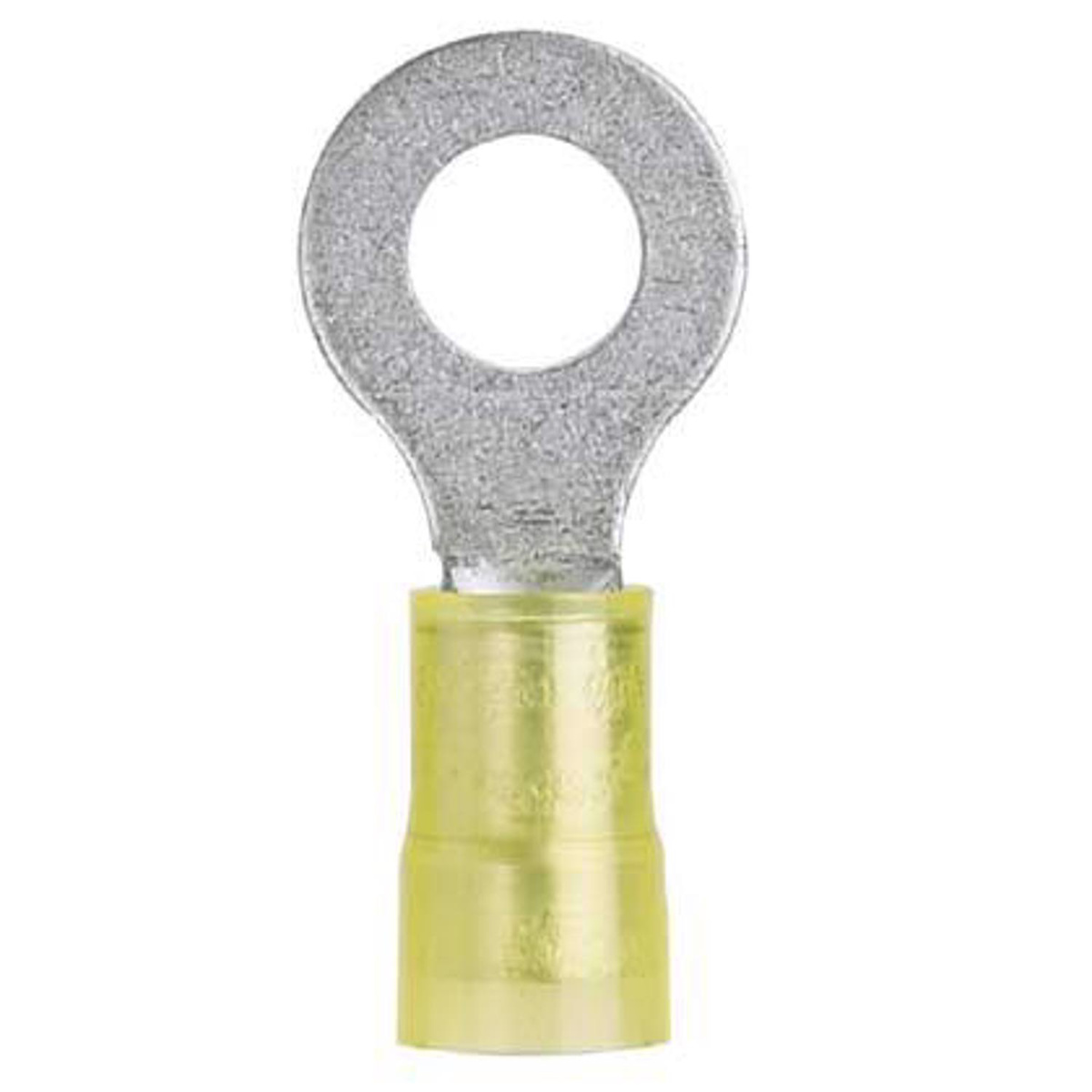

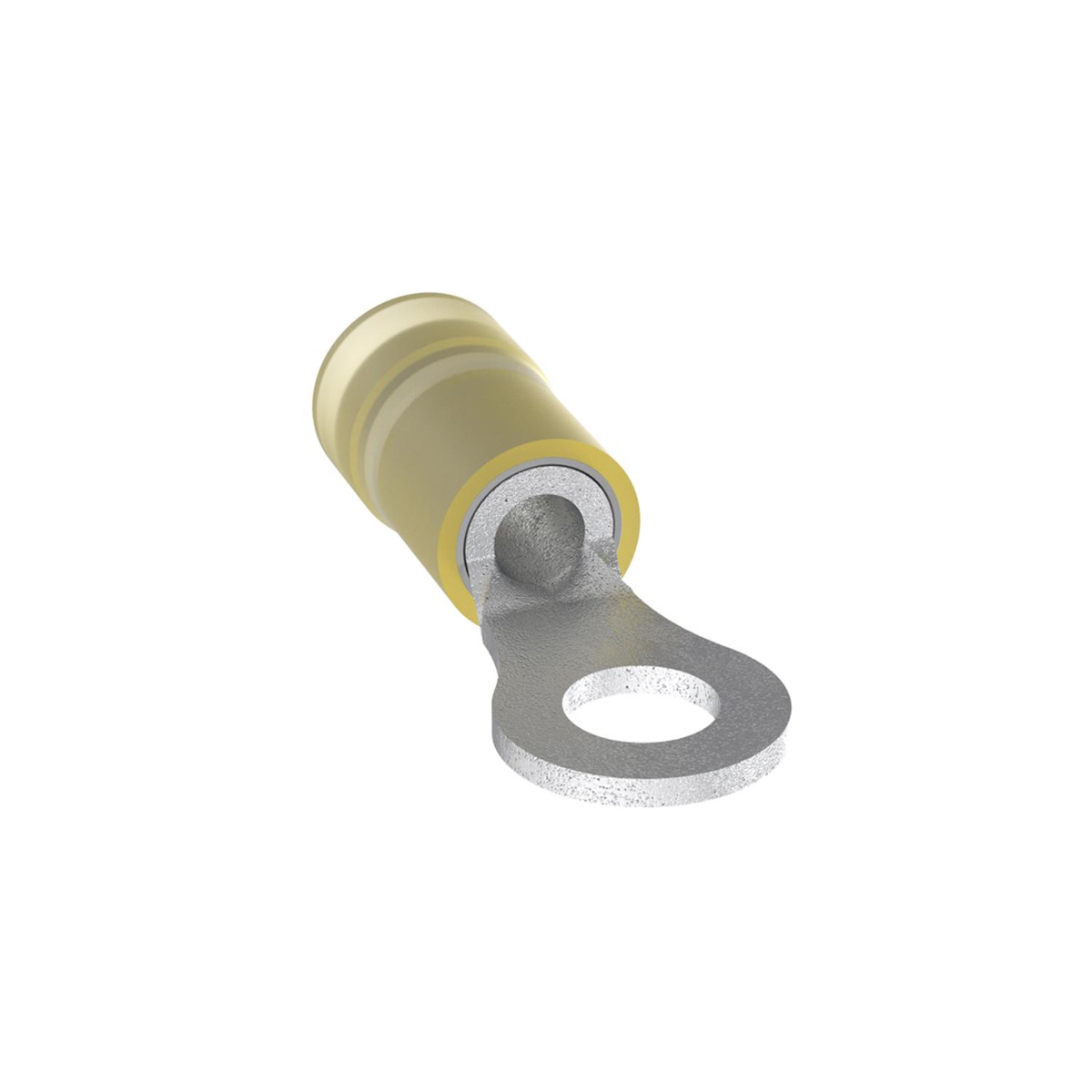

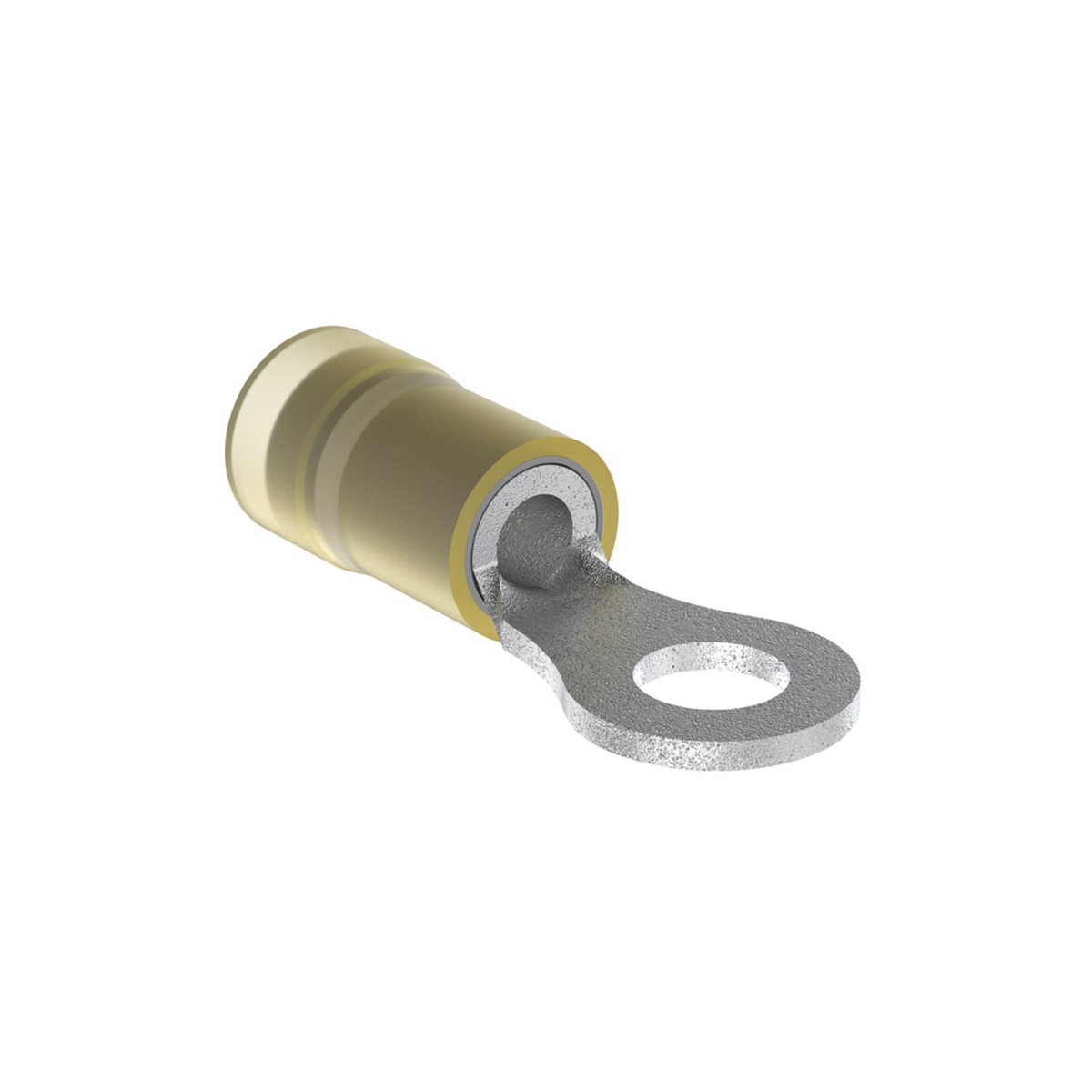

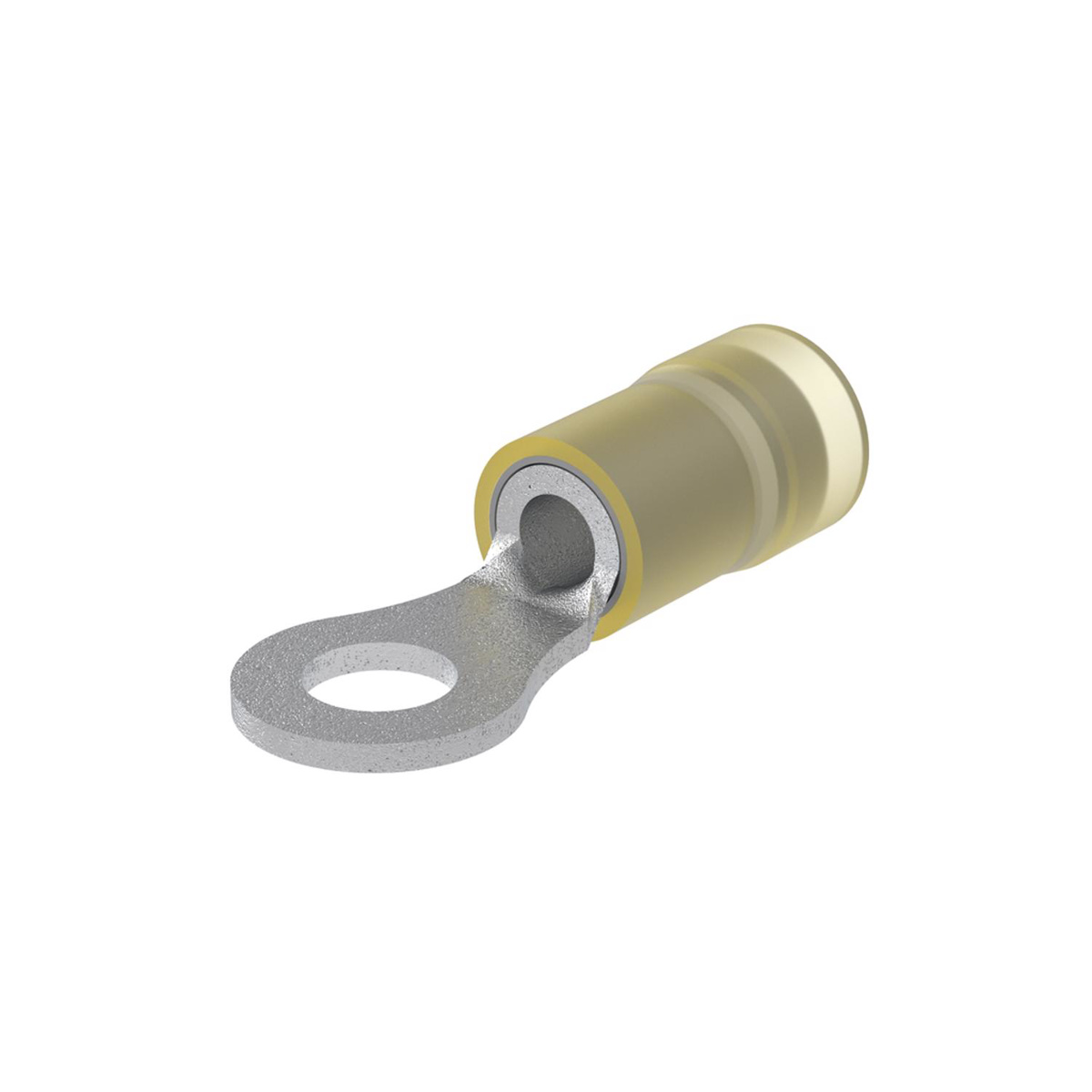

Panduit PN Series Insulated Ring Terminals 12 - 10 AWG #10 Yellow
Mfg #:
PN1010RD
BOR #:
563619
| Brand | Panduit |
| Finish | Tin-plated |
| Voltage | 600 VAC |
| Overall Length | 1.06 in |
| Series | PN |
| Maximum Compatible Conductor Size | 10 AWG |
| Minimum Compatible Conductor Size | 12 AWG |
| Pad Width | 0.38 in |
| Connector Material | Copper |
| Insulation Material | Nylon |
| Stud Hole Size | #10 |
| Insulation Color | Yellow |
| Connector Type | Ring |
| Insulation | Insulated |
| Conductor Size | 12 - 10 AWG |
| Temperature Range | 221 deg F |
| Panduit Specification Sheet | Specification Sheet |
|
