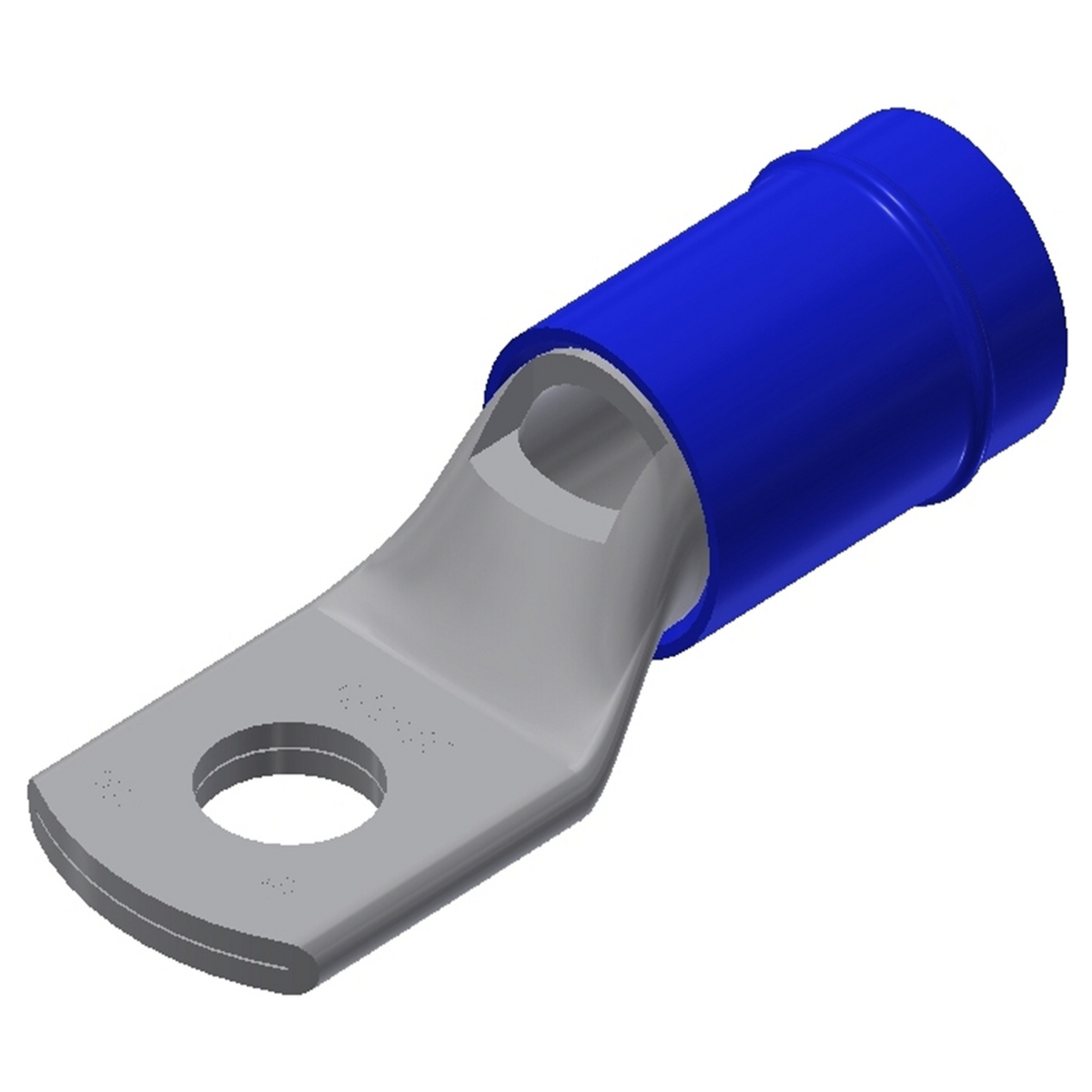

Burndy YAEV Series Insulated Ring Terminals 18 - 14 AWG #8 - #10 Blue
Mfg #:
YAEV14
BOR #:
430003
| Brand | Burndy |
| Finish | Tin-plated |
| Voltage | 600 VAC |
| Overall Length | 0.94 in |
| Series | YAEV |
| Maximum Compatible Conductor Size | 14 AWG |
| Minimum Compatible Conductor Size | 18 AWG |
| Pad Width | 0.31 in |
| Connector Material | Copper |
| Insulation Material | Nylon |
| Stud Hole Size | #8 - #10 |
| Insulation Color | Blue |
| Connector Type | Ring |
| Insulation | Insulated |
| Conductor Size | 18 - 14 AWG |
| Temperature Range | 105 deg C |
| Burndy Specification Sheet | Specification Sheet |
|
| Catalog Full Asset Reference | Catalog |
|
