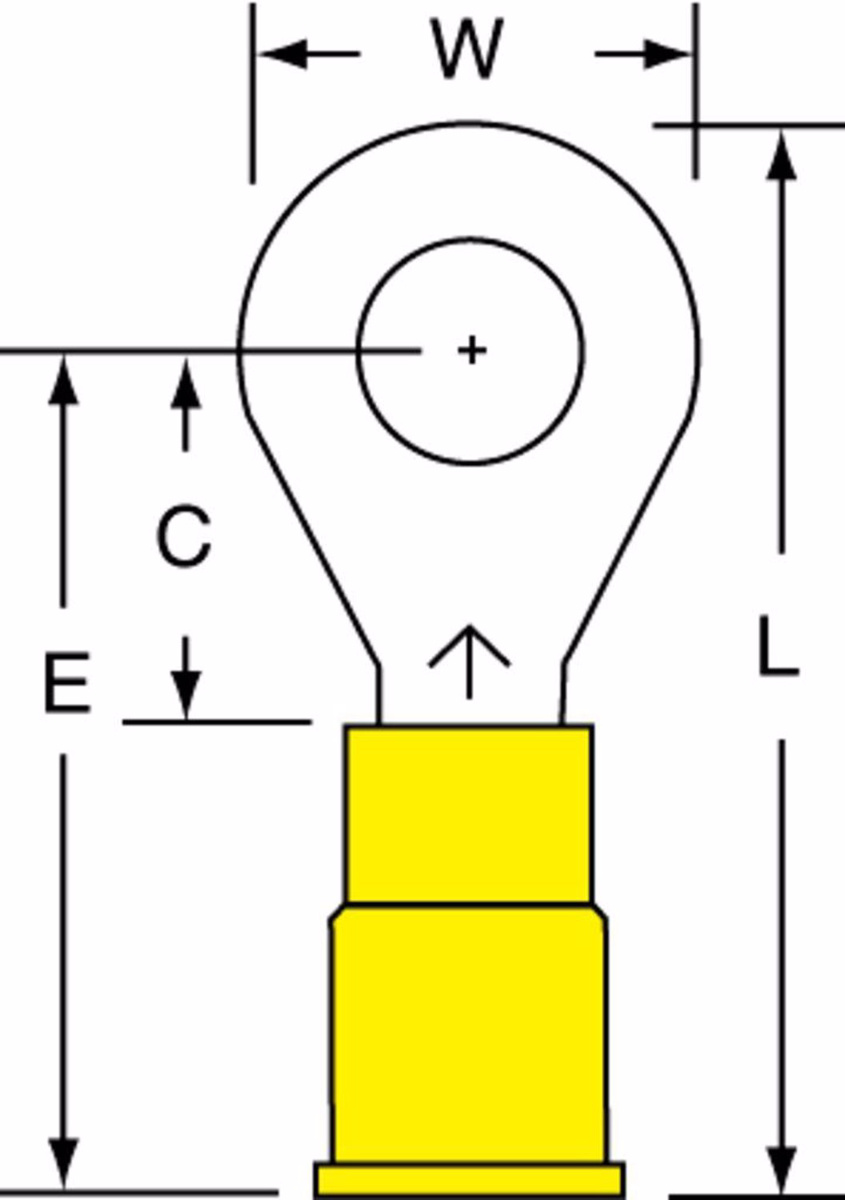

3M MV Series Insulated Ring Terminals 12 - 10 AWG 1/4 in Yellow
Mfg #:
MV1014RSX
BOR #:
115608
| Brand | 3M |
| Finish | Tin-plated |
| Voltage | 600/1000 VAC |
| Overall Length | 1.26 in |
| Series | Scotchlok |
| Maximum Compatible Conductor Size | 10 AWG |
| Minimum Compatible Conductor Size | 12 AWG |
| Pad Width | 0.53 in |
| Connector Material | Copper |
| Insulation Material | Vinyl |
| Stud Hole Size | 1/4 in |
| Insulation Color | Yellow |
| Connector Type | Ring |
| Insulation | Insulated |
| Conductor Size | 12 - 10 AWG |
| Temperature Range | 221 deg F |
| 3M Specification Sheet | Specification Sheet |
|
