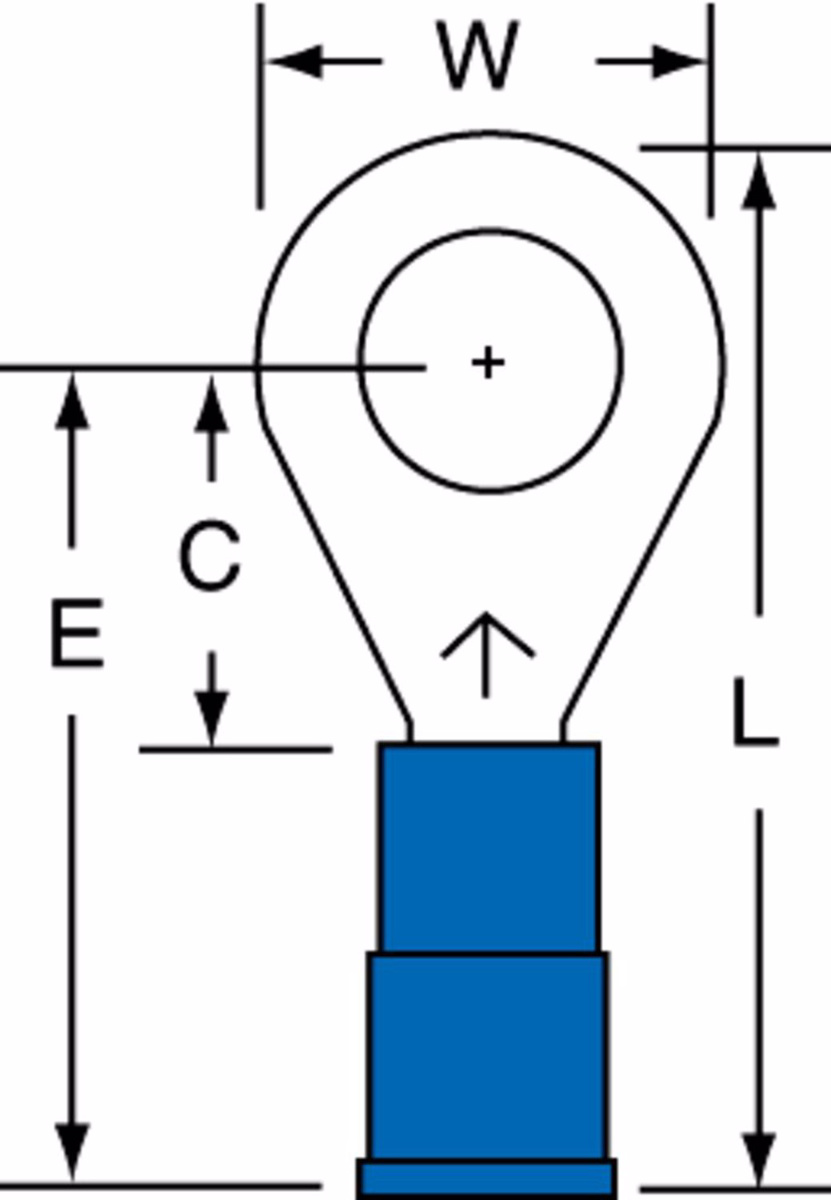

3M MNG Series Insulated Ring Terminals 16 - 14 AWG 1/4 in Blue
Mfg #:
MNG1414RSX
BOR #:
646786
| Brand | 3M |
| Finish | Tin-plated |
| Voltage | 600/1000 VAC |
| Overall Length | 1.09 in |
| Series | Scotchlok |
| Maximum Compatible Conductor Size | 14 AWG |
| Minimum Compatible Conductor Size | 16 AWG |
| Pad Width | 0.47 in |
| Connector Material | Copper |
| Insulation Material | Nylon |
| Stud Hole Size | 1/4 in |
| Insulation Color | Blue |
| Connector Type | Ring |
| Insulation | Insulated |
| Conductor Size | 16 - 14 AWG |
| Temperature Range | 221 deg F |
