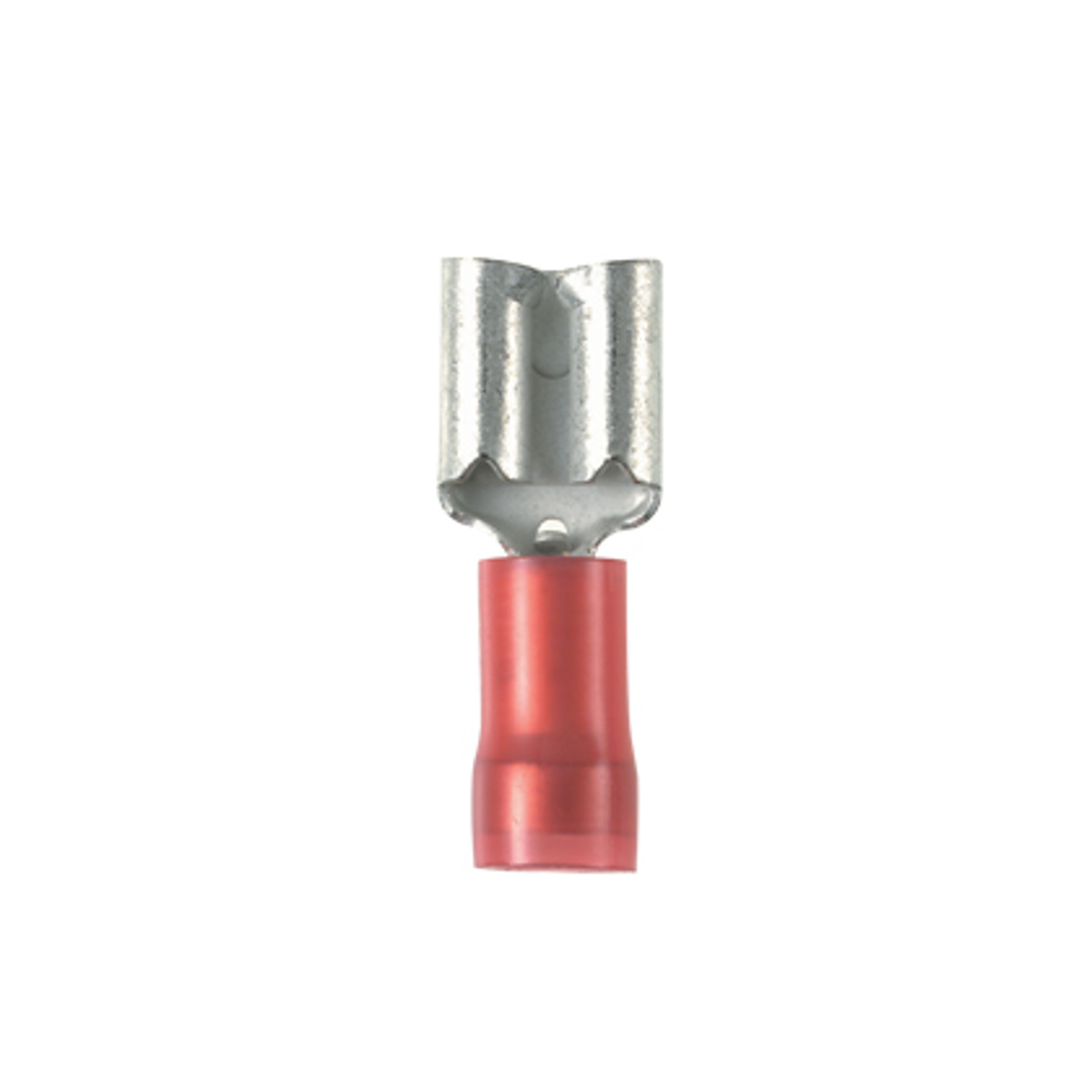

Panduit Female Insulated Loose Piece Disconnects 22 - 18 AWG Funnel Barrel Red Nylon
Mfg #:
DNF18250C
BOR #:
117617
| Brand | Panduit |
| Barrel | Funnel Barrel |
| Type | Female |
| Packaging | 100 per Pack |
| Maximum Compatible Conductor Size | 18 AWG |
| Temperature Range | 194° F |
| Finish | Tin-plated |
| Voltage | 300 V |
| Series | Pan-Term® |
| Width | 0.29 in |
| Connector Type | Loose Piece Disconnect |
| Length | 0.81 in |
| Insulation | Insulated |
| Conductor Size | 22 - 18 AWG |
| Color | Red |
| Insulation Color | Red |
| Minimum Compatible Conductor Size | 22 AWG |
| Compatible Tab Width | 0.250 in |
| Connector Material | Brass |
| Insulation Material | Nylon |
| Panduit Specification Sheet | Specification Sheet |
|
