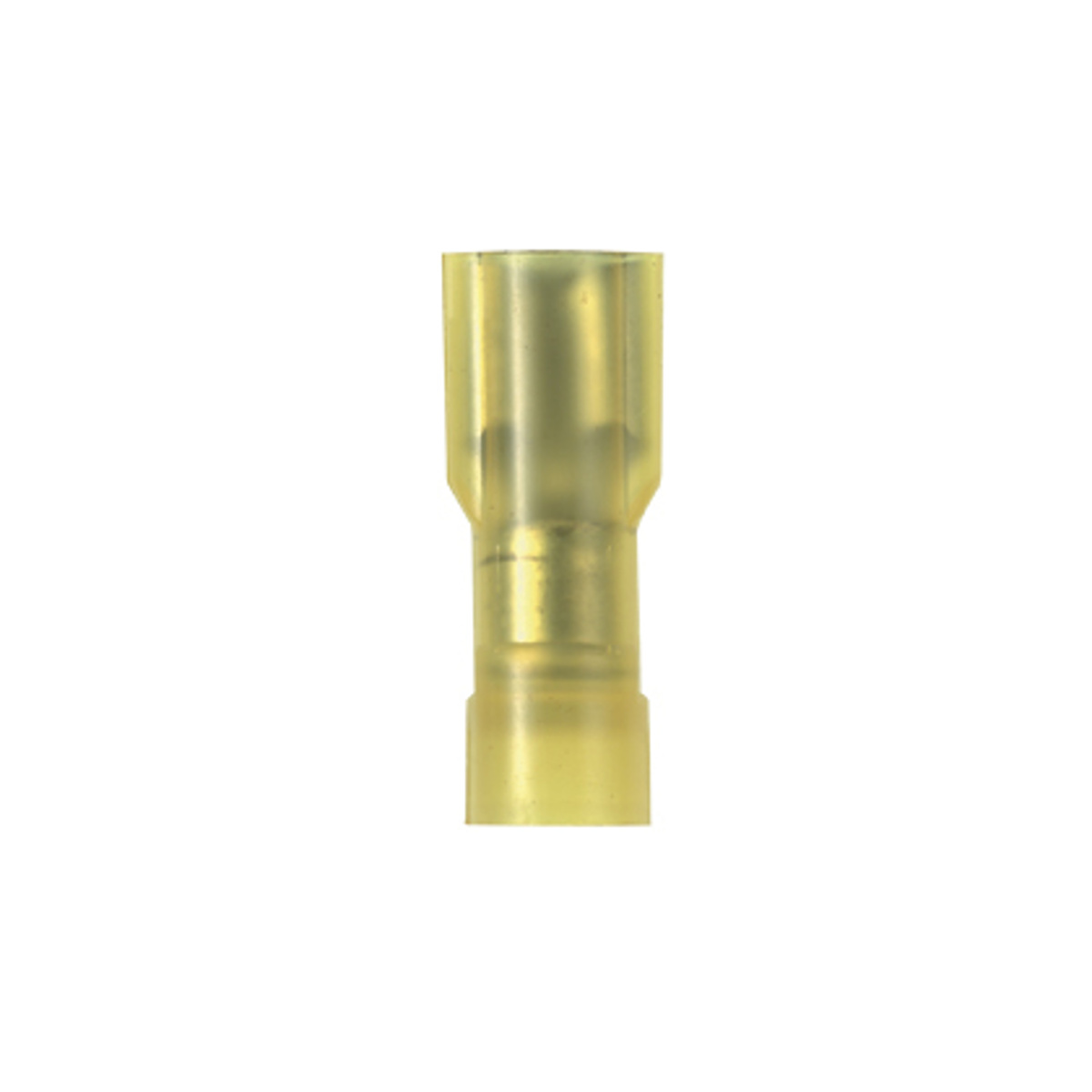

Panduit Female Insulated Disconnects 12 - 10 AWG Butted Barrel Yellow Nylon
Mfg #:
DNF10250FIL
BOR #:
117613
The vibration resistant female disconnect is made of brass and is tin-plated.
- It is fully insulated in a blue, nylon housing.
- The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel.
- UL 310 Listed, UL Listed 20H3 E78522, CSA Certified LR31212, C22.2 No.153
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Barrel design with larger outside diameter for use with more common hand tools
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
- UL and CSA rated up to 600 V per UL 310
| Brand | Panduit |
| Barrel | Butted Barrel |
| Type | Female |
| Maximum Compatible Conductor Size | 10 AWG |
| Temperature Range | 221° F |
| Finish | Tin-plated |
| Voltage | 600 V |
| Series | Pan-Term® |
| Width | 0.36 in |
| Color | Yellow |
| Connector Type | Disconnect |
| Length | 0.95 in |
| Insulation | Insulated |
| Conductor Size | 12 - 10 AWG |
| Insulation Color | Yellow |
| Minimum Compatible Conductor Size | 12 AWG |
| Compatible Tab Width | 1/4 in |
| Connector Material | Brass |
| Insulation Material | Nylon |
| Panduit Specification Sheet | Specification Sheet |
|
