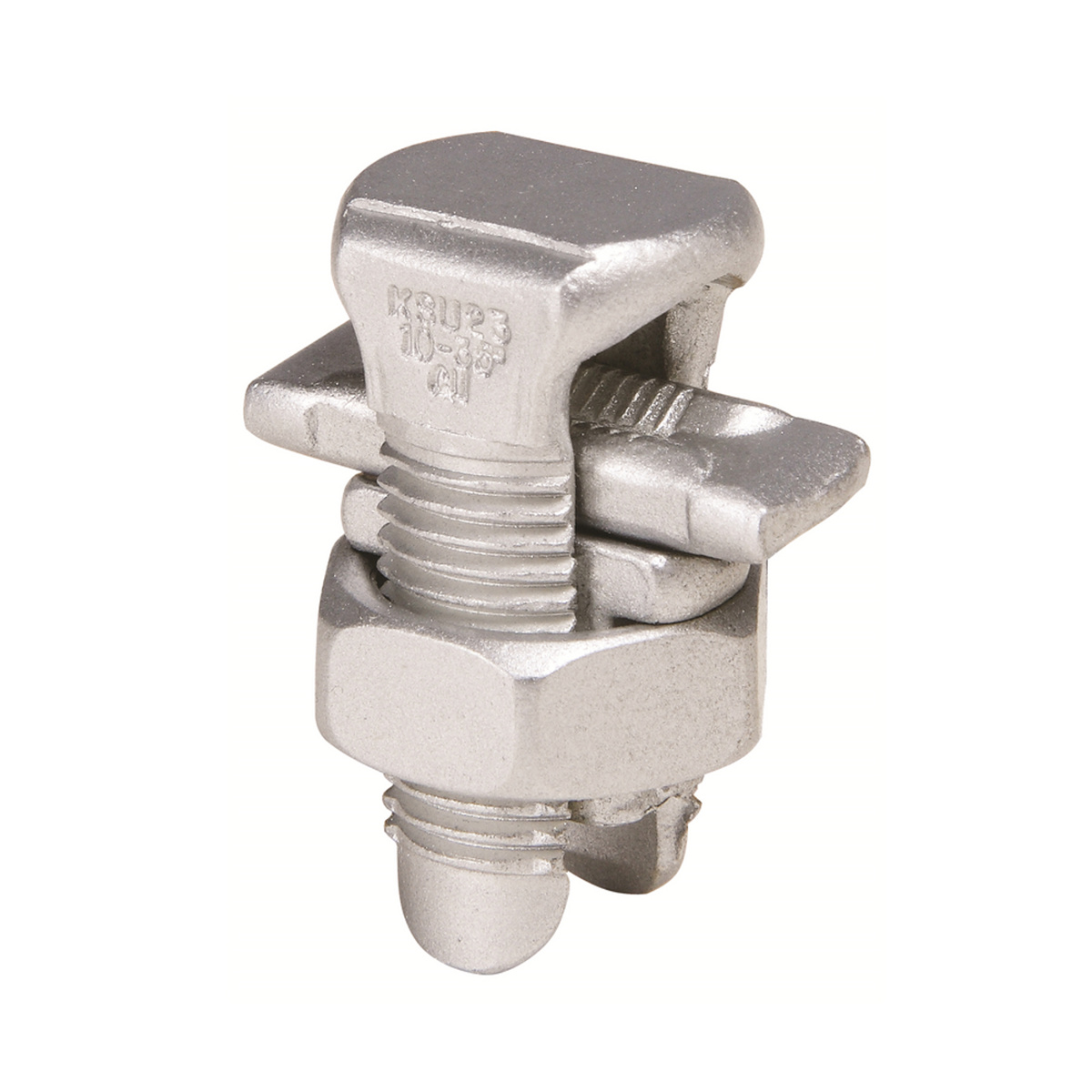

Burndy KSU Series Split Bolts 6 AAAC, 6 ACSR, 10 AL Sol, 10 CU Sol - 4 AAAC, 4 ACSR, 2 AL, 2 CU 1 Bolt 19/32 in
Mfg #:
KSU22
BOR #:
122199
| Brand | Burndy |
| Minimum Tap Conductor Size | 6 AAAC, 6 ACSR, 10 AL Sol, 10 CU Sol |
| Maximum Run Conductor Size | 4 AAAC, 4 ACSR, 2 AL, 2 CU |
| Minimum Run Conductor Size | 6 AAAC, 6 ACSR, 10 AL Sol, 10 CU Sol |
| Maximum Tap Conductor Size | 4 AAAC, 4 ACSR, 2 AL, 2 CU |
| Type | Split Bolt |
| Bolt Size | 19/32 in |
| Finish | Tin-plated |
| Height | 1.46 in |
| Series | KSU |
| Conductor Material | AAAC, ACSR, Aluminum, Copp |
| Conductor Range | 6 AAAC, 6 ACSR, 10 AL Sol, 10 CU Sol - 4 AAAC, 4 ACSR, 2 AL, 2 CU |
| Number of Bolts | 1 Bolt |
| Material | Copper Alloy |
| Burndy Specification Sheet | Specification Sheet |
|
| Catalog Full Asset Reference | Catalog |
|
