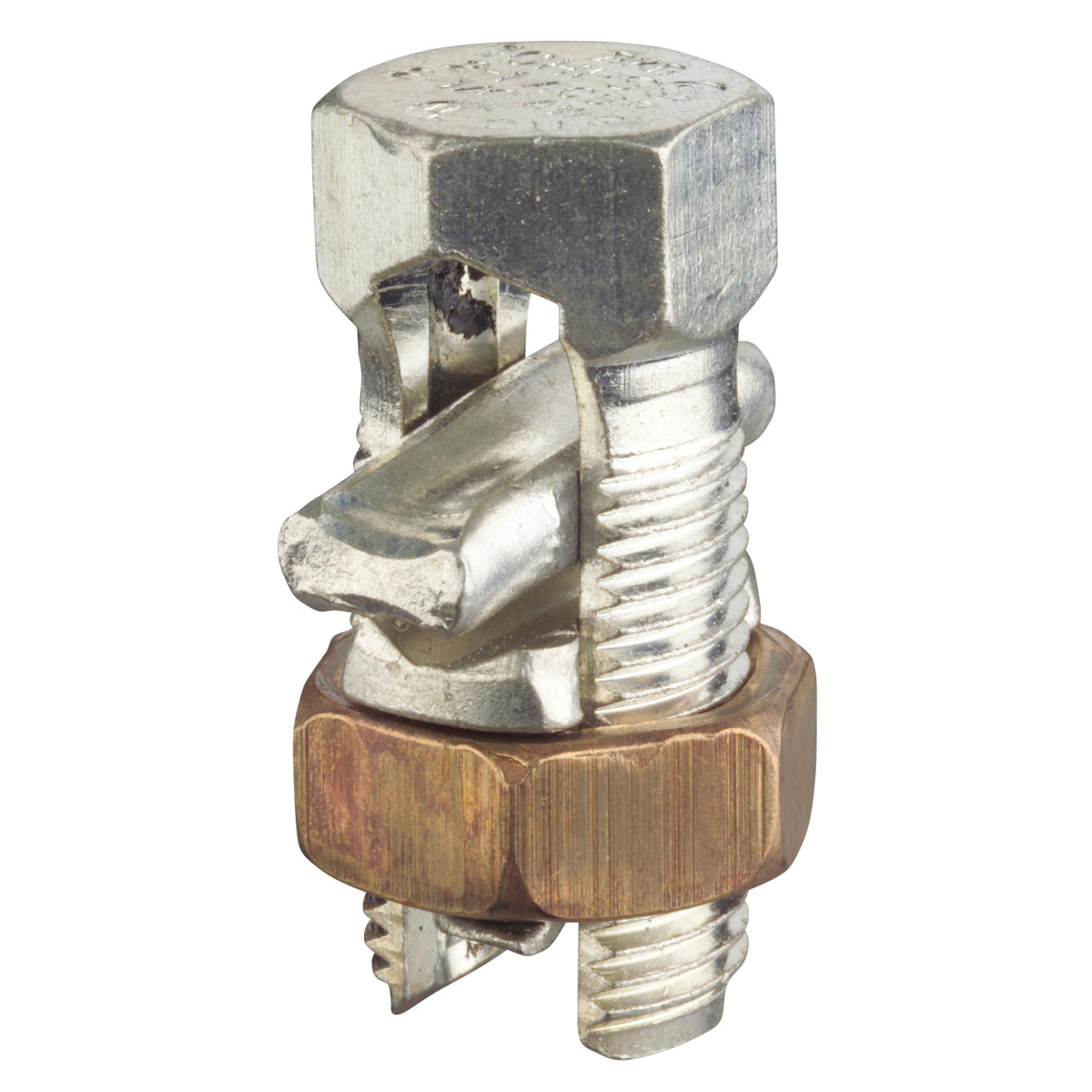

ABB Thomas & Betts HPS Series Split Bolts 8 ACSR, 12 AL Sol, 12 CU Sol - 6 ACSR, 4 AL, 4 CU 1 Bolt 17/32 in
Mfg #:
4HPS
BOR #:
142499
Related Items
Select Options
ABB Thomas & Betts HPS Series Split Bolts 6 ACSR, 6 AL, 6 CU - 1/0 ACSR, 2/0 AL, 2/0 CU 1 Bolt 7/8 in
View details
ABB Thomas & Betts HPS Series Split Bolts 8 ACSR, 12 AL Sol, 12 CU Sol - 8 ACSR, 6 AL, 6 CU 1 Bolt 15/32 in
View details
ABB Thomas & Betts HPS Series Split Bolts 8 ACSR, 8 AL , 8 CU - 4 ACSR, 2 AL, 2 CU 1 Bolt 19/32 in
View details
ABB Thomas & Betts HPS Series Split Bolts 8 ACSR, 8 AL , 8 CU - 2 ACSR, 1 AL, 1 CU 1 Bolt 11/16 in
View details
ABB Thomas & Betts HPS Series Split Bolts 6 ACSR, 6 AL, 6 CU - 1 ACSR, 1/0 AL, 1/0 CU 1 Bolt 3/4 in
View details
ABB Thomas & Betts HPS Series Split Bolts 4 ACSR, 4 AL, 4 CU - 4/0 ACSR, 4/0 AL, 4/0 CU 1 Bolt 1 in
View details
| Brand | ABB |
| Minimum Tap Conductor Size | 8 ACSR, 12 AL Sol, 12 CU Sol |
| Maximum Run Conductor Size | 6 ACSR, 4 AL, 4 CU |
| Minimum Run Conductor Size | 8 ACSR, 12 AL Sol, 12 CU Sol |
| Pressure Bar Material | Copper Alloy |
| Maximum Tap Conductor Size | 6 ACSR, 4 AL Sol, 4 CU Sol |
| Type | Split Bolt |
| Bolt Size | 17/32 in |
| Finish | Tin-plated |
| Height | 1.28 in |
| Series | HPS |
| Conductor Material | ACSR, Aluminum, Copper |
| Includes | Spacer |
| Conductor Range | 8 ACSR, 12 AL Sol, 12 CU Sol - 6 ACSR, 4 AL, 4 CU |
| Number of Bolts | 1 Bolt |
| Material | Aluminum |
| ABB Thomas & Betts Specification Sheet | Specification Sheet |
|
