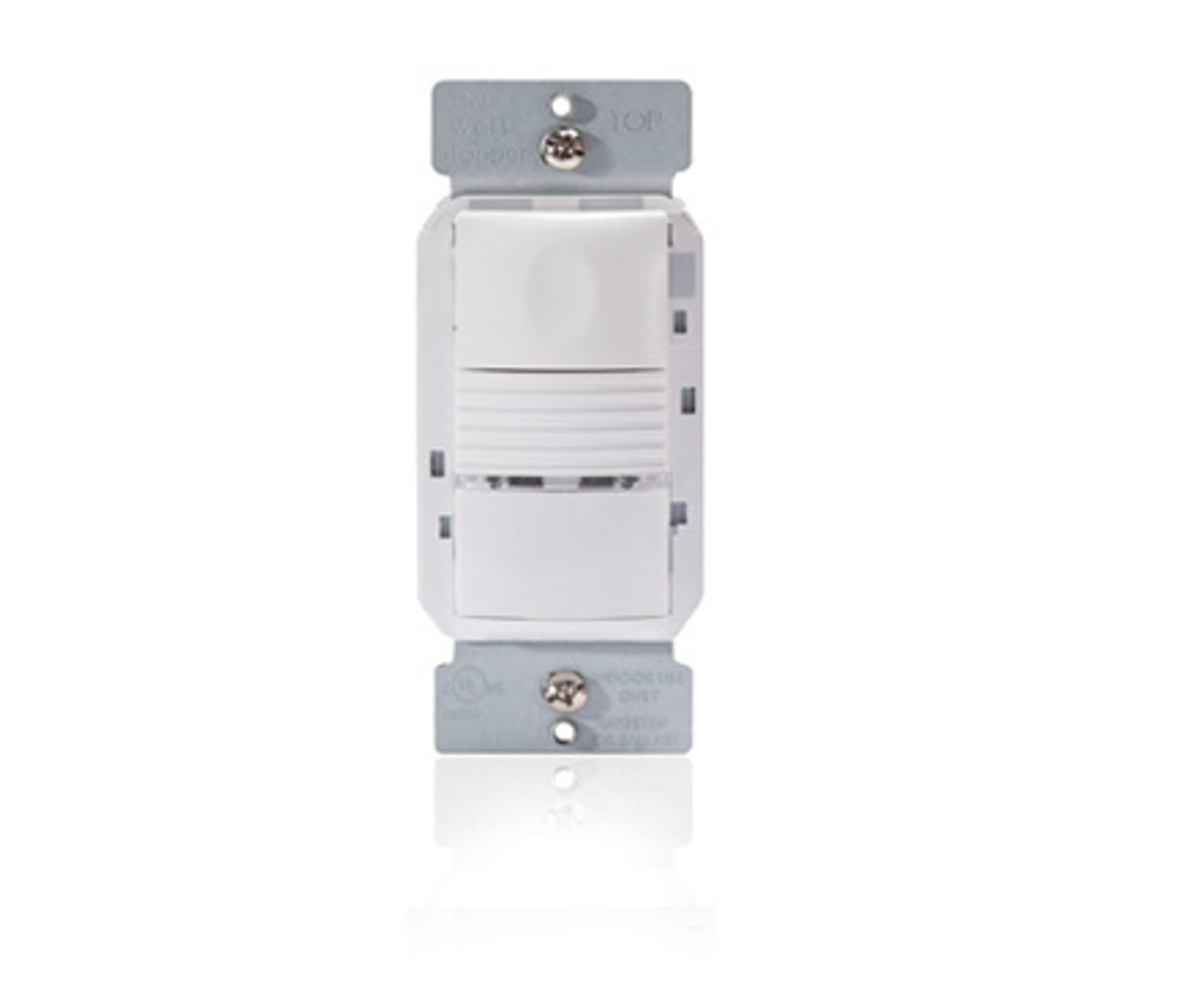

Watt Stopper PW Series Single Relays Switch/Sensor 800/1200 W
Mfg #:
PW100I
BOR #:
2111166
PIR technology senses occupancy by detecting the difference between heat emitted from the human body in motion and the background space. Relying on a clear line-of-sight view, passive infrared sensors make 100 percent coverage cut off possible.
- Detection signature processing eliminates false triggers and provides immunity to RFI and EMI
- Test mode allows quick and easy adjustments
- Four occupancy logic options give users the ability to customize control to meet application needs
- LED indicates occupancy detection
- Choice of manual-on or auto-on operation
- Compatible with decorator wall plates
- High or low (DIP switch) PIR adjustment
- Magnetic or electronic ballast load type
- Selectable audible alert for impending shutoff
- Selectable walk-through mode turns lights-off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds
- Time delay adjustments - 5 - 30 min at minimum, 3 min if no activity after 30 sec at walk-through Mode, 5 sec for 10 min with DIP switch setting at test mode
- Vandal resistant lens combines precise coverage with durability
- Zero crossing for long relay life
- Service mode allows sensor to operate as a service switch in the unlikely event of a failure
| Operator Function | Auto-on or Manual/Vacancy Mode |
| Color | Ivory |
| Timing Range | 5 min - 30 min |
| Wiring Method | Flying Lead, No Neutral Required |
| Design | Decorator |
| Device Configuration | Switch/Sensor |
| Voltage | 120/230/277 V |
| Number of Circuits | 1 Circuit |
| Contact Configuration | SP |
| Mounting Type | Wall |
| Wattage | 800/1200 W |
| Coverage | 525 sq ft |
| Watt Stopper Specification Sheet | Specification Sheet |
|
