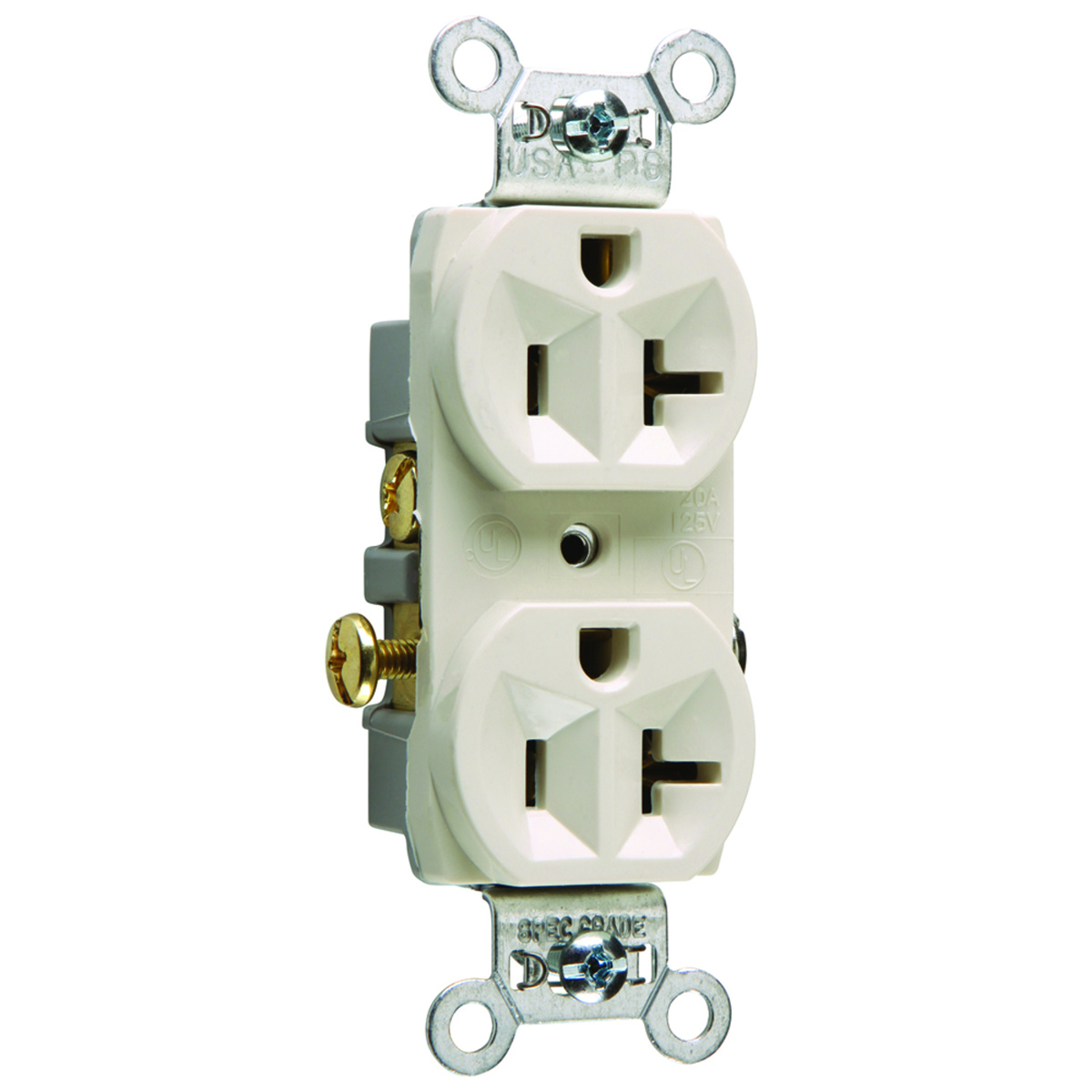

Pass & Seymour CR20 Series Duplex Receptacles 20 A 125 V 2P3W 5-20R Commercial Light Almond
Mfg #:
CR20LA
BOR #:
1596220
Corrosion-resistant, plated-steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Auto-ground clip assures positive ground
- CR and 5850 Series: #14 – #10 AWG solid side wire only. BR Series: side and internal screw-pressure-plate back wire capable of accepting #14 – #10 AWG solid or stranded copper or copper-clad wire
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
| Brand | Pass & Seymour |
| Pole/Wire | 2P3W |
| Voltage | 125 V |
| NEMA Configuration | 5-20R |
| Ground Type | Self-grounding |
| Design | Duplex |
| Color | Light Almond |
| Device Configuration | Duplex |
| Material | Thermoplastic |
| Number of Phases | 1 Phase |
| Grade | Commercial |
| Mounting Type | Screw |
| Wire Size | 4 AWG |
| Wiring Method | Side Wired |
| Amperage | 20 A |
| Pass & Seymour Specification Sheet | Specification Sheet |
|
