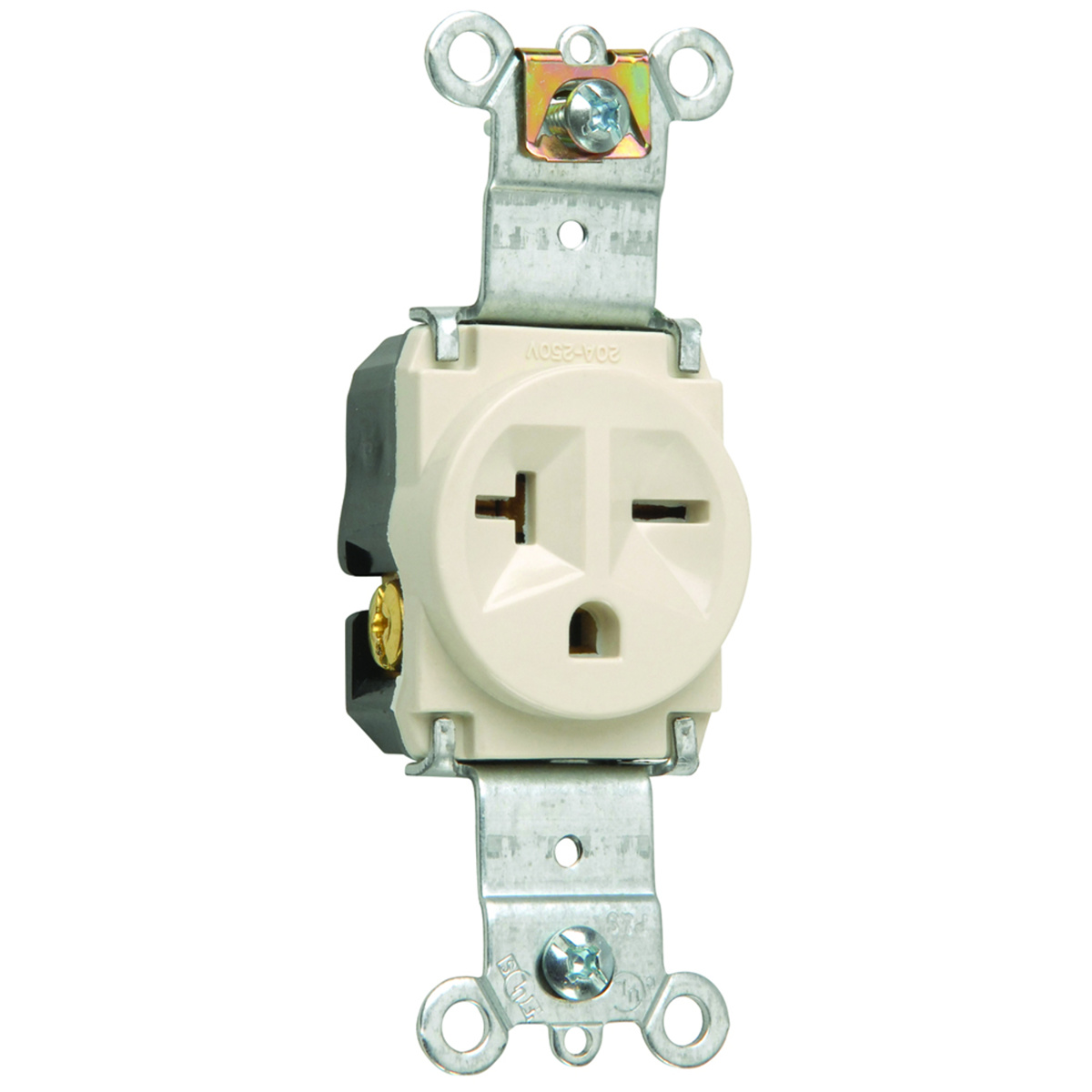

Pass & Seymour 5871 Series Single Receptacles 20 A 250 V 2P3W 6-20R Commercial Light Almond
Mfg #:
5871LA
BOR #:
1762444
Corrosion-resistant, plated-steel strap locked in to face and back body to resist pulling away from face/body assembly.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Internal screw-pressure-plate back wire capable of accepting #14 – #10 AWG solid or stranded copper or copper-clad wire
- One-piece brass, triple-wipe power contacts for lasting retention
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
| Brand | Pass & Seymour |
| Pole/Wire | 2P3W |
| Voltage | 250 V |
| NEMA Configuration | 6-20R |
| Ground Type | Grounding |
| Color | Light Almond |
| Device Configuration | Single Receptacle |
| Material | Nylon |
| Number of Phases | 1 Phase |
| Grade | Commercial |
| Mounting Type | Screw |
| Wire Size | 14 - 10 AWG |
| Wiring Method | Back and Side Wired |
| Amperage | 20 A |
| Pass & Seymour Specification Sheet | Specification Sheet |
|
