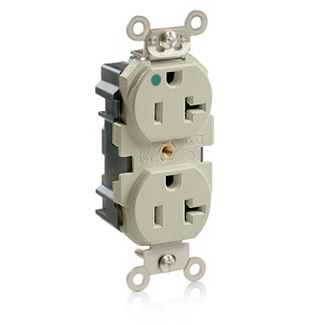

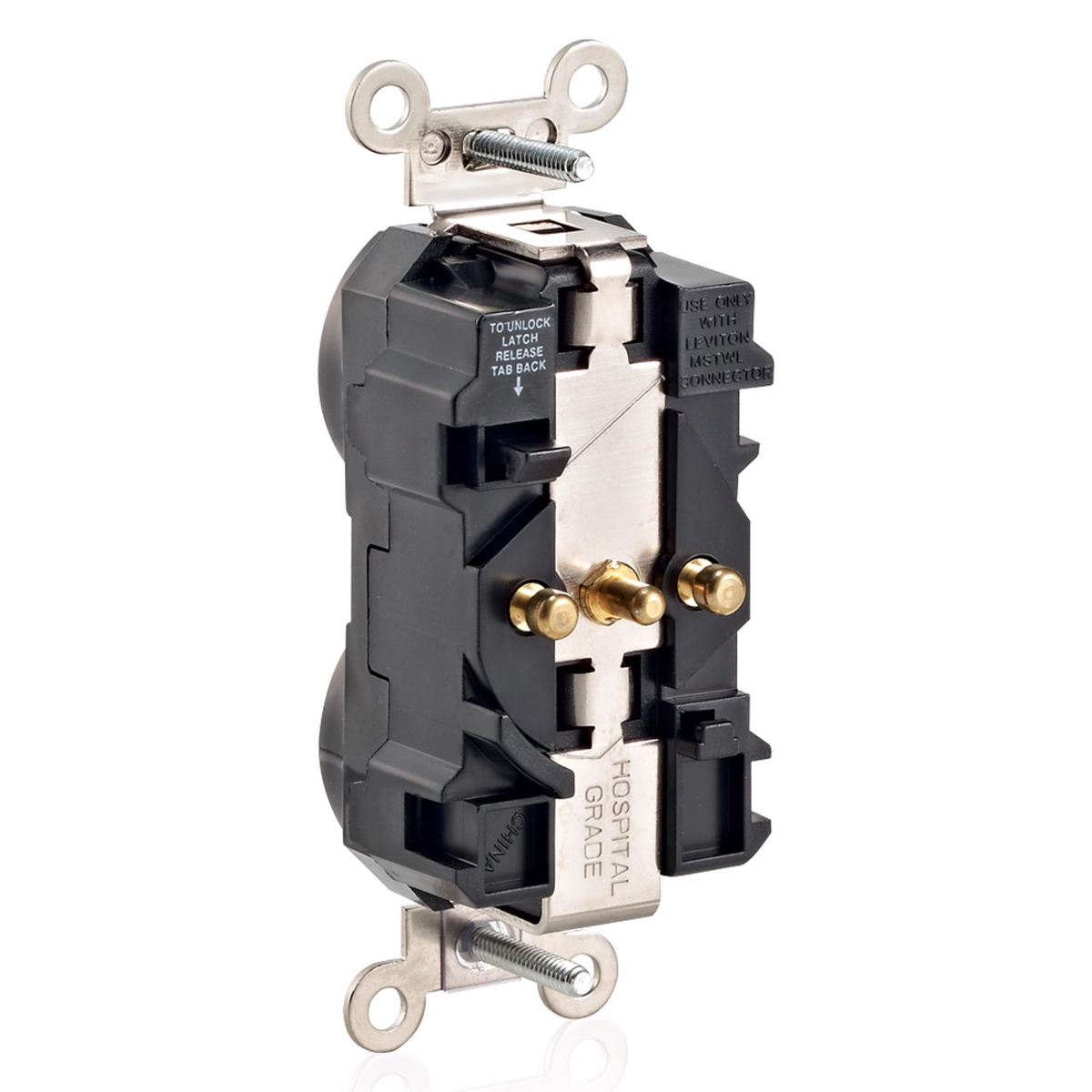

Leviton M8300 Series Duplex Receptacles 20 A 125 V 2P3W Extra Heavy-Duty Hospital Grade Ivory

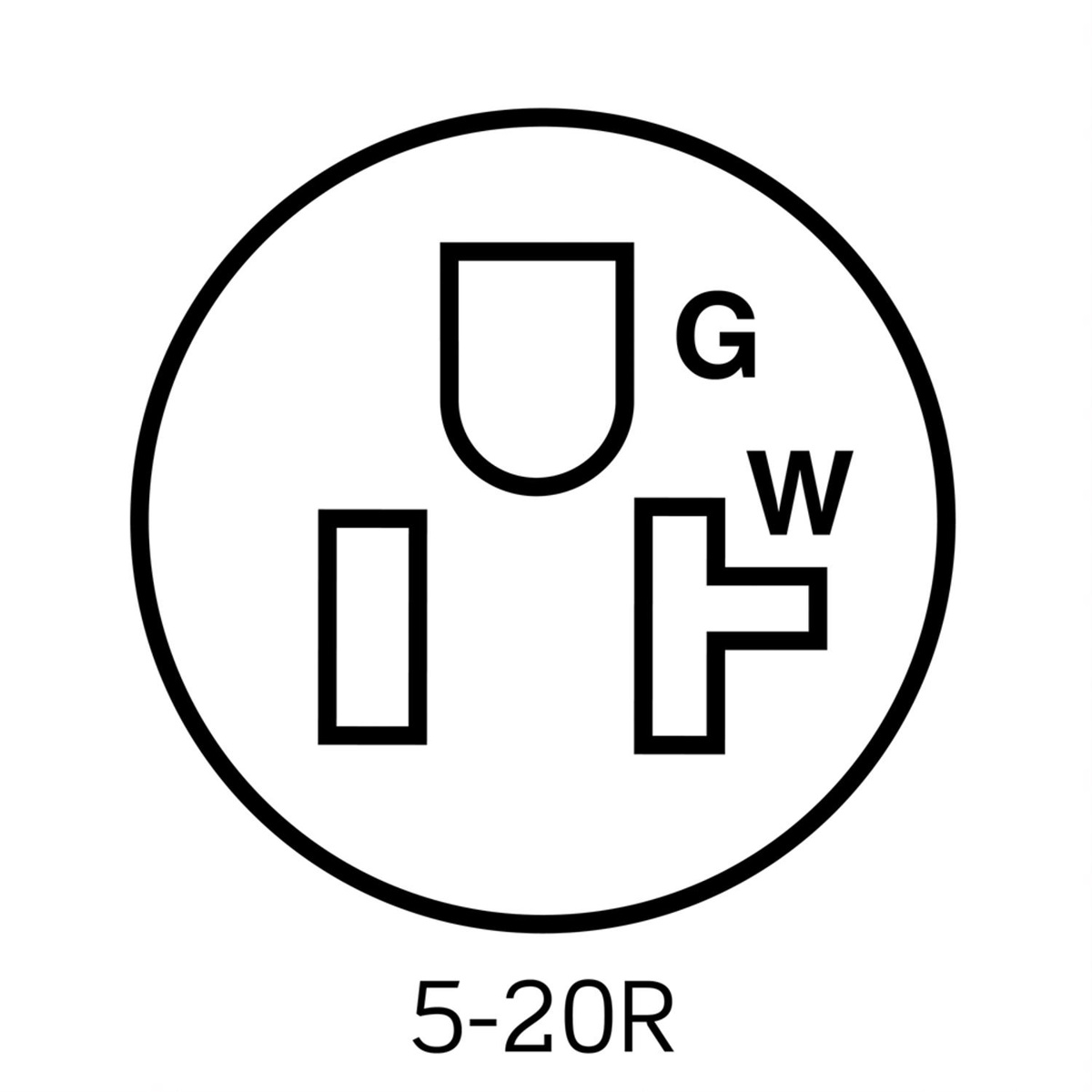

Lev-Lok Straight Blade Duplex Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R, Grade: Hospital, -40 to 60 deg C, Thermoplastic, White, 46 in H x 1.53 in W x 1.22 in D
- Wall box mounting
- Self grounding
- 1 Phase
- Modular
- 12 AWG
- 2000 V (min) dielectric strength UL 94 V-2 flammability rating
- Nickel plated brass strap
| Brand | Leviton |
| Pole/Wire | 2P3W |
| Voltage | 125 V |
| Design | Duplex |
| Color | Ivory |
| NEMA Rating | WD-1 & WD-6 |
| Material | Nylon |
| Grade | Extra Heavy-Duty Hospital Grade |
| Mounting Type | Screw |
| Amperage | 20 A |
| Lev Lok Brochure Q 360U (1) | Brochure |
|
| Straight Blade Receptacle Catalog Q 1101H | Catalog |
|
Lev-Lok Modular Switch and Receptacle
http://www.leviton.com/OA_HTML/ibeCCtpSctDspRte.jsp?section=26894&minisite=10026 Lev-Lok Modular...
