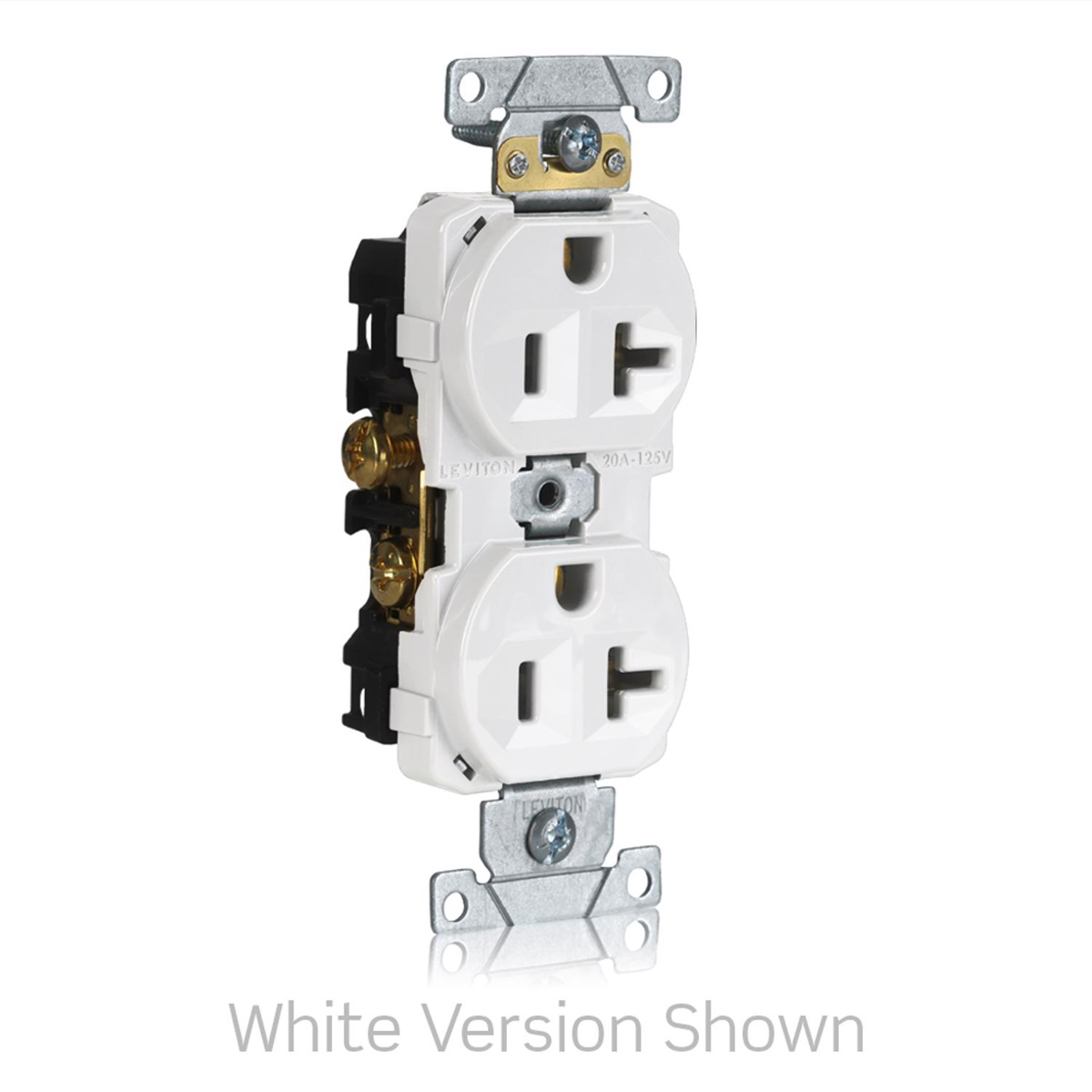

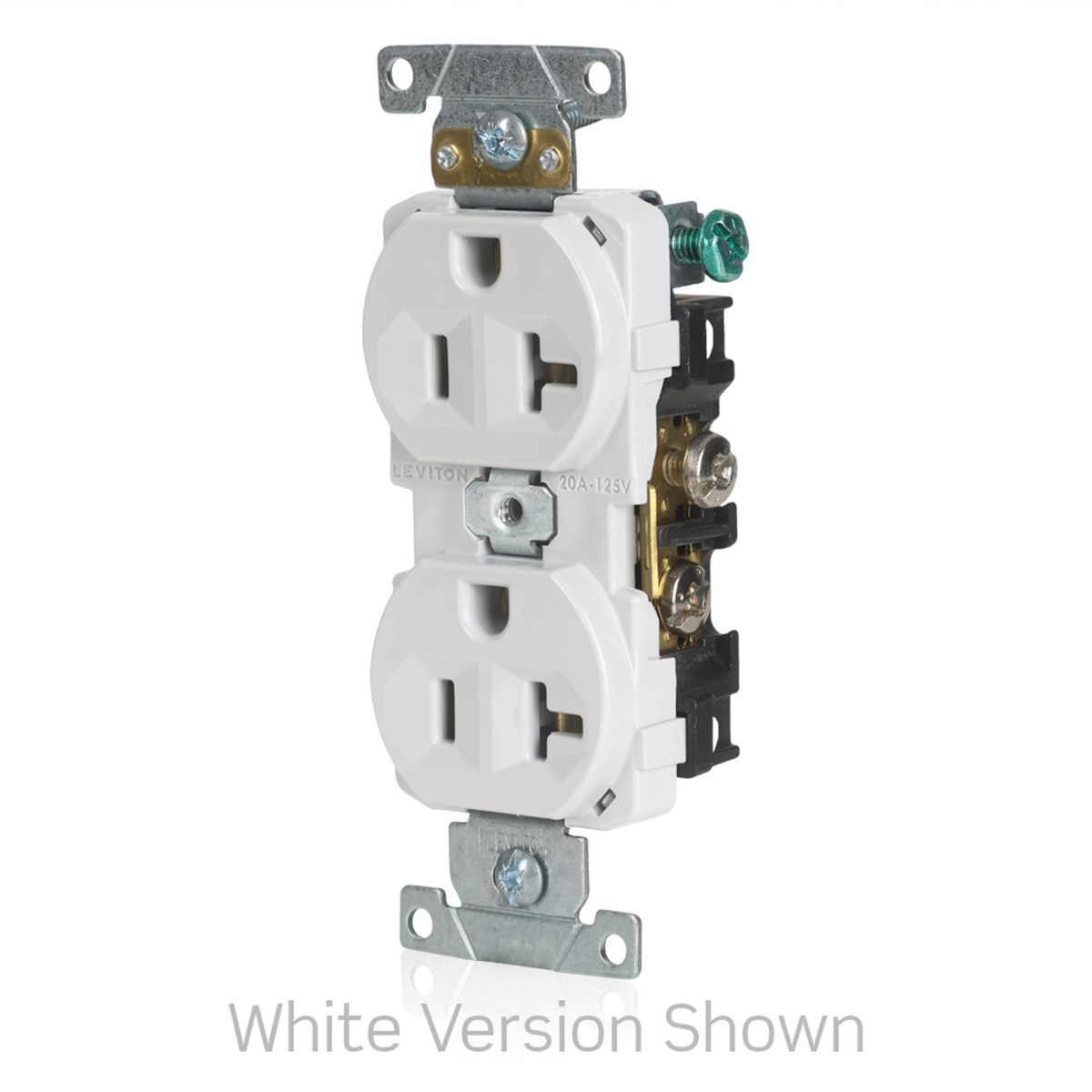

Leviton CR20 Series Duplex Receptacles 20 A 125 V 2P3W 5-20R Commercial Specification Grade Gray
Mfg #:
CR20GY
BOR #:
122484
Shallow design for maximum wiring room in box
- Convenient washer-type break-off plaster ears for best flush alignment
- Heavy-gauge, rust-resistant steel mounting strap
- Captive mounting screws for fast installation where applicable
- UL listed 498
| Brand | Leviton |
| Pole/Wire | 2P3W |
| Voltage | 125 V |
| NEMA Configuration | 5-20R |
| Ground Type | Self-grounding |
| Design | Duplex |
| Color | Gray |
| Device Configuration | Duplex |
| NEMA Rating | WD-1 & WD-6 |
| Number of Phases | 1 Phase |
| Grade | Commercial Specification Grade |
| Mounting Type | Screw |
| Wiring Method | Back and Side Wired |
| Amperage | 20 A |
| Leviton Specification Sheet | Specification Sheet |
|
| Straight Blade Receptacle Catalog Q 1101H | Catalog |
|
How to install a Leviton CR20 Receptacle
http://www.leviton.com/OA_HTML/ibeCCtpSctDspRte.jsp?section=10922&minisite=10026 How to install a...
