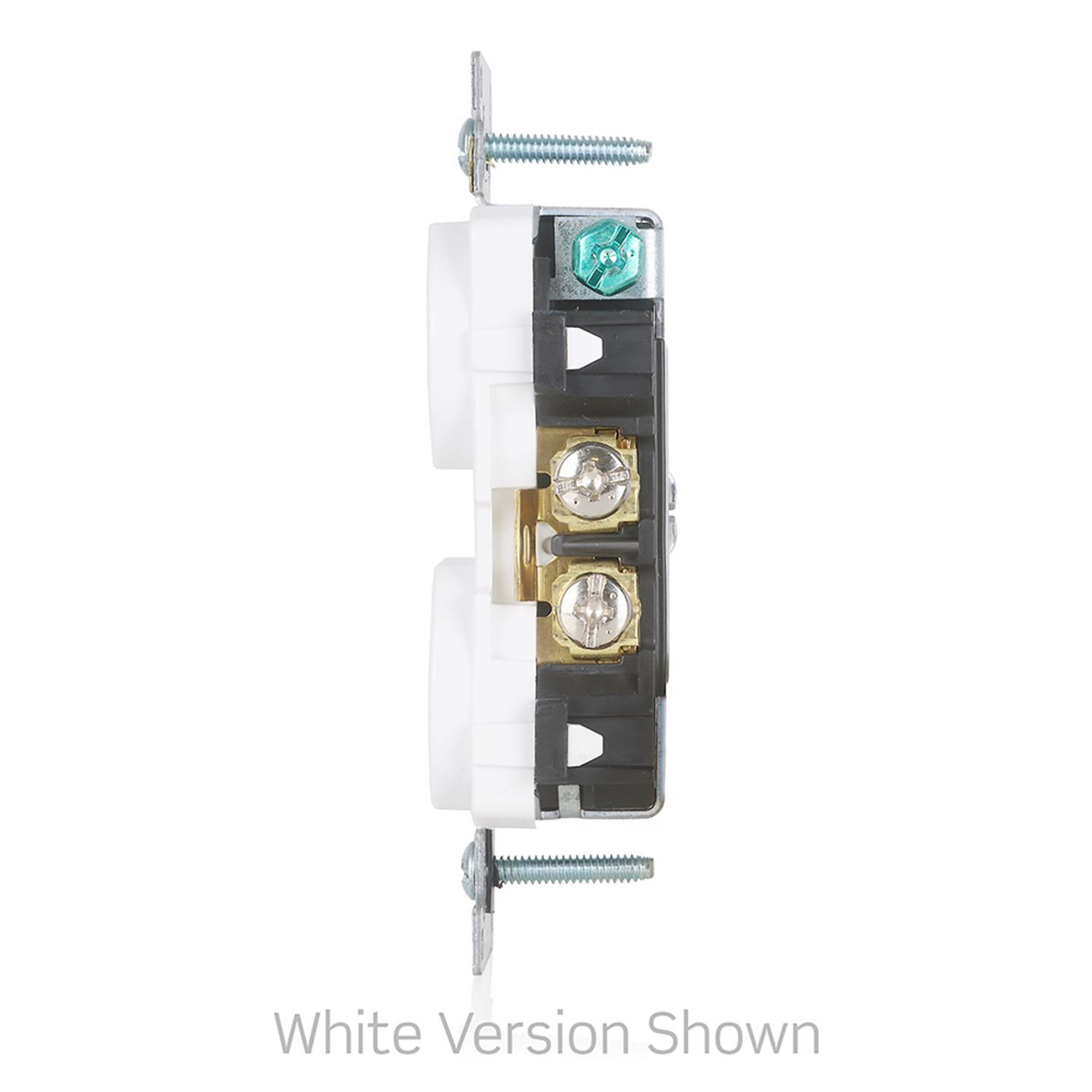

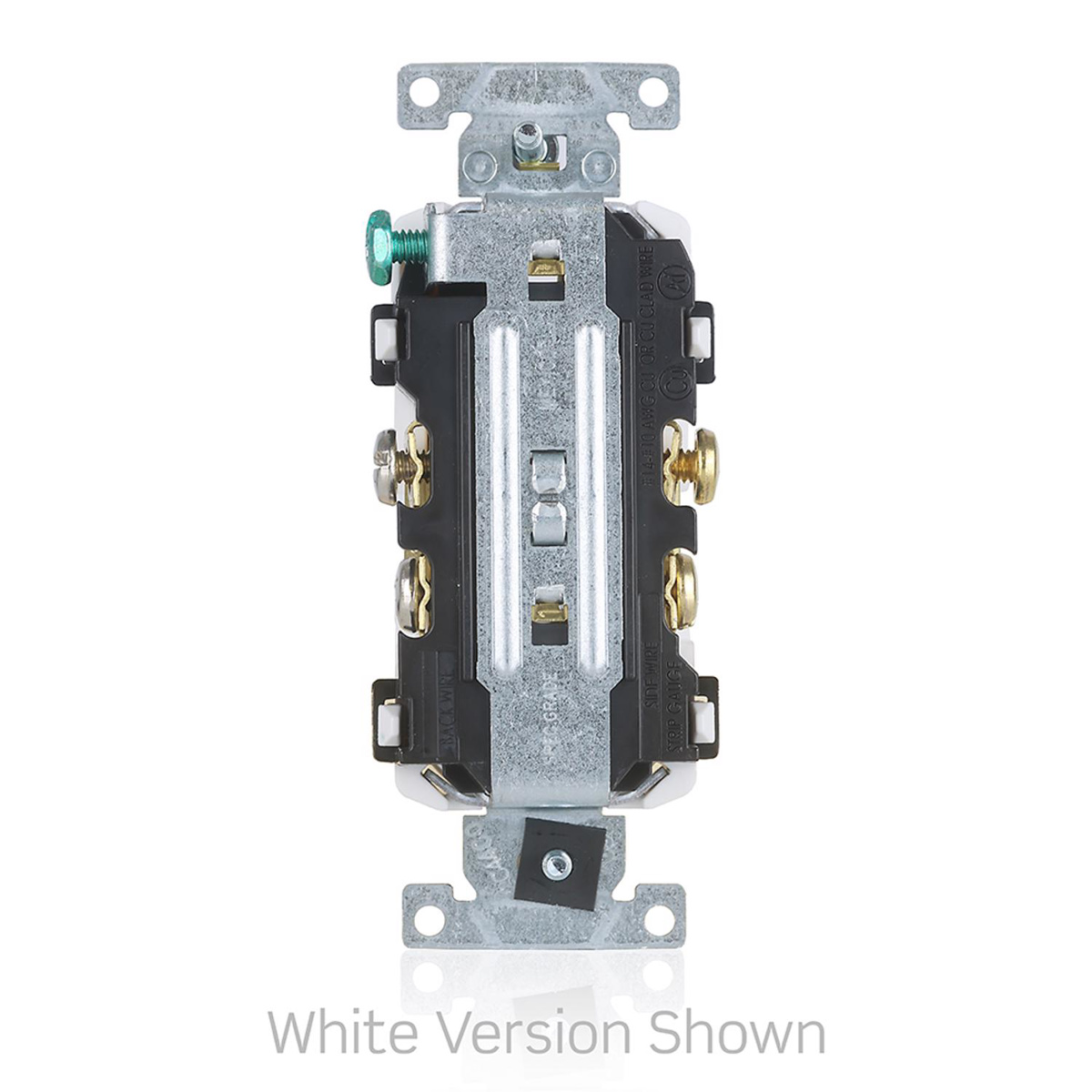

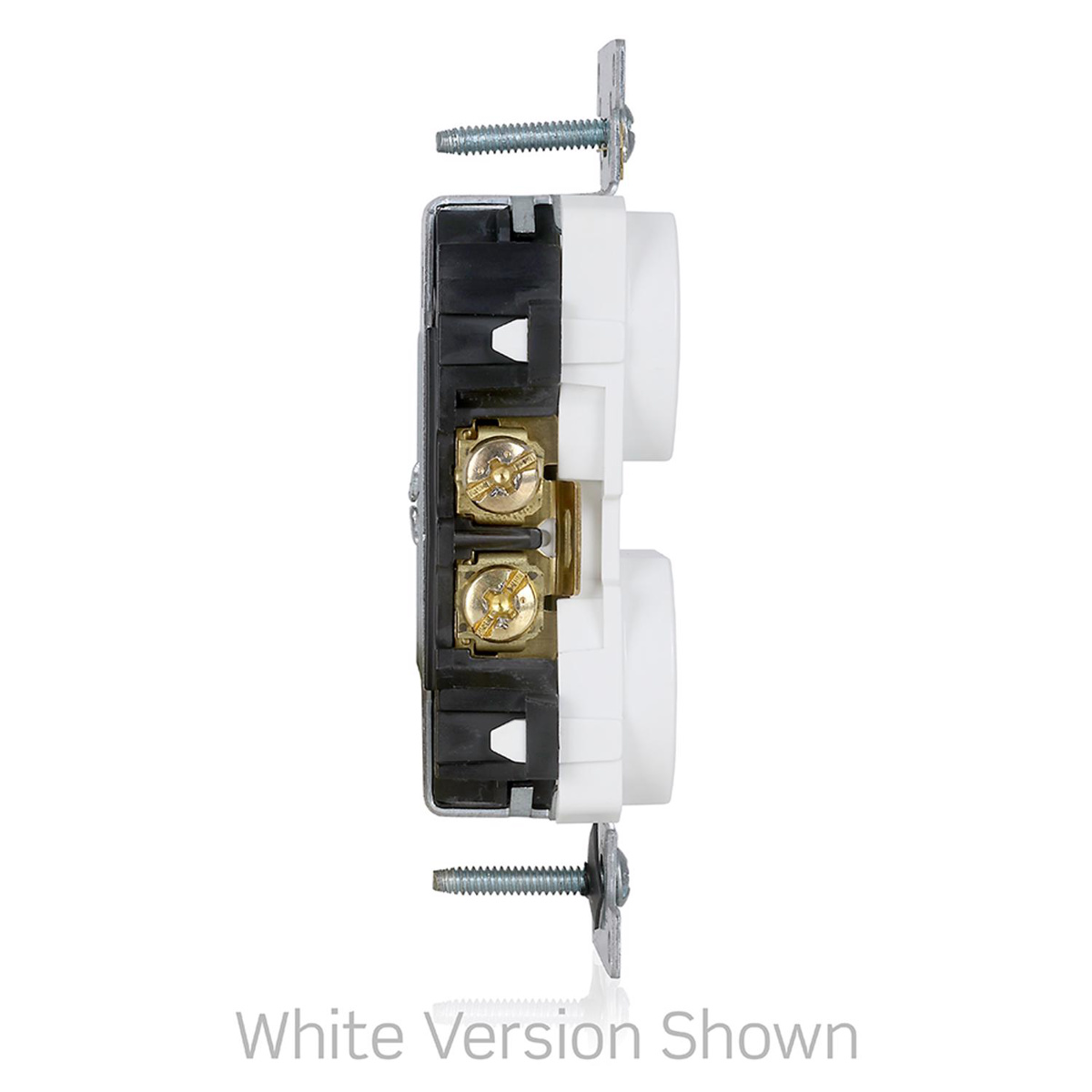

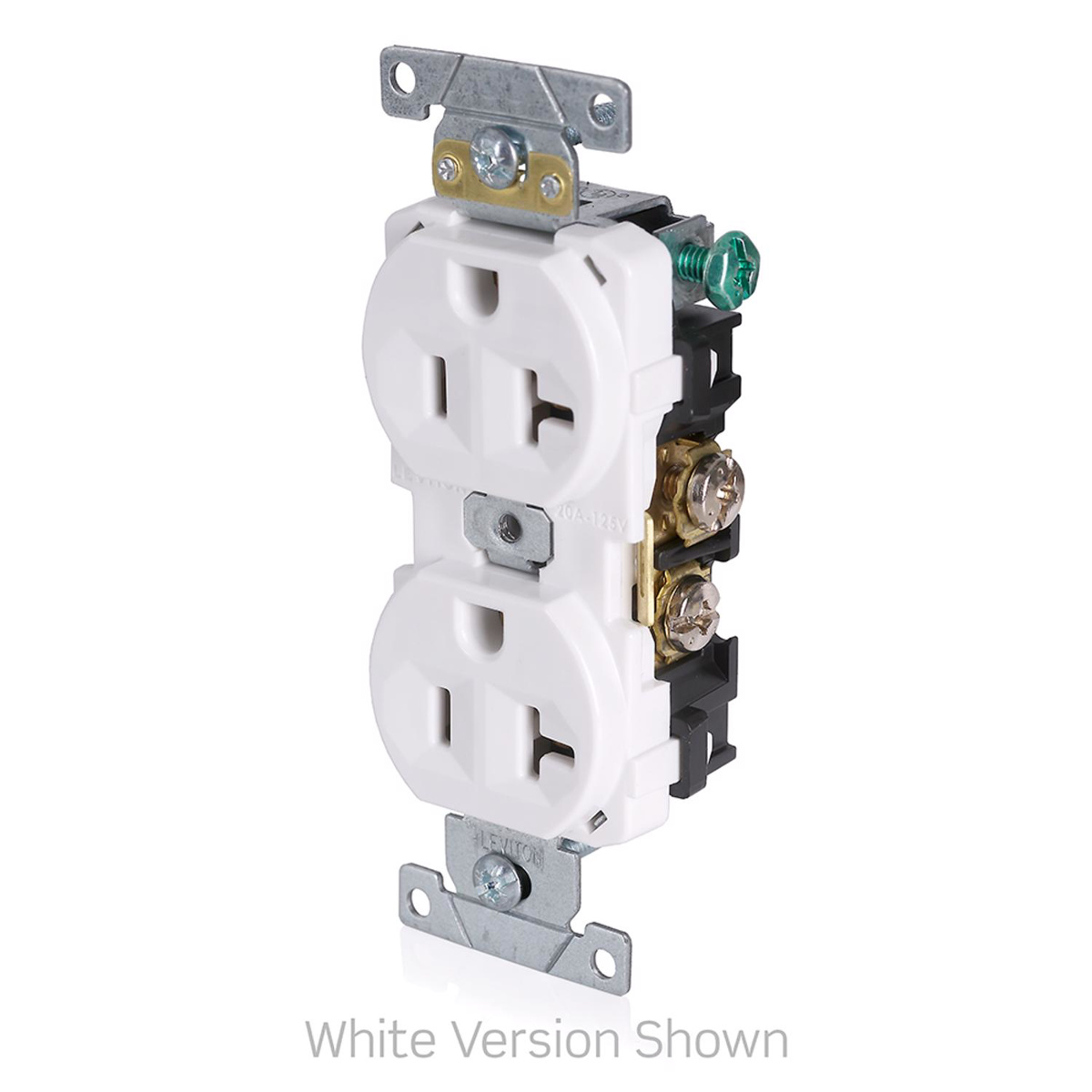

Leviton BR20 Series Duplex Receptacles 20 A 125 V 2P3W 5-20R Commercial Specification Grade White
Mfg #:
BR20W
BOR #:
122665
Shallow design for maximum wiring room in box
- Convenient washer-type break-off plaster ears for best flush alignment
- All power contacts are triple wipe for maximum conductivity and plug retention
- Heavy-gauge, rust-resistant steel mounting strap
- Captive mounting screws for fast installation where applicable
- UL listed 498
| Brand | Leviton |
| Pole/Wire | 2P3W |
| Voltage | 125 V |
| NEMA Configuration | 5-20R |
| Ground Type | Self-grounding |
| Design | Duplex |
| Color | White |
| Device Configuration | Duplex |
| NEMA Rating | WD-1 & WD-6 |
| Material | Nylon |
| Number of Phases | 1 Phase |
| Grade | Commercial Specification Grade |
| Mounting Type | Screw |
| Wire Size | 14 - 10 AWG |
| Wiring Method | Back and Side Wired |
| Amperage | 20 A |
| Leviton Specification Sheet | Specification Sheet |
|
| Straight Blade Receptacle Catalog Q 1101H | Catalog |
|
