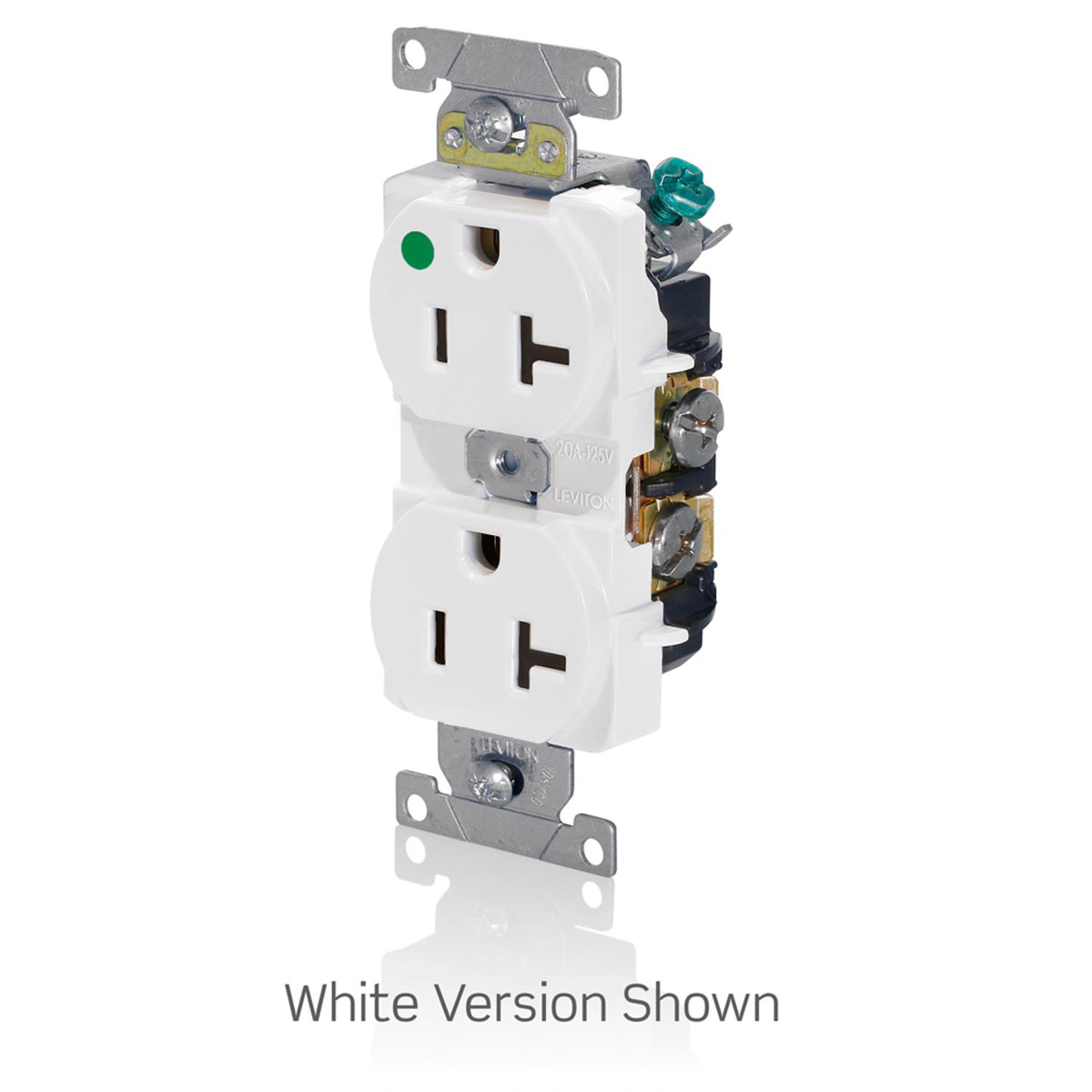

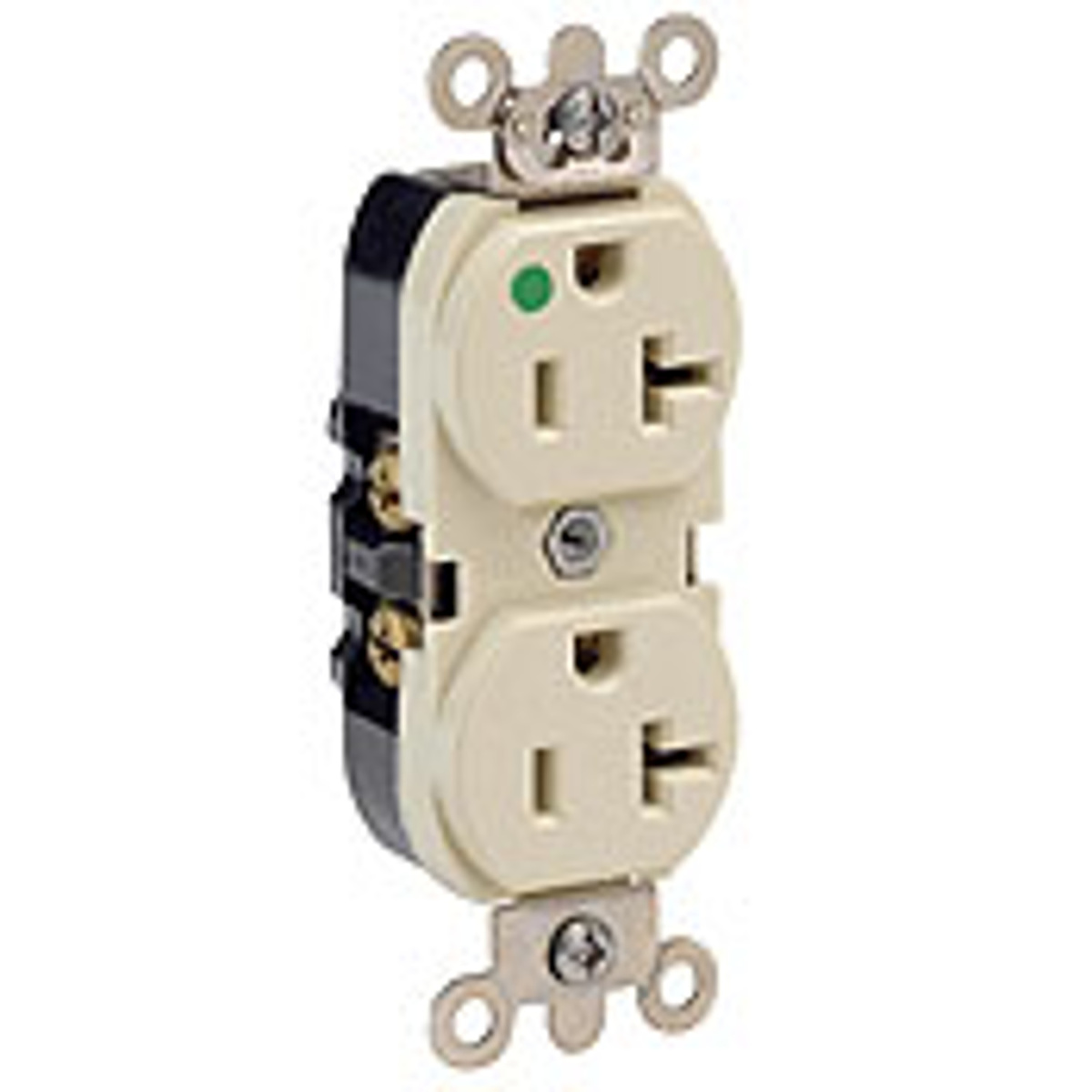

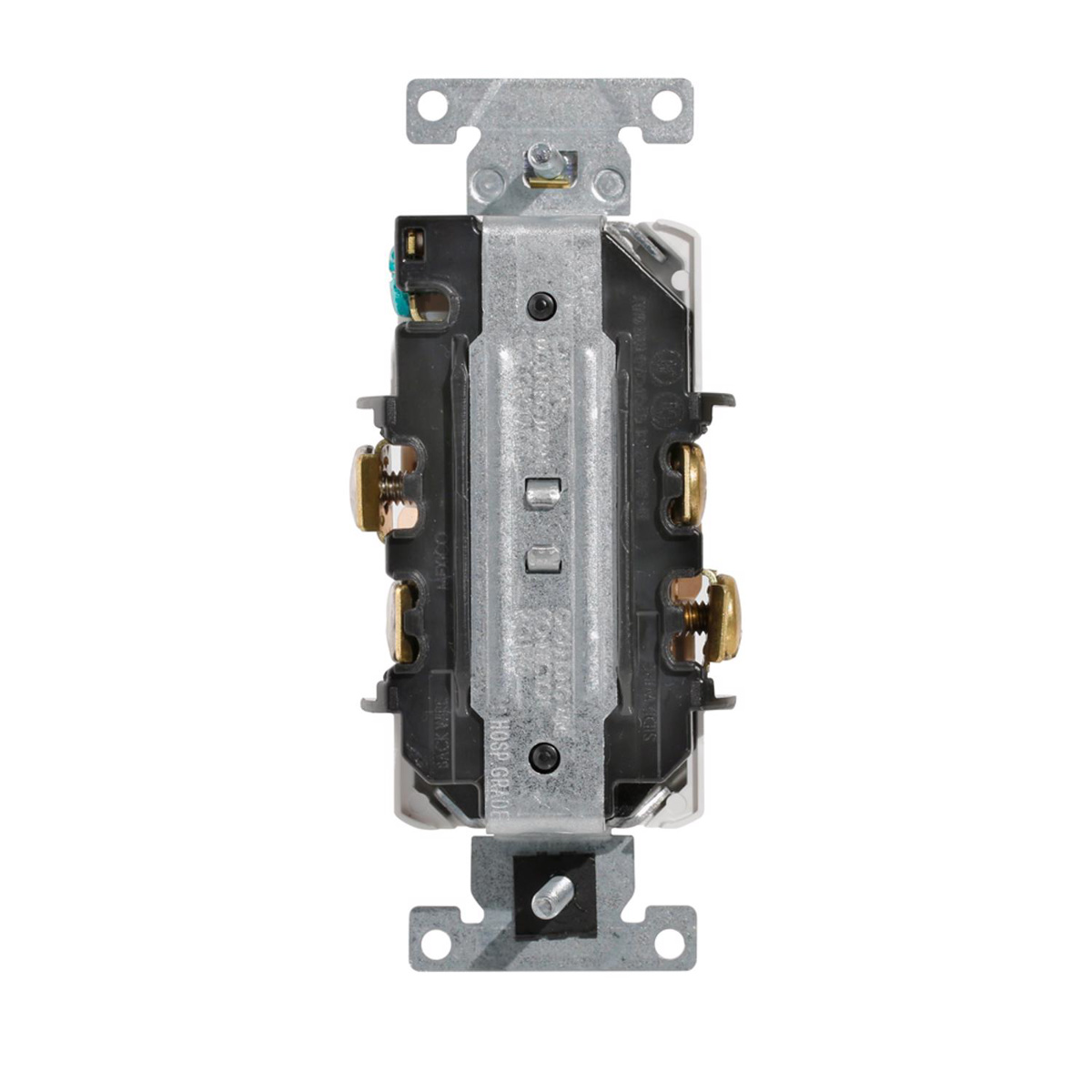

Leviton 8300 Series Duplex Receptacles 20 A 125 V 2P3W 5-20R Heavy-Duty Hospital Grade White

PrimaryProductImage
alternate_image
alternate_image
PrimaryProductImage alternate_image alternate_image
Logo
Mfg #: 8300HW
BOR #: 636212
View all 5 in product family
Looking for prices?
Sign In
Create an Account

Apron barrier to prevent accidental contact between terminal screw heads and metal box

  • Break-off tabs for easy two-circuit conversion
  • Duplex, NEMA 5-20R
  • Environmental: Flammability, rated V2
  • Four corner latches securely fasten face
  • High-performance brass #10-32 terminal screws to reduce conductor oxidation
  • Impact-resistant thermoplastic nylon cover and body
  • Large, triple-wipe, brass "T" contacts for superior contact and conductivity
  • Operating Temperature: From -40°C (without impact) to 60°C maximum continuous
  • Smooth face does not collect dirt
  • Meets NEMA WD-1 & 6, and ANSI standards
  • CSA certified (CSA file #152105)
  • NOM certified (#057)
  • UL listed 498, UL federal specification WC-596
See More
Product can be ordered only in multiples of
Specifications
Brand Leviton
Pole/Wire 2P3W
Voltage 125 V

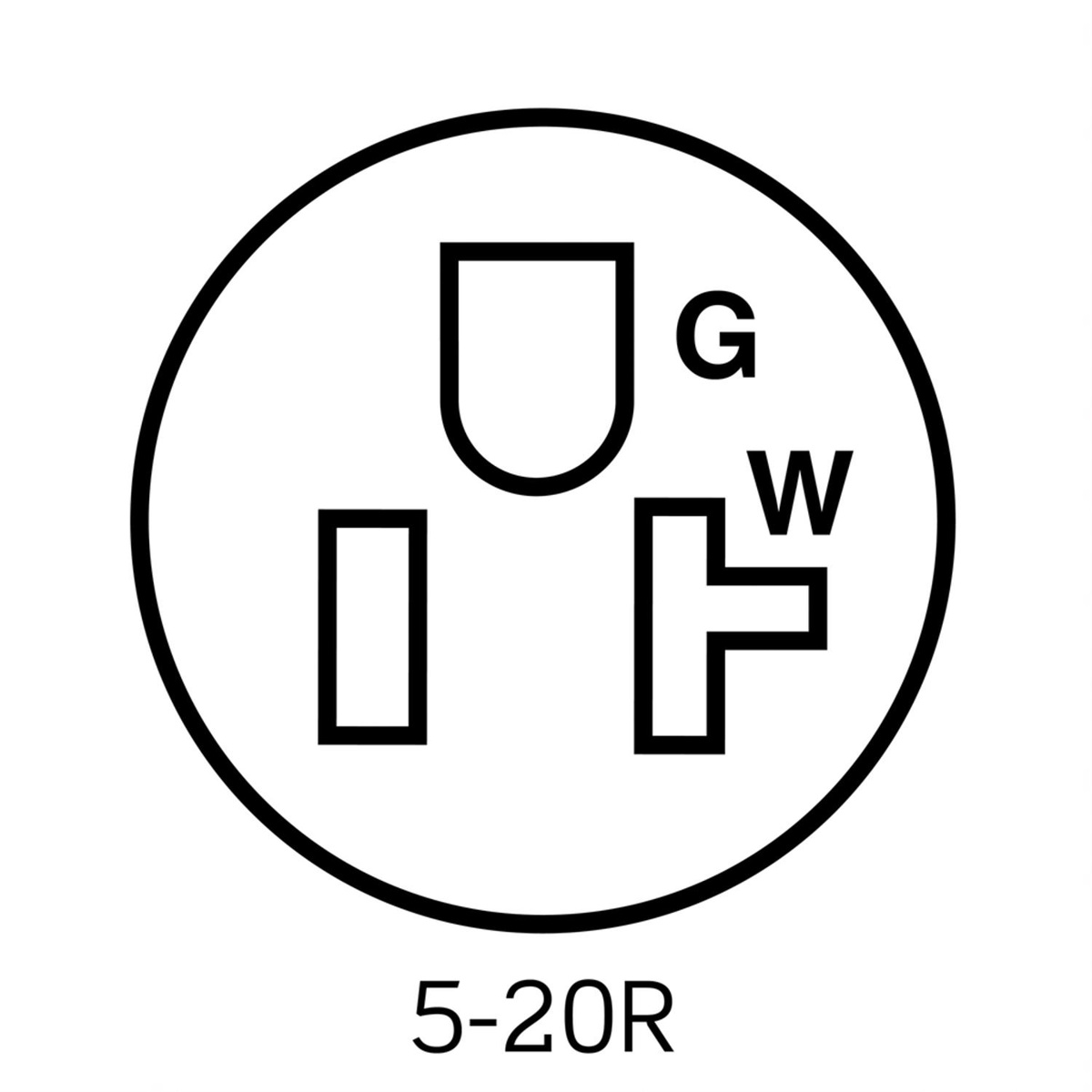

NEMA Configuration 5-20R
Ground Type Self-grounding
Design Duplex
Color White
Device Configuration Duplex
NEMA Rating WD-6
Number of Phases 1 Phase
Grade Heavy-Duty Hospital Grade
Mounting Type Screw
Wiring Method Back and Side Wired
Amperage 20 A
Related Documents
Leviton Specification Sheet Specification Sheet
Straight Blade Receptacle Catalog Q 1101H Catalog
