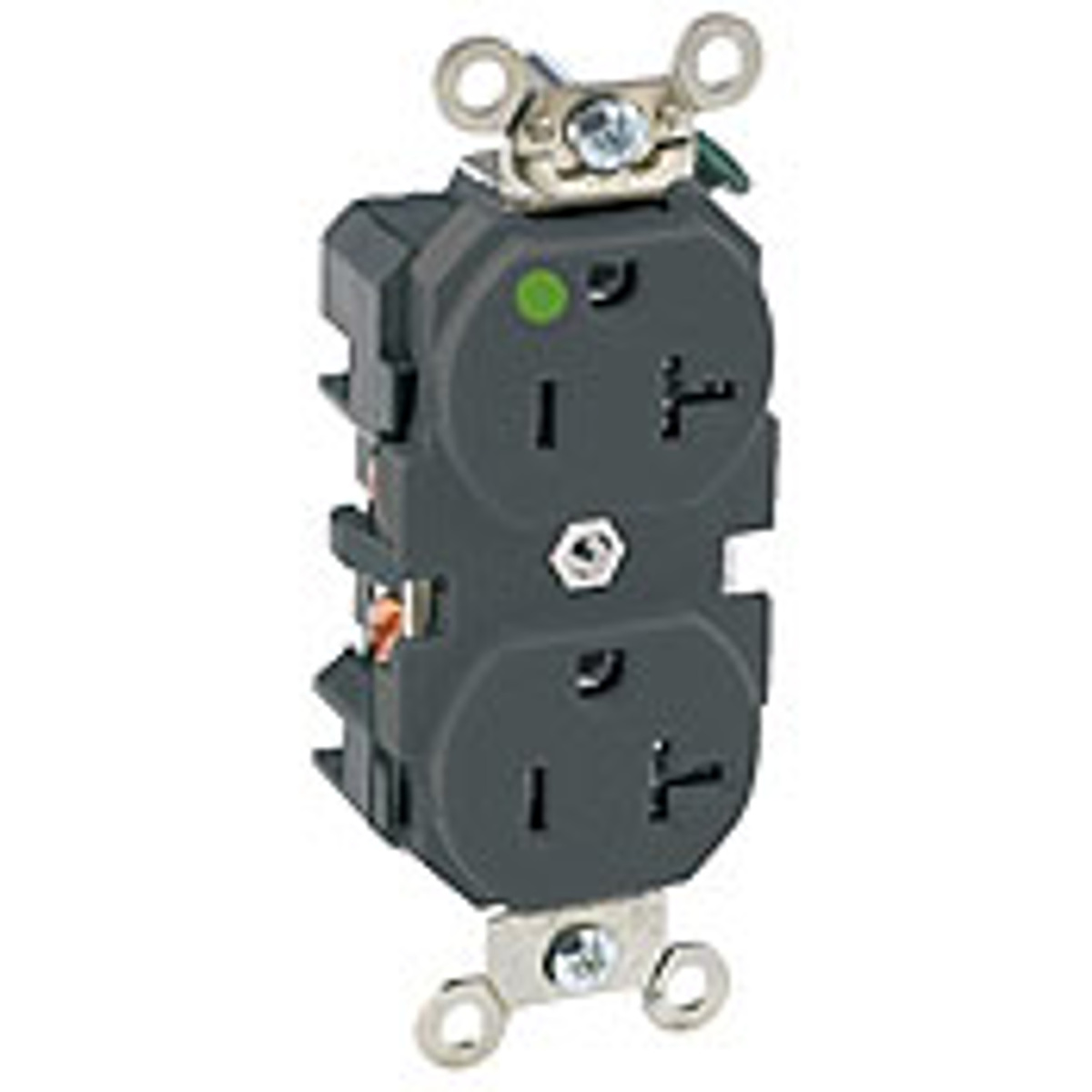

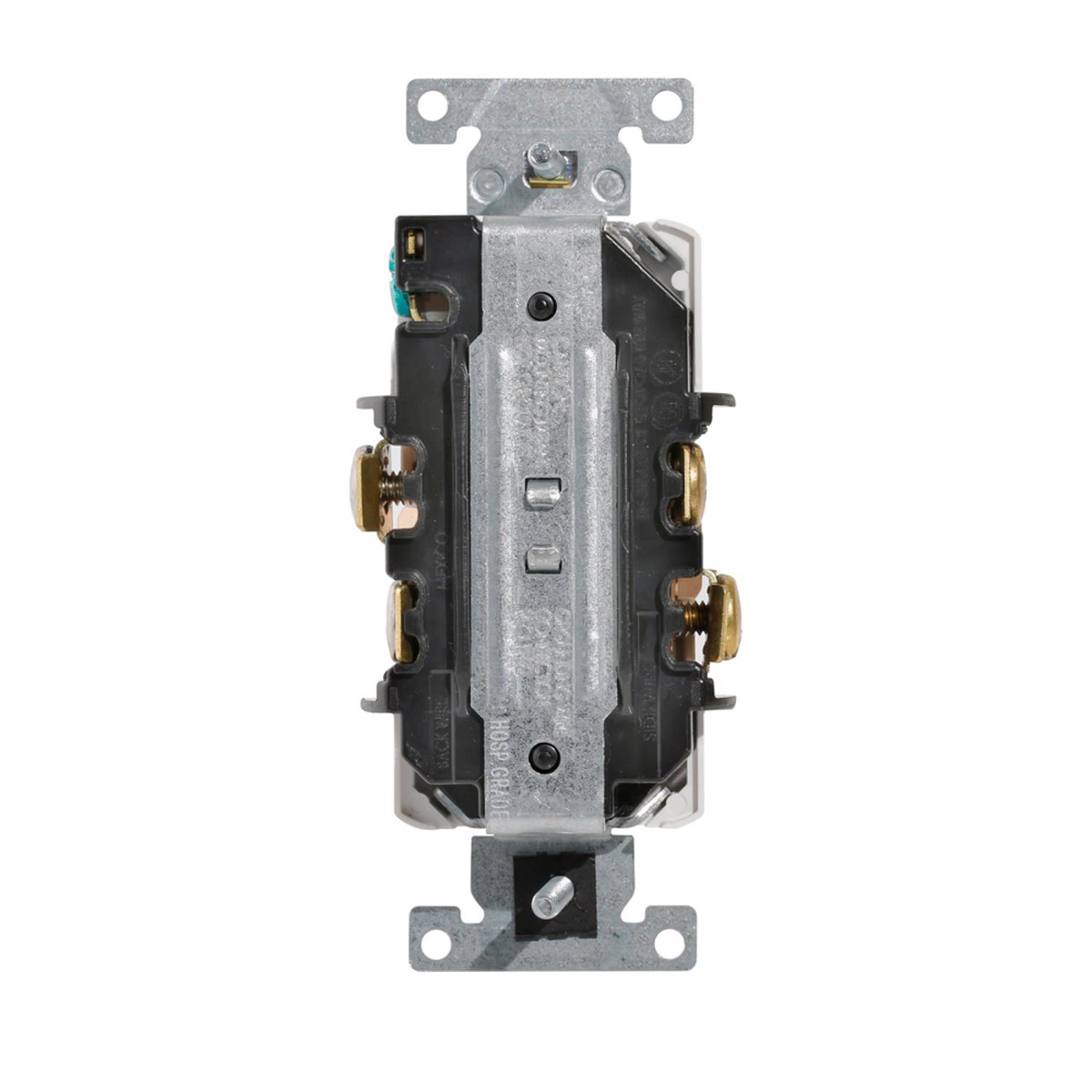

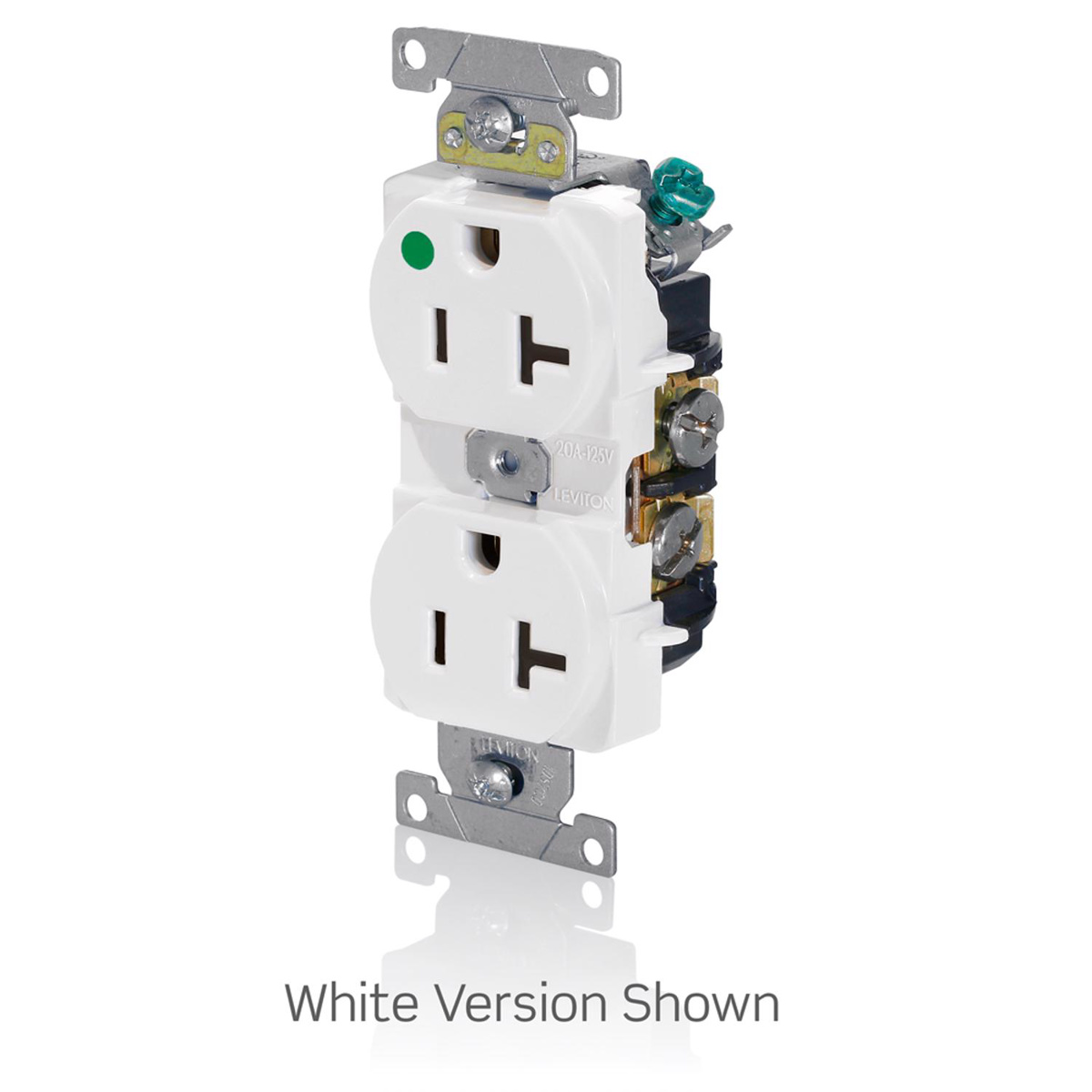

Leviton 8300 Series Duplex Receptacles 20 A 125 V 2P3W 5-20R Heavy-Duty Hospital Grade Ivory
Mfg #:
8300HI
BOR #:
636217
Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Break-off tabs for easy two-circuit conversion
- Duplex, NEMA 5-20R
- Environmental: Flammability, rated V2
- Four corner latches securely fasten face
- High-performance brass #10-32 terminal screws to reduce conductor oxidation
- Impact-resistant thermoplastic nylon cover and body
- Large, triple-wipe, brass "T" contacts for superior contact and conductivity
- Operating Temperature: From -40°C (without impact) to 60°C maximum continuous
- Smooth face does not collect dirt
- Meets NEMA WD-1 & 6, and ANSI standards
- CSA certified (CSA file #152105)
- NOM certified (#057)
- UL listed 498, UL federal specification WC-596
Brand | Leviton |
Pole/Wire | 2P3W |
Voltage | 125 V |

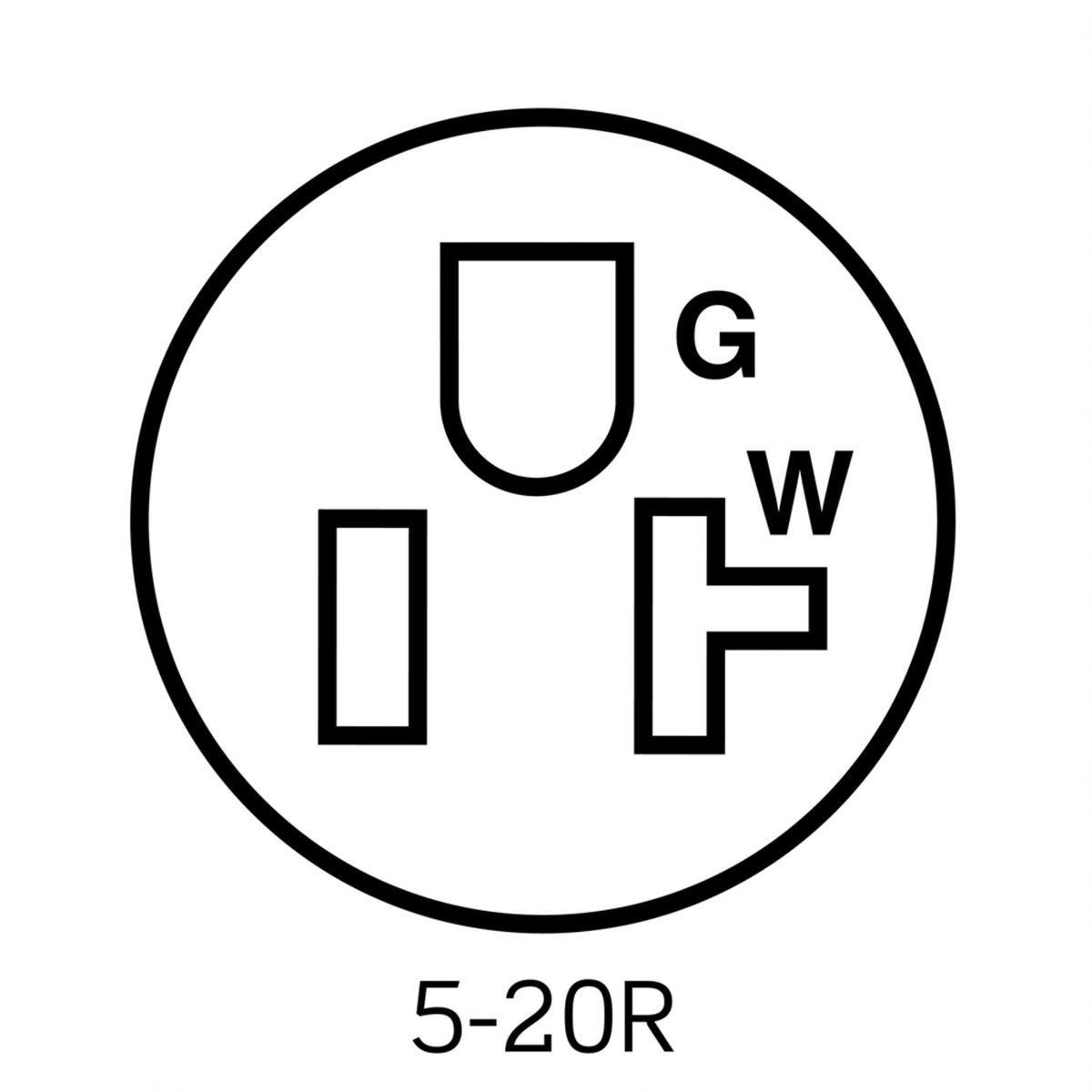

NEMA Configuration | 5-20R |
Ground Type | Self-grounding |
Design | Duplex |
Color | Ivory |
Device Configuration | Duplex |
NEMA Rating | WD-1 & WD-6 |
Material | Thermoplastic |
Number of Phases | 1 Phase |
Grade | Heavy-Duty Hospital Grade |
Mounting Type | Screw |
Wire Size | 14 - 10 AWG |
Wiring Method | Back and Side Wired |
Amperage | 20 A |
