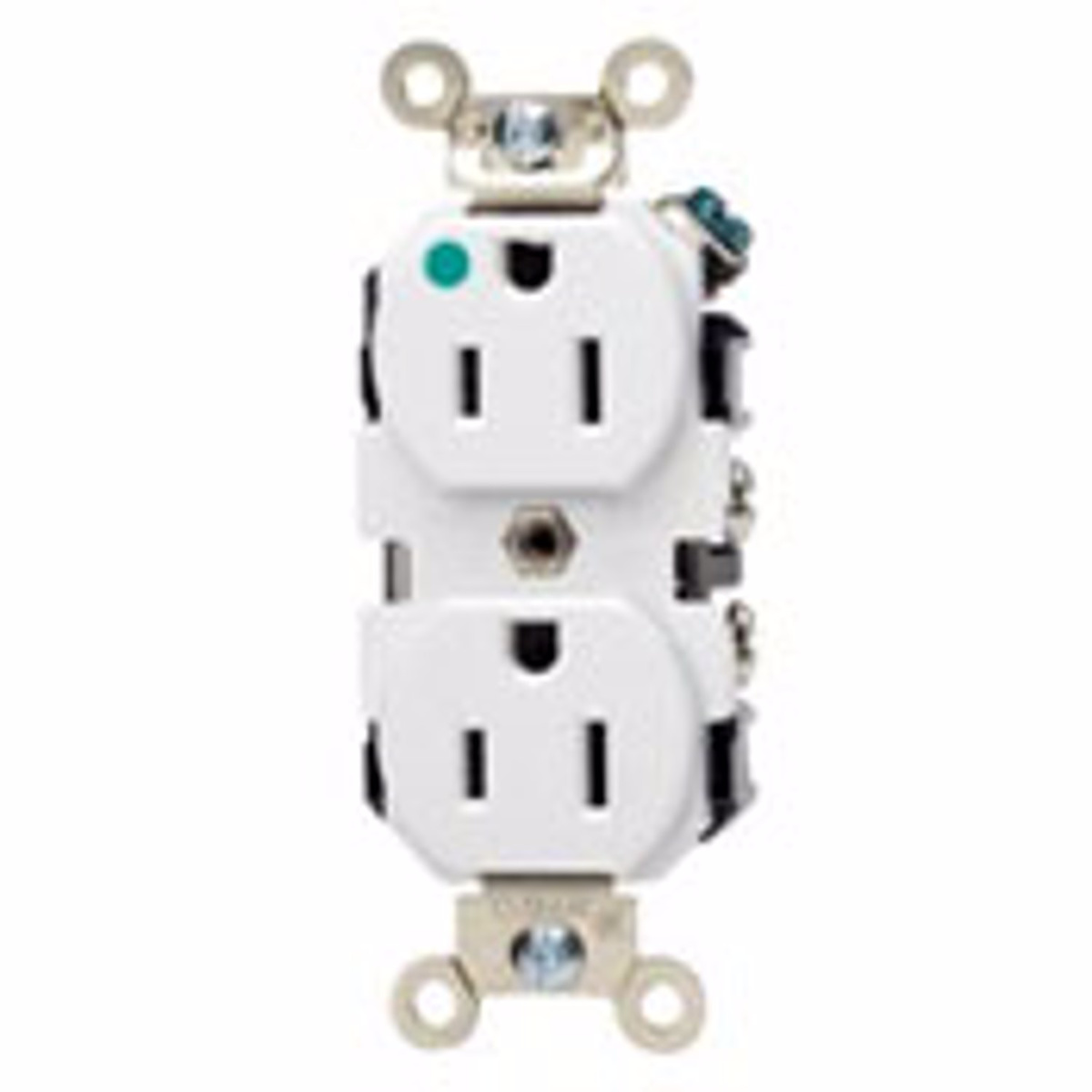

Leviton 8200 Series Duplex Receptacles 15 A 125 V 2P3W 5-15R Extra Heavy-Duty Hospital Grade White

Mfg #: 8200W

BOR #: 636196

View all 5 in product family

Looking for prices?

Create an Account

Hospital Grade Receptacles, Back and side wired 120 V, 15 A

Apron barrier to prevent accidental contact between terminal screw heads and metal box
Back and side-wire ground termination - brass strap version
Break-off tabs for easy two-circuit conversion

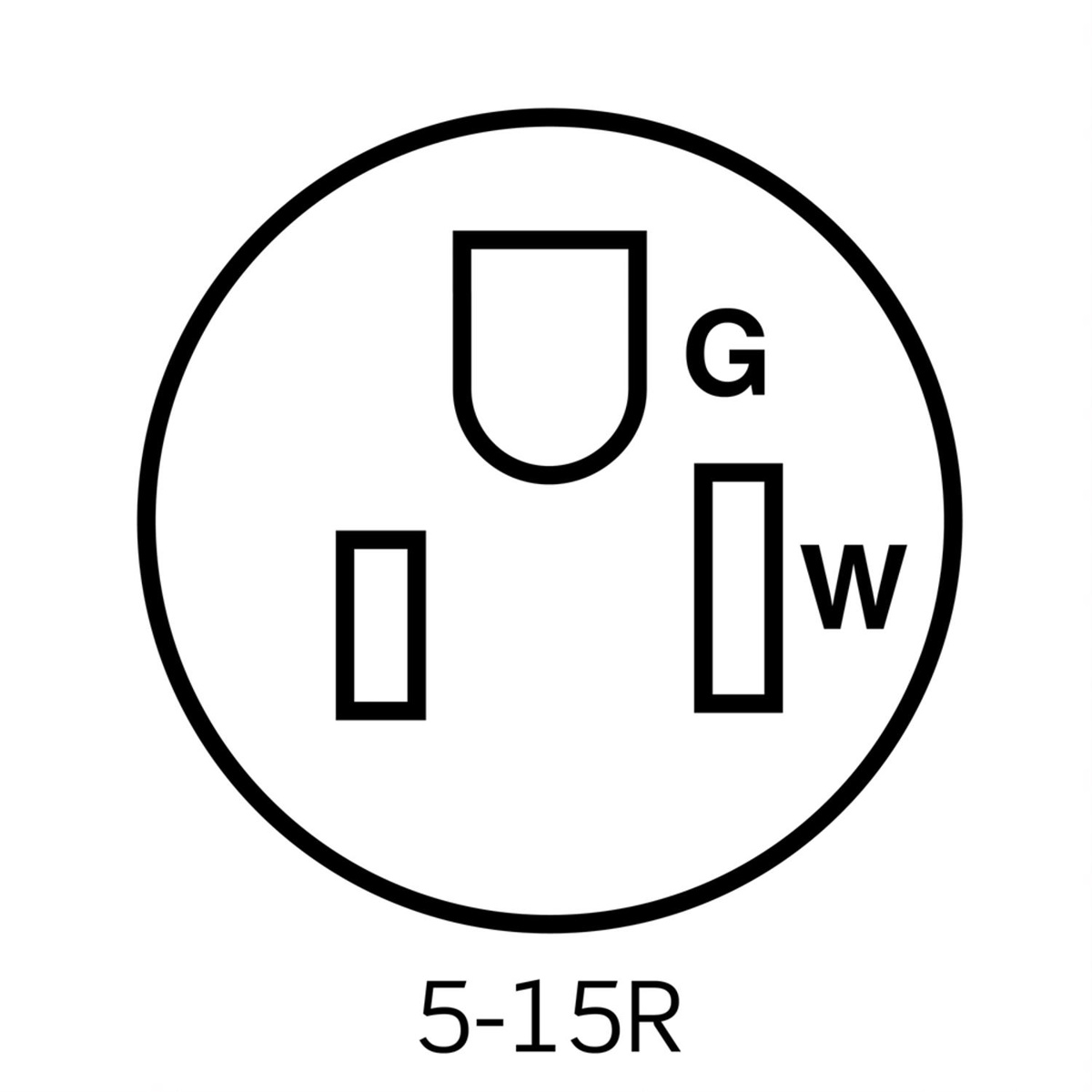

Duplex, NEMA 5-15R
Environmental: Flammability, rated V2
Four corner latches securely fasten face
High-performance brass #10-32 terminal screws to reduce conductor oxidation
Impact-resistant thermoplastic nylon cover and body
Large, triple-wipe, brass "T" contacts for superior contact and conductivity
Operating Temperature: From -40°C (without impact) to 60°C maximum continuous
Smooth face does not collect dirt
Meets NEMA WD-1 & 6, and ANSI standards
Backed by a limited 10-year warranty
NOM certified (#057)
UL listed 498, UL federal specification WC-596
CSA certified (CSA file #152105)

Product can be ordered only in multiples of

Brand	Leviton
Pole/Wire	2P3W
Voltage	125 V
NEMA Configuration	5-15R
Ground Type	Self-grounding
Design	Duplex
Color	White
Device Configuration	Duplex
NEMA Rating	WD-6
Material	Thermoplastic
Number of Phases	1 Phase
Grade	Extra Heavy-Duty Hospital Grade
Mounting Type	Screw
Wire Size	14 - 10 AWG
Wiring Method	Back and Side Wired
Amperage	15 A

Leviton Specification Sheet	Specification Sheet
Straight Blade Receptacle Catalog Q 1101H	Catalog
