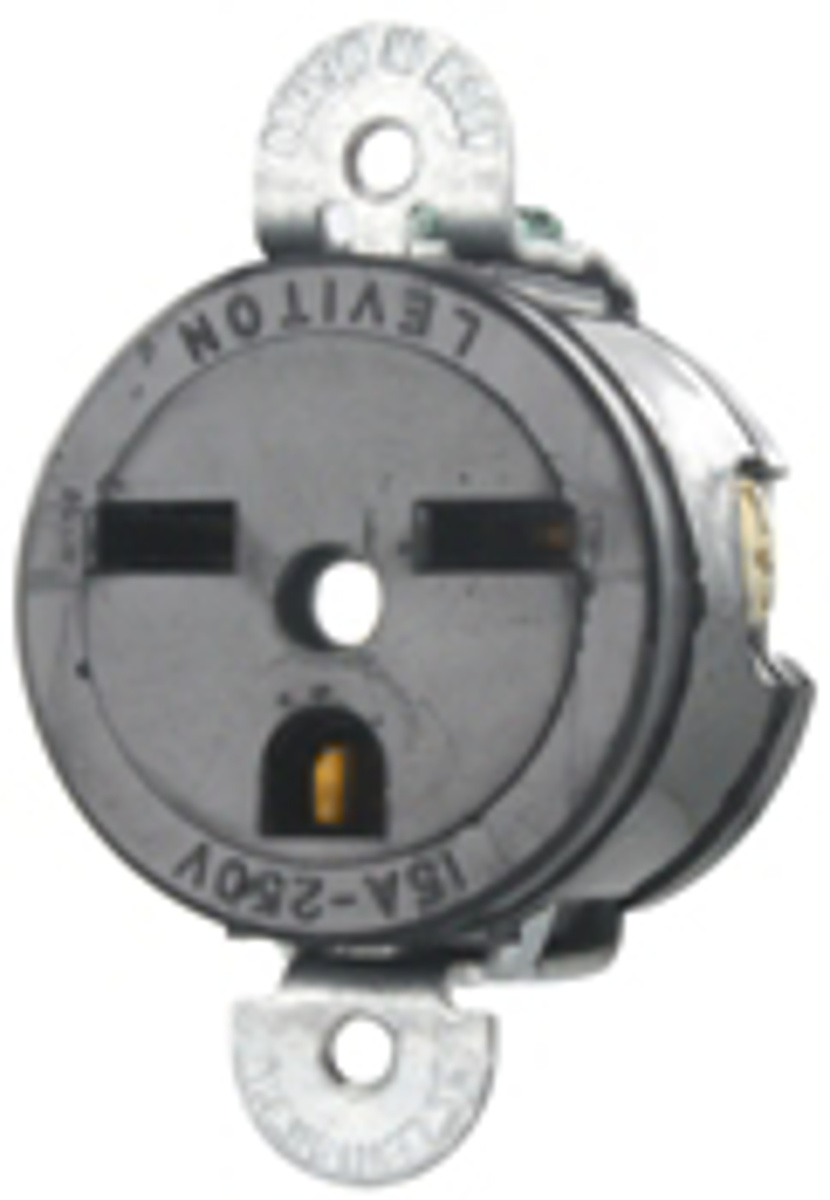

Leviton 5658 Series Single Receptacles 15 A 250 V 2P3W 6-15R Commercial Specification Grade Black

Mfg #: 5658SS

BOR #: 636431

Looking for prices?

Create an Account

Straight Blade Receptacle, Short Strap Single, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, NEMA 6-15R, Grade: Commercial, -40 to 60 deg C, Side Wired Terminal, Nylon, Black, 2.31 in H x 1.48 in W x 1.2 in D

14 to 10 AWG terminal accommodation
Steel strap
Box mounting
Brass-hot, green-ground, silver-neutral terminal
Certified for current interrupting at full rated current
Galvanized steel strap material
Maximum 30 deg C after 100 cycles OL at 150% rated current temperature rise
Nylon cover material
Plated brass line contacts
Plated steel grounding screw and terminal screws
Ratings are permanently marked on device product ID
V-2 per UL94 flammability rated
Withstands 2000 VAC per UL498 dielectric voltage

Product can be ordered only in multiples of

Specifications

Brand	Leviton
Pole/Wire	2P3W
Voltage	250 V
NEMA Configuration	6-15R
Ground Type	Grounding
Color	Black
Device Configuration	Single Receptacle
NEMA Rating	WD-6
Material	Nylon
Number of Phases	1 Phase
Grade	Commercial Specification Grade
Mounting Type	Screw
Wire Size	14 - 10 AWG
Wiring Method	Side Wired
Amperage	15 A

Leviton Specification Sheet	Specification Sheet
Straight Blade Receptacle Catalog Q 1101H	Catalog
