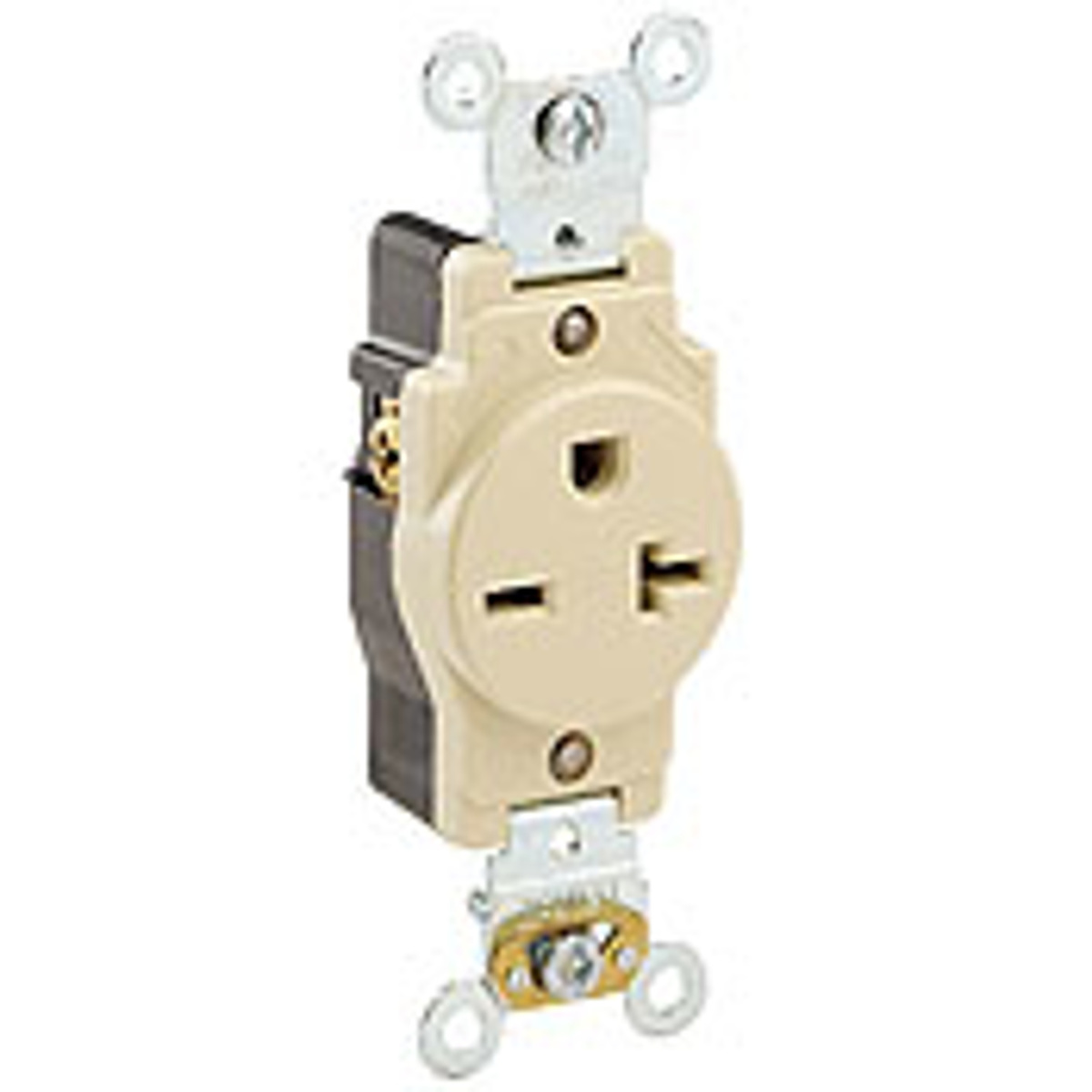

Leviton 5461 Series Single Receptacles 20 A 250 V 2P3W 6-20R Heavy-Duty Industrial Specification Grade Almond
Mfg #:
5461T
BOR #:
1792860
Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, ta
| Brand | Leviton |
| Pole/Wire | 2P3W |
| Voltage | 250 V |

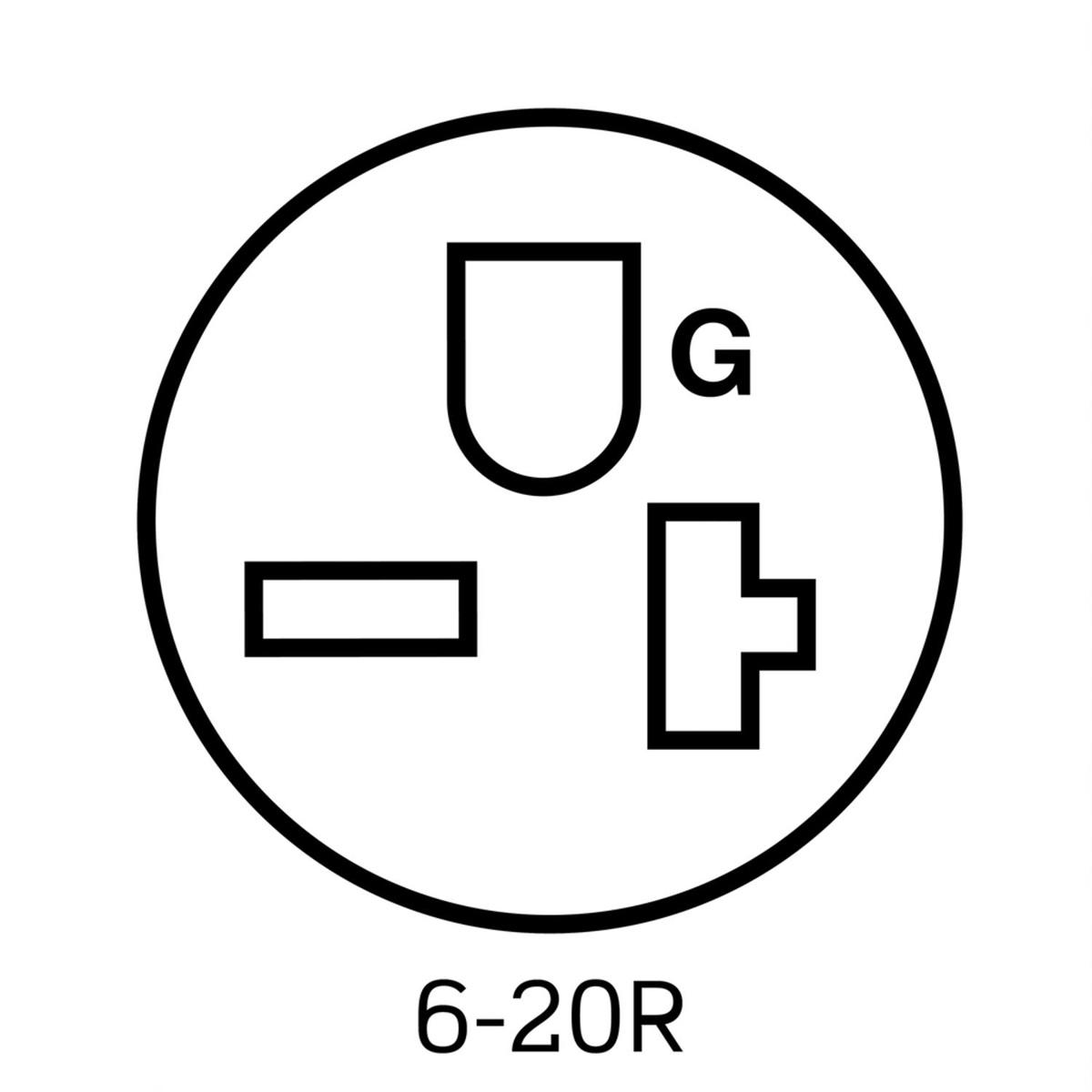

| NEMA Configuration | 6-20R |
| Ground Type | Self-grounding |
| Color | Almond |
| Device Configuration | Single Receptacle |
| NEMA Rating | WD-6 |
| Material | Thermoplastic |
| Number of Phases | 1 Phase |
| Grade | Heavy-Duty Industrial Specification Grade |
| Mounting Type | Screw |
| Wire Size | 14 - 10 AWG |
| Wiring Method | Back and Side Wired |
| Amperage | 20 A |
| Straight Blade Receptacle Catalog Q 1101H | Catalog |
|
| Leviton Specification Sheet | Specification Sheet |
|
