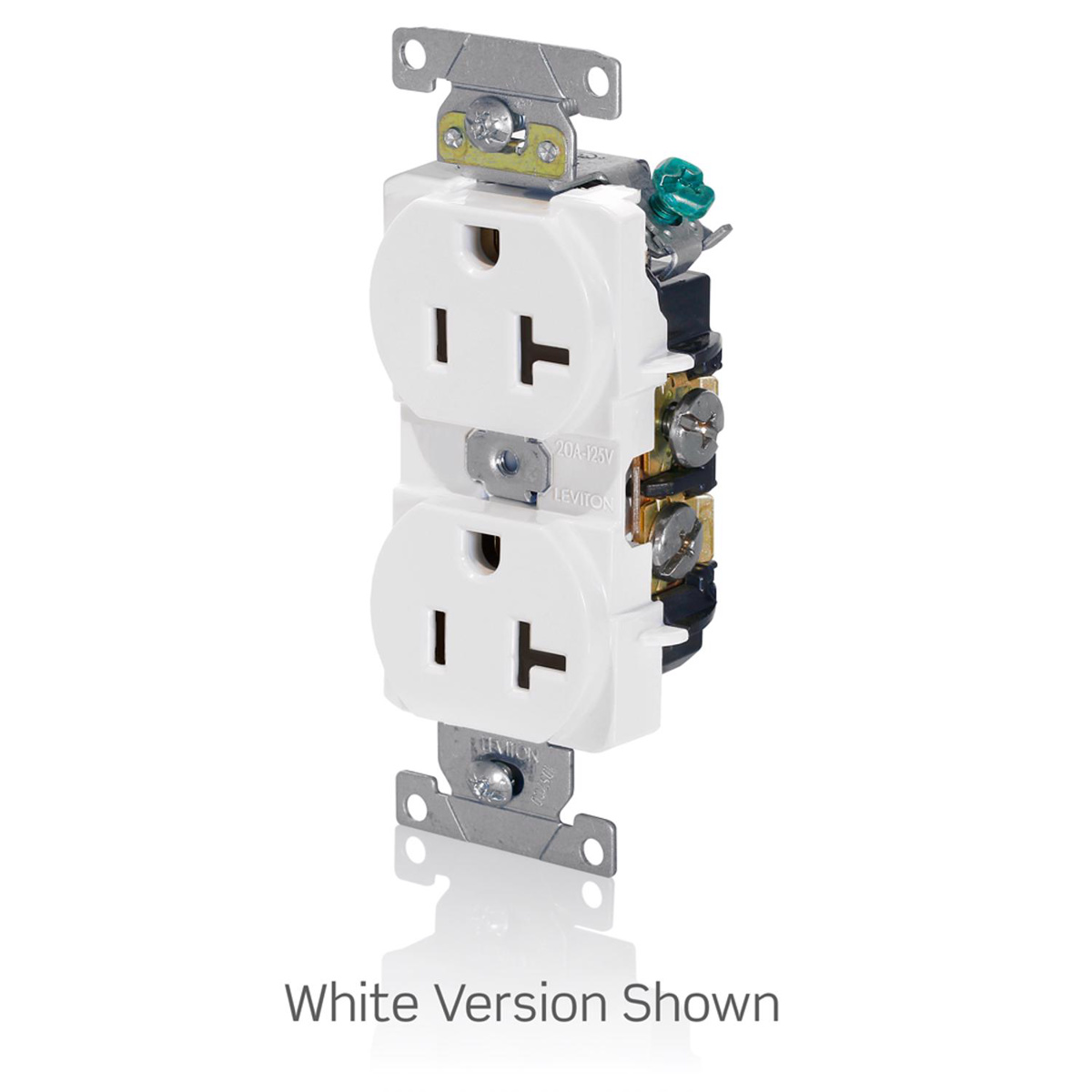

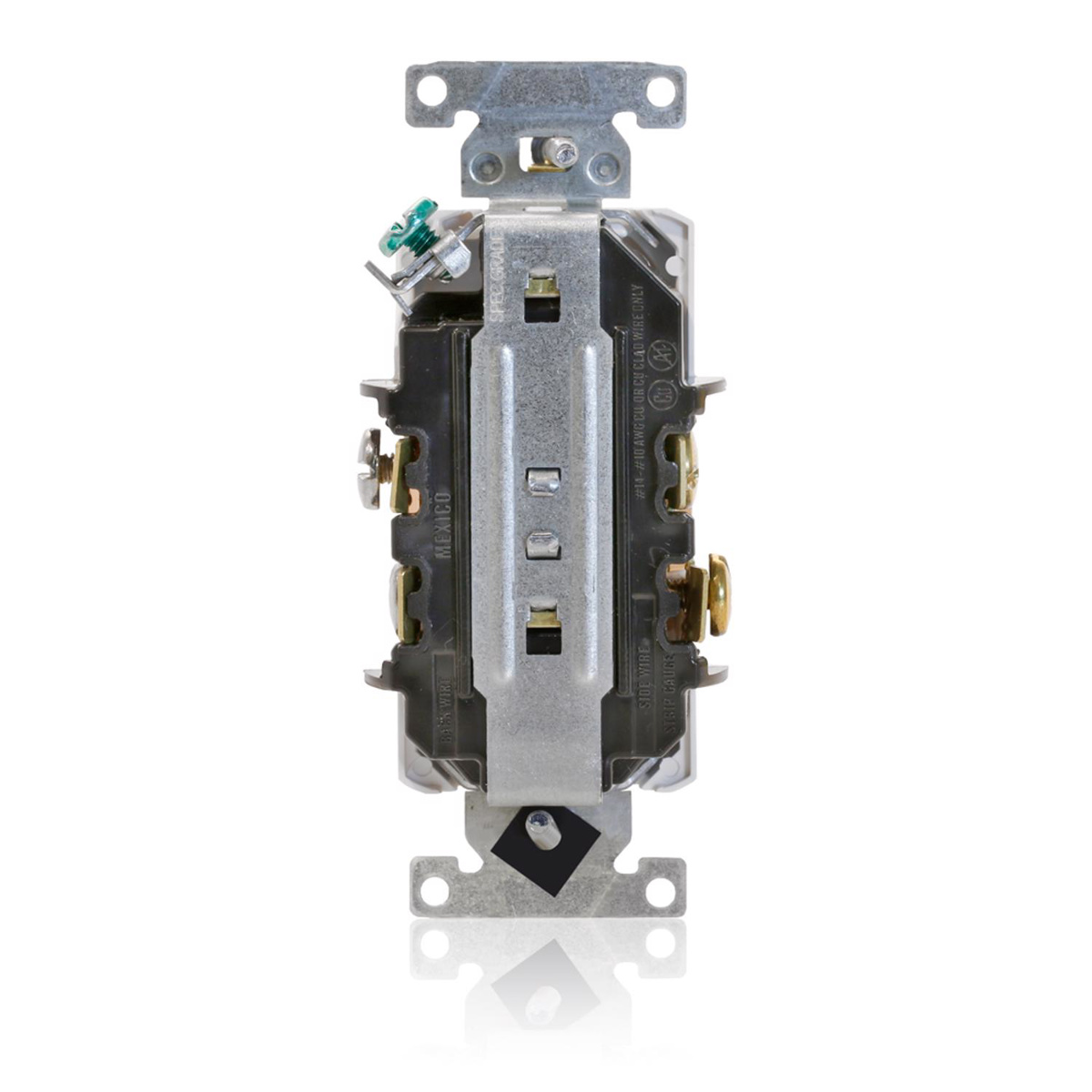

Leviton 5362 Series Duplex Receptacles 20 A 125 V 2P3W 5-20R Heavy-Duty Industrial Specification Grade Brown

Mfg #: 5362S

BOR #: 647645

View all 7 in product family

Looking for prices?

Create an Account

Back and side wired - Slim design duplex receptacle

Apron barrier to prevent accidental contact between terminal screw heads and metal box
Brass terminal screws to reduce conductor oxidation
Break-off tabs for easy two-circuit conversion
Large, triple-wipe, brass "T" contacts for superior contact and conductivity
Four corner latches securely fasten face
Impact-resistant thermoplastic nylon cover and body
Slim design duplex, NEMA 5-20R
Locked-in mounting strap
Operating Temperature: From -40°C (without impact) to 60°C maximum continuous
Smooth face does not collect dirt
Environmental: Flammability, rated V2
Meets NEMA WD-1 & 6, and ANSI standards
CSA certified where applicable (CSA file #LR-406)
UL listed 498, UL federal specification WC-596

Product can be ordered only in multiples of

Brand	Leviton
Pole/Wire	2P3W
Voltage	125 V
NEMA Configuration	5-20R
Ground Type	Self-grounding
Design	Duplex
Color	Brown
Device Configuration	Duplex
NEMA Rating	WD-1 & WD-6
Material	Thermoplastic
Number of Phases	1 Phase
Grade	Heavy-Duty Industrial Specification Grade
Mounting Type	Screw
Wire Size	14 - 10 AWG
Wiring Method	Back and Side Wired
Amperage	20 A

Straight Blade Receptacle Catalog Q 1101H	Catalog
Leviton Specification Sheet	Specification Sheet
