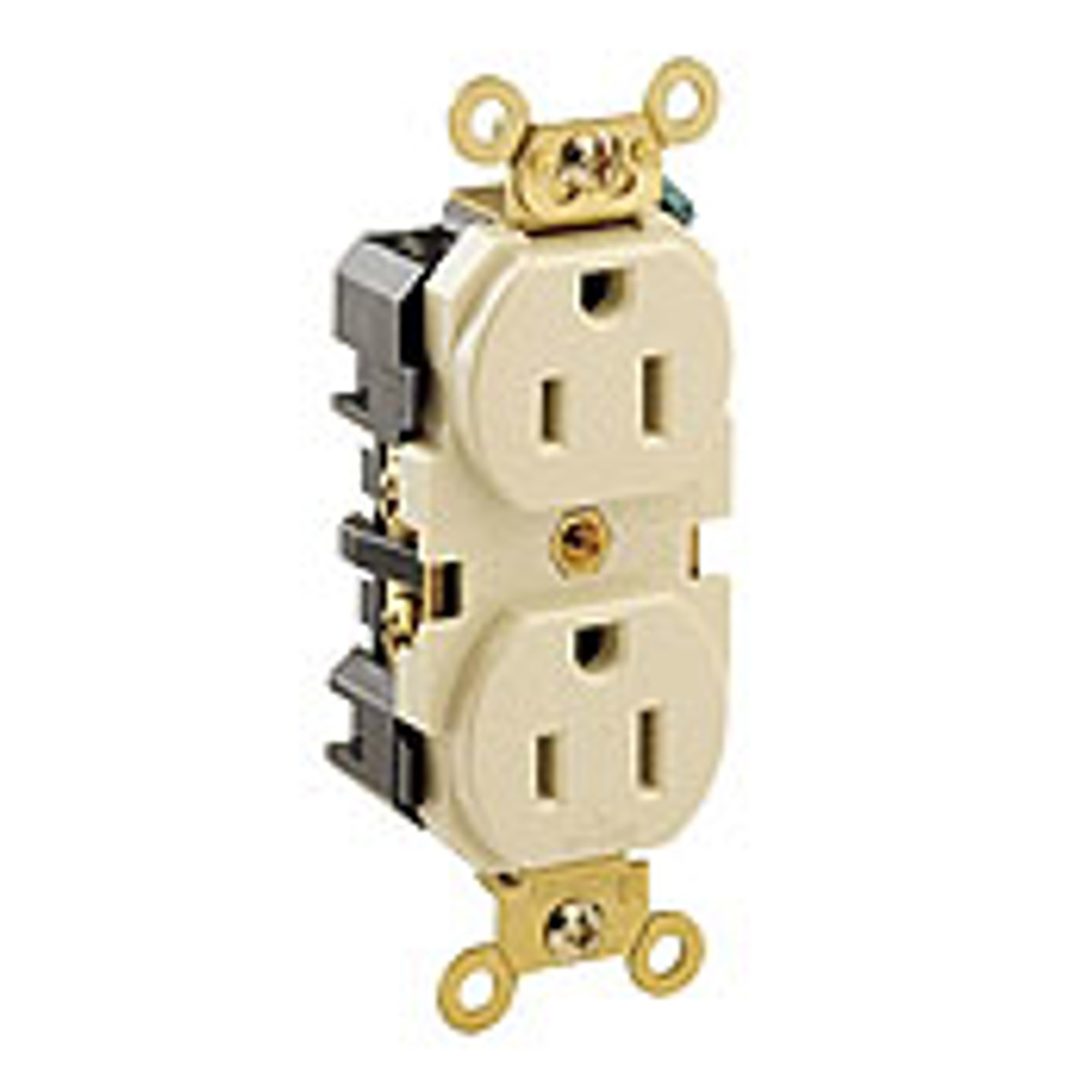

Leviton 5262 Series Duplex Receptacles 15 A 125 V 2P3W 5-15R Extra Heavy-Duty Industrial Specification Grade Ivory
Mfg #:
5262I
BOR #:
122624
Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
- Brass terminal screws to reduce conductor oxidation
- Break-off tabs for easy two-circuit conversion
- Large, triple-wipe, brass "T" contacts for superior contact and conductivity
- Impact-resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Locked-in mounting strap
- Operating Temperature: From -40°C (without impact) to 60°C maximum continuous
- Smooth face does not collect dirt
- Environmental: Flammability, rated V2
- Meets NEMA WD-1 & 6, and ANSI standards
- CSA certified where applicable (CSA file #LR-406)
- UL listed 498, UL federal specification WC-596
| Brand | Leviton |
| Pole/Wire | 2P3W |
| Voltage | 125 V |

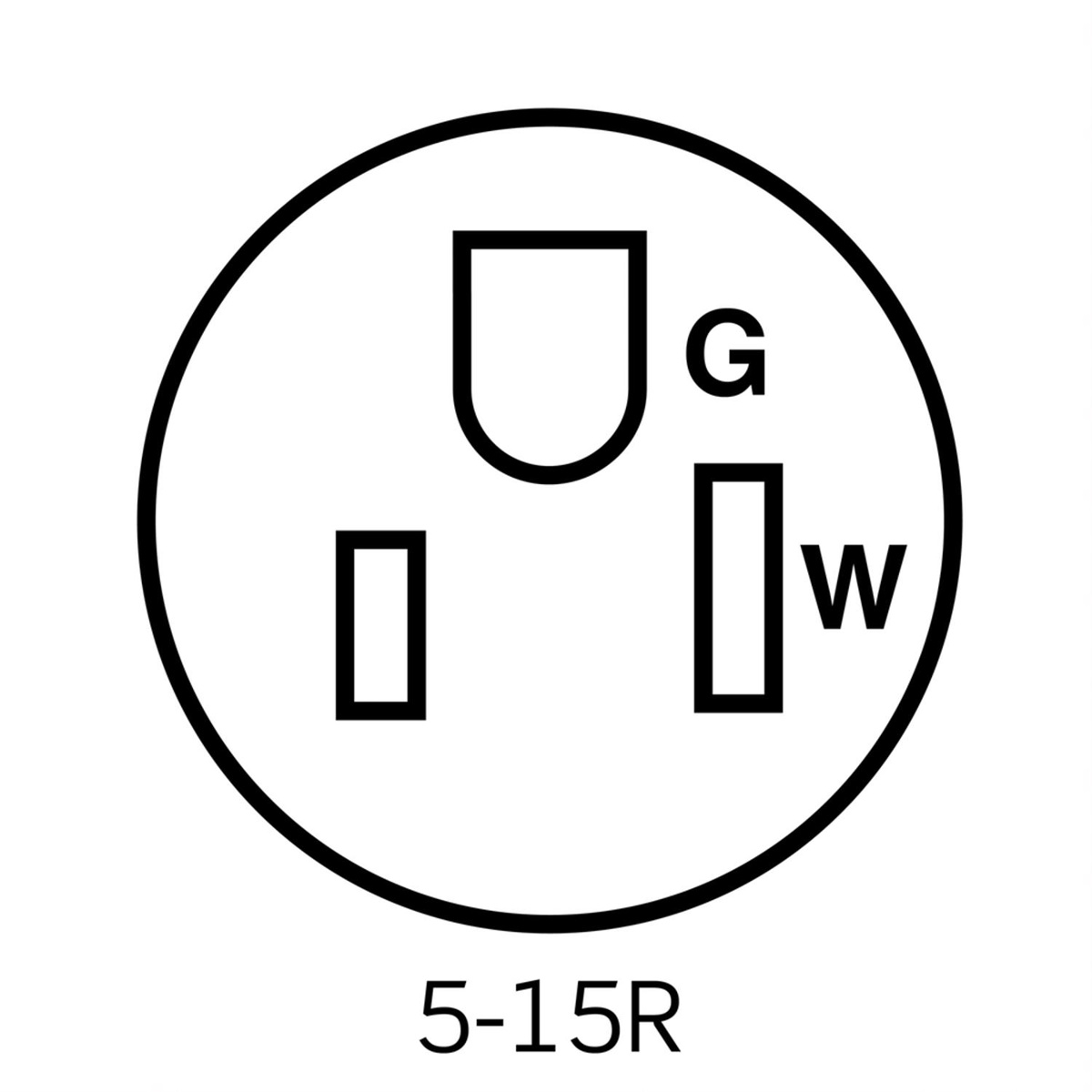

| NEMA Configuration | 5-15R |
| Ground Type | Self-grounding |
| Design | Duplex |
| Color | Ivory |
| Device Configuration | Duplex |
| NEMA Rating | WD-1 & WD-6 |
| Material | Thermoplastic |
| Number of Phases | 1 Phase |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Mounting Type | Screw |
| Wire Size | 14 - 10 AWG |
| Wiring Method | Back and Side Wired |
| Amperage | 15 A |
| Straight Blade Receptacle Catalog Q 1101H | Catalog |
|
| Leviton Specification Sheet | Specification Sheet |
|
