Leviton 5261 Series Single Receptacles 15 A 125 V 2P3W 5-15R Heavy-Duty Industrial Specification Grade White

Mfg #: 5261W

BOR #: 1074026

View all 5 in product family

Looking for prices?

Create an Account

Smooth face does not collect dirt

Brass terminal screws to reduce conductor oxidation
Break-off tabs for easy two-circuit conversion
Apron barrier to prevent accidental contact between terminal screw heads and metal box
Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
Wire lead receptacles for fast and easy installation
Brass 10-32 terminal screws
Brass 8-32 grounding screw
Brass plated ground clips, zinc-plated steel clamp nuts, yoke
Brass triple wipe line contacts
Large, triple wipe, brass "T" contacts for superior contact and conductivity
Withstands 2000 V per UL498 dielectric voltage, rated V-2 per UL94 flammability

Product can be ordered only in multiples of

Brand	Leviton
Pole/Wire	2P3W
Voltage	125 V

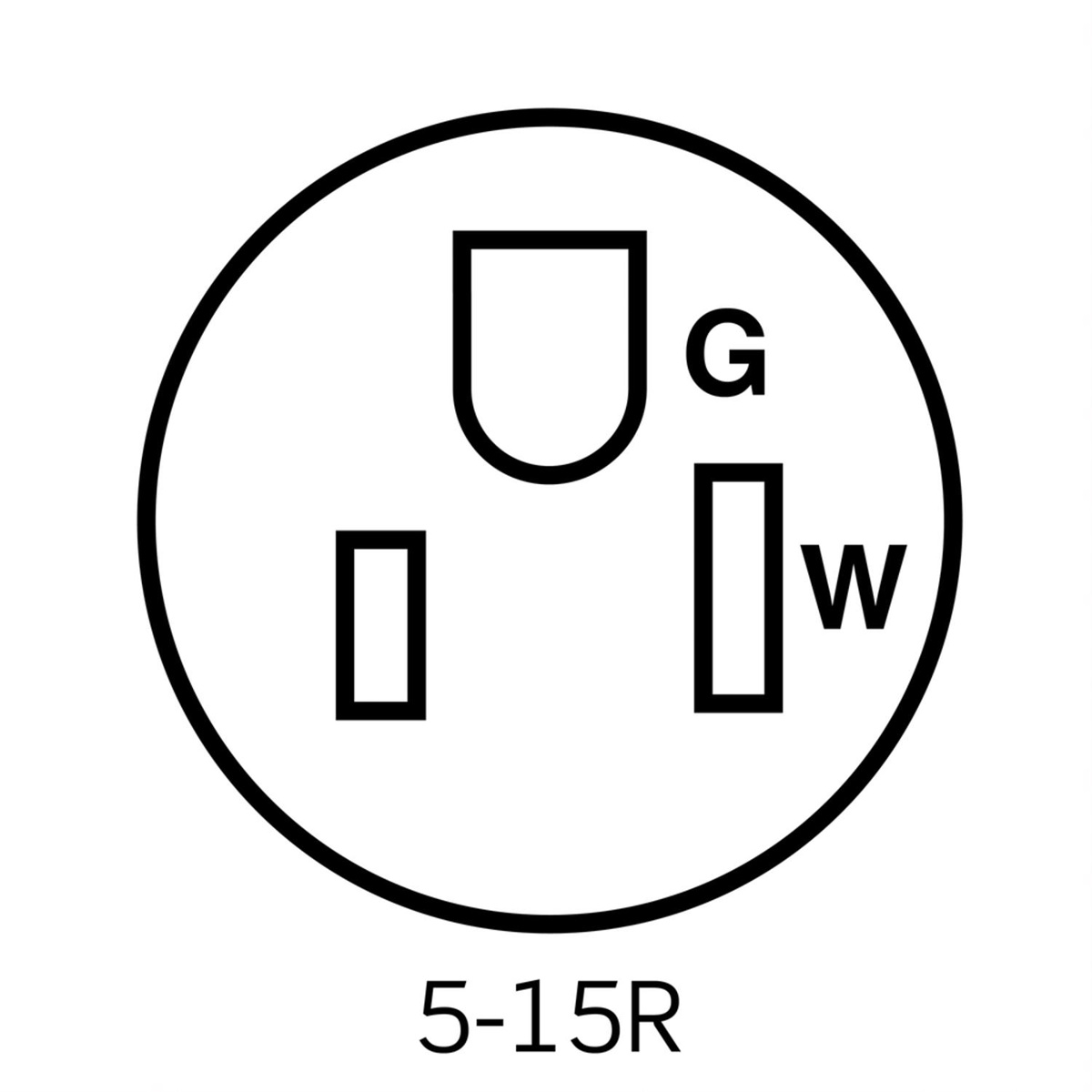

NEMA Configuration	5-15R
Ground Type	Self-grounding
Color	White
Device Configuration	Single Receptacle
NEMA Rating	WD-6
Material	Thermoplastic
Number of Phases	1 Phase
Grade	Heavy-Duty Industrial Specification Grade
Mounting Type	Screw
Wire Size	14 - 10 AWG
Wiring Method	Back and Side Wired
Amperage	15 A

Leviton Specification Sheet	Specification Sheet
Straight Blade Receptacle Catalog Q 1101H	Catalog
