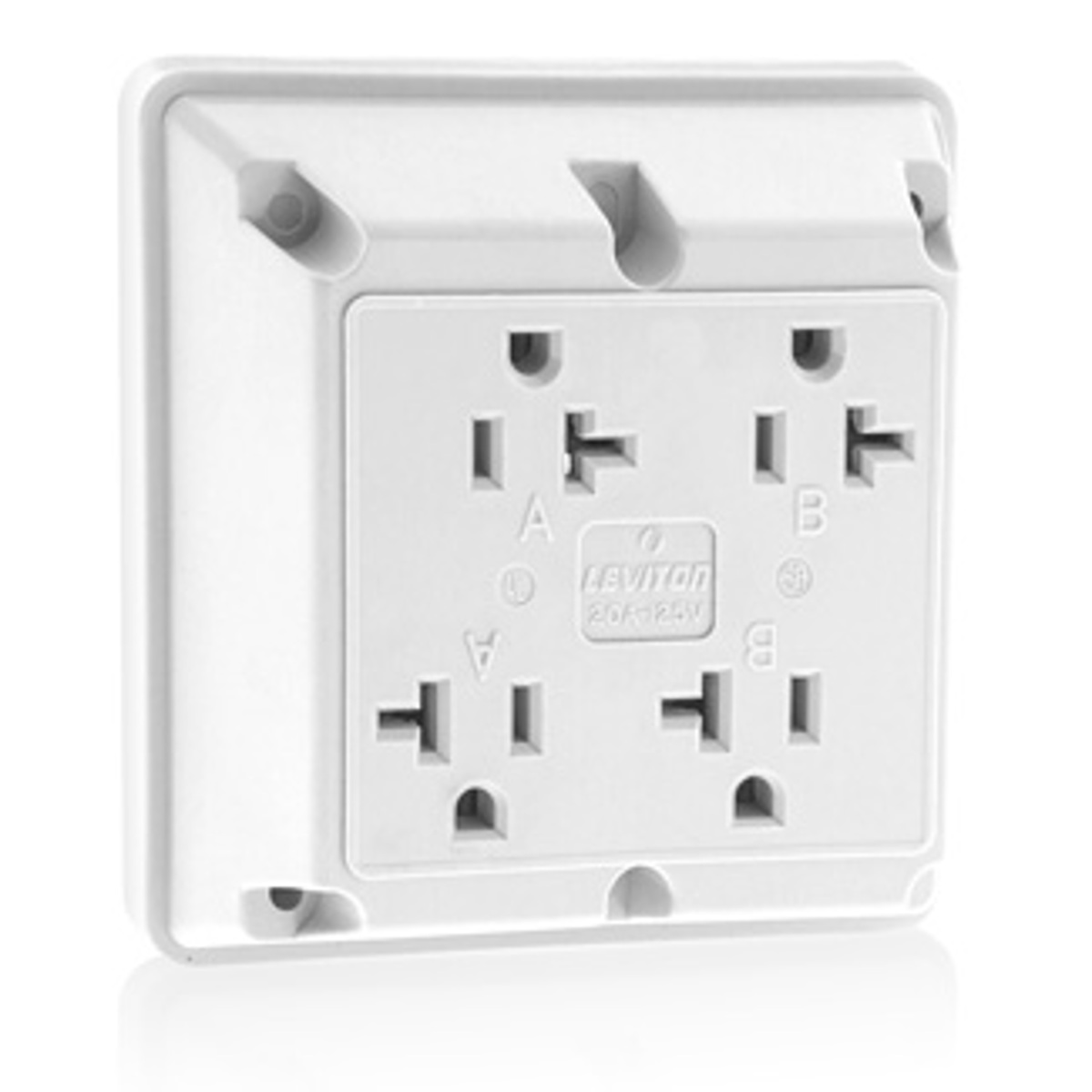

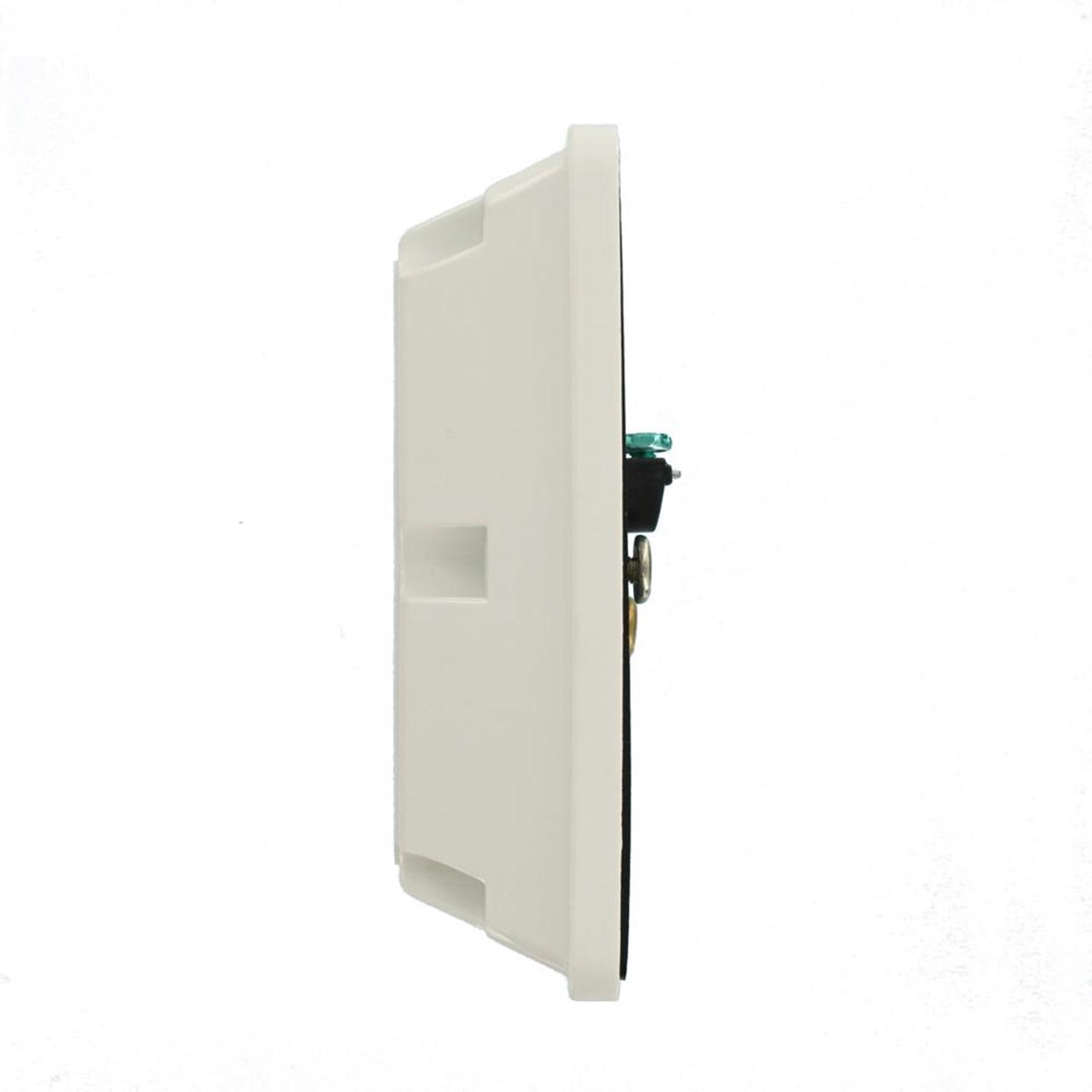

Leviton 21254 Quadruplex Receptacles 20 A 125 V 2P3W 5-20R Heavy-Duty Industrial Specification Grade White
Mfg #:
21254W
BOR #:
122972
| Brand | Leviton |
| Type | Receptacle |
| Width | 4-1/2 in |
| Pole/Wire | 2P3W |
| Voltage | 125 V |
| NEMA Configuration | 5-20R |
| Ground Type | Grounding |
| Plate Color | White |
| Design | Decorator |
| Color | White |
| Illumination | No Illumination |
| Device Configuration | Quadruplex |
| Insulation | Insulated |
| Hazardous Rated | Not Hazardous Rated |
| NEMA Rating | WD-1 WD-6 |
| Material | Nylon |
| Number of Phases | 1 Phase |
| Grade | Heavy-Duty Industrial Specification Grade |
| Mounting Type | Screw |
| Wire Size | 14 - 12 AWG |
| Number of Poles | 2 Pole |

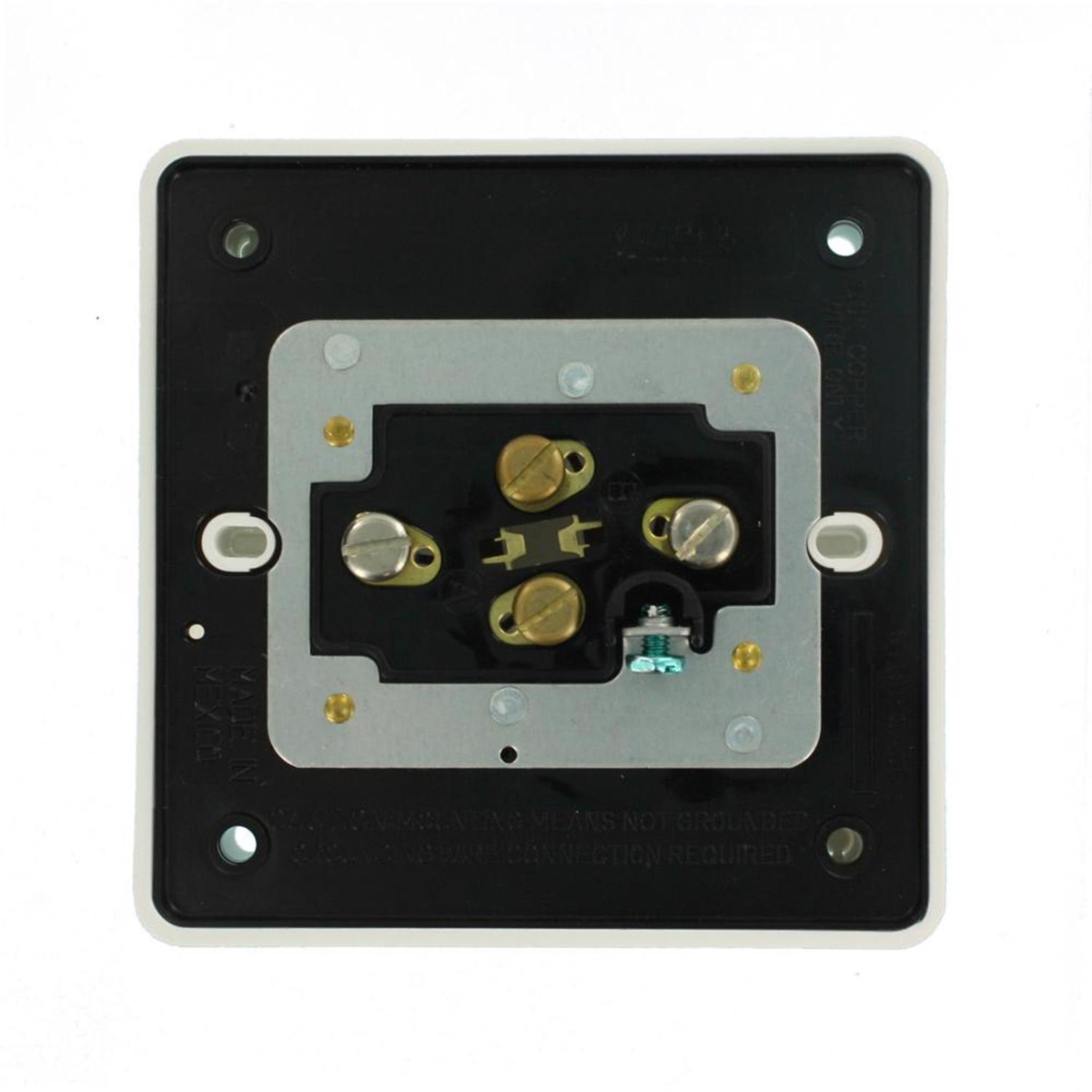

| Wiring Method | Side Wired |
| Amperage | 20 A |
| Leviton Specification Sheet | Specification Sheet |
|
| Straight Blade Receptacle Catalog Q 1101H | Catalog |
|
