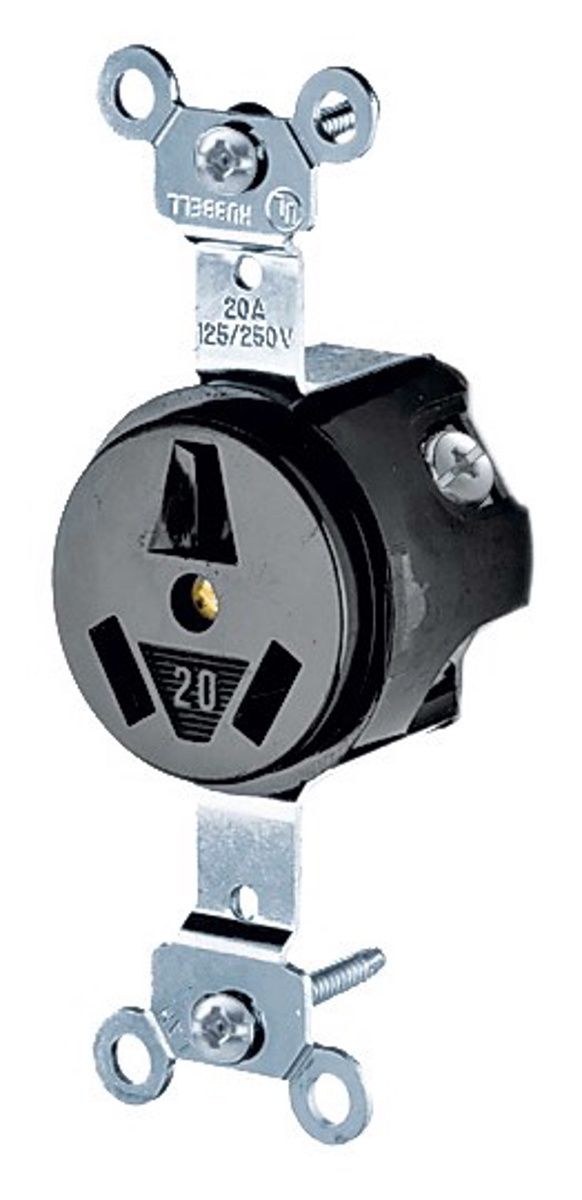

Hubbell Wiring Straight Blade Single Receptacles 20 A 125/250 V 3P3W 10-20R Industrial Classic Design Dry Location Black
Mfg #:
HBL6810
BOR #:
136442
| Brand | Hubbell Wiring |
| Pole/Wire | 3P3W |
| Voltage | 125/250 V |
| NEMA Configuration | 10-20R |
| Ground Type | Non-grounding |
| Color | Black |
| Environmental Condition | Dry Location |
| Illumination | No Illumination |
| Device Configuration | Single Receptacle |
| Insulation | Uninsulated |
| Hazardous Rated | Not Hazardous Rated |
| Material | Thermoset |
| Number of Phases | 1 Phase |
| IP Rating | IP20 |
| Grade | Industrial |
| Mounting Type | Screw |
| Wire Size | 14 - 10 AWG |
| Number of Poles | 3 Pole |
| Wiring Method | Back and Side Wired |
| Amperage | 20 A |
| Series | Classic Design |
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| Catalog Full Asset Reference | Catalog |
|
| Catalog Page Asset Reference 2 | Catalog |
|
| Catalog Page Asset Reference 1 | Catalog |
|
