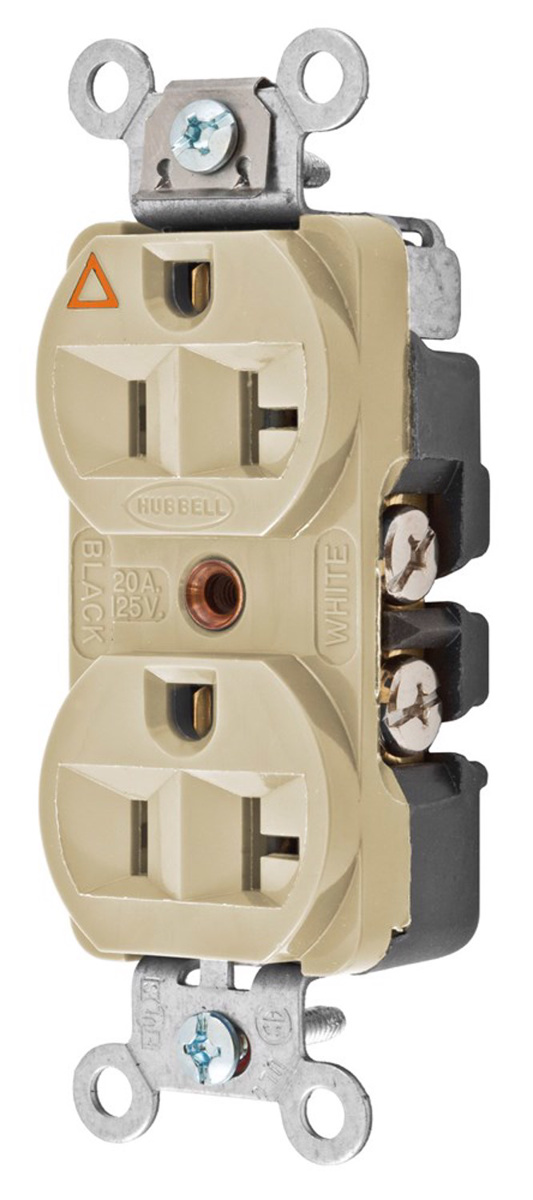

Hubbell Wiring Straight Blade Duplex Receptacles 20 A 125 V 2P3W 5-20R Commercial Hubbell-Pro™ Dry Location Ivory
| Brand | Hubbell Wiring |
| Pole/Wire | 2P3W |
| Voltage | 125 V |
| NEMA Configuration | 5-20R |
| Ground Type | Isolated Grounding |
| Design | Duplex |
| Color | Ivory |
| Environmental Condition | Dry Location |
| Illumination | No Illumination |
| Device Configuration | Receptacle |
| Insulation | Uninsulated |
| Hazardous Rated | Not Hazardous Rated |
| Receptacle Style | Finder Groove |
| Material | Composite |
| Number of Phases | 1 Phase |
| Grade | Commercial |
| Mounting Type | Screw |
| Wire Size | 12 - 10 AWG |
| Number of Poles | 2 Pole |
| Wiring Method | Back and Side Wired |
| Amperage | 20 A |
| Series | Hubbell-Pro™ |
| Installation Manuals Asset Reference 2 | Installation and Instruction Manuals |
|
| Installation Manuals Asset Reference 1 | Installation and Instruction Manuals |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| Catalog Page Asset Reference 1 | Catalog |
|
| Catalog Page Asset Reference 2 | Catalog |
|
| Catalog Full Asset Reference | Catalog |
|
