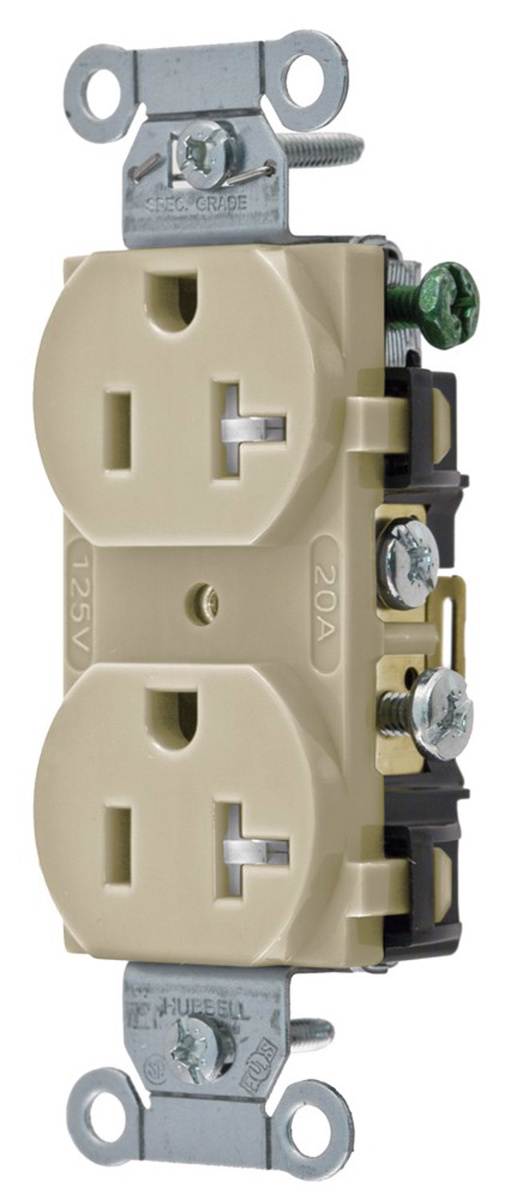

Hubbell Wiring Straight Blade Duplex Receptacles 20 A 125 V 2P3W 5-20R Commercial CR Tamper-resistant Ivory
Mfg #:
CR20ITR
BOR #:
2261235
| Brand | Hubbell Wiring |
| Pole/Wire | 2P3W |
| Voltage | 125 V |
| NEMA Configuration | 5-20R |
| Ground Type | Grounding |
| Design | Duplex |
| Color | Ivory |
| Environmental Condition | Tamper-resistant |
| Illumination | No Illumination |
| Device Configuration | Receptacle |
| Insulation | Uninsulated |
| Hazardous Rated | Not Hazardous Rated |
| Material | Nylon |
| Number of Phases | 1 Phase |
| Grade | Commercial |
| Mounting Type | Screw |
| Wire Size | 14 - 10 AWG |
| Number of Poles | 2 Pole |
| Wiring Method | Side Wired |
| Amperage | 20 A |
| Series | CR |
| WIRING_PD1579_INSTALLINST | Installation and Instruction Manuals |
|
| Wiring A-24 Catalog page | Catalog |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
Tamper Resistant Receptacle Mechanisms
We refined the design and functionality of traditional tamper-resistant plastic shutter mechanisms....
