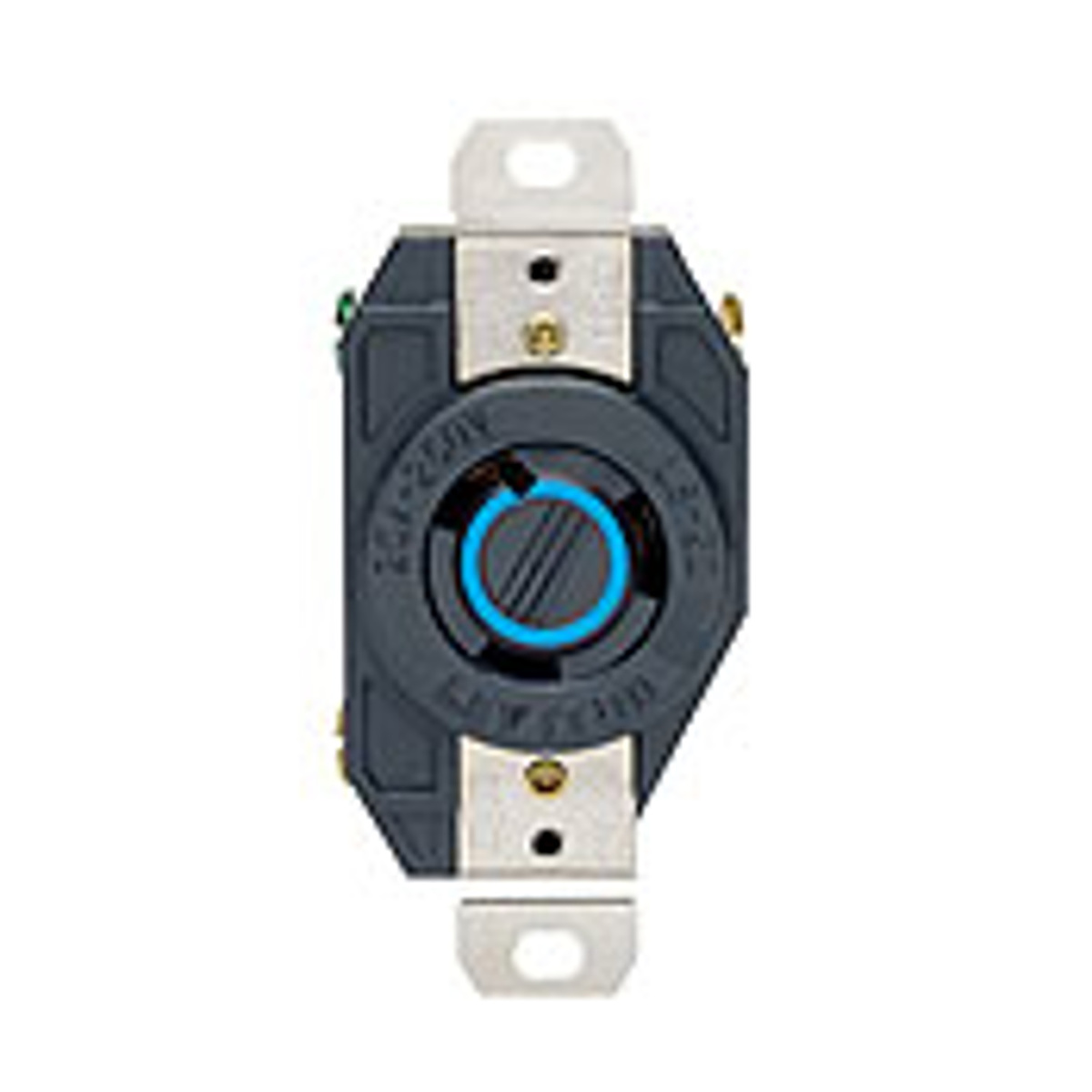

Leviton V-0-Max™ Series Locking Receptacles 20 A 250 V 2P3W L6-20R

Mfg #: 2320

BOR #: 121673

View all 37 in product family

Looking for prices?

Create an Account

Heavy-duty construction for top performance in the environmental extremes of grueling industrial settings

Locking devices feature a green LED bulb rated at 100,000 hours (Light located in the body of the device)
Green Power Light confirms power status at the plug or connector
When Power Light devices are energized and current is present the Power Light is "on"
When de-energized and current is no longer present, the light is "off"
Bulb assembly is factory installed and requires no added steps when assembling devices
Catalog and NEMA numbers are printed on the cord clamp to assist with product identification

Product can be ordered only in multiples of

Brand	Leviton
Illumination	No Illumination
Temperature Rating	-40 to 60 deg C
Standards	NEMA, ANSI, NOM Certified, CSA C22.2 No.42,UL Fed Spec WC-596, UL Listed 498
Size	3.63 H x 1.69 W x 1.31 D

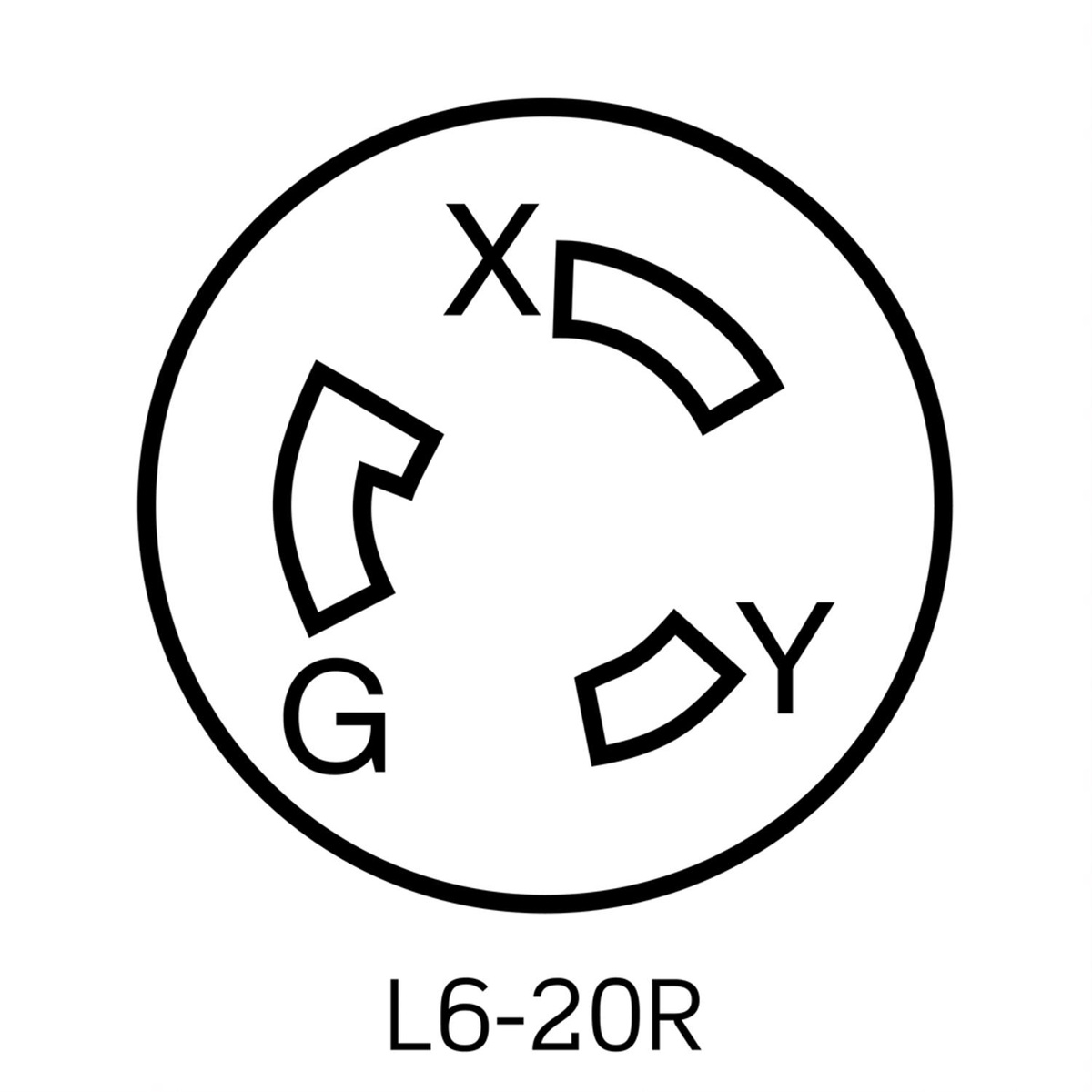

NEMA Configuration	L6-20R
Type	Receptacle
Wire Size	14 - 8 AWG
Ground Type	Grounding
Mounting Type	Screw
Voltage	250 V
Hazardous Rated	Not Hazardous Rated
Grade	Industrial
Device Configuration	Single Receptacle
Wiring Method	Back and Side Wired
Width	1.69 in
Environmental Condition	Dry Location
Color	Black
Amperage	20 A
Pole/Wire	2P3W
NEMA Rating	WD-1 & WD-6
Number of Phases	1 Phase
Material	Valox
Insulation	Uninsulated
Number of Poles	2 Pole
