Leviton V-0-Max™ Series Locking Receptacles 20 A 125 V 2P3W L5-20R
Mfg #:
2310
BOR #:
121647
Heavy-duty construction for top performance in the environmental extremes of grueling industrial settings
- Locking devices feature a green LED bulb rated at 100,000 hours (Light located in the body of the device)
- Green Power Light confirms power status at the plug or connector
- When Power Light devices are energized and current is present the Power Light is "on"
- When de-energized and current is no longer present, the light is "off"
- Bulb assembly is factory installed and requires no added steps when assembling devices
- Catalog and NEMA numbers are printed on the cord clamp to assist with product identification
| Brand | Leviton |

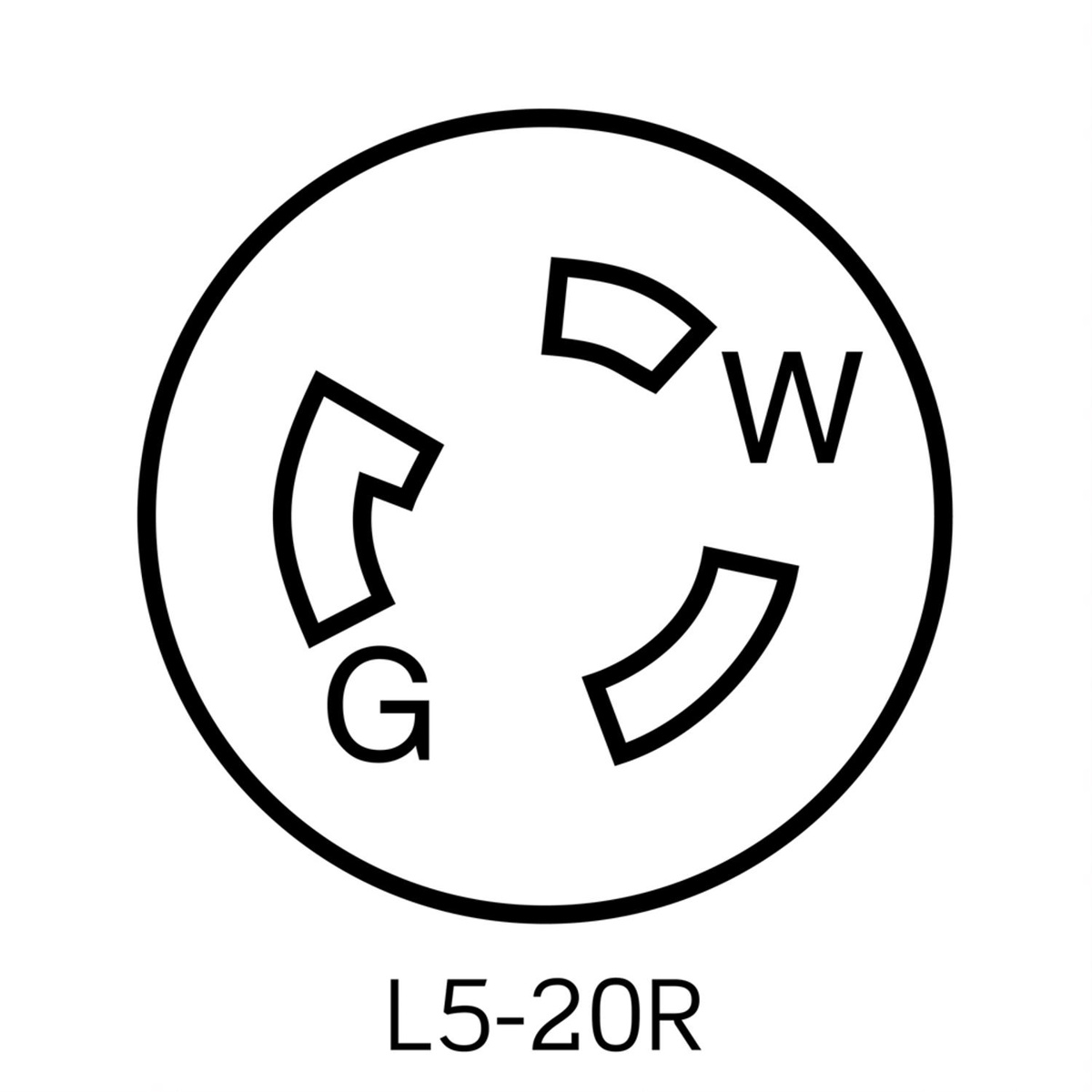

| NEMA Configuration | L5-20R |
| Type | Receptacle |
| Wire Size | 14 - 8 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 125 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Single Receptacle |
| Wiring Method | Back and Side Wired |
| Width | 1.69 in |
| Environmental Condition | Dry Location |
| Color | Black |
| Amperage | 20 A |
| Pole/Wire | 2P3W |
| NEMA Rating | WD-1 & WD-6 |
| Number of Phases | 1 Phase |
| Material | Valox |
| Insulation | Uninsulated |
| Number of Poles | 2 Pole |
| Leviton Specification Sheet | Specification Sheet |
|
