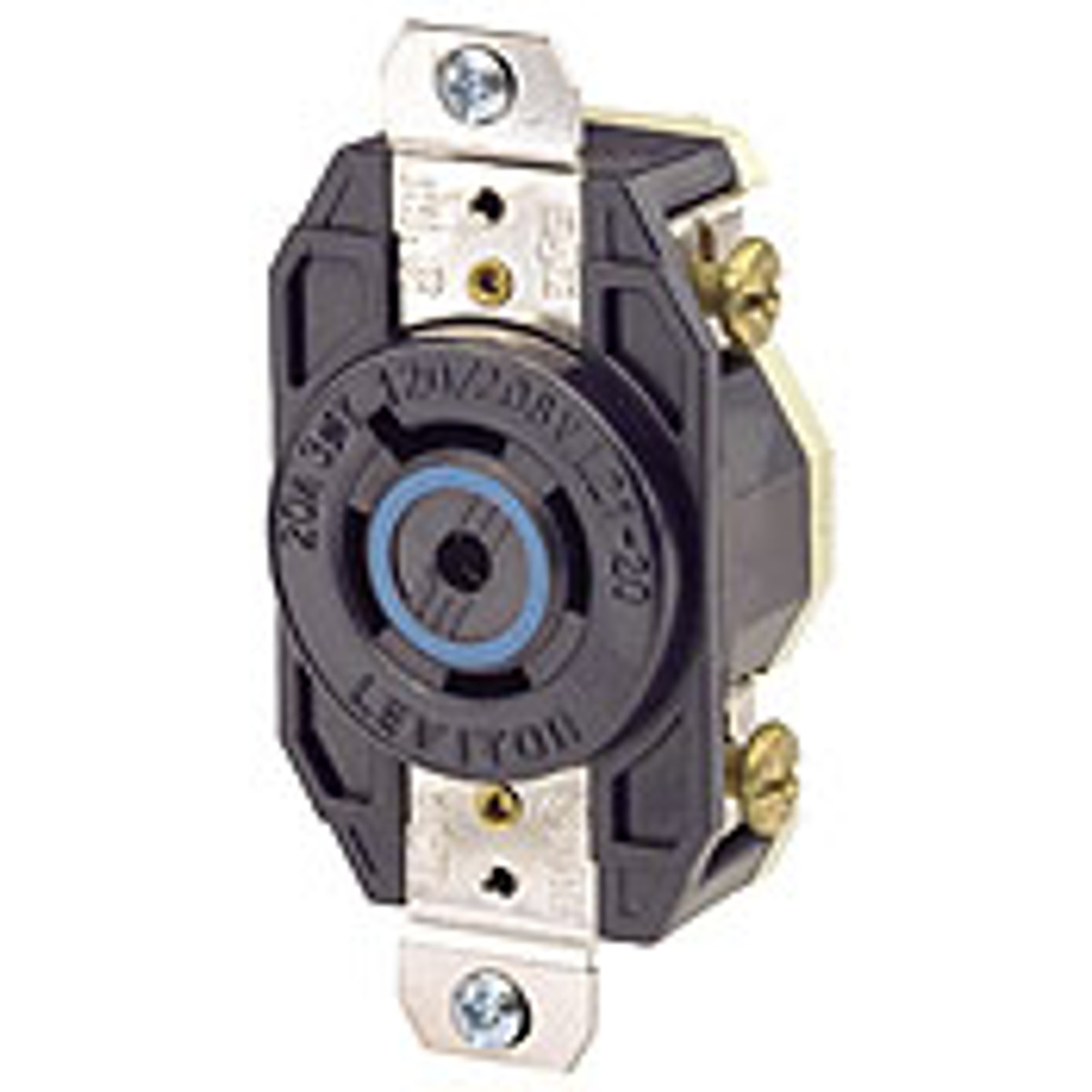

Leviton V-0-Max™ Series Locking Receptacles 20 A 120/208 V 4P5W L21-20R
Mfg #:
2510
BOR #:
122148
Heavy-duty construction for top performance in the environmental extremes of grueling industrial settings
- Locking devices feature a green LED bulb rated at 100,000 hours (Light located in the body of the device)
- Green Power Light confirms power status at the plug or connector
- When Power Light devices are energized and current is present the Power Light is "on"
- When de-energized and current is no longer present, the light is "off"
- Bulb assembly is factory installed and requires no added steps when assembling devices
- Catalog and NEMA numbers are printed on the cord clamp to assist with product identification
| Brand | Leviton |
| Illumination | No Illumination |
| Temperature Rating | -40 to 60 deg C |
| Size | 3.63 H x 1.69 W x 1.31 D |

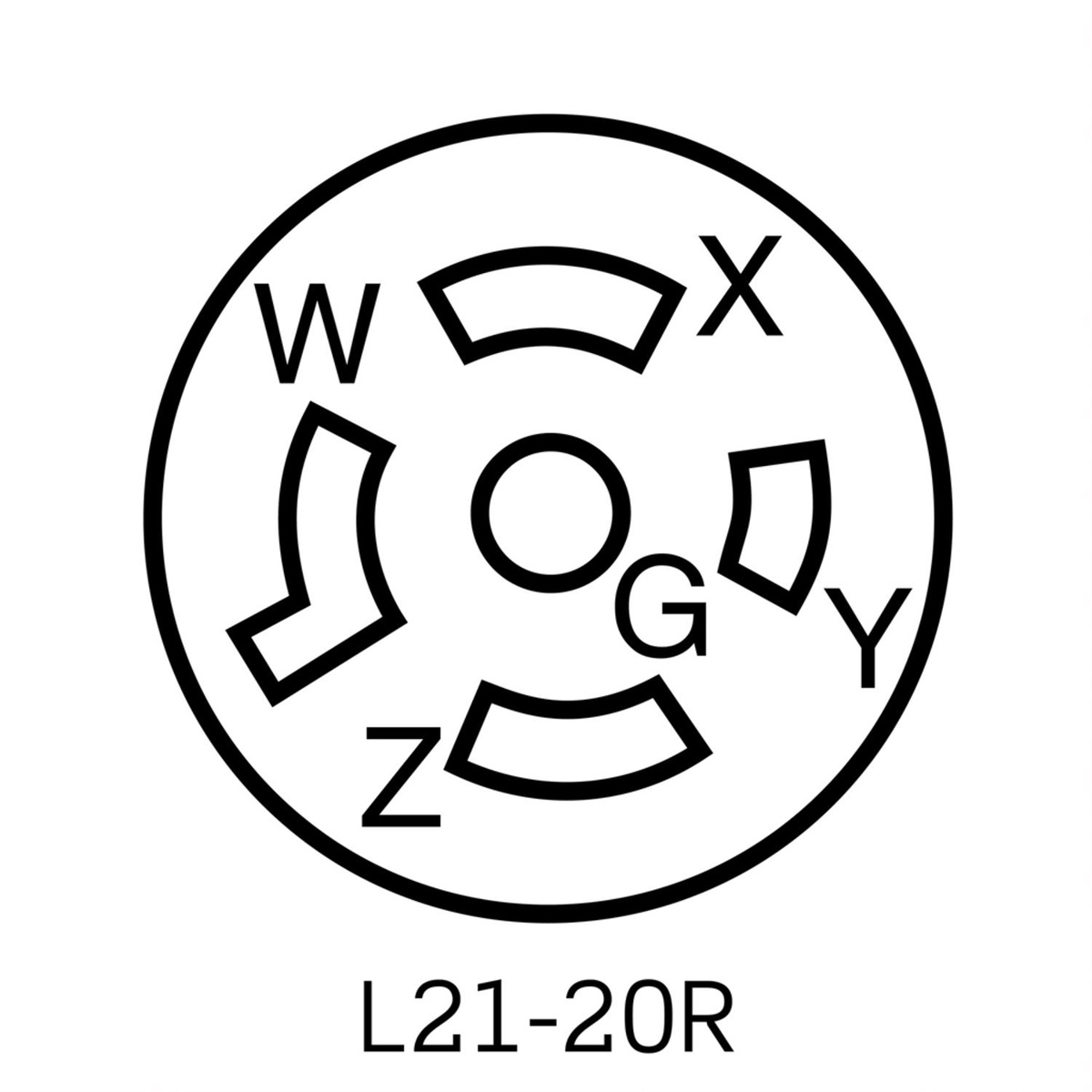

| NEMA Configuration | L21-20R |
| Type | Receptacle |
| Wire Size | 14 - 8 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 120/208 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Single Receptacle |
| Wiring Method | Back and Side Wired |
| Width | 1.69 in |
| Environmental Condition | Corrosive |
| Color | Black |
| Amperage | 20 A |
| Pole/Wire | 4P5W |
| NEMA Rating | WD-1 & WD-6 |
| Number of Phases | 3 Phase |
| Material | Nylon |
| Insulation | Uninsulated |
| Number of Poles | 4 Pole |
| Leviton Specification Sheet | Specification Sheet |
|
