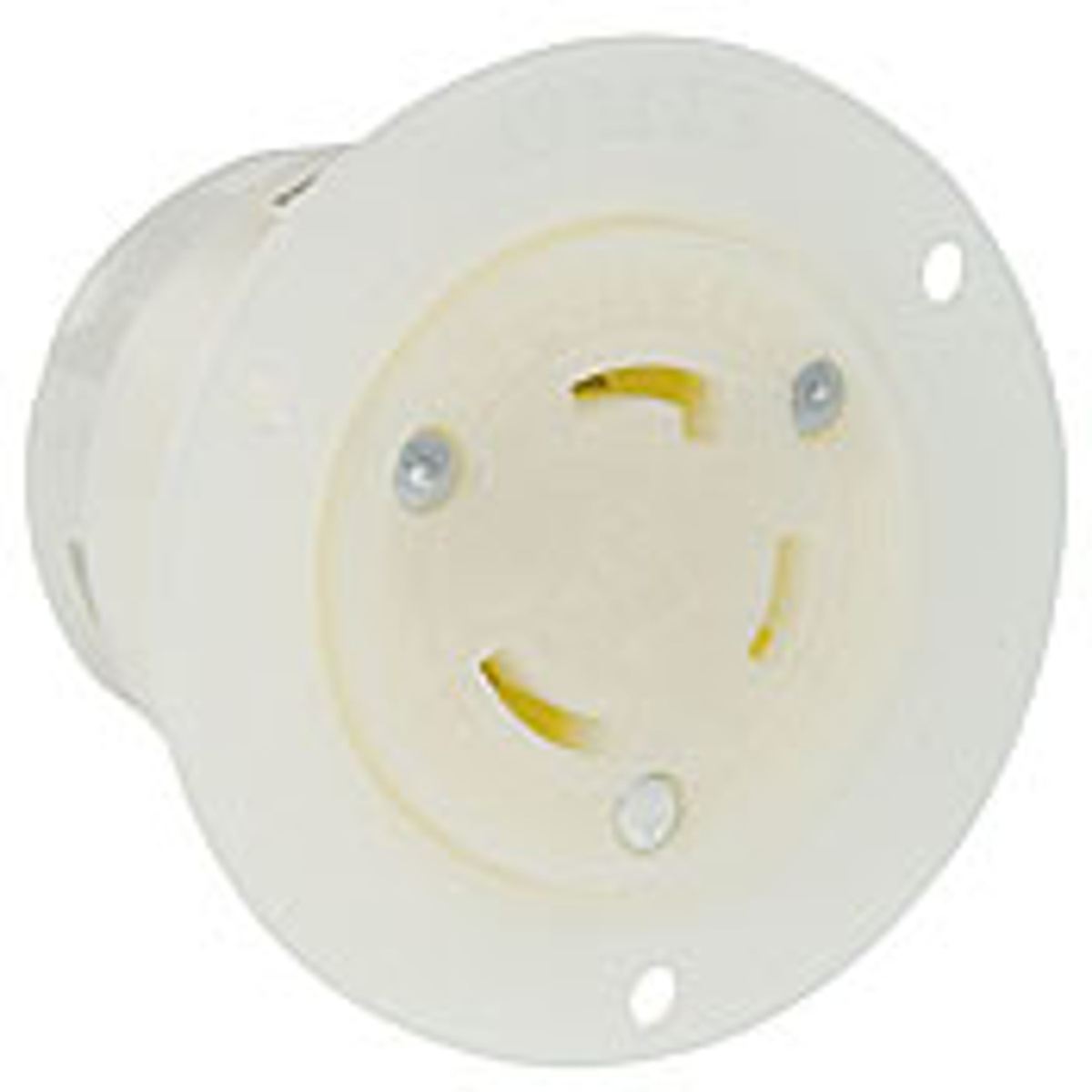

Leviton V-0-Max™ Series Locking Flanged Receptacles 30 A 125 V 2P3W L5-30R

Mfg #: 2616

BOR #: 121768

View all 13 in product family

Looking for prices?

Create an Account

Heavy-duty construction for top performance in the environmental extremes of grueling industrial settings

Product can be ordered only in multiples of

Illumination	No Illumination
Temperature Rating	-40 to 60 deg C
Standards	NEMA, ANSI, NOM Certified, CSA C22.2 No. 42, UL Fed Spec WC-596, UL Listed 498
Size	2.88 Dia x 2.11 H
Brand	Leviton

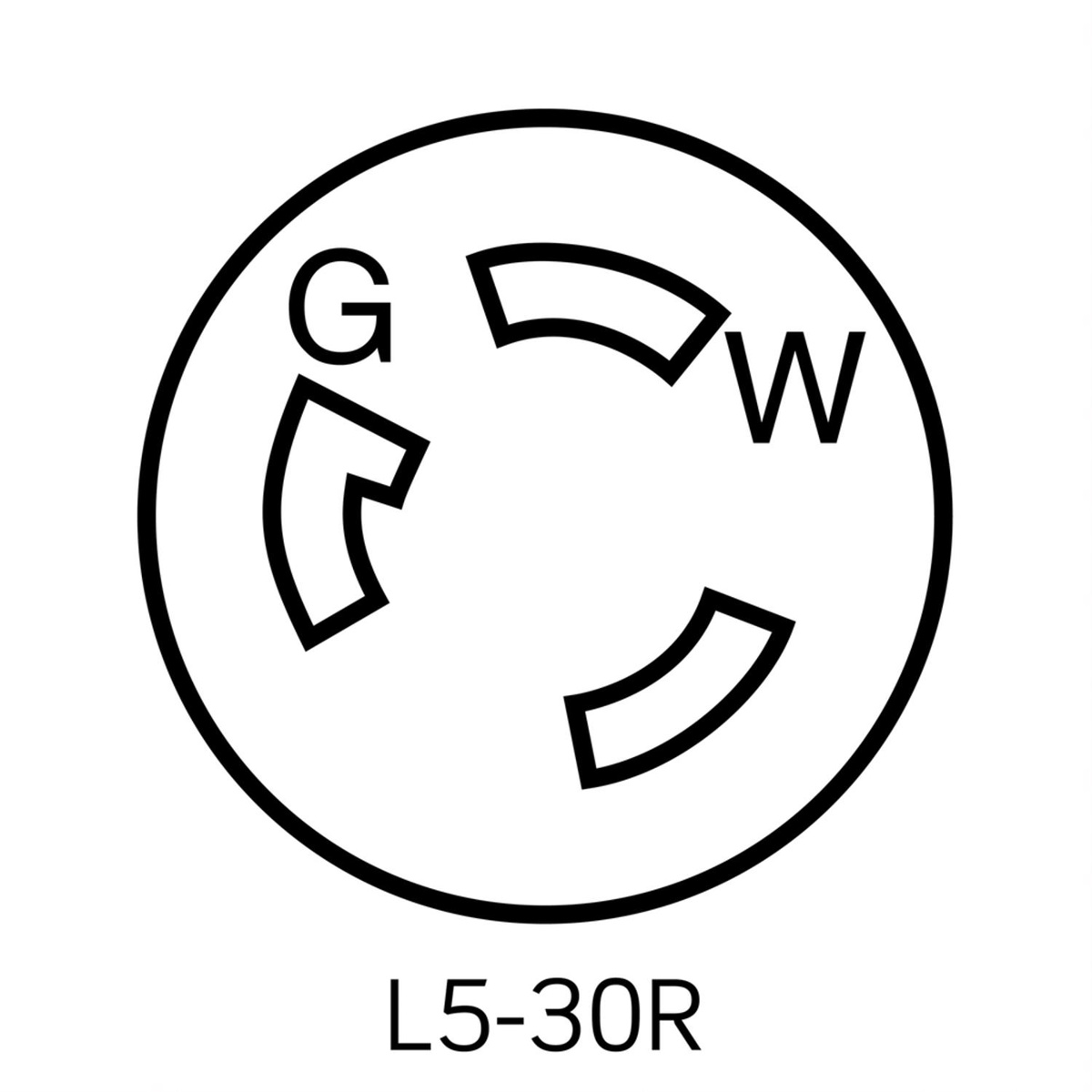

NEMA Configuration	L5-30R
Type	Receptacle
Wire Size	18 - 10 AWG
Ground Type	Grounding
Mounting Type	Screw
Voltage	125 V
Hazardous Rated	Not Hazardous Rated
Grade	Industrial
Device Configuration	Single Receptacle
Wiring Method	Back Wired
Width	2-1/2 in
Design	Flanged
Environmental Condition	Dry Location
Color	White
Amperage	30 A
Pole/Wire	2P3W
NEMA Rating	WD-6
Number of Phases	1 Phase
Material	Nylon
Insulation	Uninsulated
Number of Poles	2 Pole
