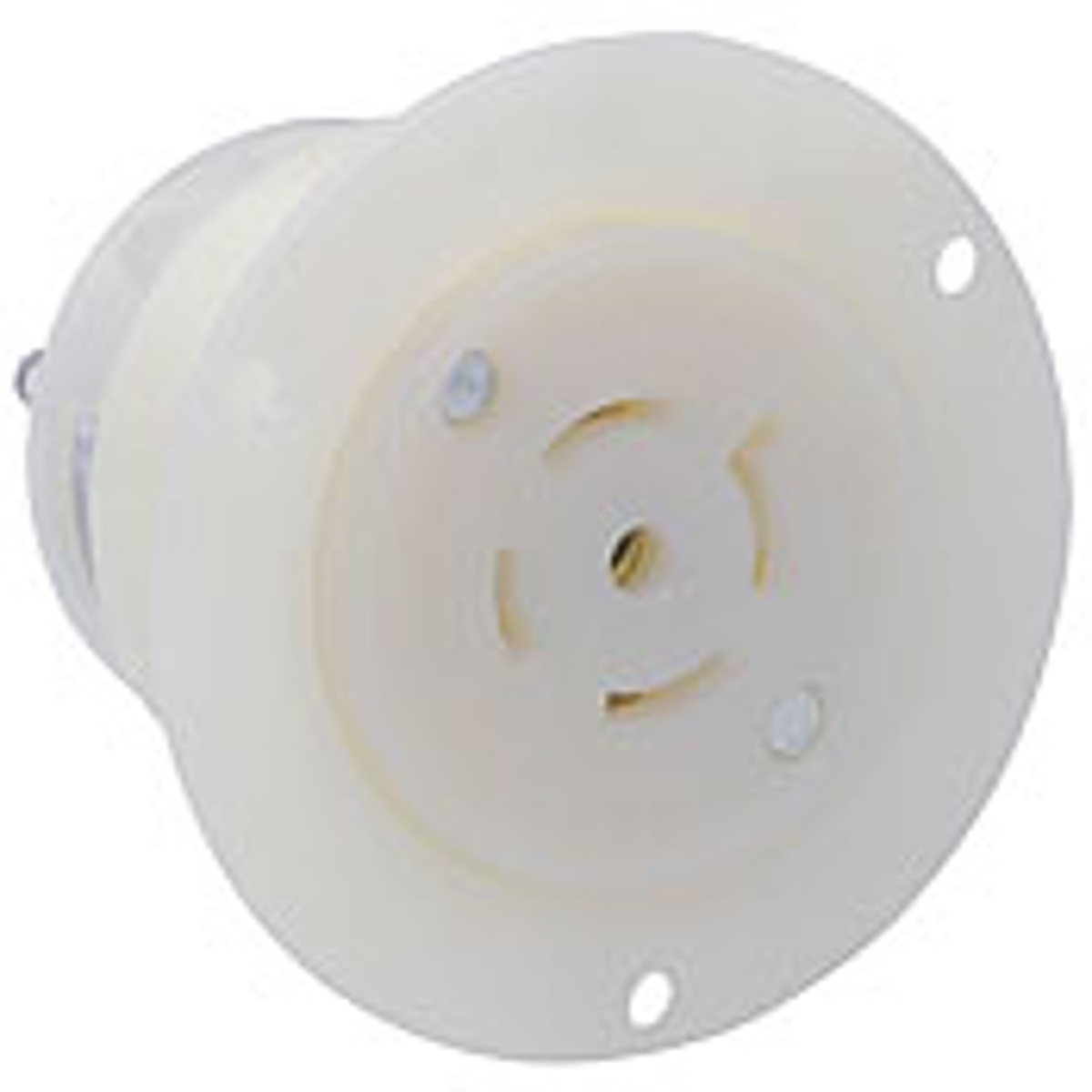

Leviton V-0-Max™ Series Locking Flanged Receptacles 20 A 120/208 V 4P5W L21-20R
Mfg #:
2516
BOR #:
636499
Heavy-duty construction for top performance in the environmental extremes of grueling industrial settings
| Illumination | No Illumination |
| Temperature Rating | -40 to 60 deg C |
| Size | 2.50 Dia x 1.78 H |
| Brand | Leviton |

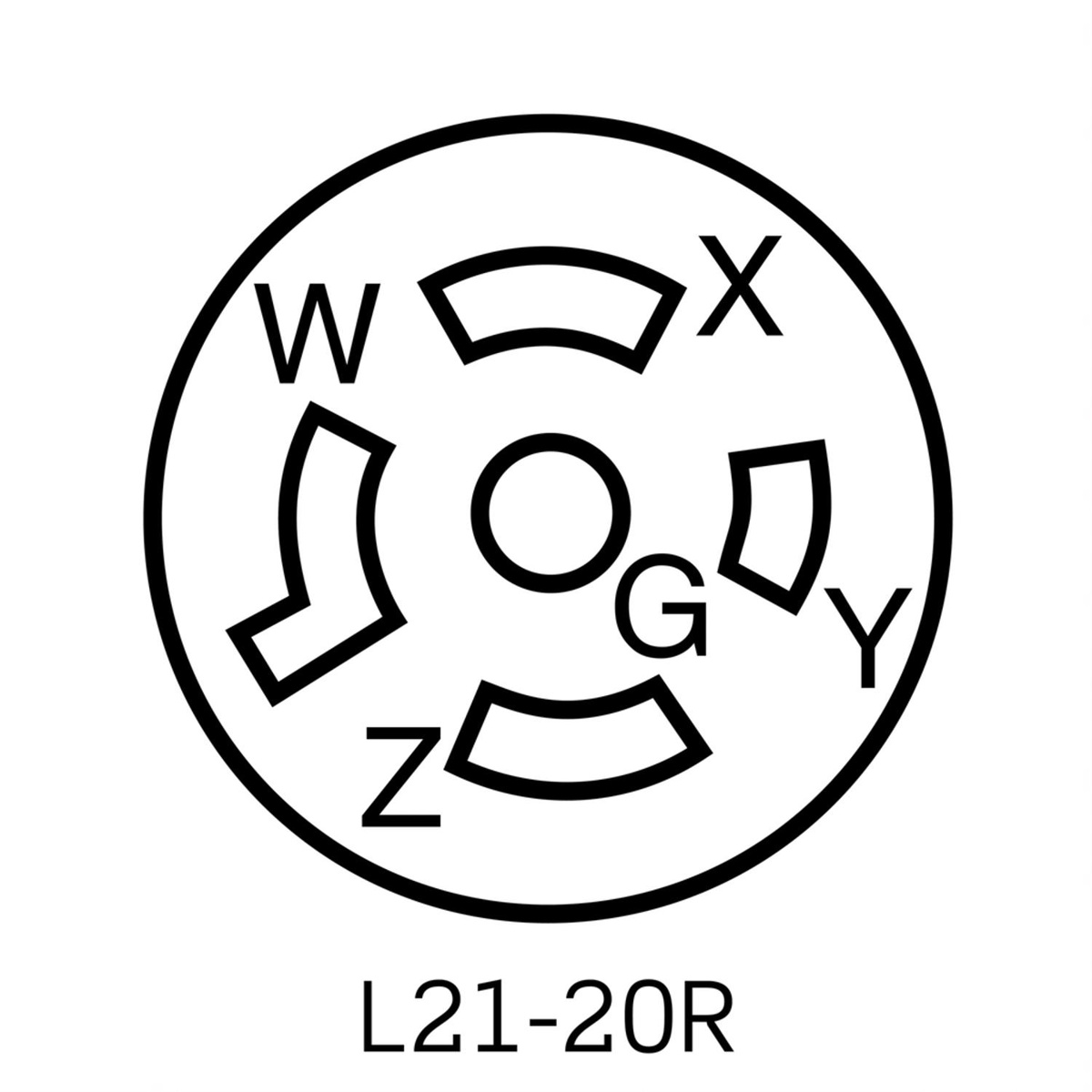

| NEMA Configuration | L21-20R |
| Type | Receptacle |
| Wire Size | 18 - 10 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 120/208 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Single Receptacle |
| Wiring Method | Back Wired |
| Width | 2.69 in |
| Design | Flanged |
| Environmental Condition | Dry Location |
| Color | White |
| Amperage | 20 A |
| Pole/Wire | 4P5W |
| NEMA Rating | L21-20R |
| Number of Phases | 3 Phase |
| Material | Nylon |
| Insulation | Uninsulated |
| Number of Poles | 4 Pole |
| Leviton Specification Sheet | Specification Sheet |
|
