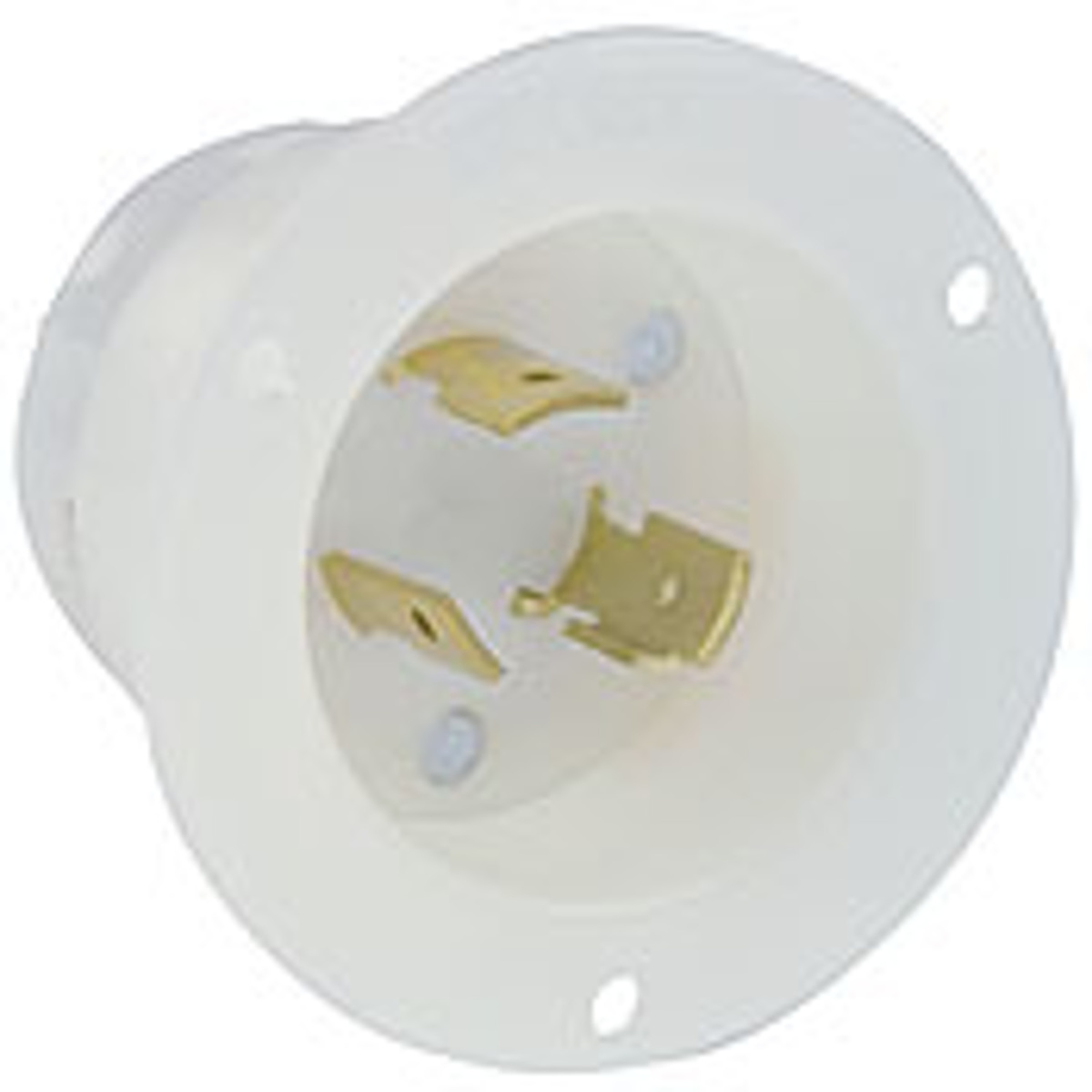

Leviton V-0-Max™ Series Locking Flanged Inlets 20 A 125/250 V 3P3W L10-20P
Mfg #:
2365
BOR #:
121766
Heavy duty construction for top performance in the environmental extremes of grueling industrial settings
| Brand | Leviton |
| Illumination | No Illumination |

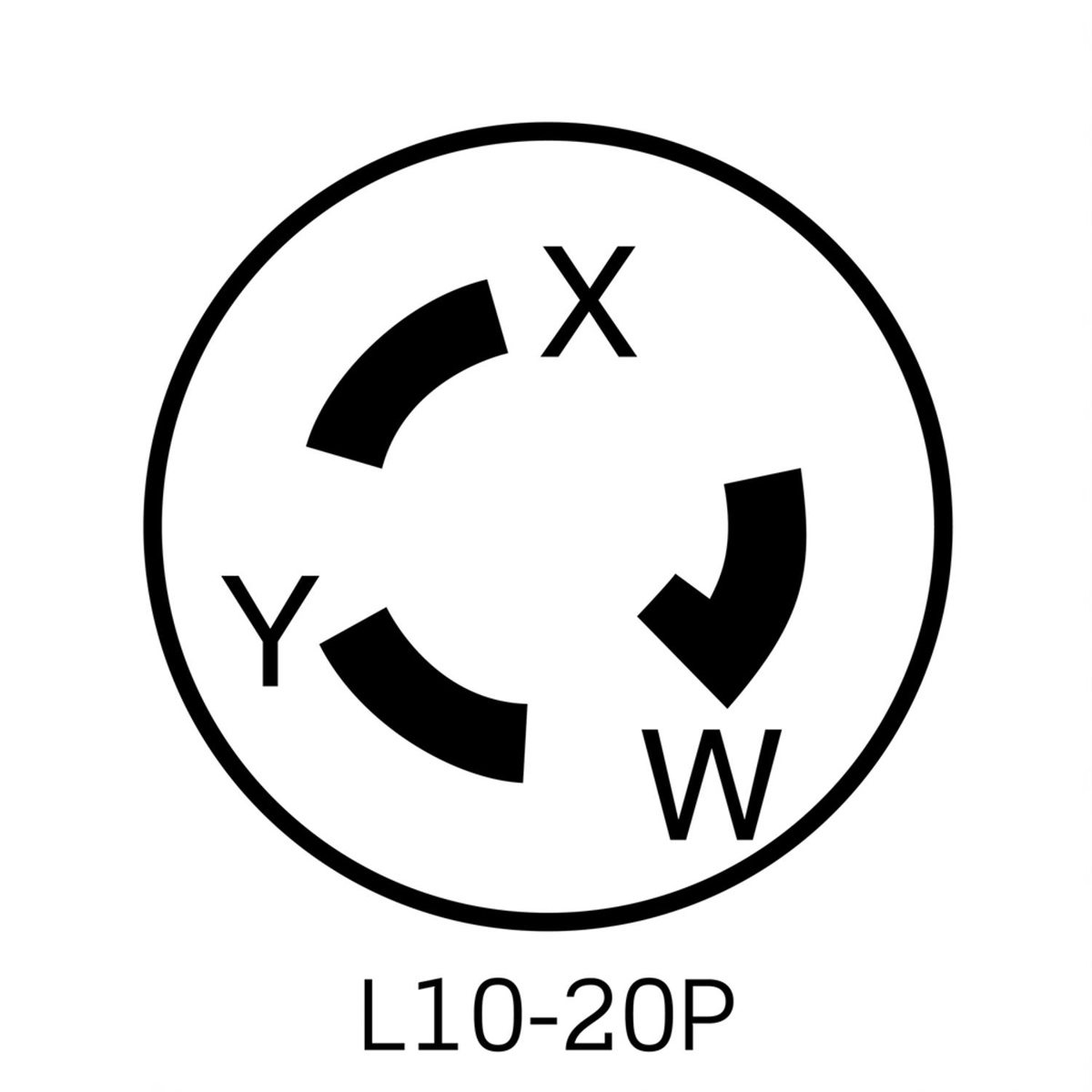

| NEMA Configuration | L10-20P |
| Type | Inlet |
| Wire Size | 18 - 10 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 125/250 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Flanged Inlet, Locking |
| Wiring Method | Back Wired |
| Width | 2-1/2 in |
| Design | Flanged |
| Environmental Condition | Dry Location |
| Color | White |
| Amperage | 20 A |
| Pole/Wire | 3P3W |
| NEMA Rating | WD-6 |
| Number of Phases | 1 Phase |
| Material | Nylon |
| Insulation | Uninsulated |
| Number of Poles | 3 Pole |
| Leviton Specification Sheet | Specification Sheet |
|
