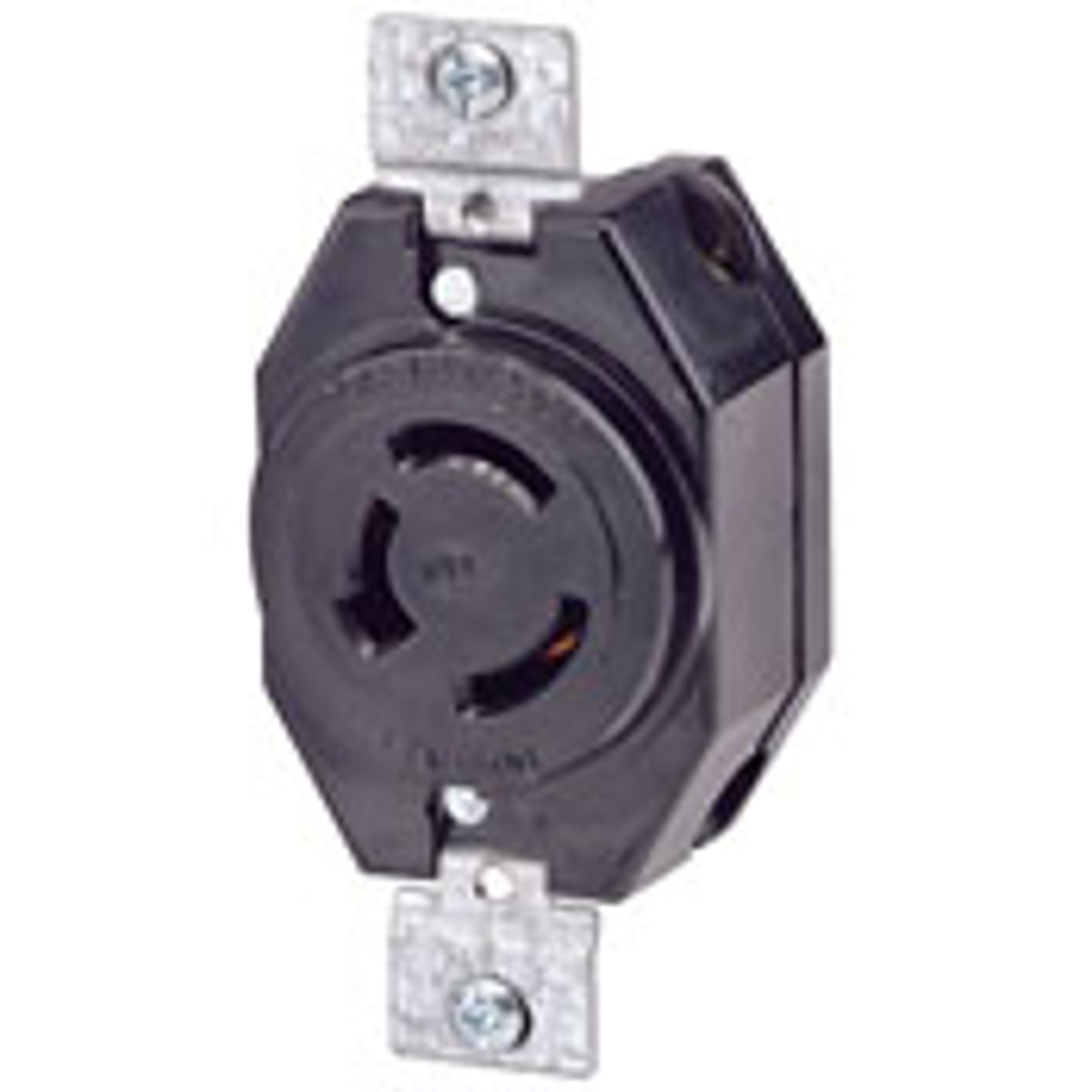

Leviton 7000 Series Locking Receptacles 20 A 120/208 V 4P4W Non-NEMA
Mfg #:
7410B
BOR #:
122781
| Illumination | No Illumination |
| Temperature Rating | -40 to 60 deg C |
| Size | 3.62 H x 1.70 W x 1.43 D |
| Brand | Leviton |

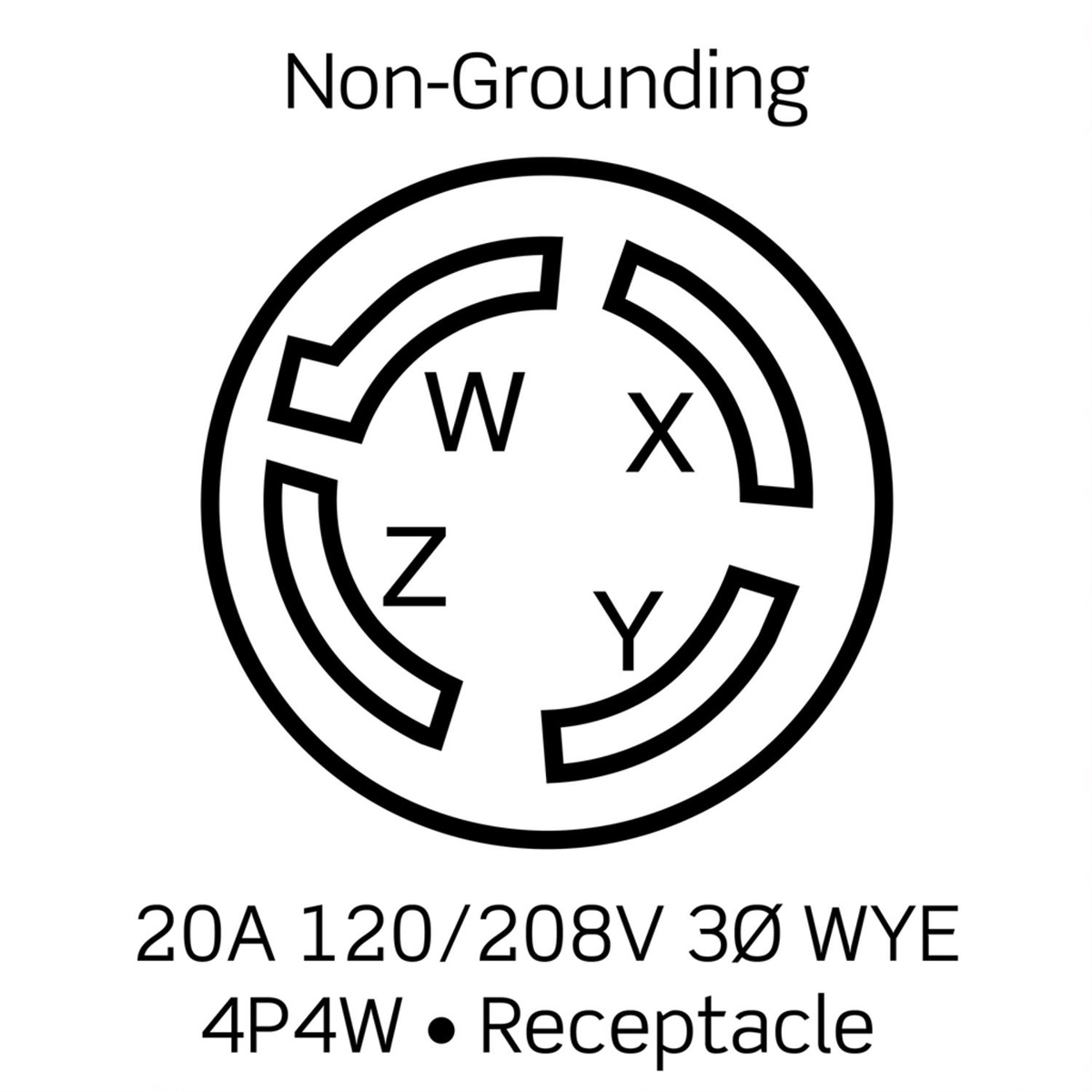

| NEMA Configuration | Non-NEMA |
| Type | Receptacle |
| Wire Size | 18 - 10 AWG |
| Ground Type | Non-grounding |
| Mounting Type | Screw |
| Voltage | 120/208 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Single Receptacle |
| Wiring Method | Back and Side Wired |
| Width | 1.7 in |
| Environmental Condition | Dry Location |
| Color | Black |
| Amperage | 20 A |
| Pole/Wire | 4P4W |
| NEMA Rating | WD-6 |
| Number of Phases | 3 Phase |
| Material | Nylon |
| Insulation | Uninsulated |
| Number of Poles | 4 Pole |
| Leviton Specification Sheet | Specification Sheet |
|
